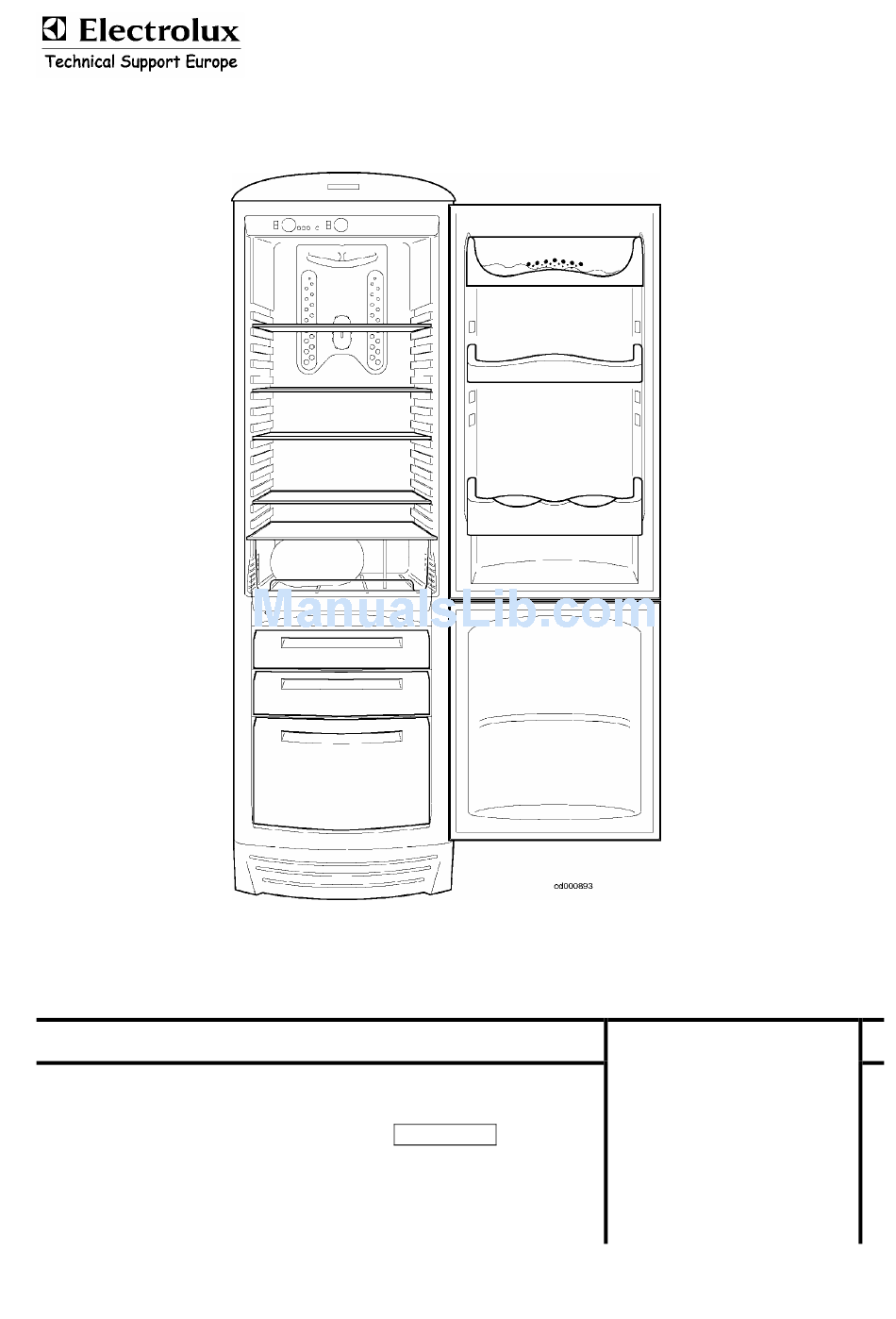

- Page 1 SERVICE MANUAL REFRIGERATION EUROFLEC © ELECTROLUX ZANUSSI Publication No. ELETTRODOMESTICI S.p.A. 599 34 85-04 (EUROCOMBI version) VIA GIARDINI CATTANEO, 3 2001-09-05 I - 33170 PORDENONE (ITALY) ITZ/SERVICE/AA Fax (0434) 394096...
- Page 2 EUROFLEC 2/36...
-
Page 3: Table Of Contents
9. Accessibility of components........................28 9.1. Refrigerator compartment ........................28 9.2. Displaying board (UIB)...........................30 9.3. Freezer compartment..........................31 9.4. Glass shelves............................33 9.5. Air inlets ..............................33 9.6. Control and power board (MB).......................34 10. Main differences between the EUROCOMBI and the EUROFLEC model ...........35 EUROFLEC 3/36... - Page 4 EUROFLEC 4/36...
-
Page 5: Introduction
The PNCs of EUROFLEC model start with 928 405 xxx as for the EUROCOMBI model, therefore, in order to know which model it is, you need to check the power board which has been installed by referring to the... -
Page 6: Euroflec: Total Nofrost
1.2. EUROFLEC: total nofrost The EUROFLEC is a total no-frost appliance, and as such its operation is based exclusively on the battery evaporator in the freezer compartment, which cools the air; the fan circulates the air. A duct embedded in foam channels the cold air into the refrigerator compartment, where the flap-operated mechanical thermostat regulates the flow of cold air and thus the temperature inside the refrigerator compartment. -
Page 7: Characteristics
2. Characteristics 2.1. Dimensions and volumes The EUROFLEC models are numbered from 1 to 9 (n° 7 has been eliminated): Model no. Height 1950 1800 1800 1800 1650 1650 1750 1950 Width Depth Gross vol. freezer litres Gross vol. fridge litres Total gross vol. - Page 8 -24°C -12°C Normal operating times: Pre-determined** Hours Minimum Hours Maximum Hours ** A six-hour operating cycle is performed each time the appliance is switched on. Defrosting: Standard time Minutes Maximum time Minutes Temp. for end of defrosting °C EUROFLEC 8/36...
-
Page 9: Diagrams
3. Diagrams 3.1 Functional diagram The control system of the EUROFLEC consists of a UIB user interface board and a MB control and power board with the following inputs and outputs: INPUTS: Freezer door switch; NTC sensor on evaporator; NTC sensor in air;... - Page 10 EUROFLEC 10/36...
- Page 11 16. freezer door switch; 24. evaporator/condenser fan; 26. safety thermal switch; 28. running condenser; 41. display board (UIB); 41a. control and power board (MB); 56. NTC sensor refrigerator (optional); 57. NTC sensor freezer in air; 59. NTC sensor freezer evaporator; EUROFLEC 11/36...
-
Page 12: Components
3. evaporator battery; 4. evaporator fan; 5. defrosting heater; 6. drainage duct heater; 7. NTC sensor in air; 8. thermal switch (+55°C) and NTC sensor on evaporator; 9. control and power board (MB); 10. condenser fan; 11. condenser; 12. compressor; EUROFLEC 12/36... - Page 13 EUROFLEC 13/36...
-
Page 14: Uib Display Board
(reed element). For the version with ELECTROLUX mark, in the reed element board (B) there are also the two LEDs (red and green)(A) to display the operation of the refrigerator through the hole drilled on the door. -
Page 15: Mb Control And Power Board
NTC safety sensor for the protection of electric components against overheating; if the temperature of the compressor compartment exceeds 80°C , the compressor stops and the condenser fan stays on. The compressor starts again when the temperature falls below 65°C ; EUROFLEC 15/36... -
Page 16: Foamed Connectors Seat
Inside the freezer compartment, behind the panel of the evaporator battery, there are the foamed connectors where the NTC sensors (A), the defrosting heaters (B), the evaporator fan (C) and the freezer door switch (D) must be connected. EUROFLEC 16/36... -
Page 17: Fans
As the freezer compartment is cooled only by the cold air ducted in by the evaporator fan, after 30 minutes the fan switches on, even if the compressor is still switched off, while the condenser fan is off till the compressor starts again. Compressor Condenser fan Evaporator fan EUROFLEC 17/36... -
Page 18: Operation With Door Opened And Compressor Switched On
If one of the two doors is opened while the compressor is switched off, in the span of 30 minutes during which also the fans are switched off, the evaporator fan is activated for 2 minutes after the door closes. After 2 minutes, the evaporator fan switches off automatically. Compressor Condenser fan Evaporator fan Doors EUROFLEC 18/36... -
Page 19: Defrosting Heaters
The two thermal cut-outs are connected together as one component, therefore they are not available as single spare part. 4.9. Freezer compartment light According to the model, 2 normal lamps or 1 halogen lamp supply the light on the freezer compartment. EUROFLEC 19/36... -
Page 20: Evaporator
+15°C (only if in the refrigerator compartment there is no food, this function is used to keep the door closed thus avoiding the formation of bad odours). EUROFLEC 20/36... -
Page 21: Operation
4 hours and an upper limit of 25 hours. In this way, the appliance adapts the duration of the normal operating cycle to the duration of the previous defrosting cycle: this is the concept of adaptivity which distinguishes the EUROFLEC range of fridge- freezers. -
Page 22: Control Panel
In order to ensure that the circuit does not remain pressurised, the electronic system introduces a 5-minute delay in compressor start-up each time the appliance is switched on. If it is desired to override this delay, press the alarm buttons (b and c) simultaneously within 15 seconds after switching on the appliance. EUROFLEC 22/36... -
Page 23: Door Alarm
The electronic control system memorises the time that has elapsed after selection of the “rapid freezing” function so that, in the event of a temporary power failure, the function does not restart from the beginning, but from the point at which it was interrupted. EUROFLEC 23/36... -
Page 24: Ntc Sensors Failure
22 minutes failure Evaporator NTC First start 6 hours 10 min pause 22 minutes sensor + Air NTC 15 min run sensor During working latest time before latest times before 22 minutes failure failure (no adaptivity) EUROFLEC 24/36... -
Page 25: Service Mode
In case of a fault in one of the sensors, the LEDs will begin to flash as follows 5 seconds after selection of service mode: 1. NTC sensor on evaporator: LEDs (b) and (e) flash 2. ambient NTC sensor: LEDs (c) and (e) flash If no faults are detected, only the ON/OFF LED (e) flashes. EUROFLEC 25/36... -
Page 26: Separate Activation Of Loads
10 seconds, after pressing the “rapid freezing” button the buzzer counts the hundreds. To count the tenths and the unit of days the operation is the same. For the tenths press the “temperature” button and for the units the “door open” button. EUROFLEC 26/36... -
Page 27: Demo Mode
8.3. Exiting Demo mode To exit Demo mode, it is necessary to disconnect the appliance from the power supply. Press the ON/OFF button (e) for at least 2 seconds to enter Demo mode with the appliance switched off (Demo OFF operation). EUROFLEC 27/36... -
Page 28: Accessibility Of Components
(warning: heat the hooks with an hairdryer in order to avoid their breakage; the hooks are not replaceable). remove the thermostat rod cover; EUROFLEC 28/36... - Page 29 EUROFLEC 29/36...
-
Page 30: Displaying Board (Uib)
9.2. Displaying board (UIB) remove the board cover; remove the thermostat rod; detach the connectors of the PCB; remove the electronic board; EUROFLEC 30/36... -
Page 31: Freezer Compartment
EUROFLEC 31/36... - Page 32 (1), the evaporator sensor (2), the ambient sensor (3) and the freezer compartment door switch. EUROFLEC 32/36...
-
Page 33: Glass Shelves
B. 9.5. Air inlets The air inlets through which air returns to the freezer compartment are pressure-fitted. To remove them, simply lever off using a screwdriver. EUROFLEC 33/36... -
Page 34: Control And Power Board (Mb)
(1) and remove the housing (2). EUROFLEC 34/36... -
Page 35: Main Differences Between The Eurocombi And The Euroflec Model
EUROCOMBI : abbrev. PWB (power board) ; EUROFLEC : abbrev. MB (main board) ; has the function to control by means of a microprocessor; the buzzer for alarms is present; it has a 18 V DC power supply unit in place of the 21 V DC transformer;... - Page 36 ♦ Enabling the temperature alarm EUROCOMBI : 90 minutes after the end of defrosting (after 45 minutes only for Italian market) ; EUROFLEC : 90 minutes after the end of defrosting (for all markets) ; ♦ Protection of electronic components of the power board EUROCOMBI : the cut-in temperature is 75°C ;...
