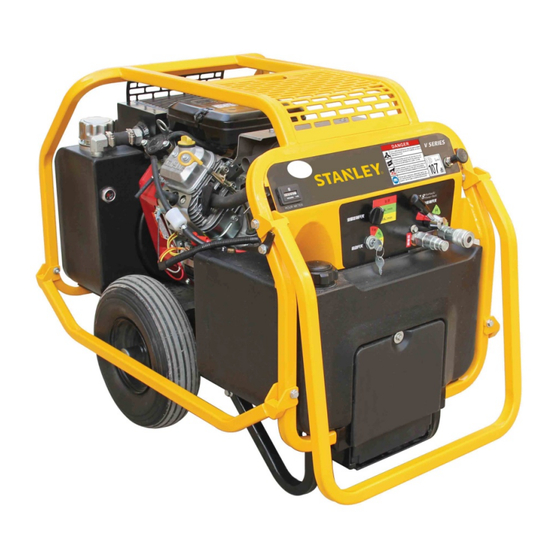

- Page 1 GPV18 V SERIES HYDRAULIC POWER UNIT USER MANUAL Safety, Operation and Maintenance 73418 1/2014 Ver. 1...
- Page 2 CERTIFICATE OF CONFORMITY 2 ► GPV18B02 User Manual...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at (503-659-5660) and ask for a Cus- tomer Service Representative. GPV18B02 User Manual ◄ 3... -
Page 4: Safety Symbols
SAFETY SYMBOLS Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair ac- tions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Tool operators and maintenance personnel must always • NEVER OPERATE THE POWER UNIT IN A comply with the safety precautions given in this manual and CLOSED SPACE. Inhalation of engine exhaust can be on the stickers and tags attached to the equipment. fatal. -
Page 6: Tool Stickers & Tags
TOOL STICKERS & TAGS Guaranteed Sound Power Level Decal GPV18B02 Only The above tag is attached to the tool before it is shipped, read carefully before operating. If tag is damaged, please replace it and keep clean. Re-attach tag to unit when not in use. Choke Safety Information Hour Meter... -
Page 7: Hydraulic Hose Types
HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► GPV18B02 User Manual... -
Page 9: Htma Requirements
HTMA / EHTMA REQUIREMENTS HTMA / EHTMA REQUIREMENTS HTMA TOOL TYPE HYDRAULIC SYSTEM REQUIREMENTS TYPE I TYPE II TYPE RR TYPE III 4-6 gpm 7-9 gpm 9-10.5 gpm 11-13 gpm Flow Range (15-23 lpm) (26-34 lpm) (34-40 lpm) (42-49 lpm) 1500 psi 1500 psi 1500 psi... -
Page 10: Operation
1. ENGINE CRANKCASE OIL LEVEL These fluids are recommended by Stanley Hydraulic Tools. Other fluids that meet or exceed the specifications of these Always check the oil level before starting the engine. Make fluids may also be used. - Page 11 OPERATION CONTROL PANEL CONTROL PANEL QUICK DISCONNECT COUPLERS Figure 2 H.T.M.A. approved quick disconnect couplings are installed to hydraulic hoses so that the direction of oil flow is always PRESSURE RETURN from the male to the female quick disconnect as shown in figure 2.
- Page 12 OPERATION CONTROLS COLD WEATHER STARTUP The GPV18 maximum pressure is 175 bar/2500 psi with a Hydraulic fluids are thicker in cold weather, therefore, it flow adjustment from 20 Lpm/5 gpm to 30 Lpm/8 gpm by is recommended that the engine be run at low idle long rotating the flow control switch.
-
Page 13: Routine Maintenance
ROUTINE MAINTENANCE ENGINE MAINTENANCE HYDRAULIC SYSTEM MAINTENANCE Follow the maintenance schedule and general mainte- • Check hydraulic fluid level daily. Add fluid per specifica- nance instructions in the engine maintenance and opera- tions in this manual. (See "HYDRAULIC FLUID" under tion manual furnished with the power unit. -
Page 14: Troubleshooting
TROUBLESHOOTONG PROBLEM CAUSE REMEDY ENGINE WILL NOT START. START SWITCH IN THE OFF POSITION. TURN START SWITCH TO “START” WHEN STARTING. BATTERY NOT CONNECTED. ATTACH BATTERY CABLES, CHECK WIRES. WEAK BATTERY. TEST BATTERY, CHARGE OR REPLACE. NO FUEL. ADD FUEL. FUEL FILTER PLUGGED. -
Page 15: Specifications
SPECIFICATIONS Engine: ..............................18 hp Briggs Capacity........ One 20 lpm/5 gpm Circuit or One 30 lpm/8 gpm Circuit at 70~140 bar/1000~2000 psi Length:..............................90 cm / 35.4 inch Width: ..............................59 cm / 23 inch Height: ..............................74 cm / 29 inch Weight ............................120 kg / 264.5 lbs Hydraulic Reservor Capacity: ........................ - Page 17 Hefei INTACA Science-Technology Development Co.,Ltd. Add: A-7 Building Gongtou-Liheng Industry Square, Western Section Fanhua Street(the Cross Wenshan Road),Hefei,Anhui,China Tel:0551-63498781/2/3 Fax:0551-63498780 P.C.:230601 http: //www.intaca.cn...
