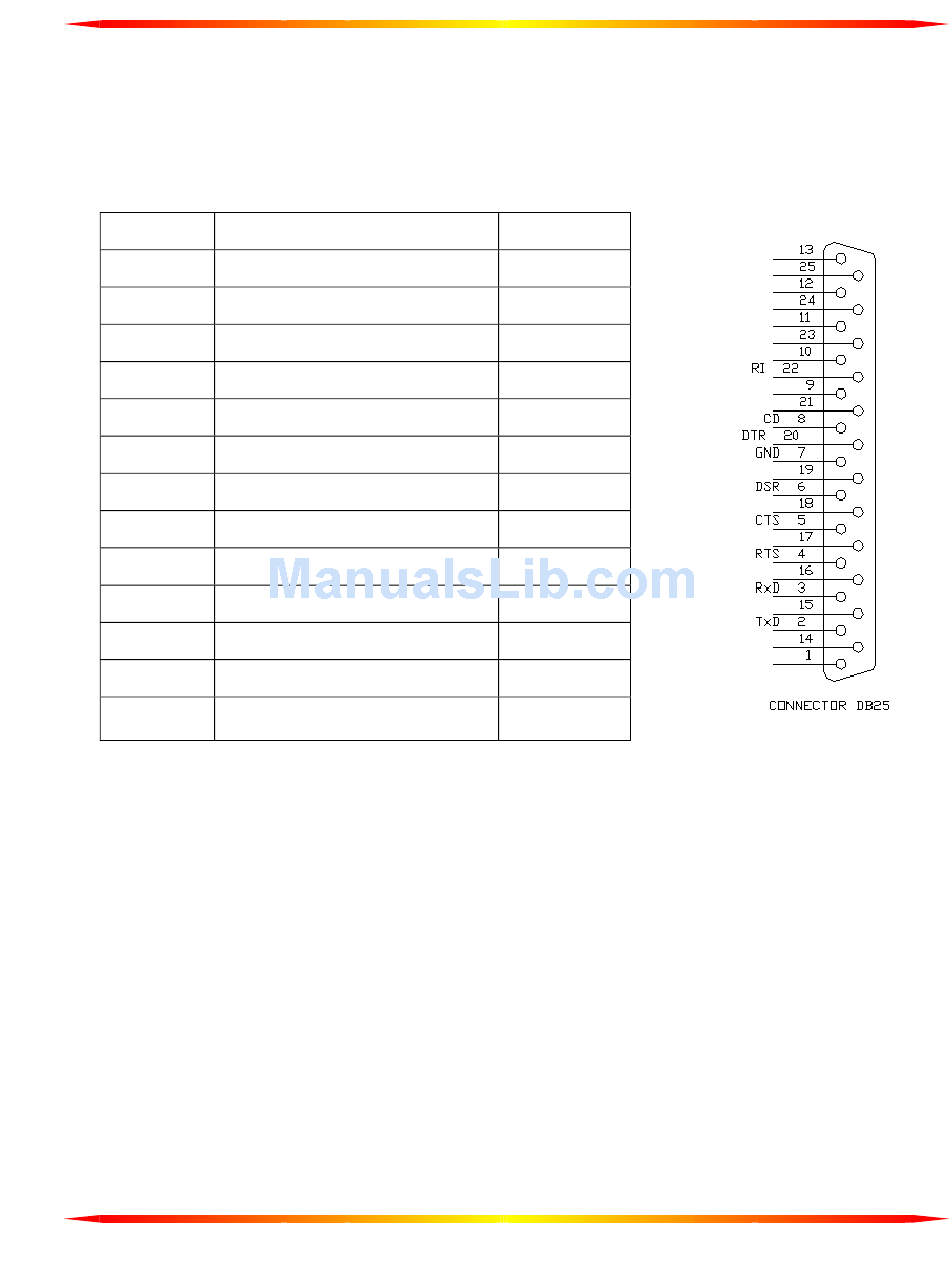

DB25 Pin Description
The FASTCOM: 232/4-LPCI-335 features four RS-232 channels, which are accessed through four DB25
connectors on the cable assembly.
The following is a pin description of the DB25 connectors:
PIN NO.
SIGNAL NAME
1
No Connect
2
TRANSMIT DATA (TxD)
3
RECEIVE DATA (RxD)
4
REQUEST TO SEND (RTS)
5
CLEAR TO SEND (CTS)
6
DATA SET READY (DSR)
7
SIGNAL GROUND (GND)
8
CARRIER DETECT (CD)
9 – 19
No Connect
20
DATA TERMINAL READY (DTR)
21
No Connect
22
RING INDICATOR (RI)
23-25
No Connect
DIRECTION
OUTPUT
INPUT
OUTPUT
INPUT
INPUT
GROUND
INPUT
OUTPUT
INPUT
10
