9

FASTCOM: 232/4-LPCI-335 ADAPTER CABLE

We provide access to the four channels of the FASTCOM: 232/4-LPCI-335 through a shielded DB44 connector
and an adapter cable (supplied with the board). The adapter cable consists of a DB44 male plug fanning out to
four standard DB25 male plugs.

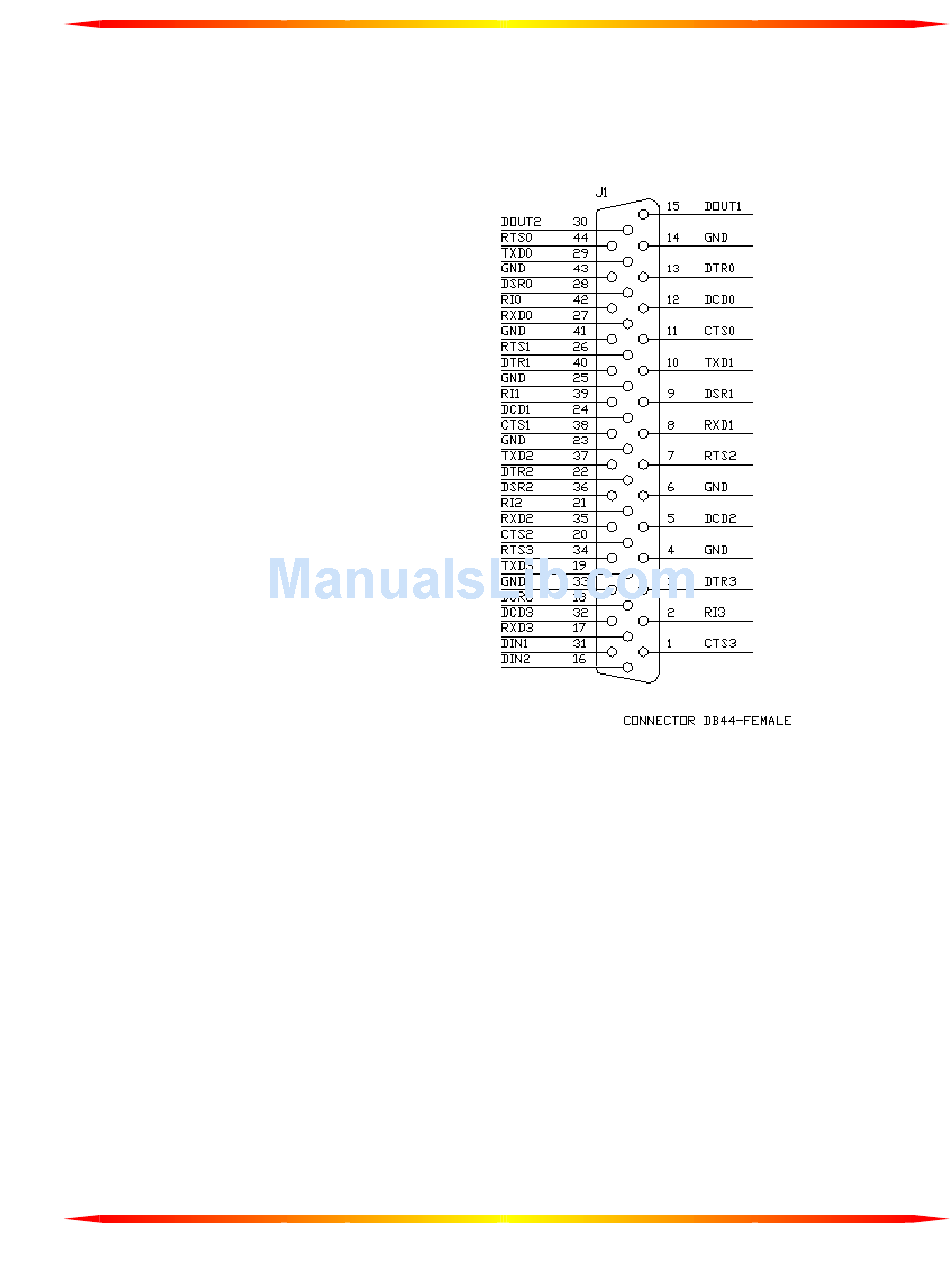

DB44 Pin Description
