SLIK PRO 924CF Operating Instructions

M302

Components

Center column plate
Center column
3-Position leg angle
adjustment lock
Center column
stopper
Center column tension
adjustment tube
Leg
Base plate

Pan head attachment screw (1/4")

PRO 923CF
Accessory
Allen wrench
Caution
Soft Grip is consumption and cannot be used permanently.
Please replace it whenever ragged.

Carrying the Tripod

Prohibition
Carrying a tripod with a camera
left on can result in unexpected
accidents. We therefore,
recommend you to remove your
camera while carrying the tripod.
PRO 923CF / PRO 924CF
R

Operating Instructions

Thank you very much for choosing SLIK Carbon Fiber tripod.
SLIK Corporation has designed your tripod to be a sturdy, rugged,
dependable product that will provide you with many years of satisfac-
tory use.
Please take a few moments to read this operating instruction careful-
ly before use so that you can take full advantage of your Tripod's
many fine features.
Retain this operating instruction in case you might want to refer back to it.
Caution
This caution icon refers to information pertaining to important safety
procedures in preventing injuries, or damages which may occur as a
result of mishandling this product.
Prohibition
This prohibited icon refers to information pertaining to prohibited con-
tents. Please refer to instructions closely to avoid accidents.
Pan head attachment screw (3/8")
Crank handle
Leg lock nut
2-way Leg tips
(2mm width)
In case of the shock
given to Tripod by force
Caution
When the shock has been given
to the tripods &/or legs such as
falling down please check well
whether there are cracks, flaws,
etc. on the pipes, or not. When
you find any cracks, flaws, etc. on
the pipes, please stop to use it
and ask to repair. It may be
wounded when some of fibers
came out from the pipes. In that
case, please do not touch it.
Main body
Soft grip

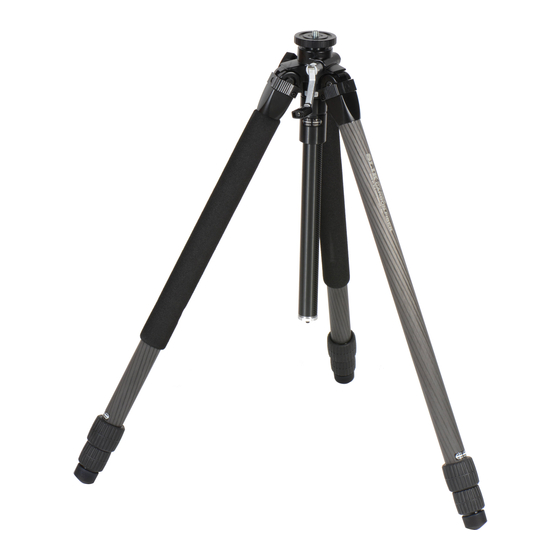

PRO 924CF
Clamp Head
Prohibition
Please do not use an optional
Clamp Head for a carbon fiber
tripod. The pipe may be damaged.

Specification

PRO 923CF
Folded length 708 mm
(28")
Max. operating height 1,900 mm
(74 3/4")
Max. center column ext. 310mm
(12 1/6")
Weight 2.32kg
(5lbs 2oz)
PRO 924CF
Folded length 554 mm
(22")
Max. operating height 1,790 mm
(70 1/3")
Max. center column ext. 310mm
(12 1/6")
Weight 2.31kg
(5lbs 2oz)
Equipment that can be
loaded on this Tripod
Prohibition
This product has been designed
to handle equipment weighing
under 10 kgs (22 lbs). Do not
overload.
Some equipments weighing under
10 kgs (22 lbs), such as long
lenses, may not balance well due
to its weight distribution. In such
case, please use a larger tripod.
Pan Head Attachment
Screw
Prohibition
Do not attach a camera directly to
the Pan head attachment screw
of the Center column.
This may damage both your camera
and tripod.
Three position adjustable
legs
Caution
To change the angle of each leg,
close the Leg slightly, and then
pull the Leg angle adjustment lock
out.
There is a choice of two other
angle positions. After choosing the
desired leg angle, securely push in
the Adjustment lock.
