SLIK PROFESSIONAL II-LE Operating Instructions

Reversible threaded post
1. The threaded post on the upper end of the 2. To reverse a post, first loosen the base
center column is 3/8". The threaded post on plate.
the lower end of the center column is Then remove the post, reverse it, and rein-
reversible, 1/4" and 3/8". If 1/4" post is need- sert it. Retighten the base plate.
ed at the top, reverse the center column Note: When reversing the lower threaded
itself (see "Using the short center column") post, move the rubber ring up first.

Using the short center column

3. Using the elevation control
1. Remove the lower base plate
handle, crank out the center
and the rubber ring.
column, while holding on to the
2. Loosen the center column ten-
head.
sion adjustment knob and nut
4. Remove the rubber ring and
three or four complete turns.
lower base plate from the short
center column.

Adjustment of center column play (after using tripod)

Adjustment of the center column 2. Insert enclosed allen wrench
play can be accomplished by into wrench hole and tighten
locking a screw with the enclosed the screw.
allen wrench.
1. Unlock center column tension
adjustment knob and nut.

Care of the Tripod

・DO NOT apply any grease or oil to this product.
・Clean with a mild detergent and a soft cloth only.
・DO NOT use close to flame. Avoid extreme heat.
Slik corporation reserves the right to make changes in design and/or improvements on the products without any obligation and advanced notice.
SLIK CORPORATION
853 Kayama, Hidaka City, Saitama 350-1231, Japan Phone 81-42-989-2141, Fax. 81-42-985-0210 ©2006
Short Center Column
370 mm
(14 7/12)"
For the lowest possible camera angle with the
legs fully spread, a special short center column
is available as an optional accessory.*
This makes the lowest position 370 mm (14 7/12")
from the ground.
Key
Groove
5. Match the groove of the short If not, recheck positioning as
center column to the Key guide described in (5).
inside the body of the tripod. 7. Replace the rubber ring and
Check to be sure this is per- base plate.
fectly matched. 8. Be sure to attach the rubber
6. Turn the elevation control handle ring and base plate to the cen-
to engage the gear on the short ter column that you just
center column. Check to be removed to prevent loss.
sure operation is smooth.
Options
3. Turn the elevation control han- SHORT CENTER COLUMN FOR
dle to check the tightness of PROFESSIONAL
the center column. Also check
for any play by moving the
head while keeping the legs
steady.
4. If the center column is too tight,
use the allen wrench to loosen
the screw and adjust.
THINNER
OIL
Printed in Thailand.
R
PROFESSIONAL
Operating Instructions

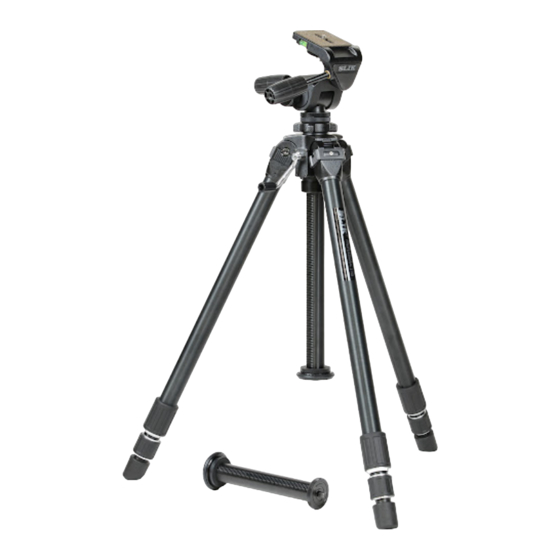

Congratulation on the purchase of a SLIK Professional
SLIK Corporation has designed your tripod to be a sturdy, rugged,
dependable product that will provide you with many years of satisfac-
tory use.
Please take a few moments to read this operating instruction careful-
ly before use so that you can take full advantage of your Tripod's
many fine features.
Retain this operating instruction in case you might want to refer back to it.
Caution
This caution icon refers to information pertaining to important safety
procedures in preventing injuries, or damages which may occur as a
result of mishandling this product.
Prohibition
This prohibited icon refers to information pertaining to prohibited con-
G079-1 tents. Please refer to instructions closely to avoid accidents.

Components

Pan head
Center column tension
adjustment nut
3-Position leg angle
adjustment lock
Elevation control handle
Lower center column
tension adjustment nut
Center column
Soft grip
Leg
Leg lock nut
Rubber leg
tips
Rubber ring
Reversible threaded post
Caution
Soft Grip is consumption and cannot be used permanently.
Please replace it whenever ragged.

Pan head attachment screw

Carrying the tripod

Prohibition Prohibition
Do not attach a camera directly to the pan Carrying a tripod with a camera left on can
head attachment screw of the center column. result in unexpected accidents. We therefore,
This may damage both your camera and tripod. recommend you to remove your camera while
carrying the tripod.

Specification

-LE
Folded length
-LE.
Max. operating height 1,835 mm
Max. center column ext. 285 mm
Weight
Pan head
1/4" Camera 3/8" Camera mounting screw
mounting screw
Camera locking knob
Main body
Camera mounting screw
Pan & tilt handle
3/8" Tripod attachment
Pan/Tilt head stand
female screw

Accessory

Tripod case
Base plate
Allen wrench
Equipment that can be loaded on
this tripod
Prohibition
This product has been designed to handle
equipment weighing under 10 kgs (22 lbs).
Do not overload.
Some equipments weighing under 10 kgs (22
lbs), such as long lenses, may not balance well
due to its weight distribution. In such case,
please use a larger tripod.
810 mm
(31 11/12")
(72 1/4")
(11 1/4")
4.9 kg
(10lbs 13oz)
Camera platform
Dual axis
bubble levels
Vertical tilt handle
Panning lock knob
Panning Guide
(2mm width)
