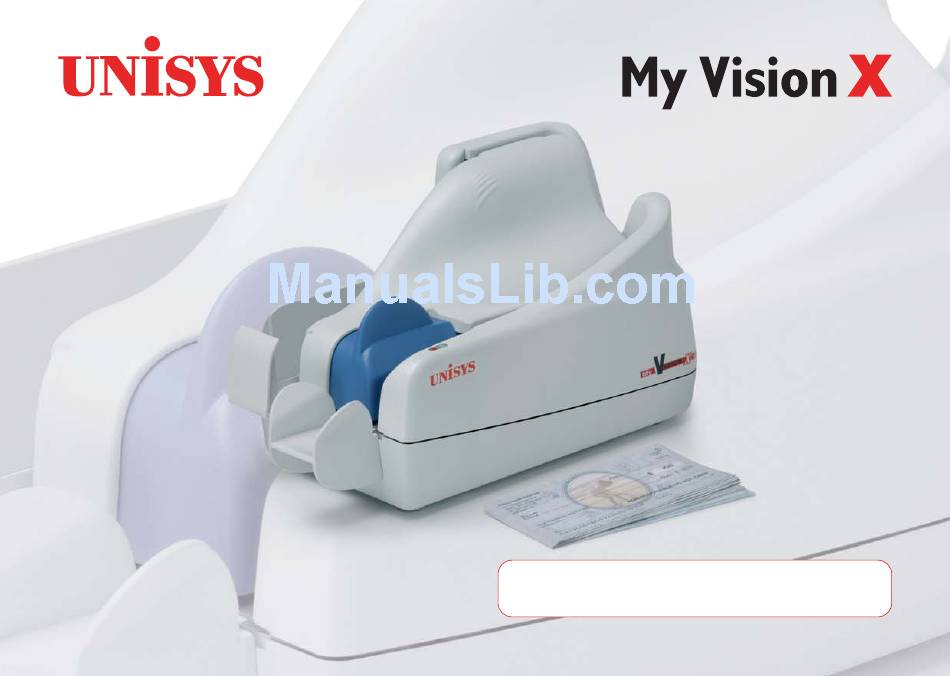

  • Page 1 imagine it. done. Operator Manual...
  • Page 2 Unisys MyVision X Operator Manual...

  • Page 3: Table Of Contents

    CONTENTS 0. Preface 1. General Audience Safety precautions If the machine is damaged 2. Learning about the Unisys MyVision X Packaging list External parts description Internal parts description 3. Operating your Unisys MyVision X Document support installation Extension plate installation...
  • Page 4 Cleaning the HP C6602A ink jet cartridge Cleaning photocells detector Replacing the feeder and separator rollers Cleaning the reading transport belt Install the external covers 6. Specifications Technical specifications of the Unisys MyVision X Technical specifications of the PC Page 3 OPERATOR MANUAL Preface...
  • Page 5 The only warranties made by Unisys, if any, with respect to the products described in this document are set forth in such agreement.
  • Page 6 The FCC is an agency of the United States government; thus, the statement below applies to computing equipment installed in the United States of America. Unisys is taking appropriate steps to be in compliance with FCC regulations and similar regulations of other countries.

  • Page 7: Preface

    Chapter 1: “General” introduces you to all the general information regarding the manual or the Unisys MyVision X. Chapter 2: “Learning about Unisys MyVision X” introduces you to all the major components of your machine. Chapter 3: “Operating your Unisys MyVision X” describes simple installation procedures.

  • Page 8: General

    The Unisys MyVision X is a new generation of check scanners. With a small footprint, sleek design and quiet operation, the Unisys MyVision X fits perfectly in a small area such as a teller window, or on the back counter of bank branches.

  • Page 9: Audience

    1.1 Audience This manual is written primarily for personnel who process checks or other documents. 1.2 Safety Precautions Before you begin operating or servicing your MyVision X as instructed in this manual, please make sure you read and understand these important safety instructions. •...

  • Page 10: If The Machine Is Damaged

    1.3 If the Machine is Damaged Unplug the MyVision X from the wall outlet and refer servicing to qualified personnel under the following conditions: • If the power cord is damaged or frayed. • If liquid has been spilled into the product. •...

  • Page 11: Learning About The Unisys Myvision

    The Unisys MyVision X is a compact, easy-to-use and quiet scanner. The Unisys MyVision X automatically scans the front and/or rear of checks while simultaneously capturing the Magnetic Ink Character Recognition (MICR) code line. An optional ink-jet endorser prints alphanumeric characters on the rear of items.
  • Page 12 Removing the Unisys MyVision X from the Packaging 1. Remove the Accessories box, the operator manual 2. Holding the packaging down with one hand, lift and the power cable out of the packaging. the MyVision X together with the packing materials making use of the plastic handle.

  • Page 13: External Parts Description

    2.2 External Parts Description This section describes the major components of the Unisys MyVision X. The component names introduced here and shown in the figures are used throughout this manual. Inner Cover Pocket Extension Outer Cover Document Pressure Plate Extension...

  • Page 14: Internal Parts Description

    10 “U” Track Wall 11 Transport Rollers 12 Ink Jet Cartridge Cradle 13 Front Image Camera 14 Rear Image Camera 15 Pocket sensor 16 Transport Belt 17 Interlock Board 18 Feeder Motor Fig.6 Page 13 OPERATOR MANUAL Learning about the Unisys MyVision X...

  • Page 15: Operating Your Unisys Myvision

    3. Operating your Unisys MyVision X 3.1 Document Support Installation Insert the Feeder Extension in the slot uncovered by pushing backward the Document Pressure Plate. Installation is correct if the Feeder Extension is at the same level of the entrance of the scanner platform.

  • Page 16: Extension Plate Installation

    Feeder extension be in round holes Fig.8 Fig.9 Face side up into the support notches Support notches To remove, firmly grip the feeder extension and the extension plate and pull apart. Page 15 OPERATOR MANUAL Operating your Unisys MyVision X...

  • Page 17: Power Cables Connection

    Service Representative or local power company. Note: There is no LED power indication upon connecting the MyVision X. LED status indicators only illuminate when the application connects to the MyVision X unit. See section 4.1. Page 16 OPERATOR MANUAL Operating your Unisys MyVision X...

  • Page 18: Usb2 Cable Connection

    Connect the USB 2 cable to the USB 2.0 port located on the rear side of the scanner, then connect the other end of the cable to an available USB 2.0 port on the PC. USB 2 cable Fig.12 Page 17 OPERATOR MANUAL Operating your Unisys MyVision X...
  • Page 19 Angle the front side of the cartridge downwards and face the two pins with the two holes in the cradle. Gently push down the rear side of the cartridge until it snaps in the plastic retainer. Ink jet cartridge Unisys Direct re-order P/N 80-2118-877 Plastic retainer Cartridge cradle Fig.13...

  • Page 20: Pocket Length Adjustment

    Move the pocket extension left or right until a space of 5 mm (1/4”) is available between the leading edge of the document and the end of the pocket extension. 5mm (1/4’’) Fig.14 Page 19 OPERATOR MANUAL Operating your Unisys MyVision X...

  • Page 21: Getting Started

    4. Getting Started 1. Turn on the PC. 2. Start the MyVision X application (see note). 3. Follow the MyVision X application instructions. 4. Load your checks. Note: An application must be started before you begin to process documents. When the application starts, the MyVision X turns on which is indicated by the green led in the outer cover.

  • Page 22: Status Lights

    4.1 Status Lights Two status lights located near the feeder indicate the status of the unit. The following table describes the meaning of each status light. Green Description The MyVision X is offline The MyVision X is online and the feeder is empty Blinking The MyVision X is online and the feeder contains documents...

  • Page 23: How To Prepare And Load Checks

    4.2 How to Prepare and Load Checks Preparing Documents for Processing 1. Remove all rubber bands, staples, paper clips, dog ears, etc. from the documents. 2. Jogging the documents is strongly recommended. In any case, align the bottom edges by repeatedly tapping the bottom edge of the documents on a hard, flat surface, see Fig.16.
  • Page 24 Feeding Documents You may feed documents one at a time or in batches of up to 30 by inserting the documents into the feeder all the way. (Fig.18). The documents must be inserted into the feeder so that the leading edge fits between the two black lines shown in Fig.19.
  • Page 25 Batches greater than 30 to 100 checks require the pressure plate 2mm (1/8’’) to be pushed back before inserting checks into the feeder. To prevent misfeeding, do not insert more than 100 documents into the feeder. Leave at least 2 mm (1/8”) between the last document and the pressure plate in the maximum backwards position.
  • Page 26 The feeder is designed so that checks can be loaded continuously, while the scanner is processing. This can be done by inserting checks behind those already present in the feeder. Fig.21 Page 25 OPERATOR MANUAL Getting Started...
  • Page 27 Removing Documents from Pocket Processed documents are sent to the exit pocket. For best result, follow these recommendations: • Remove the documents when the pocket is nearly full. Jams occur when the pocket is too full. No “pocket-full” sensor is available. •...

  • Page 28: Clearing Jams

    4.3 Clearing Jams When a jam occurs, the paper path must be cleared. To do this, first remove all the documents from the exit pocket and then free the track by pressing Eject in your application. In case of unsuccessful operation, apply the following suggestions: 1.
  • Page 29 Fig.24 3. Grab the document with your fingers to remove it from the transport. (See Fig.24). Fig.25 4. After the jam is removed, install the inner cover by following the instructions below: a. Open the pocket extension. b. Insert the two reference shafts in the corresponding housings found in the inner cover (See Fig.25).
  • Page 30 c. Push down the inner cover until it is back to its original position. Take care to ensure that the inner cover stays behind the scanner, which is indicated by a black area (see Fig.26). Fig.26 The inner cover (grid) must be inserted behind the scanner (black) Scanner...
  • Page 31 d. Check the exit pocket to ensure that the two plastic springs are aligned properly as shown in Fig.27. Fig.27 5. In the event that the outer cover has to be removed, first disconnect the USB and power cables and then lift the outer cover as shown in Fig.28.
  • Page 32 6. To remove the “U” track wall see Fig.29. Please follow the instructions listed in chapter 5.1.2. Fig.29 7. If the jam occurs in the image camera area, it is advisable to open the front image camera (see Fig.30) so that the document can easily be removed.
  • Page 33 8. Insert the outer cover by aligning the two shafts with the holes in the bottom cover of the unit (Fig.31). Insert the two teeth located on each side of the outer cover in the bottom cover and lock it (Fig.32 and 33). 9.

  • Page 34: Maintenance

    5. Maintenance Warning: Before doing maintenance, remember to disconnect the USB2 and power cables from the device. Note: The parts accessible to the operator for cleaning or jam removal are identifiable by green stickers. Fig.34 Fig.35 Green stickers Page 33 OPERATOR MANUAL Maintenance...

  • Page 35: Cleaning The Transport

    5.1 Cleaning the Transport Dust, lint and small particles can get into the track area. Clean this area as follows: 1. Remove the inner and outer covers by pulling up on the covers as illustrated below. Fig.37 Fig.36 Page 34 OPERATOR MANUAL Maintenance...
  • Page 36 2. To remove the U-track, pull back on lever (A) away from unit (Fig.38). The Fig.39 shows how to pull the lever and remove the U-track. Fig.38 Fig.39 3. Inspect and clean the entire track area from beginning to end. 4.
  • Page 37 6. To reinstall the U-track insert the two teeth “C” in the rail “D” (Fig.43), and align the U-track (Fig.40). Push back the U-track (Fig.44) until the lever “E” (Fig.40) locks the unit in place. Make sure that the pin “B” (Fig.42) is inserted in the receptacle “A” (Fig.41). Fig.40 Fig.41 Fig.43...
  • Page 38 Note: If the blotting pad housing assembly. (A) comes away from the U-track, insert the low mylar spring in the lateral slots (B) and the pad housing in the reference pins (C). Gently press down until the pad housing stops on the top of the U-Track wall. Fig.45 Fig.46 Page 37...

  • Page 39: Cleaning The Contact Image Sensors

    5.2 Cleaning the Contact Image Sensors 1. Gently open the front image camera (Fig.47) and remove any debris and dust. 2. Clean the Contact Image Sensors with a soft, lint-free cloth dampened with Isopropyl Alcohol or with eye glass cleaner (Fig.48). Fig.47 Fig.48 Contact Image Sensor (CIS)

  • Page 40: Cleaning The Hp C6602A Ink Jet Cartridge

    5.3 Cleaning the Ink-Jet Cartridge Fibers, such as cotton or paper, dried ink plugs or crust, or excess ink puddles on the nozzle plate can obstruct ink droplets or cause ink droplets to deflect from the desired trajectory, resulting in a degraded print quality. When this occurs: 1.
  • Page 41 5.4 Cleaning the Photocell Detectors The six photocells (emitter and receiver) are identified with black circles in Fig.50 below. Using a container of canned air and nozzle, spray the sensors to remove any dust. Also a dry soft cloth can be used. Fig.50 Page 40 OPERATOR MANUAL...

  • Page 42: Replacing The Feeder And Separator Rollers

    5.5 Replacing the Feeder and Separator Rollers After extended use it will be necessary to replace the Feeder and Separator Roller rings due to normal wear. 1. Open the inner and outer covers. 2. Carefully lift the rings off the rollers (See the arrows in Fig.51, 52 and 53). Fig.51 Fig.52 Fig.53...
  • Page 43 3. Install the new separator rings on the hubs by pressing down on the surface of the rings, making sure the rings are installed flat on their seats. The feeder ring must be rolled onto the black pulley. Fig.54 Page 42 OPERATOR MANUAL Maintenance...

  • Page 44: Cleaning The Reading Transport Belt

    5.6 Cleaning the Reading Transport Belt If an increase in the number of MICR (Magnetic Ink Characters Recognition) rejects is noticed, it may be necessary to clean the surface of the reading transport belt to remove extraneous magnetic ink or iron dust. Clean the external surface of the belt with a soft, lint-free cloth, dampened with Isopropyl Alcohol.

  • Page 45: Install The External Covers

    5.7 Install the External Covers Install the inner cover following the instructions below: Fig.56 1. Open the pocket extension. 2. Insert the two reference shafts in the corresponding housings found in the inner cover (Fig.56). Fig.57 3. Push down on the inner cover until it stops, ensuring that the inner cover stays behind the scanner (black area) (Fig.57).
  • Page 46 The inner cover (grid) must be Scanner inserted behind the scanner (black) Inner cover Fig.58 4. Check the exit pocket to ensure that the two plastic springs are properly aligned as shown in Fig.58. Page 45 OPERATOR MANUAL Maintenance...
  • Page 47 5. Insert the outer cover by aligning the two shafts with the two holes in the bottom cover of the unit (Fig.59). Push the cover down. Fig.59 6. Insert the two teeth located on each side of the outer cover in the bottom cover and lock it see Fig.60 and 61.

  • Page 48: Specifications

    6. Specifications 6.1 Technical Specifications of the Unisys MyVision X PERFORMANCE Various models processing up to 30 dpm, 60 dpm, or 90 dpm with a USB 2.0 interface. AUTOMATIC DOCUMENT FEEDER 3 mode feeder: - Single document automatic insertion - Capacity of up to 30 documents for automatic batch one hand insertion...
  • Page 49 SOFTWARE TOOLS Panini Vision API running on: Windows 2000 SP3 and Windows XP SP1 or higher with USB2.0 or with USB1.1 at reduced performance. Windows NT 4.0 SP6 with USB1.1 INK-JET PRINTER Rear ink jet printer Printing capability: Single line, Alphanumeric characters, all MS Windows fonts Printed information captured by the image.

  • Page 50: Technical Specifications Of The Pc

    6.2 Technical specification of the PC Panini Vision API running on: Windows 2000 SP3 or Windows XP SP1 or higher with USB2.0 or USB1.1 port 30 dpm and 60 dpm Models Recommended Minimum (to obtain max performance) 1GHz Pentium IV processor 500 MHz Pentium III processor 256 MB RAM 128 MB RAM...
  • Page 51 6.3 Consumable items for the Unisys MyVision X Item Description Expected Life Reorder Number Ink Jet Cartridge 112 million dots 80-2118-877 (average life) Roller Ring Kit. 300,000 documents 75-0456-907 Contains two of each: (average life) • Feeder Ring for each ring •...
  • Page 52 Notes:...
  • Page 53 Notes:...
