Kenmore 7864 Use & Care Manual

Kenmore range user manual
Hide thumbs


Quick Links

Gas Range
Estufa a as
Models, Modelos
*= co{ornumber,
iii .........
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
p/n 316462422 (0605)



  Summary of Contents for Kenmore 7864

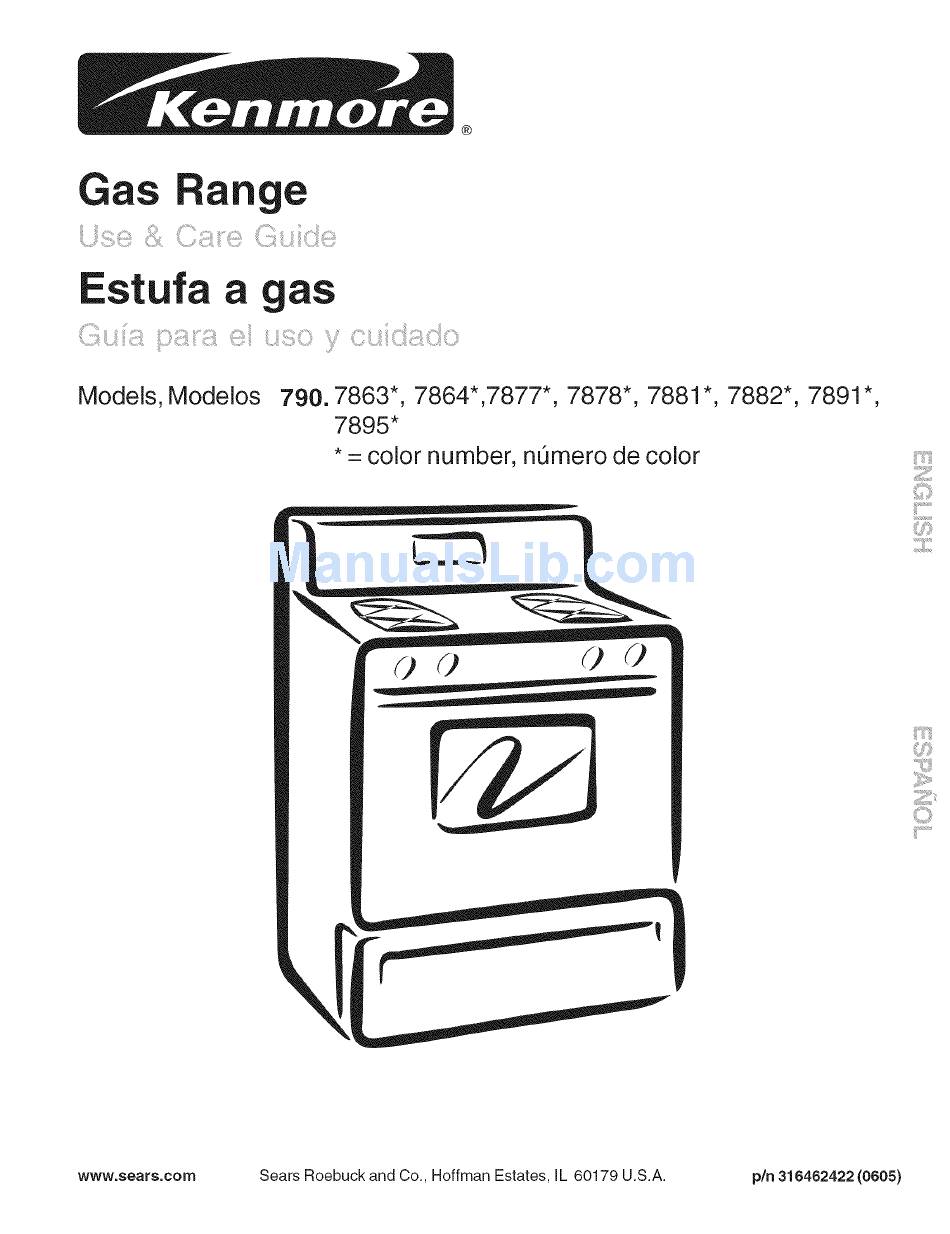

  • Page 1 Gas Range Estufa a as Models, Modelos 790.7863",7864",7877",7878",7881",7882",7891", Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. ® 7895* *= co{ornumber, nQmerodeco{or ii'% iii ... p/n 316462422 (0605)
  • Page 2: Table Of Contents

    Sears Canada inc., Toronto, Ontario, Canada M5B 2B8 Conversion to Liquefied Petroleum The natural gas range is designed to allow for conversion to Liquefied Petroleum (L.P.) Gas. If L.P. conversion is needed, contact 1-800-4-MY-HOME® assistance. The L.P. Conversion Kit is provided with this range and is located on the left lower REAR (back side) panel of the range.
  • Page 3: Important Safety Instructions

    Do not allow children to or in Canada Code, Part 1, and climb or play around the range. The weight of a child on an open door may cause the range to tip, resulting in serious burns or otherinjury.
  • Page 4 FOR USING YOU R OVEN • Use CareWhen Opening Oven Door or Warmer Drawer-- Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.
  • Page 5: Protection Agreements

    Master Protection Agreements Congratulations on making a smart purchase. Your new Kenmore C_ p roduct is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.
  • Page 6: Range Features

    24. Broil Pan Insert (some models). 25. Leveling Legs and Anti-tip Bracket 26. Cooktop Lockout (some models). NOTE: The features of you r range may vary according to model type & color. (colors vary). models). (some models). or Warmer Drawer with Handle models).
  • Page 7: Before Setting Oven Controls

    OVEN VENT Fig. 1 Fig. 2 Types of Oven Racks Your range may be equipped with one or more of the oven rack types shown; Flat Rack, or Handle Rack. Baking Layer Cakes with 1 or 2 Oven Racks For best results when baking cakes using 2 oven racks, place cookware on oven rack positions 1 & 4 (Refer to Figs. 2 & 3).
  • Page 8: Setting Surface Controls

    Setting Surface Controls CORRECT Never extend the flame beyond the outer edge of the utensil. A higher flame simply wastes heat and energy, and increases your risk of being burned by the flame. *These settings are based on using medium-weight of pans.
  • Page 9: Oven Control Functions

    :- - will appear in the display. Press either Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the range...
  • Page 10 Setting Oven Controls To Set the Minute Timer Note: To turn the time of day display OFF or ON in the display press and hold for 15 seconds (the control will bee p once) a 3d then release. This feature does not remove the set time of day from the memory of the control.
  • Page 11 Setting Oven Controls To set Control for Oven Lockout feature: Press _ and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the motor driven door lock will begin to close automatically. DO NOT open the oven door while the indicator light is flashing.
  • Page 12 Setting Oven Controls Place the insert on the broil pan, then place the food on the insert (See Fig. 1; some models). DO NOT use the broil pan without the insert or cover the insert with aluminum foil. The exposed fat could ignite. If needed, arrange oven rack to desired postion.
  • Page 13 Setting Oven Controls Using the Slow Cook Feature The "_ c.., SLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods more slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot. The Slow Cook feature is ideal for roasting beef, pork &...
  • Page 14 Setting Oven Controls Press _,ke.'... appears in the display. Within 5 seconds, press the A show "350°F (177°C). '' By holding the A temperature can then be adjusted in 5°F increments (1 °C if the control is set to display Celsius). If you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time.
  • Page 15 Setting Warmer Drawer Controls Arranging Warmer Drawer Drawer) Rack Positions (some models) Note: Use the warmer drawer to keep hot foods hot such as: vegetables, gravies, meats, casseroles, pastries and heated dinner plates. The rack can be used in 2 ways: •...
  • Page 16: Self-Cleaning (Select Clean)

    These areas heat sufficiently to burn soil on. Clean with soap and water. the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 17 Self-Cleaning (conrd) NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom should be removed. Starting the Select Self=Clean Delayed Start Self=Clean Cycle For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for heavy soils.
  • Page 18: General Care & Cleaning

    OFF & remove the control cleaning instructions most spots. Rinse with a 1:1 solution spots with an ammonia-soaked all cleaners or the porcelain on the range top. Oven Racks" under Before Setting recommendations. Rinse with clean water cleaner to enter...
  • Page 19 Replace glass shield over bulb and snap wire holder into place. Turn power back on again at the main source (or plug the range back in). The clock will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Use &...
  • Page 20: Adjusting Your Oven Temperature

    General Care & Cleaning (cont'd) Cleaning the Contoured Well Areas, The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: Surface Burner Head...
  • Page 21: Before You Make A Service Call

    Range is not level - (1) Poor installation. center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately range.
  • Page 22: Recipes For Slow Cook

    Recipes for Slow Cook Slow Cook Turkey Breast 1 turkey breast 2 cups chicken broth 1 medium onion, sliced 2 teaspoons minced garlic 1 teaspoon salt V2 teaspoon pepper In a roasting pan, place turkey breast meat-side up. Rub salt and pepper under the skin, and inside the cavity.
  • Page 23 For repair=in lawn and garden equipment, no matter who made it, no matter who sold it! For,the replacement owner s manuals that you need to do-it=yourself. For Sears professional and items like garage door openers and water heaters. 1-800-4-MY-HOME Call anytime, day or night (U.S.A. and Canada) For repair of carry=in items like vacuums, ...
