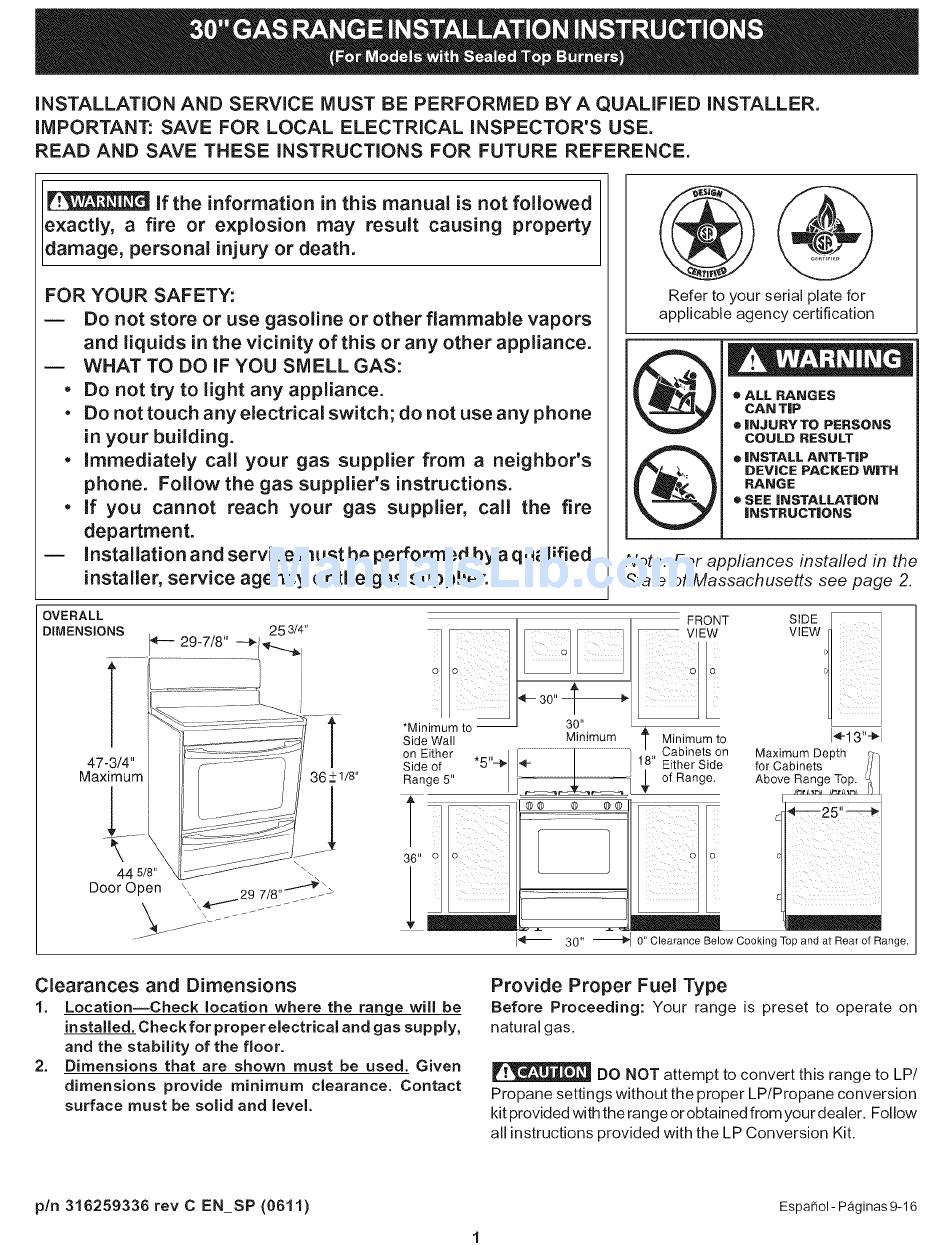

Kenmore 7853 - 30 in. Gas Installation Instructions Manual

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
-- WHAT TO DO iF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
-- Installation and service must be performed bya qualified
installer, service agency or the gas supplier.
OVERALL
DIMENSIONS
253/4"
'[ -- 30"
Minimum
47-3/4"
Maximum 36 + 1/8" t--.r--
*Minimum to
Side Wall
on Either "5"-_
Side of
Range 5"
36"
_- 30._
Refer to your serial plate for
applicable agency certification
• ALL RANGES
CAN TiP
e iNJURY TO PERSONS
COULD RESULT
e iNSTALL ANTI-TIP
DEVICE PACKED WiTH
RANGE
• SEE iNSTALLATiON
iNSTRUCTiONS
Note." For appliances installed in the
State of Massachusetts see page 2.
FRONT
VIEW
Minimum to
,, Cabinets on
Either Side
of Range.
14-13"_1
Maximum Depth
for Cabinets
Above Range Top.
.t----25" _
i i ii
0" Clearance Below Cooking Top and at Rear of Range.
Clearances and Dimensions
1. Location--Check location where the range will be
installed. Check for proper electrical and gas supply,
and the stability of the floor.
2. Dimensions that are shown must be used. Given
dimensions provide minimum clearance. Contact
surface must be solid and level.
Provide Proper Fuel Type
Before
Proceeding:
Your range is preset to operate on
natural gas.
DO NOT attempt to convert this range to LP/
Propane settings without the proper LP/Propane conversion
kit provided with the range or obtained from your dealer. Follow
all instructions provided with the LP Conversion Kit.
pin 316259336revCEN SP(0611)
EspaNol- P_ginas 9-16
