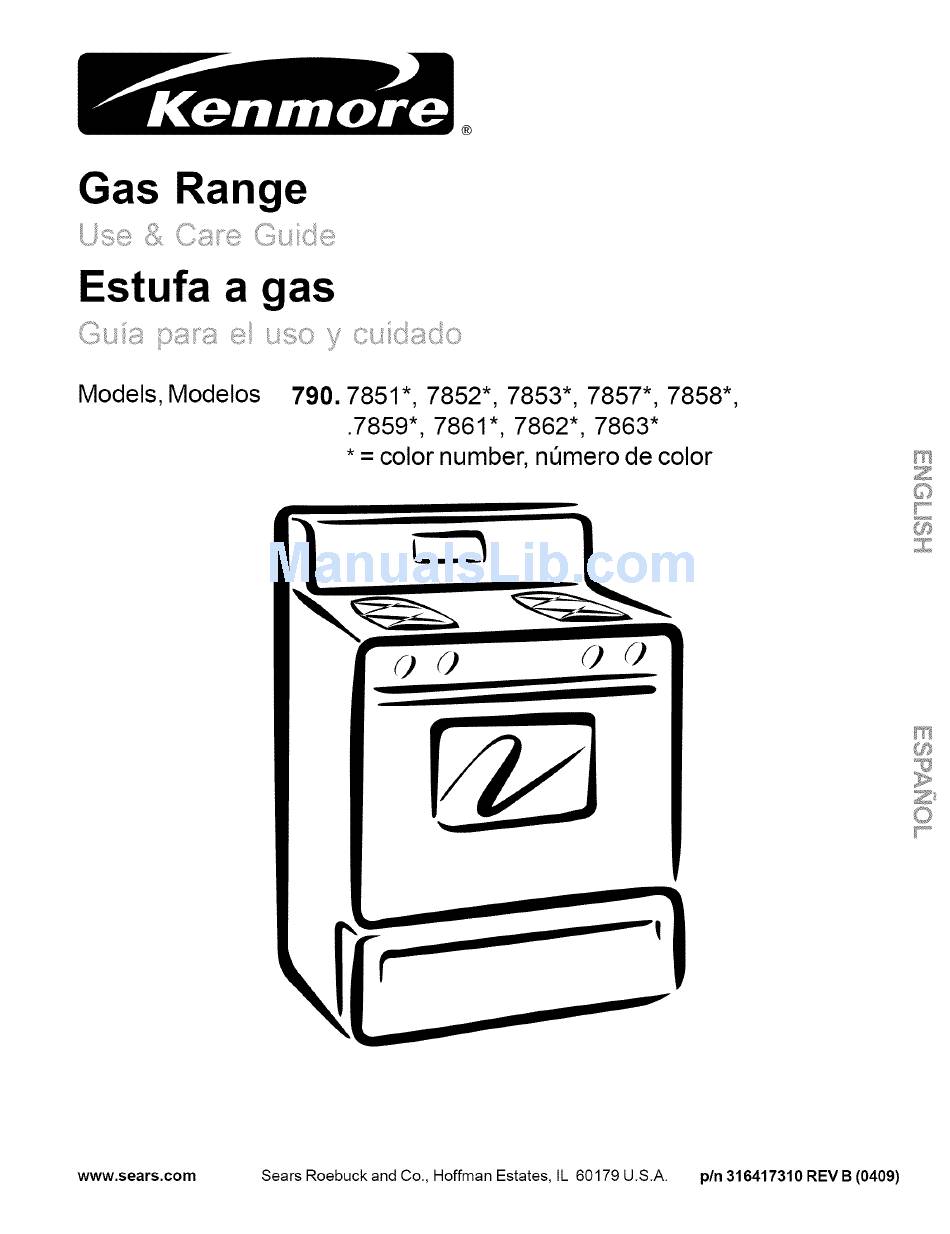

- Page 1 ® Gas Range __,_,_,_,,_ _ C_ _... ___,,,_,_,,_ Estufa a gas Models, Modelos 790.7851" 7852*, 7853*, 7857*, 7858* .7859", 7861", 7862", 7863* * = color number, nQmero de color ¢)¢) ¢)_) www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
-
Page 2: Table Of Contents
For one year from the date of purchase, when installed and operated according to the Installation Instructions and Use & Care Guide, if any part of this range fails due to a defect in material or workmanship, option, free of charge. -
Page 3: Important Safety Instructions
To check if the bracket is installed properly, visually check that rear leveling leg is inserted into and fully secured by the anti-tip bracket by removing lower panel or storage drawer. - Page 4 IMPORTANT time to cool. Among these • Use openings, oven door Stand to the side of the range when opening Let hot air or steam hanging garments the oven. the appliance. Do not let • Keep contact hot surfaces.
-
Page 5: Important Safety Instructions
If L.P. conversion is needed, contact 1-800-4-MY-HOME® assistance. The LP. Conversion Kit is provided with this range and is located on the left lower REAR (back side) panel of the range. Before installing the kit be sure to follow the LP. Installation Instructions carefully. Grounding... -
Page 6: Protection Agreements
Agreements Congratulations on making a smart purchase. Your new Kenmore ® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation. -
Page 7: Range Features
20. 14,200 BTU Power Burner (some models). 21. Broil Pan. 22. Broil Pan Insert. 23. Leveling Legs and Anti-tip Bracket (included). NOTE: The features of your range may vary according to model type & color. ii_ii _ _ i_ii ii ii... -
Page 8: Before Setting Oven Controls
OVEN VENT Fig. 1 Fig. 2 Types of Oven Racks Your range may be equipped with one or more of the oven rack types shown; Flat Rack, or Handle Rack. Baking Layer Cakes with 1 or 2 Oven Racks For best results when baking cakes using 2 oven racks, place cookware on oven rack positions 2 & 5 (Refer to Figs. 2 & 3). -
Page 9: Setting Surface Controls
Each cone of flame should be steady and sharp. Adjust or clean burner if flame is yellow-orange. Setting Surface Controls Your range may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases. -
Page 10: Oven Control Functions
Oven Control Functions READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use ofyour oven, become familiar with the various pad functions of the oven as described below. BROIL PAD Used to select the variable function, CLOCK SET Used to set the time of day.. -
Page 11: Setting Oven Controls
Note:The time of day must first be Set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00". - Page 12 Setting Oven Controls (cont'd) To Set or Change the Temperature The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press B,ke. " "appears in the display. Within 5 seconds, press the /_ the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
-
Page 13: Setting Oven Controls
Setting Oven Controls (cont'd) To Set for Broiling: Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Press B,o, ,,__ "will appear in display. Press and hold the A or V until the desired broil setting level appears in the display. - Page 14 Self-Cleaning During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
-
Page 15: Select Self Cleaning
Self-Cleaning (cont'd) Starting the Select Self-Clean For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle. -
Page 16: General Care & Cleaning
Rinse and wipe dry with a clean cloth. Remove all cleaners orthe porcelain may become damaged during furture heating. DO NOT use spray oven cleaners on the range top. Clean with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Do not use cleaners with high concentrations scrubbing cleaners. - Page 17 Replace glass shield over bulb and snap wire holder into place. Turn power back on again at the main source (or plug the range back in). The clock will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Use &...
-
Page 18: Adjusting Your Oven Temperature
General Care & Cleaning (cont'd) Cleaning the ContouredWell The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: •... -
Page 19: Before You Make A Service Call
Oven light does not work. POSSIBLE CAUSE/SOLUTION Poor installation. Place oven rack in center leveling legs at base of range until the rack is level. appear out of alignment if countertop is not level. Weak, unstable floor. - Page 20 Before You Call Solutions to Common Problems OCCURRENCE Oven smokes excessively during broiling. Oven control beeps and displays any F code error (for example Fll), Poor baking results. Self-Cleaning cycle does not work. Soil is not completely removed. Flames inside oven or smoking from vent.
