5. press the Down button four times. You should see 'Output Setup / Color Space' on the FPD.
6. press the Enter button once. You should see 'Color Space / YPbPr' on the FPD. If you don't,
press the Up button once and press Enter. You should see the iscan Vp30's on screen
Display (OSD) on your screen.
NOTE: The iscan Vp30 cannot output a component signal if the input signal is from a dVi or HdMi source
with HdCp. instead the iscan Vp30 outputs a blue screen.
Displays with a VGA HD-15 or 5BNC RGBHV input
. press the Menu button on the front panel of the iscan Vp30 once. You should see
'Main Menu / Input Select' on the FPD.
2. press the Up button once. You should see 'Main Menu / Output Setup' on the FPD.
3. press the Enter button. You should see 'Output Setup / Analog/Digital' on the FPD.
4. press the Enter button. You should see 'Analog/Digital / BNC (Analog)'. If you don't, press
the up button once and then press Enter. You should see 'Output Setup / Analog/Digital'
on the fpd.
5. press the Down button four times. You should see 'Output Setup / Color Space' on the FPD.
6. press the Enter button once. You should see 'Color Space / RGB' on the FPD. If you don't,
press the Up button once and press Enter. You should see the iscan Vp30's on screen
Display (OSD) on your screen.
NOTE: The iscan Vp30 cannot output an rGbHV signal if the input signal is from a dVi or HdMi source with
HdCp. instead the iscan Vp30 outputs a blue screen.

STEP 3 - Connecting Your Sources to the iScan VP30

up to 2 video sources can connected to the iscan Vp30. use the following suggestions for connections
to several popular video sources.

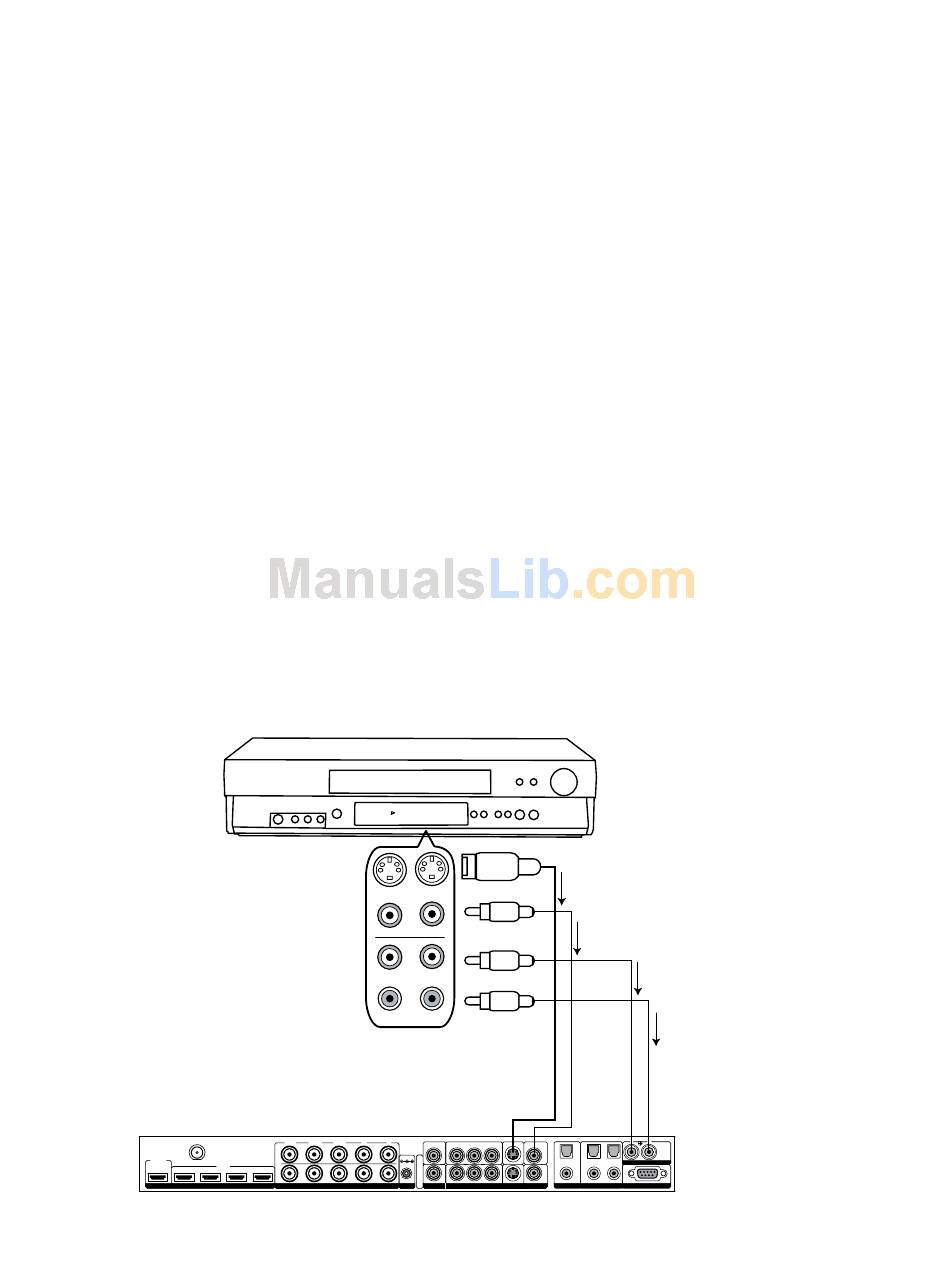

VCR/LD Player/DVR
SDI
INPUT
OUTPUT
1


VCR/LD Player/DVR

Y (G) Pb (B) Pr (R) H
I
N
P
U
T
O
INPUT
U
2 3 4
T
P
U
T
H D M I A N A L O G V I D E O
Back of iScan VP30
12:00
VIDEO
L
AUDIO
R
IN OUT
V
Y (G) Pb (B) Pr (R)
DC In
I
1 1 1 1
OUTPUT
N
+6V @5A
P
U
T
S 2 2 2 2
POWER SYNC C O M P O N E N T S-VIDEO VIDEO
S-Video
Composite
Video
L-Analog
Audio
R-Analog
Audio
L R
1 2
INPUT ANALOG AUDIO INPUT
3 4
D I G I T A L A U D I O SERIAL PORT
