Audio Outputs; Remote Control Overview - Abt iScan VP30 Owner's Manual

While the digital and analog audio inputs can be assigned to any one of the video inputs, the HDMI
audio inputs are tied directly to the HdMi video signal connected on the same input.
The iScan VP30 accepts digital audio sourced from DVD players, satellite receivers, digital set
top boxes, game consoles, or other digital audio devices. These inputs are compatible with most
consumer digital audio formats, including CD-Audio (44.1kHz/16 bit LPCM), Dolby Digital, and DTS.
The coaxial digital audio inputs are compatible with any format with a sampling frequency between
24kHz and 192kHz, and with a data word structure up to 24 bits in length. The optical digital audio
inputs are compatible with any format with a sampling frequency between 24kHz and 96kHz and
with a data word structure up to 24 bits in length. The HdMi audio inputs are compatible with HdMi
. audio formats.
Audio Outputs
There are two digital audio outputs, one coaxial and one optical. Both are active at the same time,
with the selected input digital audio stream.

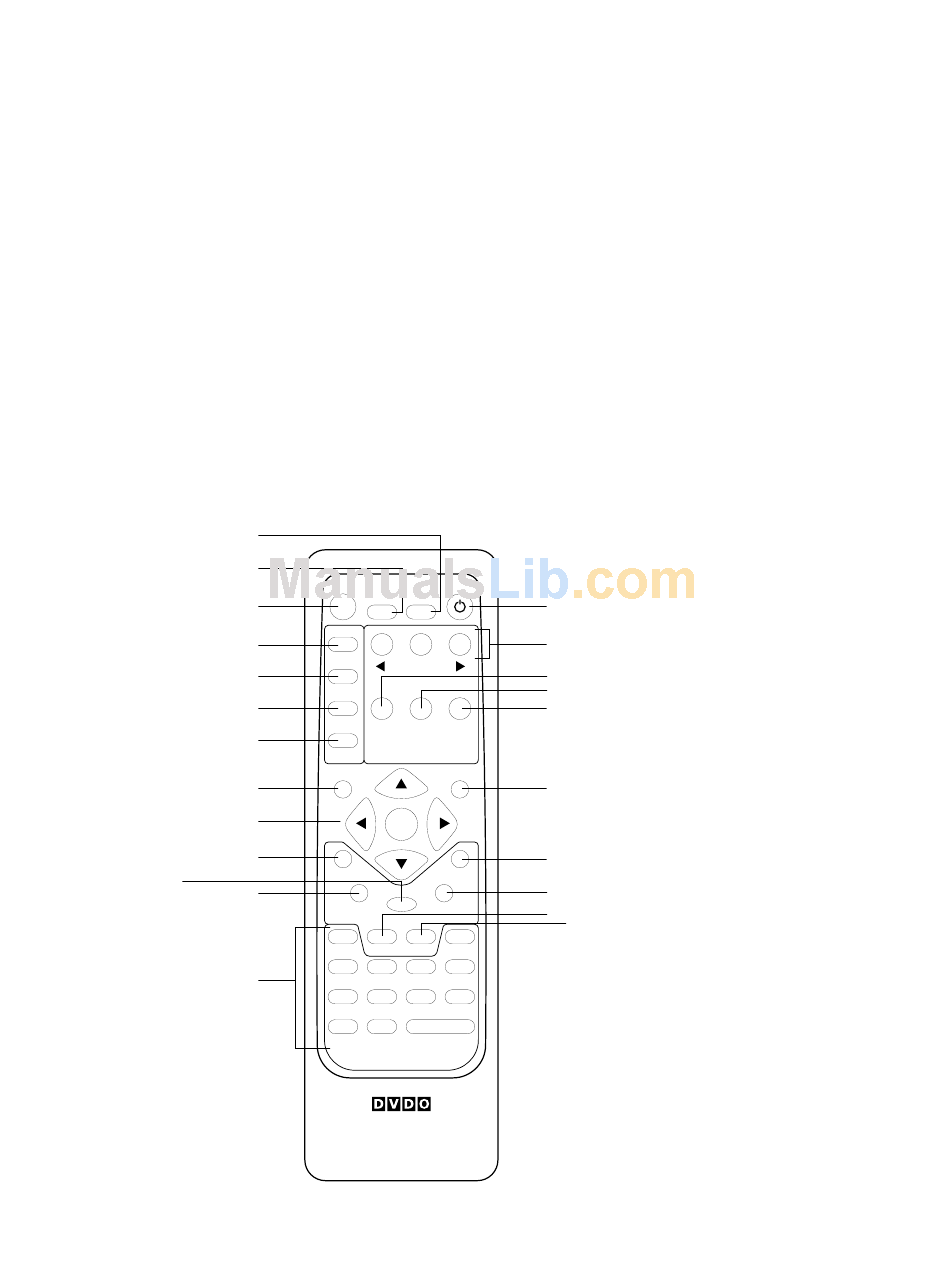

Remote Control Overview

For additional information about the functions of these buttons, turn to the pages given in
parentheses ( ). An asterisk (*) indicates this feature will be implemented in future software.
26
22
21
19
8
(Up, Left, Enter, Right, Down)
14
Aspect
(HDMI 1, HDMI 2, HDMI 3, HDMI 4,
Component 1, Component 2,
RGBHV/Component,
S-Video 1, S-Video 2,
Video 1, Video 2, AUTO)
7
8
Curtain
8
Info
STANDBY
8
Standby
Output Setup
OUTPUT
SETUP
Configuration
CONFIG
Picture Control
CONTROL
DISPLAY
PROFILES
Input Adjust
INPUT
ADJUST
MENU
8
Menu
Navigation Keys
16
Border
BORDER
16
Zoom
ZOOM
HDMI 1
14
HDMI 2 COMP 1
Input Select
HDMI 3 COMP 2
HDMI 4 RGBHV
POWER
INFO CURTAIN
Power
Test Patterns
(Left, On/Off, Right)
ON/OFF
Display Profiles
TEST PATTERN
Viewing Modes
Input Aspect
Ratio
VIEWING INPUT
MODES ASPECT
RATIO
MEMORIES
EXIT
Exit
ENTER
Crop
CROP
Pan
PAN
4:3
ASPECT
4:3 16:9 SDI
S-VIDEO 1 VIDEO 1
S-VIDEO 2 VIDEO 2
AUTO
INPUT SELECT
8
22
29
*
17
8
*
16
17
17
16:9
