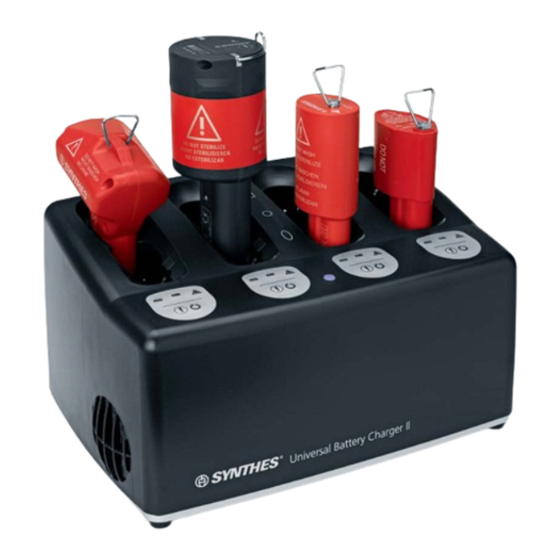

Synthes Universal Battery Charger II User Manual
  1. Manuals
  2. Brands
  3. Synthes Manuals
  4. Battery Charger
  5. Universal Battery Charger II
  6. User manual

Synthes Universal Battery Charger II User Manual

Hide thumbs Also See for Universal Battery Charger II:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
unIVersal
baTTery Charger II
user's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal Battery Charger II and is the answer not in the manual?

Questions and answers

Related Manuals for Synthes Universal Battery Charger II

Summary of Contents for Synthes Universal Battery Charger II

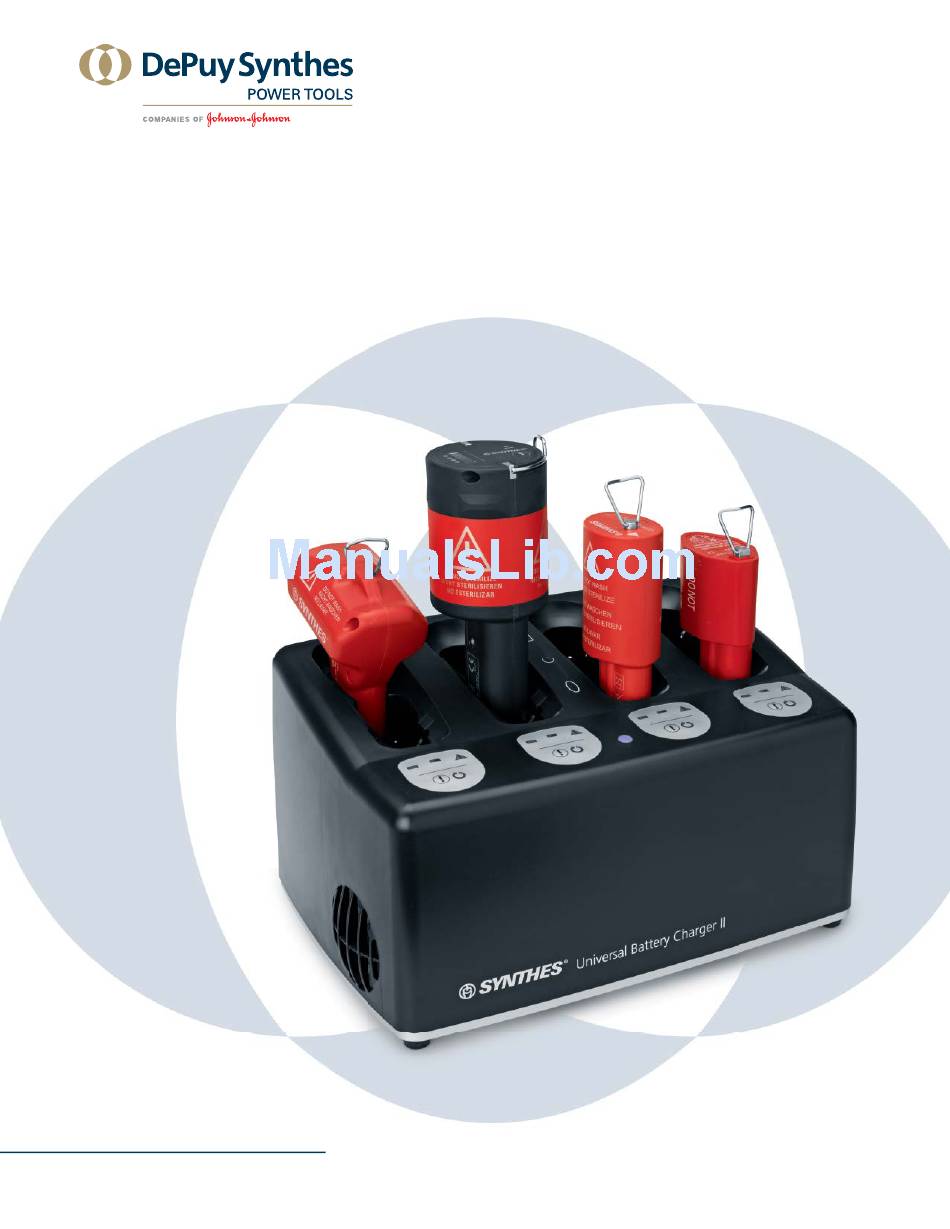

  • Page 1 unIVersal baTTery Charger II user‘s Manual...

  • Page 2: Table Of Contents

    II batteries Trauma recon system power module • storing batteries slot Covers set Care and MaInTenanCe Cleaning repair and Technical service disposal TroubleshooTIng sysTeM speCIfICaTIons eleCTroMagneTIC CoMpaTIbIlITy orderIng InforMaTIon Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 3: General Information

    (530.605, 530.610, 530.615). Precaution: The battery for the Power Drive (530.200) cannot be charged with the UBC II. Please use the UBC item number 530.601. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 4: Safety Precautions

    This ensures availability unauthorized sites. for a complete warranty statement, please and prevents discharge. contact the DePuy Synthes Power Tools Customer service. Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 5: Description Of The Controls

    10 battery power line and battery power line II batteries (530.620, 530.630) 11 Trauma recon system power Module (05.001.202) 12 sbd and sbd II batteries (532.003, 532.033, 532.103) DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 6: Starting The System

    (Fig. 3) before the battery is inserted, this charger bay is faulty. In this case, batteries can still be charged in the other charger bays, but it is recommended that the device be sent to the DePuy Synthes Power Tools Service Department for repair. fig. 1 Precautions: x Place the device on a non-slip, stable base.

  • Page 7: Charging The Battery/Power Module

    Do not insert any objects other than batteries into the charger, as the contacts may otherwise be damaged. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 8: Temperature Monitoring

    Do not charge mechanically damaged batteries in the charger. x Only charge batteries authorized for the device (see page 29). x Only use fully charged batteries to avoid delays during surgery. Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 9: Checking And Refreshing Batteries/Power Module

    2 seconds (fig. 1) until the yellow display light lights up (fig. 2). The device then carries out the process. The yellow display lights up throughout this time. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...
  • Page 10 The process is interrupted if there is a power cut or a switch to the emergency power supply and will then have to be restarted. fig. 4 Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...
  • Page 11 2 seconds (fig. 5) until the yellow display light lights up (fig. 6). The device then carries out the process. The yellow display lights up throughout this time. fig. 6 DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...
  • Page 12 The process is interrupted if there is a power cut or a switch to the emergency power supply and will then have to be restarted. fig. 8 Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 13: Trauma Recon System Power Module

    If the check is not carried out within the next 3 charging cycles, the charger starts this process auto- matically. The yellow display lights up (Fig. 11). x It takes around 4 hours to check the power module. fig. 11 DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 14: Storing Batteries

    A partial charge may not be sufficient for the intended use. x Unusable or faulty batteries/power modules should not be used. They should be disposed of (see section “Disposal” on page 17). Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 15: Slot Covers Set

    (fig. 1). a slot Cover helps to insert a battery or power module much easier into the universal battery Charger II because it covers the unused slots of the charger (fig. 2).

  • Page 16: Cleaning

    Do not wash the device in a washer/disinfector. x Device must not be sterilized. x Make sure that no solution enters the device. x If necessary, clean the contacts in the charger bays using the utmost care. Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 17: Repair And Technical Service

    The same applies if the on/off display does not light up or flashes when the device is switched on. To prevent damage during shipping use the original packaging to return devices back to DePuy Synthes Power Tools. If this is not possible, please contact the DePuy Synthes Power Tools representative.

  • Page 18: Disposal

    The charger may not be disposed of with household waste. faulty batteries may not be reused and should be disposed of in an environmentally friendly manner and in accordance with national regulations. Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...
  • Page 19 22. send the charger to DePuy Synthes Power Tools service department for a software update. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...
  • Page 20 / or the device that the device is not next to a heat is next to a heat source. automatic source. cooling is on full power. Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...
  • Page 21 /power module. floor. please also observe the instructions for use of the corresponding power tools. If the recommended solutions do not work, please contact your DePuy Synthes Power Tools representative. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 22: Device Specifications

    I, en/IeC 60601-1 (2005+Corr:07) protection type by casing IpX0, en/IeC 60601-1 (2005+Corr:07) fuses 225 aT / 250 V operating mode Continuous operating mode sterilization device must not be sterilized subject to technical modifications Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 23: Minimum Required Firmware Version Of Ubc Ii

    530.630 (14.8 V, li-Ion) 14.0 (sticker visible on the underside of the charger*) * sticker as shown on the underside of the charger with SW-Rev.11.0 firmware version 11.0 2010 /08 /04 DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 24: Environmental Conditions

    0 – 3000 m 0 – 5000 m – Precaution: The device is not suitable for use in the presence of a flammable anesthetics mixture with air or oxygen or with nitrous oxide. Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 25: Applicable Standards

    EN/IEC 60601-1 3rd Edition universal battery Charger II With respect to electrical shock, fire, and mechanical hazards only in accordance with ansI/aaMI es60601-1 (2005+C1+a2) Csa C22.2 no 60601.1 (2008) en/IeC 60601-1 (2005+Corr:07) DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...
  • Page 26 The DePuy Synthes Power Tools universal battery Charger II is intended for use in the electromagnetic environment specified below. The customer or the user of the DePuy Synthes Power Tools universal battery Charger II should assure that it is used in such an environment.
  • Page 27 The DePuy Synthes Power Tools universal battery Charger II is intended for use in the electromagnetic environment specified below. The customer or the user of the DePuy Synthes Power Tools universal battery Charger II should assure that it is used in such an environment.
  • Page 28 TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed rf transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the synthes universal battery Charger II is used exceeds the applicable rf compliance level above, the synthes universal battery Charger II should be observed to verify normal operation.
  • Page 29 Synthes Universal Battery Charger II The DePuy Synthes Power Tools universal battery Charger II is intended for use in the electromagnetic environment in which radiated rf disturbances are controlled. The customer or the user of the DePuy Synthes Power Tools universal battery Charger...
  • Page 30 <60 min Power Module for Trauma Recon System product number 05.001.202 operating voltage (rated) 25.2 V battery capacity 1.2 ah / 30.24 Wh battery li-Ion Typical charging time <60 min Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...
  • Page 31 1.2 ah / 17.28 Wh battery li-Ion Typical charging time <60 min Precaution: The battery for the Power Drive (530.200) cannot be charged with the UBC II. Please use the UBC item number 530.601. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...

  • Page 32: Symbols For Operating The Charger

    II batteries (530.620, 530.630) symbol for Trauma recon system power module (05.001.202) symbol for sbd and sbd II batteries (532.003, 532.033, 532.103) Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...

  • Page 33: Symbols On The Charger

    Csa C22.2 no 60601.1 (2008) en/IeC 60601-1 (2005+Corr:07) The device meets the requirements of directive 93/42/eeC for medical devices. It is authorized by an independent named site for which it bears the Ce symbol. DePuy Synthes Power Tools Universal Battery Charger II User’s Manual...
  • Page 34 II, 14.4 V 532.103 battery for sbd/sbd II, 14.4 V Power cord 05.001.140 power Cord, three-pole, north america Slot Covers Set 05.001.228 slot Covers set for universal battery Charger II Universal Battery Charger II User’s Manual DePuy Synthes Power Tools...
  • Page 35 CAUTION: USA Law restricts these devices to sale by or on the order of a physician. To order in the US, call DePuy Synthes Power Tools Customer Service: (800) 327-6887. not all products are currently available in all markets.
