Synthes universal battery charger II User Manual

For trauma recon system, small battery drive and battery power line
Hide thumbs Also See for universal battery charger II:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual , User Manual

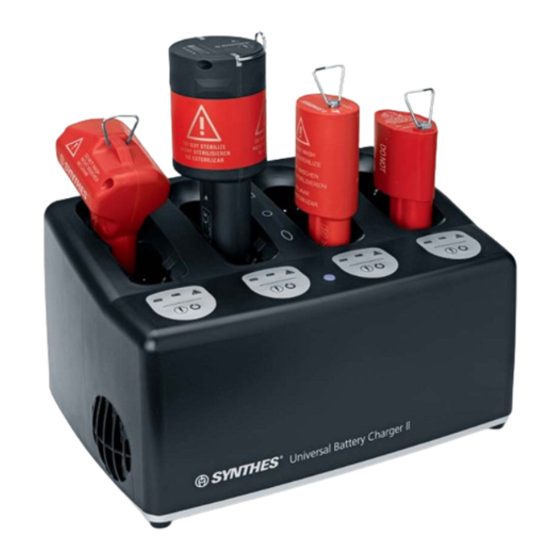

Universal Battery Charger II.
For
Trauma Recon System, Small Battery
Drive and Battery Power Line.
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the universal battery charger II and is the answer not in the manual?

Questions and answers

Related Manuals for Synthes universal battery charger II

Summary of Contents for Synthes universal battery charger II

  • Page 1 Universal Battery Charger II. Trauma Recon System, Small Battery Drive and Battery Power Line. User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Introduction Universal Battery Charger II Specifications Instructions Operating Instructions Power Module Diagnostic Test Small Battery Drive and Battery Power Line Batteries Diagnostic Test Storing Batteries and Power Modules Product Information Care and Maintenance Troubleshooting Technical Data Explanation of Symbols...

  • Page 3: Universal Battery Charger Ii

    – Do not operate the charger in the direct vicinity of radiators or other heat emitting devices, as these can affect the device. – The device may only be used for the authorized Synthes batteries / power modules. – Please refer to page 18 for information on the electromag- 2.5 m...
  • Page 4 All batteries / power modules should be removed when transporting the charger. Use the original packaging for shipping and transport. If this is no longer available, please contact your local Synthes sales consultant. The same environmental conditions apply for transport as for storage (see page 12). Warranty...

  • Page 5: Specifications

    With respect to electrical shock, fire and mechanical hazards only in accordance 7 Power switch 10PB with UL 60601-1/CAN/CSA C22.2 8 Fuses: 2 5 AT No. 601.1 9 Power cord connection IEC 60601-1-2 IEC 60601-1-4 Synthes Universal Battery Charger II User‘s Manual...
  • Page 6 Battery / type NiMH Typical charging time: <80 min. Power Module for Trauma Recon System Part number: 05.001.202 Operating voltage: 25.2 V Battery capacity: 1.2 Ah Battery / type Li-Ion Typical charging time: <60 min. Subject to technical modifications Synthes...

  • Page 7: Operating Instructions

    / battery is inserted, this charging bay is damaged (Figure 3). The power modules / batteries can still be charged in the other charging bays, but it is recommended that the device be sent to the Synthes Figure 1 Service Department for repair.
  • Page 8 Never attempt to insert more than one power module or battery in the same charging bay. Figure 5 *If LEDs do not follow this sequence, refer to the troubleshooting section, page 14. Synthes...
  • Page 9 The battery is damaged and must be replaced. No display light: The battery has not engaged in the charging bay or has not been recognized by the device. Remove the battery and insert again or use another charging bay. Synthes Universal Battery Charger II User‘s Manual...

  • Page 10: Power Module Diagnostic Test

    Red caution symbol illuminates (Figure 3): Power module has been checked, is not charged and cannot be used. The red service indicator (wrench) on the power module will also illuminate. Send power module to the Synthes Service Department. Figure 2...

  • Page 11: Small Battery Drive And Battery Power Line Batteries Diagnostic Test

    2 seconds (Figure 1) until the yellow arrow illuminates (Figure 2). The device then carries out the diagnostic test. The yellow arrow remains illuminated throughout the diagnostic process. Figure 2 Synthes Universal Battery Charger II User‘s Manual...
  • Page 12 Only then is the battery status clearly assessed. – If the diagnostic process is interrupted, such as a power outage or a switch to the hospital’s emergency power Figure 4 system, the diagnostic process must be restarted. Synthes...

  • Page 13: Storing Batteries And Power Modules

    Immediately recharge batteries and the power module after each use. Small Battery Drive or Battery Power Line batteries that are not used should always be stored in a Synthes Universal Battery Charger II that is plugged in and turned on (maintenance charge). This guarantees that the batteries are always fully charged.

  • Page 14: Care And Maintenance

    Whenever the charger is cleaned, ensure it is working properly and is not damaged. Maintenance of the device is not required. If there are any damages, please send the device to the Synthes Service Department. Important: – Danger of electric shock! Unplug before cleaning.

  • Page 15: Troubleshooting

    Yellow battery display flashes Power module / battery is too hot. Leave power module / battery inserted when charging. in charging bay. Charger automatically restarts the charging process once the battery has cooled. Synthes Universal Battery Charger II User‘s Manual...
  • Page 16 Send drive unit or power module to (i.e. due to insufficient maintenance) Synthes Service Department for repair. If the suggested solutions are unsuccessful, please contact the Synthes Service Department at 1 (800) 288-6698. Synthes recommends an annual preventive maintenance service by qualified Synthes personnel. Synthes...

  • Page 17: Technical Data

    Protection type by casing IP X0, EN 60601-1, paragraph 5.3 Protection degree Type B, EN 60601-1, paragraph 5.2 Fuse 2 x 5 AT; slow-blow Operating mode Continuous Sterilization Device cannot be sterilized Subject to technical modifications. Synthes Universal Battery Charger II User‘s Manual...
  • Page 18 The device meets the following standards: UL 60601-1, 1st Edition IEC 60601-1, 2nd Edition CSA C22.2 601.1 Universal Battery Charger II With respect to electrical shock, fire and mechanical hazards only in accordance with UL 60601-1/CAN/CSA C22.2 No. 601.1 IEC 60601-1-2...
  • Page 19 The Synthes Universal Battery Charger II is intended for use in the electromagnetic environment specified below. The customer or the user of the Synthes Universal Battery Charger II should assure that it is used in such an environment. Emission tests Compliance Electromagnetic environment –...
  • Page 20 The Synthes Universal Battery Charger II is intended for use in the electromagnetic environment specified below. The customer or the user of the Synthes Universal Battery Charger II should assure that it is used in such an environment. Immunity test standard...
  • Page 21 TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Synthes Universal Battery Charger II is used exceeds the applicable RF compliance level above, the Synthes Universal Battery Charger II should be observed to verify normal operation.
  • Page 22 Synthes Universal Battery Charger II The Synthes Universal Battery Charger II is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Synthes Universal Battery Charger II can help prevent...

  • Page 23: Explanation Of Symbols

    (see page 9) or refresh / test cycles for batteries (see page 10) is in process. Flashing display: the connected Trauma Recon System power module requires the diagnostic test to be performed (see page 9). Synthes Universal Battery Charger II User‘s Manual...
  • Page 24 Symbol for Small Battery Drive Battery. Caution. Read the provided instructions for use before operating the device. Date of manufacture. The device fulfills the UL requirements for USA and Canada. Compliance The device meets the following standards: UL 60601-1 IEC 60601-1 Synthes...

  • Page 25: Ordering Information

    Power Module, for Trauma Recon System 530.620 Battery, for Battery Power Line 532.003 Small Battery Drive 12 V Battery 532.033 Small Battery Drive 14.4 V Battery Also Available 05.001.140 Medical Grade Power Cord Synthes Universal Battery Charger II User‘s Manual...
  • Page 26 To order: (800) 523-0322 To order: (800) 668-1119 Fax: (610) 251-9056 Fax: (905) 567-3185 www.synthes.com © 2009 Synthes, Inc. or its affiliates. All rights reserved. Synthes is a trademark of Synthes, Inc. or its affiliates. Printed in U.S.A. 8/09 J8895-B...
