Summary of Contents for Synthes 530.600

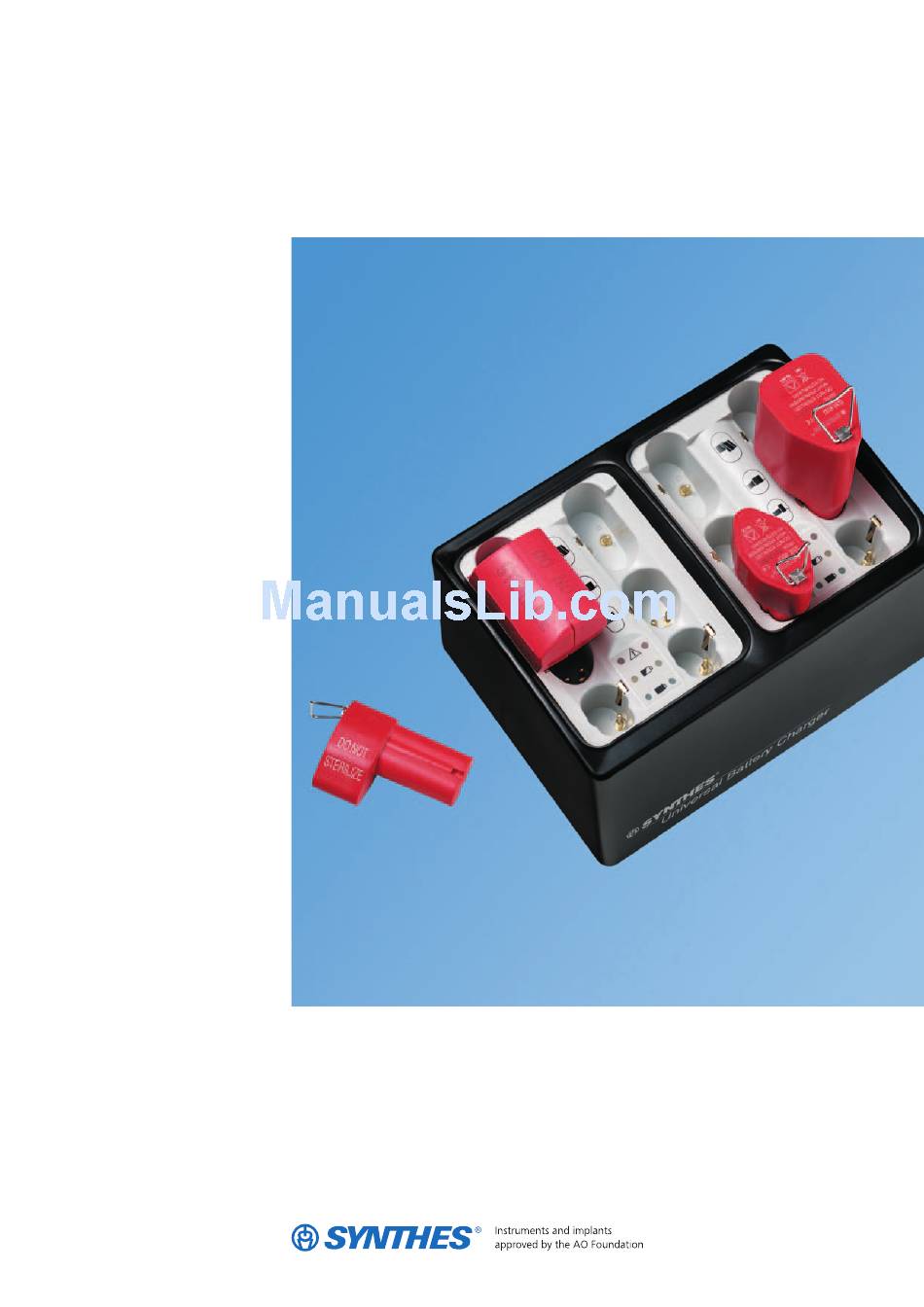

- Page 1 Universal Battery Charger. Instructions for Use...
-
Page 3: Table Of Contents
Explanation of Symbols Used Description of Product Operating Instructions Operating the Universal Battery Charger Cleaning Charging the battery Charging a new battery or one which has not been used for a prolonged period of time Storage of batteries Charge control indicators Troubleshooting Synthes... -
Page 4: Specifications
Specifications Universal Battery Chargers for Synthes batteries (530.600 and 530.601) comply with the following Environmental conditions standards: Operation Transport IEC 60950 and storage EN 55022 Class B Temperature 0 – 40 °C –20 – 50 °C 32 – 104 °F 0 –... - Page 5 Battery for Colibri / Small Battery Drive Warning: (532.003 / 532.033) Synthes Universal Battery Chargers must not be stored or operated in an explosive atmosphere. Typical charging time: 50 minutes Maximum charging time: 60 minutes Battery for Battery Power Line (530.620)
-
Page 6: Explanation Of Symbols Used
Hydride. Dispose of or recycle in accordance with lo- cal, state and federal regulations. According to WEEE 2002/96/EC the Universal Bat- tery Charger may not be disposed in the normal waste, but must be sent back to Synthes for recy- cling. Protective earthing Symbol for Power Drive battery... -
Page 7: Description Of Product
Description of Product Charging bays for Synthes batteries Charge control indicators (red, yellow, green) Symbols to assist operation Main switch Fuses: 2 5 AT 250 V (SPT 5 20 mm) Mains cable connector Ventilation openings Rear view Synthes... -
Page 8: Operating Instructions
Even when the batteries are fully charged charging bays are empty and the charger is ready for opera- (green indicator lights up), the Synthes Universal Battery tion, this is indicated by all control indicators (red, yellow Charger constantly monitors their state and tops up the and green) lighting up together. -
Page 9: Charge Control Indicators
Only red indicator flashes: regulations. The battery is too warm and it has to cool down be- – Further information on the storage and use of Synthes fore charging is automatically resumed; or the batteries can be found in the respective instruction leaflets. -
Page 10: Troubleshooting
(6) and switch charger on again (4). Faulty charger. Have charger checked and, if necessary, repaired by the official Synthes manufacturer or an authorised sales outlet. No battery is inserted, but the three Fault in the charger’s electronic control... - Page 11 3 to 5 charging/discharging cycles are necessary for battery to reach maxi- mum capacity again. Charge battery until green indicator Battery not ready for operation. lights up. Battery’s expected expiry date has been Replace battery. reached. Synthes...
- Page 12 – Batteries that are no longer usable must be disposed of as hazardous waste. Please observe local, state and federal regulations. – Servicing and repairs may only be performed by service staff authorised by Synthes. Synthes Universal Battery Charger Instructions for Use...
- Page 16 0123 Presented by:...
