Tally Dascom 1125 User Manual

Matrix printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide
1125 Matrix Printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dascom 1125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tally Dascom 1125

Summary of Contents for Tally Dascom 1125

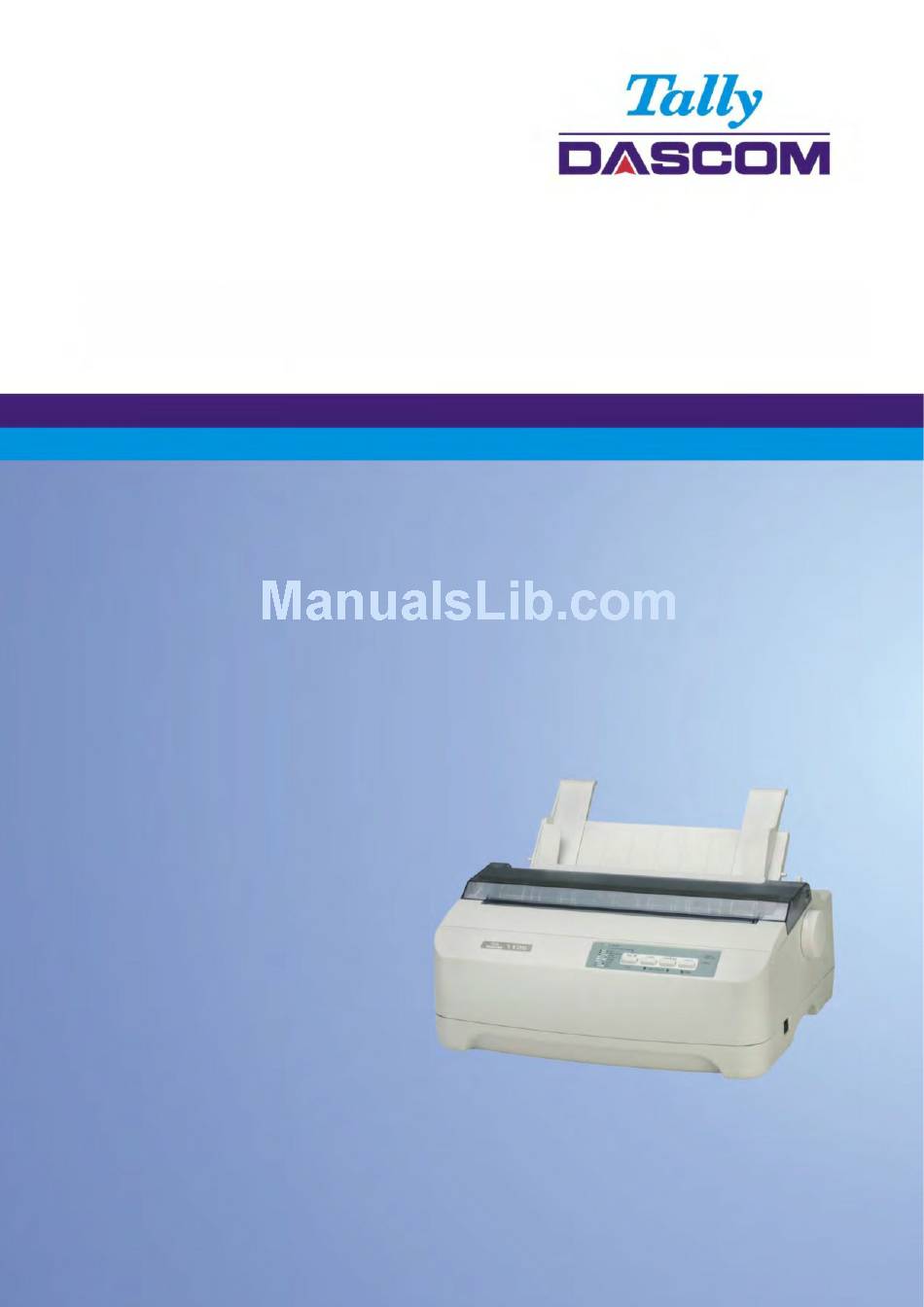

  • Page 1 User Guide 1125 Matrix Printer...

  • Page 3: Tally Dascom

    Tally Dascom 1125 Important Safety Instructions (English) Read the following instructions thoroughly before starting up your printer. • Never carry out maintenance or repair work yourself. Always contact a qualified service technician. • Keep this Operator’s Manual in a place which is easily accessible at all times.
  • Page 4 Tally Dascom 1125 Wichtige Sicherheitshinweise (German) Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen. · Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie immer einen qualifizierten Servicetechniker. · Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.
  • Page 5 Tally Dascom 1125 Consignes importantes de sécurité (French) Lire attentivement les instructions suivantes avant de mettre l’imprimante en service. · Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un dépanneur qualifié. · Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.
  • Page 6 Tally Dascom 1125 Indicazioni di sicurezza importanti (Italian) Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni. Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di assistenza qualificato.
  • Page 7 Tally Dascom 1125 Instrucciones de seguridad importantes (Spanish) Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio. Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio calificado.
  • Page 8 Tally Dascom 1125 Правила по технике безопасности. (Russian) Прочитайте, пожалуйста,  инструкцию по технике безопасности перед включением в работу принтера. Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о · неисправностях квалифицированным сервисным техникам. Данная инструкция должна быть всегда доступна каждому пользователю. · · Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на пол. Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых · веществ. · Включайте принтер в розетку только с соответствующим  напряжением. Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем · выньте штекер из розетки. Берегите принтер от нагревания,  от попадания на него прямых солнечных лучей и пыли. · Не допускайте попадания жидкости на принтер. · · Нельзя подвергать принтер тряске, ударам и вибрации. Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с · компьютером. · Печатающая головка нагревается во время работы принтера. Поэтому подождите какоето время, прежде чем дотронуться до нее. · Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности, обращайтесь с вопросами к Вашим продавцам или в сервисный центр.
  • Page 9 Tally Dascom 1125 Instruções Importantes sobre Segurança (Portuguese) Leia as instruções de segurança antes de usar a impressora. · Consulte sempre um técnico qualificado para executar uma reparação . Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.
  • Page 10 Tally Dascom 1125 Önemli Güvenlik Talimatları (Turkish) Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun. Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye bir · uzman servis-teknisyenine haber verin. Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.
  • Page 11 Tally Dascom 1125 TRADEMARK ACKNOWLEDGEMENTS “IBM” is a trademark of International Business Machines Corporation. “EPSON” is a trademark of Epson America Incorporated. “DEC” is a trademark of Digital Equipment Corporation. “Centronics” is a trademark of Centronics Data Computer Corporation. “DOS” is a trademark of Microsoft Corporation.
  • Page 12 Tally Dascom 1125...

  • Page 13: Table Of Contents

    Tally Dascom 1125 TABLE OF CONTENTS 1 UNPACKING GUIDE............................1 ............................2 LACING THE RINTER ............................2 RINTER OMPONENTS 2 SETTING UP PRINTER ............................4 ..............................4 NSTALL IBBON ........................5 NSTALL THE INGLE HEET EEDER ........................5 ONNECTING THE NTERFACE ABLE .......................... 6...
  • Page 14 Tally Dascom 1125 ..........................43 RROR NDICATIONS ON ............................44 IAGNOSTIC UNCTIONS ............................45 IRMWARE PDATE 8 GENERAL SPECIFICATIONS......................... 46 9 INTERFACES ..............................51 ............................51 ARALLEL NTERFACE USB I ..............................52 NTERFACE .............................52 ERIAL NTERFACE 10 CHARACTER SETS & CODE PAGES ......................53 ..............................53 HARACTER ........................

  • Page 15: Unpacking Guide

    Tally Dascom 1125 1 Unpacking Guide · Place your packaged printer on a solid base. Make sure that the “Up” symbols point in the correct direction. · · Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging material.

  • Page 16: Placing The Printer

    Tally Dascom 1125 Placing the Printer Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such a way that it cannot move, and that there is easy access to the control panel and paper input devices. Also ensure that there is enough space for sufficient ventilation and for the printed output.
  • Page 17 Tally Dascom 1125 Component Function Controls printing impact or density. Gap Lever Adjusts the print gap lever according to the thickness of paper. Adjusts positioning of single sheet paper. Paper Guides 24-pin printing mechanism Print Head Top Cover Protects print head and other components inside, and reduce noise.

  • Page 18: Setting Up Printer

    Tally Dascom 1125 2 Setting Up Printer Install Ribbon 1. Ensure the power to the printer is off and the print gap lever “ A ” is set to the furthest open position. Move the carriage to the centre of the print platen.

  • Page 19: Install The Single Sheet Feeder

    Tally Dascom 1125 Install the Single Sheet Feeder Install the single sheet feeder into the rear of the printer. Connecting the Interface Cable The 36-pin Centronics parallel, 25-pin serial RS-232C and USB ports are located at the rear of the printer.

  • Page 20: Connecting The Mains Power

    Tally Dascom 1125 Connecting the Mains Power Checking the printer voltage Make sure that the device has been set according to your country’s power supply voltage. To do this, check the rating plate at the back of the printer. Contact your dealer if the setting is incorrect.

  • Page 21: Installing The Windows Driver

    Tally Dascom 1125 Installing the Windows Driver (Windows 2000/2003/2008 Server/XP/Vista/7) 1. Your printer CDROM comes with Windows drivers. Go to the Drivers folder Installer “DriverSetup.exe” . You will see the screen on the right. Click “Next” to continue. 2. A list of ports available on your system will be displayed as shown on the right.
  • Page 22 Tally Dascom 1125 4. Here you can choose whether to set the driver as the system default driver, and whether you want to print the Test Page after installation is completed. If the driver had been installed before, it would be listed in the white box on the right.
  • Page 23 Tally Dascom 1125 7 . Installation in progress. 8. After installation is completed successfully, you will see the message on the right.

  • Page 24: Paper Installation Guide

    Tally Dascom 1125 3 Paper Installation Guide The printer can handle either single sheets or continuous forms. Single sheets, also called cut sheets, include envelopes and non-continuous, multipart forms. Continuous forms include labels and multipart forms fed into the printer using the forms tractors. The printer is able to print 1~5 plies multipart paper.

  • Page 25: Friction Feed Handling

    Tally Dascom 1125 There are 2 paper feed modes: friction feed and tractor feed. When switching from tractor to cut sheet, the tractor fed paper can remain loaded in the tractor until the next time it needs to be moved to the printing position.

  • Page 26: Tractor Feed Handling

    Tally Dascom 1125 Tractor Feed Handling 1. Move the paper-feed lever backward to “ ” for continuous paper position. 2. Adjust the print gap lever if necessary. 3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the left tractor door. In the same way, install the paper on the right tractor.
  • Page 27 Tally Dascom 1125 Continuous Paper Placement 1. Place the printer on a solid base. The minimum suitable height of the solid base is 75 cm. 2. Left and right positioning: The direction of continuous paper should be parallel with the paper guide. The tolerance should be less than 3 cm.

  • Page 28: Control Panel Operation

    Tally Dascom 1125 4 Control Panel Operation There are 4 switches S1~S4 and 4 LEDs L1~L4. The meaning and application of each switch and LED are described below. LED Indicators “Power/Paper Out” LED: On: Power on Flashing: Paper out Flashing + buzzer: Paper jam “Online”...
  • Page 29 Tally Dascom 1125 “LF/FF” Key: Pressing this key will feed paper one line forward. By holding down this key, the printer will initially feed a few lines, then perform a form feed (continuous paper mode) or eject the form (single sheet mode). In the setup state, this key performs a reverse micro feed.

  • Page 30: Panel Operation

    Tally Dascom 1125 Panel Operation There are 3 states of operation: Online, Setup and Power On. In the Online state, the keys provide the following functions: Go to Tear Off position, Line Feed/Form feed, Load/Eject, clear buffer and switch to offline state for access to Setup state.

  • Page 31: Online State

    Tally Dascom 1125 Online State Switch Function Name Function Description Operation This is valid for tractor mode only. It feeds the form to the tear-off position. After tearing off the form, printing starts Tear Off {S1} L1, L2 flash on the next TOF by: ·...

  • Page 32: Setup State

    Tally Dascom 1125 Setup State Switch Function Name Function Description Operation Toggling to the Online state will cause the printer to go into a Online state {S4} ready-to-print state. Any changes made in Setup state will be saved permanently. Lighting up L4 indicates the Online state.

  • Page 33: Power-On State

    Tally Dascom 1125 Power-On State Function Switch Function Description Name Operation Status Page / Prints the printer settings and self-test pattern. [S4] Self Test Pressing S1 can change the font. Beeps once to indicate going into hex dump mode: · Prints data from host in hexadecimal representation.

  • Page 34: Language Setup

    Tally Dascom 1125 · Flashing of L3. · Lights up L4.and L3. Adjust Physical · Lights up L1 or L2 according to current fonts. [S3]+[S4] Margins · Includes Adjust Fanfold Top Margin, Adjust Single Top Margin, Adjust Fanfold Left Margin, Adjust Single Left Margin and Adjust Tear-Off position ·...

  • Page 35: Printer Setting Changes

    Tally Dascom 1125 5 Printer Setting Changes To meet your own print requirements, the printer configurations may be changed as follows: Hold down the Tear Off key while powering on the printer, release the Tear Off key when the print head starts to move. The printer will print out the current settings and then enter Main Menu setup state.
  • Page 36 Tally Dascom 1125 On: Prints High Speed Draft HS-Draft On, Off when Draft font is selected. When printing 180x180 DPI graphics: Normal – prints in Graphic Normal, Fast, Ultra 180x180 DPI, Fast – prints in Speed 90x180 DPI, Ultra – prints in 60x180 DPI.

  • Page 37: Page Setup

    Tally Dascom 1125 30. Roman8 31. Coax/Twinax 32. New-437 33. New-Dig 850 34. Old-Code 860 35. Flarro 863 36. 865 Hebrew 37 . CP 1257 38. 866 Ukraine 39. 866 Kazakhstan 40. Kamenicky 41. Mazovia 42. CP 775 43. CRO-ASCII 44.

  • Page 38: Interface Setup

    Tally Dascom 1125 Specifies the waiting time before feeding the page to tear-off position automatically. Manual: Manual, 0.5s, 1s, 2s, 3s, 4s, 5s Auto tear mode is off. View1s, View2s, View3s: Auto Tear View1s, View2s, View3s After printing is completed, the printer will feed the paper until the last printed line is at the tear- off position.
  • Page 39 Tally Dascom 1125 printing. Software, Ignore Form Length Ctrl Ignore: Ignores form length commands Software, Ignore Pitch Ctrl Ignore: Ignores CPI commands Font Ctrl Software, Ignore Ignore: Ignores font select commands Quality Ctrl Software, Ignore Ignore: Ignores print quality commands...
  • Page 40 Tally Dascom 1125 Ja, Nein Perforationssprung Manuell, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s Abreissen Schnittstellen Setup Valid Settings Schnittstelle Auto, Parallel, USB, Serial I-PRIME Ja, Nein Protokoll Xon/Xoff, DTR Datenlänge 8, 7 Stopp Bit 1, 2...
  • Page 41 Tally Dascom 1125 Скорость графики Нормальная, Быстрая, Очень быстрая Символы IBM 1/2 Уст. 1, Уст. 2 USA, France, Germany, UK, Дания, Sweden, Italy, Spain, Japan, Норвегия, Дания II, Spain II, Латин Набор знаков ская Америка, Korea, Legal Кодовая таблица CP 437, CP 857… Таблица знаков Графика, Курсив Параметры страницы Valid Settings Строк на дюйм 1, 2, 3, 4, 5, 6, 7, 8 Длина формы для непрерывной...
  • Page 42 Tally Dascom 1125 Контоль длины формы Програмный, Игнор. Контроль знаков/дюйм Програмный, Игнор. Контроль шрифта Програмный, Игнор. Контроль качества Програмный, Игнор. Звук Да, Нет Italian (Italiano) Menu Sistema Valid Settings Emulazione ESC/P2, IBM 2390 Plus Auto CR (IBM) Si, No Si, No Auto LF Direz. Stampa Bi-Dir, Uni-Dir, Auto Top Print Dir...
  • Page 43 Tally Dascom 1125 Menù Interfacc. Valid Settings Interfaccia Auto, Parallela, USB, Seriale I-PRIME Si, No Protocollo Xon/Xoff, DTR 8, 7 Lunghezza dati Stop Bit 1, 2 Parità No, Dispari, Pari Velocità 9600, 19200, 38400, 300, 600, 1200, 2400, 4800 Ritardo Auto IF...
  • Page 44 Tally Dascom 1125 Espagne, Japon, Norvège, Denmark II, Espagne II, Amerique latine, Korea, Legal Jeu de caractèr. CP 437, CP 857… Graphque, Italique Tabl.de caract. Setup page Valid Settings Lignes par pouce 1, 2, 3, 4, 5, 6, 7 , 8 Papier continu Longueur formulaire 3",3.5",11/3", 4", 5", 5.5"...
  • Page 45 Tally Dascom 1125 Spanish (Español) System Setup Valid Settings Emulación ESC/P2, IBM 2390 Plus Auto CR(IBM) Si, No Auto LF Si, No ModoImpresión Bi-Dir, Uni-Dir, Auto ModoImp.Borde Bi-Dir, Uni-Dir Normal, Fuerte Impacto IBM AGM Si, No Print Setup Valid Settings...
  • Page 46 Tally Dascom 1125 Xon/Xoff, DTR Protocolo LongitudDatos 8, 7 Bit Parada 1, 2 Ninguna, Impar, Par Paridad 9600, 19200, 38400, 300, 600, 1200, 2400, 4800 Tasa Baudios Auto retraso 10s, 30s Uso de RAM Font Usuario, Buffer CX Bid Si, No...
  • Page 47 Tally Dascom 1125 Grafik Tablosu, İtalik Karakter Tablosu Sayfa Düzeni Ayarı Valid Settings İnç başına satır 1, 2, 3, 4, 5, 6, 7 , 8 Sürekli-kağıt Form Uzunluğu 3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17" Sürekli-kağıt Üst kenar boşluğu 0/60"...

  • Page 48: Vertical Alignment

    Tally Dascom 1125 Vertical Alignment The vertical alignment function is used to resolve any vertical line misalignments in bi-directional printing. Adjust Vertical Alignment Procedure: 1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up. 2. Load paper. 3. The printer will print as follows: Service Menu 【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit...

  • Page 49: Change Pin Function

    Tally Dascom 1125 printed above. 7 . Once the setting which gives the best alignment is found, press 【Online】 key to exit current level. Printer will print “Save settings? Yes” . Press 【LF/FF】 key to save setting. Press 【Online】 key a few times until the printer exits the Service Menu.

  • Page 50: Adjust Physical Margins

    Tally Dascom 1125 Adjust Physical Margins Adjust Page Margins allows for adjustments of physical left, top margins and tear-off position. Warning: Once these settings are changed, resetting the printer to factory defaults will not initialize these settings back to the original settings;...
  • Page 51 Tally Dascom 1125 Function of keys: 【Tear Off】key: Decrease 0.5mm 【Load/Eject】key: Increase 0.5mm 5. Press 【LF/FF】 key, printer will print “Save settings？Yes ” . Press 【Load/Eject】 key to choose Yes or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by pressing 【Online】.

  • Page 52: Dascom Printer Setup Tool

    5. Run the tool from the Windows Start menu by selecting All Programs, then Dascom Printer Setup, and then Tally Dascom Printer Setup. 6. For more information on how to use the tool, go to the Help menu and select User Guide.

  • Page 53: Maintenance

    Tally Dascom 1125 6 Maintenance Your printer requires very little care. Occasional cleaning and replacement of the ribbon cartridge are all that is required. Cleaning is recommended approximately every 6 months or 300 hours of operation, whichever is sooner. Lubrication of the printer is not usually necessary. If the print head carriage does not move smoothly back and forth, clean the printer in the manner described in this chapter.
  • Page 54 Tally Dascom 1125 4. To dry the platen, place a dry cloth against the platen and the rollers and manually rotate the paper feed knob.

  • Page 55: Troubleshooting

    Tally Dascom 1125 7 Troubleshooting Your printer is extremely reliable, but occasionally problems may occur. This chapter provides information on some of the common problems you may encounter and how you may solve them. If you encounter problems that you cannot resolve, contact your dealer or service partner for assistance.

  • Page 56: Paper Handling Problems And Solutions

    Tally Dascom 1125 Paper Handling Problems and Solutions Problem Solution • Make sure that the paper select lever located on the top right of the printer is set correctly. Move the lever to the front for single Paper cannot be loaded or fed.

  • Page 57: Error Indications On Leds

    Tally Dascom 1125 • Make sure that the Online indicator is lit. • If you use the interface cable, make sure it is securely connected to both the printer and the computer. • Make sure paper is loaded. The printer is on but it will not •...

  • Page 58: Diagnostic Functions

    Tally Dascom 1125 Diagnostic Functions The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment adjustment. Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer hardware · is functional, any problems you are having are probably caused by incorrect printer settings, incorrect software settings, the interface, or the computer.

  • Page 59: Firmware Update

    Tally Dascom 1125 Firmware Update Sometimes it is necessary update the firmware to solve a problem. The latest firmware file may be obtained from your dealer or downloaded from our website www.dascom.com. Before upgrading firmware, it is strongly recommended to print the Main Menu page to keep a record of the old settings.

  • Page 60: General Specifications

    Tally Dascom 1125 8 General Specifications Print System Mono-chrome serial impact dot matrix Print Technology Uni-/bi-directional logic seeking for text and graphics Pitch HS Draft (CPS/DPI) 10 CPI 375/80H 83/360H 12 CPI 300/120H 100/360H Print Speed 15 CPI 375/120H 125/360H 17 .1 CPI...
  • Page 61 Tally Dascom 1125 Bitmap Fonts: 1. Draft 10, 12, 15, 17 , 20 CPI 2. Roman 10, 12, 15, 17 , 20 CPI, Proportional 3. Sans Serif 10, 12, 15, 17 , 20 CPI, Proportional 4. Courier 10, 12, 15, 17 , 20 CPI, Proportional 5.
  • Page 62 Tally Dascom 1125 21. 8859-1 22. 8859-1 (SAP) 23. 8859-2 24. 8859-5 25. 8859-7 26. 8859-9 27 8859-15 28. BRASCII 29. Abicomp 30. Roman8 31. Coax/Twinax Code Pages 32. New-437 33. New-Dig 850 34. Old-Code 860 35. Flarro 863 36. 865 Hebrew 37 .
  • Page 63 Tally Dascom 1125 Line Spacing 1/6", 1/8", n/60", n/180", n/360" Fanfold Paper Cut Sheet Single ply Multi-part Width: Paper 76.2mm～256.5mm Width: 76.2mm～254mm (3"～10"） Specifications （3"～10.1"） Length: 101.6mm～363.2mm Length: 101.6mm min (4" min) （3.9"～14.3"） Weight: 52～100g/㎡ Weight: 52～100 g/㎡ Paper Weight: 40～58g/㎡...
  • Page 64 Tally Dascom 1125 Weight 5 kg Unit type: Switching mode power supply Power cord: Detachable Voltage rating: AC 230V (180V~264V), 50Hz to 60Hz AC 110V/120V, 60Hz (factory option) Power Supply Stand by: Less than 3.8W ESD: Comply with IEC801-2 Contact discharge: 4kV...

  • Page 65: Interfaces

    Tally Dascom 1125 9 Interfaces Parallel Interface Parallel Interface Pin Assignment Signal Name Signal Transmission Printer f Computer STROBE ¯¯¯¯¯¯ Printer f Computer DATA Printer g Computer ¯¯¯ Printer g Computer BUSY Printer g Computer Printer g Computer SELECT AFXT ¯¯¯¯...

  • Page 66: Usb Interface

    Tally Dascom 1125 USB Interface The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full Speed mode at 12 Mbps. It uses the “B” type USB connector. Serial Interface Serial RS-232C Interface Pin Assignment Signal Symbol...

  • Page 67: Character Sets & Code

    Tally Dascom 1125 10 Character sets & Code Pages Character Sets Standard Character Set 1 Standard Character Set 2...
  • Page 68 Tally Dascom 1125 IBM Character Set 1 IBM Character Set 2...

  • Page 69: International Character Sets

    Tally Dascom 1125 International character sets International Character Set Commands Country Command USA ＜ESC＞“R”CHR＄（0） ＜ESC＞“R”CHR＄（1） France ＜ESC＞“R”CHR＄（2） Germany ＜ESC＞“R”CHR＄（3） ＜ESC＞“R”CHR＄（4） Denmark1 ＜ESC＞“R”CHR＄（5） Sweden ＜ESC＞“R”CHR＄（6） Italy ＜ESC＞“R”CHR＄（7） Spain1 ＜ESC＞“R”CHR＄（8） Japan ＜ESC＞“R”CHR＄（9） Norway ＜ESC＞“R”CHR＄（10） Denmark2 ＜ESC＞“R”CHR＄（11） Spain2 ＜ESC＞“R”CHR＄（12） Lat America ＜ESC＞“R”CHR＄（13） Korea ＜ESC＞“R”CHR＄（64）...

  • Page 70: Character Tables

    Tally Dascom 1125 Character Tables Italic...
  • Page 71 Tally Dascom 1125 Graphic 1 Graphic 2...

  • Page 72: Code Page Commands

    Tally Dascom 1125 Code Page Commands Code Page ESC R Parameter CRO-ASCII Arabic Farsi Arabic Urdo Greek DEC Greek ELOT 928 CP437 Latin US CP737 Greek CP850 Latin 1 CP851 Greek CP852 Latin 2 CP857 Turkish CP858 (IBM with €)
  • Page 73 Tally Dascom 1125 Coax/Twinax(Hebrew) New-437 (Hebrew) New-DIG 850 (Hebr.) Old-Code 860 (Hebr.) Flarro 863 (Hebrew) Table 865 (Hebrew) CP775 Baltic CP1257 Baltic Mazovia (Poland) Kamenicky (Czech) CP866 Ukraine CP866 Kazakhstan...

  • Page 74: Code

    Tally Dascom 1125 Code Page Tables CP 437 (US) CP 737 Greek...
  • Page 75 Tally Dascom 1125 CP 850 (Multilingual) CP 851...
  • Page 76 Tally Dascom 1125 CP 852 (Eastern Europe) CP 857 (Turkish)
  • Page 77 Tally Dascom 1125 CP 858 CP 860 (Portugal)
  • Page 78 Tally Dascom 1125 CP 861 (Iceland) CP 863 (French-Canadian)
  • Page 79 Tally Dascom 1125 CP 864 Arabic CP 864 Arabic Extended...
  • Page 80 Tally Dascom 1125 CP 865 (Norway) CP 866 (Cyrillic)
  • Page 81 Tally Dascom 1125 CP 866 Bulgaria CP 1250 Win Latin 2...
  • Page 82 Tally Dascom 1125 CP 1251 Win Cyrillic CP 1252 Win Latin 1...
  • Page 83 Tally Dascom 1125 CP 1253 Win Greek CP 1254 Win Turkish...
  • Page 84 Tally Dascom 1125 8859-1 Latin 1 8859-1 Latin 1 (SAP)
  • Page 85 Tally Dascom 1125 ISO 8859-2 (ISO Latin 2) ISO 8859-5 Cyrillic...
  • Page 86 Tally Dascom 1125 ISO 8859-7 (Latin/Greek) ISO 8859-9 (Turkish)
  • Page 87 Tally Dascom 1125 ISO 8859-15 Euro (Code Page 923) BRASCII...
  • Page 88 Tally Dascom 1125 Abicomp Roman 8...
  • Page 89 Tally Dascom 1125 Coax/Twinax (Hebrew) New-437 (Hebrew)
  • Page 90 Tally Dascom 1125 New-Dig 850 (Hebrew) Old-Code 860 (Hebrew)
  • Page 91 Tally Dascom 1125 Flarro 863 (Hebrew) 865 Hebrew...
  • Page 92 Tally Dascom 1125 CP 1257 866 Ukraine...
  • Page 93 Tally Dascom 1125 866 Kazakhstan Kamenicky...
  • Page 94 Tally Dascom 1125 Mazovia CP 775...
  • Page 95 Tally Dascom 1125 CRO-ASCII Arabic Farsi...
  • Page 96 Tally Dascom 1125 Arabic Urdo Greek DEC...
  • Page 97 Tally Dascom 1125 Greek ELOT 928...

  • Page 98: Control Codes Summary

    Tally Dascom 1125 11 Control Codes Summary Epson Emulation Command List Command Sequence Function Beeper Backspace Tab horizontally Line feed Tab vertically Form feed Carriage return Select double-width printing (one line) Select condensed mode Online Cancel condensed mode Offline Cancel double-wide mode(one line)
  • Page 99 Tally Dascom 1125 ESC : Copy ROM to RAM ESC ＜ Unidirectional mode(1 line) ESC > Set MSB to 1 ESC = Set MSB to 0 ESC # Cancel MSB control ESC ？n m Reassign graphics mode ESC @ Initialize printer ESC ＼n1 n2...

  • Page 100: Ibm Emulation Command List

    Tally Dascom 1125 IBM Emulation Command List Command Sequence Function Beeper Backspace Tab horizontally Line feed Tab vertically Form feed Enter Select double-wide mode Select condensed mode Online Select 10CPI Offline Cancel double-wide mode(one line) Cancel buffer ESC BEL Beeper...
  • Page 101 Tally Dascom 1125 ESC C NUL n Set page length in inches ESC D Select Tab horizontally ESC E Select bold ESC F Cancel bold ESC G Select double-strike mode ESC H Cancel double-strike mode ESC I n Select printing mode ESC J n Perform n/180″or n/216″single line feed...

  • Page 102: Fcc Statement

    Tally Dascom 1125 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: a. This device may not cause harmful interference. b. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 104 DASCOM REPRESENTATIVES GERMANY UNITED KINGDOM RUSSIA and CIS DASCOM Europe GmbH DASCOM GB Ltd ViewPoint, DASCOM Europe GmbH Heuweg 3 Basing View, Basingstoke, Representation Moscow D-89079 Ulm Hampshire RG21 4RG, Leninsky Prospekt 95a, Office 322 Deutschland England Phone: +44 (0) 119313 Moscow, Russian Federation Tel.: +49 (0) 731 2075 0 Fax: 1256 481481 Fax: +44 (0)
