Tally T6140 Maintenance Manual

Impact line printer
Hide thumbs

Advertisement

Quick Links

T6140
T6141
Maintenance Manual
Impact Line Printer

Advertisement

loading
Need help?

Need help?

Do you have a question about the T6140 and is the answer not in the manual?

Questions and answers

Related Manuals for Tally T6140

Summary of Contents for Tally T6140

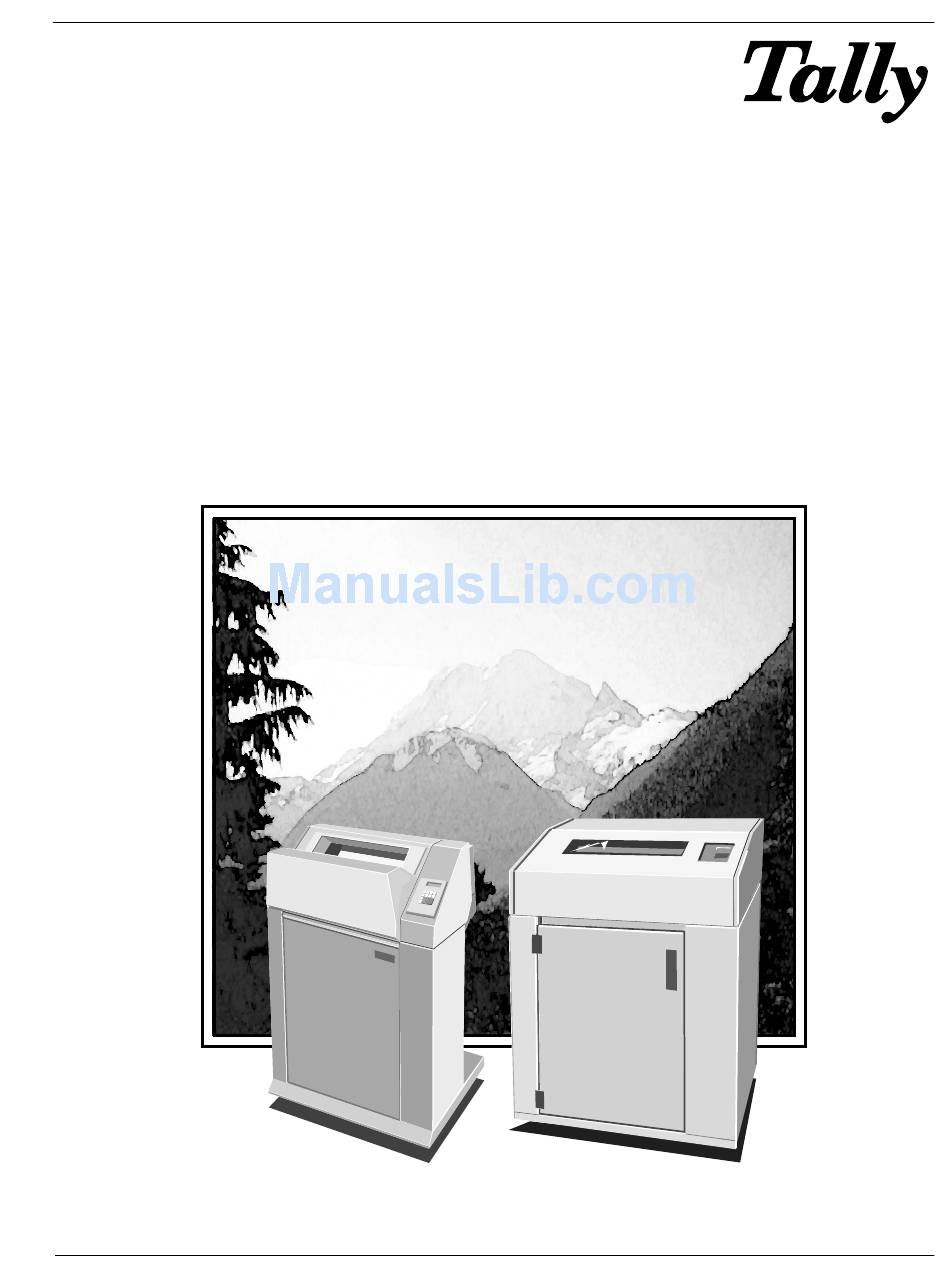

  • Page 1 T6140 T6141 Maintenance Manual Impact Line Printer...
  • Page 2 Appendix A: Schematics and Illustrated Parts Breakdowns...

  • Page 3: Illustrated Parts List

    Label, Warning 70V Circuit 1 Ea Clamp - Cable, Twist Lock 2 Ea 403728-01 Guide, Card 3 Ea Nut - #8 Hex, KEPS (T6140) 2 Ea 402524-41 Screw, #8-32 x 0.25 SEMS(T6140) B,C 2 Ea Screw, #8-32 x 0.75 SEMS 1 Ea 402524-29 Screw, #6-32 x 0.44 SEMS...
  • Page 4 32 33 Front Panel J801 Platen Open J601 Paper Out J602 Paper Motion J603 Shuttle Capture J604 Shuttle Motor J501 Ribbon Motor J502 Paper Motor J503 J901 48/49 Electronics Assembly Appendix A: Schematics and Illustrated Parts Breakdowns A–3...
  • Page 5 1 Ea 611096-1 Plate, Detent - Platen Lever 1 Ea 075135 Cable Assy., Platen Open 1 Ea 075141 Cap - Duct, Air Inlet (T6140) 1 Ea 611414-1 Ground Strap Assembly, 3,35 Lg(T6140) 1 Ea 079783 Label, S/N Supplemental (T6141) 1 Ea...
  • Page 6 34 38 Frame Assembly Appendix A: Schematics and Illustrated Parts Breakdowns A–5...
  • Page 7 A–6 T6140/T6141 Maintenance Manual ILLUSTRATED PARTS LIST Hammer Bank and Shuttle T6140/ T6141 Item Part Number Nomenclature Support Level Qty. 078368 Hammer Bank and Ribbon Shield Assy. 1 Ea 078370 Hammer Module 6-pack, Odd (Lower) 11 Ea 078371 Hammer Module 6-pack, Even (Upper)
  • Page 8 15° ± 5°) (0.20 ±0.50) Hammer Bank and Shuttle Shuttle Sensor Adjustment Appendix A: Schematics and Illustrated Parts Breakdowns A–7...
  • Page 9 1 Ea 730095 Bearing, Nylon Flanged 1 Ea 400995-16 Washer, Curved Spring 1 Ea 402524-41 Screw, 8-32 x 0.25 SEMS (T6140) 2 Ea 402524-05 Screw, 4-40 x 1.00 SEMS 2 Ea 402524-42 Screw, 8-32 x 0.38 SEMS 2 Ea 402524-43 Screw, 8-32 x 0.50 SEMS...
  • Page 10 Paper Drive Assembly Appendix A: Schematics and Illustrated Parts Breakdowns A–9...

  • Page 11: Ventilation Components

    A–10 T6140/T6141 Maintenance Manual ILLUSTRATED PARTS LIST Ventilation Components T6140/ T6141 Item Part Number Nomenclature Support Level Qty. 078511 Cable and Bracket Assembly 1 Ea 078748 Duct, Interconnect 1 Ea 076831 Duct, Hammerbank 1 Ea 078182 Brace, Cable Support 1 Ea...
  • Page 12 Ventilation Components Appendix A: Schematics and Illustrated Parts Breakdowns A–11...
  • Page 13 A–12 T6140/T6141 Maintenance Manual ILLUSTRATED PARTS LIST PRINT MECHANISM T6140/ T6141 Item Part Number Nomenclature Support Level Qty. 076868 Ribbon Platform, Complete 1 Ea 076867 Bracket, Support (lower) 1 Ea 079832 Platform Assy (upper) 1 Ea 075138 Motor, Ribbon Drive...
  • Page 14 Print Mechanism Appendix A: Schematics and Illustrated Parts Breakdowns A–13...
  • Page 15 A–14 T6140/T6141 Maintenance Manual ILLUSTRATED PARTS LIST COVER / LID ASSEMBLY T6140 Item Part Number Nomenclature Support Level Qty. 078049 Cover Assembly 078049 Lid Assembly 075154 Base Assembly 075487 Lid, Standard Color 075486 Cover, Molded 075145 Window, Lid Seal, Lid Rear...
  • Page 16 Cover / Lid Assembly T6140 Only Appendix A: Schematics and Illustrated Parts Breakdowns A–15...

This manual is also suitable for:

T6141
