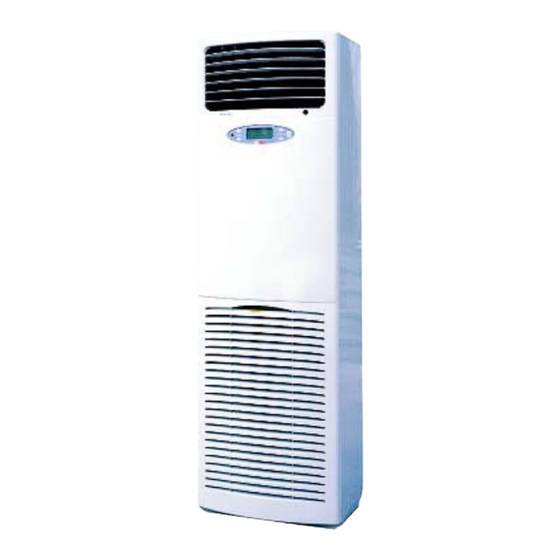

Summary of Contents for Toyotomi FS1060A

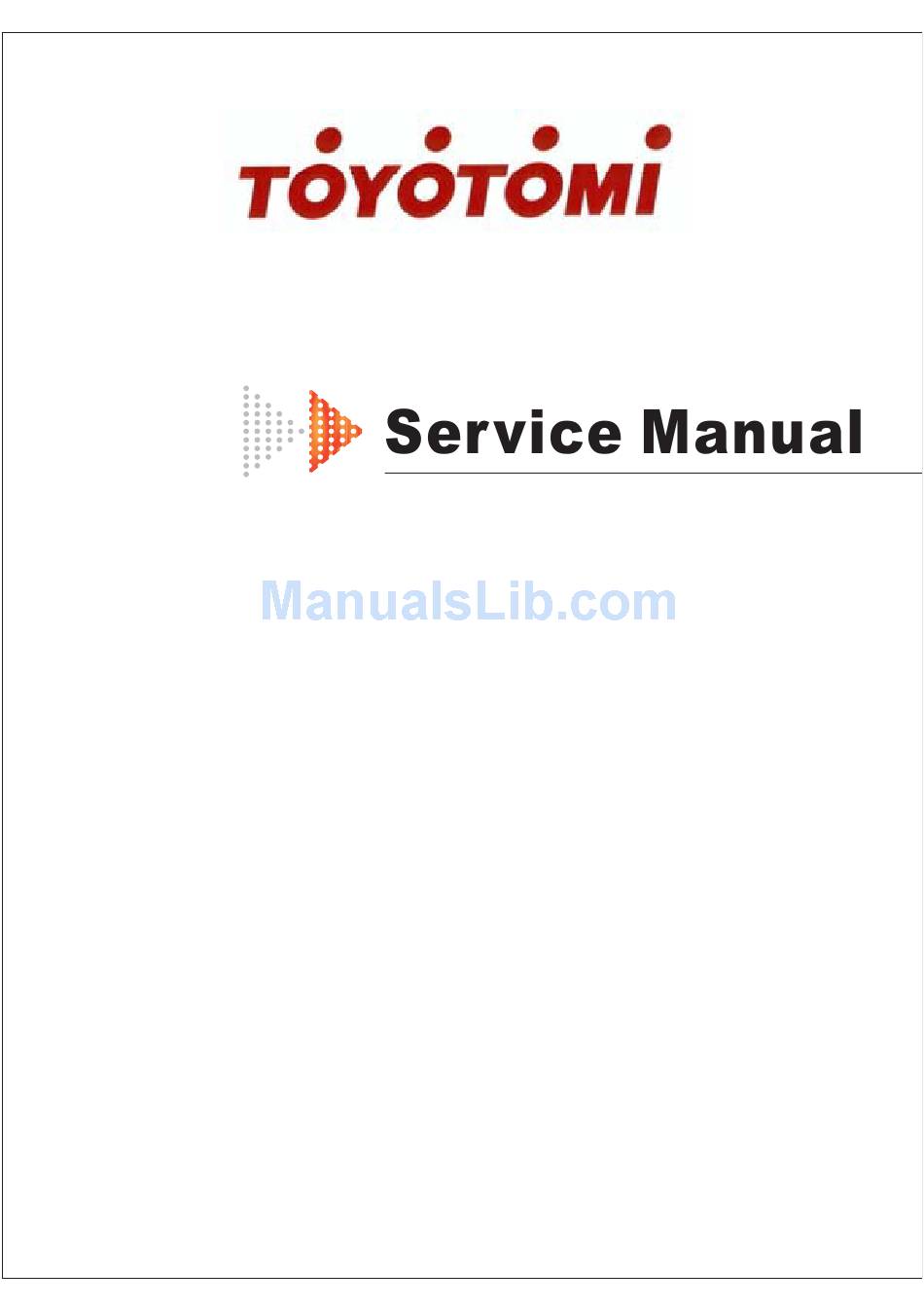

  • Page 1 MODEL: FS1060A...

  • Page 2: Introduction And Features

    Introduction and Features Model Remarks FS 1060A...
  • Page 3 Specification and Technical Parameter Model FS 1060A Function COOLING HEATING Rated Voltage 380-415V 3N Rated Frequency 50Hz Total Capacity (Btu/h) 16000W 18000W Power Input (W) 6400W 6200(9700)W Rated Input (W) 7800W 7800(11300)W Rated Current (A) 12.05A 12.05(17.25) A 2000 Air Flow Volume (m /h) (H/M/L)** Dehumidifying Volume (l/h) EER / C.O.P (W/W)
  • Page 4 Model of Outdoor Unit FS 1060Ao Compressor Manufacturer/trademark Dallian SANYO / SANYO Compressor Model C-SBN453H8D Compressor Type SCrOll L.R.A. (A) Compressor RLA(A) 9.77A Compressor Power Input(W) 5750W Overload Protector UP18 Throttling Method Capillary Starting Method Capacitor Working Temp Range ( ) T 45 Condenser Aluminum fin-copper tube...

  • Page 5: Parts Name

    Parts' Name air outlet display screen panel air discharge remote controller display screen swing timer air intake panel air intake temperature sealing tape mode ON/OFF fan speed air intake connecting pipe drain pipe air discharge...

  • Page 6: Outline And Installation Dimension

    Outline and Installation Dimension Indoor unit's outline and installation size unit: rear front Pipe side should be at least 30cm. Pipe side should be at least 30cm.
  • Page 7 Outdoor unit's outline and installation size unit: more than more than 600 more than 600 more than 600 bolt...
  • Page 8 If above electric circuit diagram has been changed, please refer to it on the body.
  • Page 9 6 6 6 6 6 Controller's function manual and operation method 1 Temperature Parameters Indoor preset temperature (T preset Indoor ambient temperature (T amb. 2 Basic Functions Once the unit is started under any modes, the compressor will keep running within 6 minutes. Once the unit's stopped, it cannot be restarted until after 3-minute lag.

  • Page 10: Other Control

    If T + 1 , the compressor and outdoor fan will be stopped, while reversal valve will remain energized and the amb. preset indoor fan will run at low speed for 10s and then it will stop running. When T -1 <T <...
  • Page 11 If the controller is under heating mode, the preset temperature will be decreased by 1 one hour after running under sleep mode and will be decreased by another 1 after two hours. The temperature wi ll decreased by 2 within two hours.
  • Page 12 (6) ON/OFF button This button is controlling ON/OFF of the controller. After each pressing, the ON/OFF will be switched once. 5 Protection (1) Indoor Antifreeze Protection When the unit is cooling under cooling or dry mode . If it is detected that the system is under antifreeze protection, the indicator will blink and E2 will be displayed, in which case the compressor and the outdoor fan will stop running, while indoor fan and swing motor will maintain the original status.

  • Page 13: Disassembly Procedure Of Outdoor Unit

    Disassembly procedure of outdoor unit Operating Procedures / Photos 1.Disassemble grill net Unscrew the support chassis between rear plate and valve and 6 tapping screws on grill net condenser side plate, and then remove the grill net. screw screws 2.Disassemble the top cover plate Unscrew the tapping screws around top cover plate and pull it upward, then remove the top cover plate.
  • Page 14 Operating Procedures / Photos 4.Disassemble electric box Unscrew 2 screws on electric box and pull out the signal power wire and the power cord as showed in Fig., and pull it downward, then remove the electric box screws signal power wire 5.Disassemble panel Unscrew 2 screws used for fixing the panel, pull the panel downward and pull out the signal...
  • Page 15 Operating Procedures / Photos screws 7.Disassemble air-out Assy Unscrew the 3 screws used for connecting air outlet and top cover and the 2 screws used for connecting left plate and right plate air-out assy air-out assy screws 8.Disassemble chassis chassis Unscrew the screws around the chassis and pull it outward, then disassemble the chassis.
  • Page 16 Operating Procedures / Photos 9.Disassemble lower platen of casing Unscrew the 2 screws on the lower platen of casing and pull it upward, then you can remove the lower platen of casing lower platern of casing screws top cover 10.Disassemble top cover Unscrew the screws around the top cover and then remove the top cover.
  • Page 17 Operating Procedures / Photos blade 12.Disassemble mounted plate of evaporator Unscrew the 2 screws on the mounted plate of evaporator and then remove it. mounted plate of evaporator screws 13.Disassemble the left side and right side plates Unscrew the screws used for connecting the left and right side plates and rear plate, and then remove it.
  • Page 18 Operating Procedures / Photos 14.Disassemble casing Unscrew the screws used for fixing the casing and casing then remove the casing screw 15.Disassemble evaporator Unscrew the 2 screws used for fixing evaporator screws and then remove evaporator. Unscrew the 4 screws used for fixing the electric heating and then remove it.
  • Page 19 Operating Procedures / Photos 4.Disassemble the outer case Unscrew the screws around the outer case and then remove it. screw outer case 5.Disassemble electric box Unscrew the screws around the electric box and then remove the electric box assy. screws 6.Disassemble right side plate Unscrew the screws around the right side plate assy and the right side plate assy.
  • Page 20 Operating Procedures / Photos 7.Disassemble axial blade Disboard the nut on blade with wrench and then remove the blade. motor 8.Disassemble outdoor motor fix screw for motor Unscrew 4 tapping screws used for fixing the motor pull out the leading wire and remove the motor. motor support Unscrew 2 tapping screws used for fixing the motor support, lift it upward and then remove the motor...
  • Page 21 Operating Procedures / Photos 10. Disassemble valve Unscrew 2 screws used for fixing the valve and unsolder its connection pipe, the remove the valve. gas valve screw screws liquid valve 11.Disassemble capillary Unsolder the weld spot used for connecting capillary and other pipes and then remove the capillary.

  • Page 22: Assembly Drawing And Parts List

    Assembly Drawing and Parts List Assembly drawing for indoor unit parts...
  • Page 23 Parts list for indoor unit Part Code Description FS 1060Ai Left Side Plate Sub-Assy 01304305 Rear Plate Sub-Assy 01304177 Top Cover Sub-Assy 22244470 Right Side Plate Sub-Assy 01304179 Evaporator Assy 01004283 Water Tray Sub-Assy 12414471 Temperature Sensor 39000171 Electric Heater Tube 32004053 Breakwater Sub-Assy 01364483D...
  • Page 24 Assembly drawing for outdoor unit...
  • Page 25 Parts list of outdoor unit Part Code Description FS 1060Ao Panel Grille 22414102 Cabinet 01435436 Rear Grill 01475432 Top Cover 01255472 Rear Side Plate Sub-Assy 01303712 Handle 26235253 Valve Support Sub-Assy 01715001 Chassis Sub-assy 01205472 Front Side Plate 01305431 Sensor supprt 24211341 Axial-flow Fan 10335253...

  • Page 26: Troubleshooting

    9 9 9 9 9 Troubleshooting Ground and measure the insulation When setting the circuit breaker at "ON", it will be resistance, confirm whether the A/C tripped off immediately is leaking Breaker is tripped over or the fuse is burnt out When the A/C is turn to "ON", the circuit breaker Check the circuit breaker will be tripped off in a few minutes...
  • Page 27 Clean filter periodically Outdoor's unit filter is blocked Clean the dust accumulated on the surface of Outdoor unit's heat exchanger is blocked heat exchanger There's leakage between high voltage Replace the compressor and low voltage in compressor Poor (heating) cooling Part of compresser is blocked Check the leakage and add refrigerant Refrigerant is leaking...
  • Page 28 Replace the drain piple Drain pipe is blocked or broken Leakage The junction of the refrigerant pipe hasn't been Wrap it again and wrap it tightly wrapped well The fan of indoor unit will contact other parts Adjust the fan's position There are foreign substances in the indoor unit Take out the foreign substances Adjust the compressor's support mat and fasten the...
