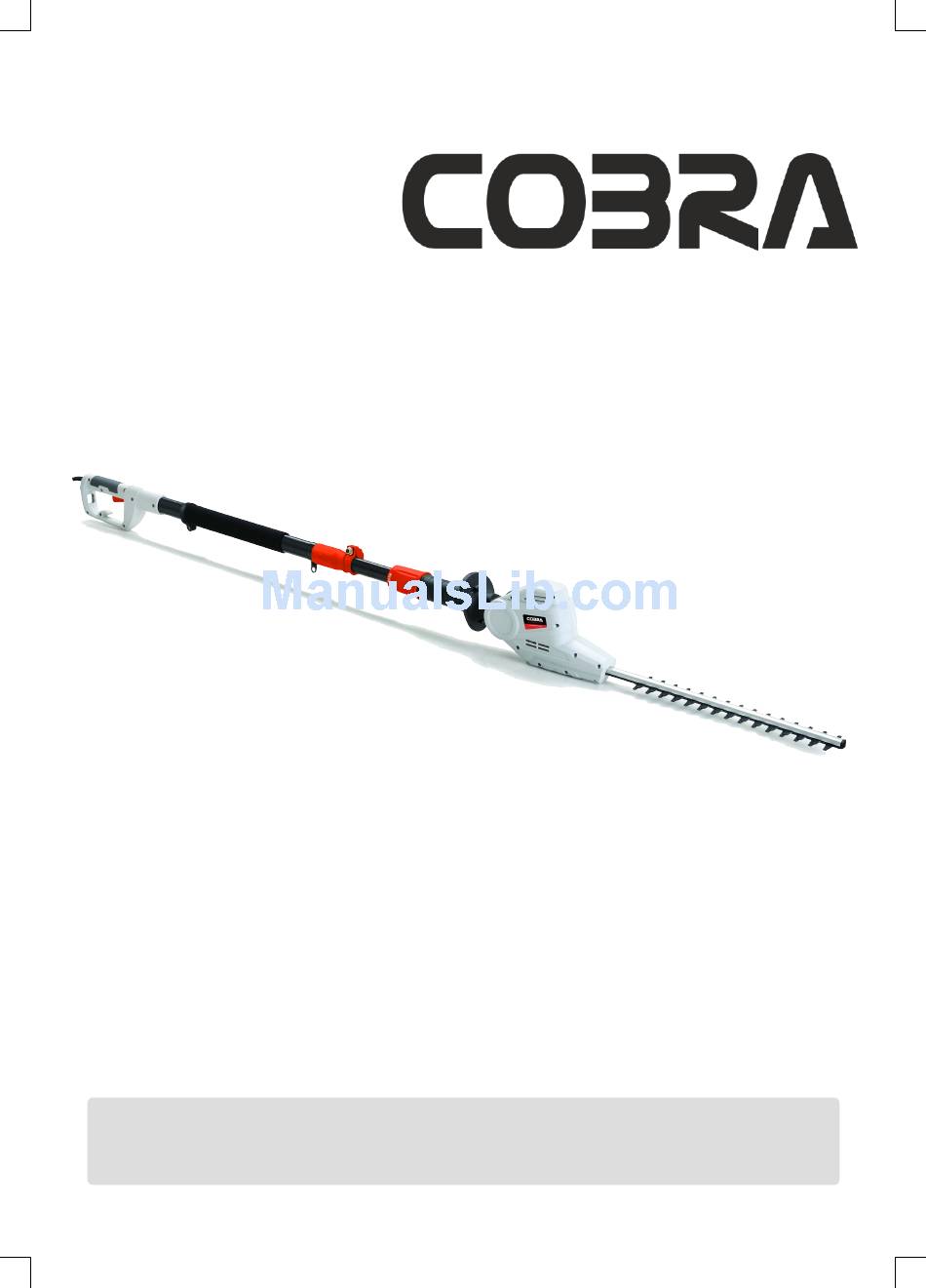

- Page 1 Electric Long Reach Hedge Trimmer LRH40E WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Keep this manual safe.
-
Page 3: Table Of Contents
CONTENTS Know Your Product....................3 Technical Specifications..................3 Description of Symbols...................4 Contents of Pole Hedge Trimmer................5 General Safety Instructions..................6 Additional Safety Instructions for Pole Hedge Trimmer.......... 8 Assembly Instructions.................... 9 Operation....................... 10 Switch On/Off....................10 Trimming......................10 Tips for Using Your Pole Hedge Trimmer............11 Maintenance......................13 Warranty ........................14... -
Page 4: Know Your Product
KNOW YOUR PRODUCT 1 Blade 2 Air vents 3 Lock-off button angle adjustment 4 Support 5 Locking sleeve (upper) 6 Pole extension 7 Locking sleeve (lower) 8 Harness 8a Securing clip 9 Pole / Gripping surface 10 Lock-off button 11 On/Off switch 12 Main handle 13 Power cable with plug 14 Cable strain reliever... -
Page 5: Description Of Symbols
DESCRIPTION OF SYMBOLS The rating plate on your pole hedge trimmer may show the following symbols. These represent important information about the product instruction on its use. Lock / to tighten or secure Unlock / to loosen Caution / Warning Wear eye protection. -
Page 6: Contents Of Pole Hedge Trimmer
DESCRIPTION OF SYMBOLS (CONT.) Warning! Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Keep fingers away from moving cutting device Wear tight-fitting protective clothes. Warning! Danger from overhead electric-power lines! Keep at least 10 metre distance. -
Page 7: General Safety Instructions
Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock. • If the supply cable is damaged, it must be replaced by an approved Cobra service agent. - Page 8 5)Service • Have your power tool serviced by a Cobra service agent using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
-
Page 9: Additional Safety Instructions For Pole Hedge Trimmer
ADDITIONAL SAFETY INSTRUCTIONS FOR POLE HEDGE TRIMMER Training 1. Become familiar with the instruction manual before attempting to operate the product. Preparation 1. THIS PRODUCT CAN CAUSE SERIOUS INJURIES. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the product. -
Page 10: Assembly Instructions
ADDITIONAL SAFETY INSTRUCTIONS FOR POLE HEDGE TRIMMER (Cont.) out any modifications of the product. Information about maintenance and repair is provided in this instruction manual. 9. Know how to stop the product quickly in an emergency. 10.Do not expose to rain. Do not operate the product on a wet hedge. 11.Use the product only in daylight or good artificial light 12.Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) -
Page 11: Operation
ASSEMBLY INSTRUCTIONS (Cont.) Blade cover 1. Remove the blade cover (17) from the blade (1) before operation . OPERATION Switching on/off 1. Ensure that the blade (1) does not touch any objects. 2. Press the lock-off button (10) and hold it in position. 3. -
Page 12: Tips For Using Your Pole Hedge Trimmer
OPERATION (Cont.) 5. After cutting the sides proceed to the top. 6. When cutting wide hedges with the cutting area in sight move the cutting blade lightly through the cutting surface in a sweeping motion following the shape of the hedge or shrub. A slight tilt downwards of the cutting blade in the direction of motion is recommended for optimum cutting performance. - Page 13 OPERATION (Cont.) 3. Tighten the locking sleeve (7) once the desired length is adjusted. Note: The design of this mechanism is subject to change and may include a click-lock system Angle adjustment Adjust the blade angle to fit the growth of the plant 1.
-
Page 14: Maintenance
MAINTENANCE Before and after each use, check the product and accessories (such as application tools) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. -
Page 15: Warranty
EC Conformity declaration The undersigned, Cobra Garden, Henton & Chattell Ltd., London Road, Nottingham NG2 3HW UK Hereby certifies that the unit described below: Electrical Hedge Trimmer Model: LRH40E (5306) Rated power: 500 W Measured sound power level: 90. 3 dB(A)
