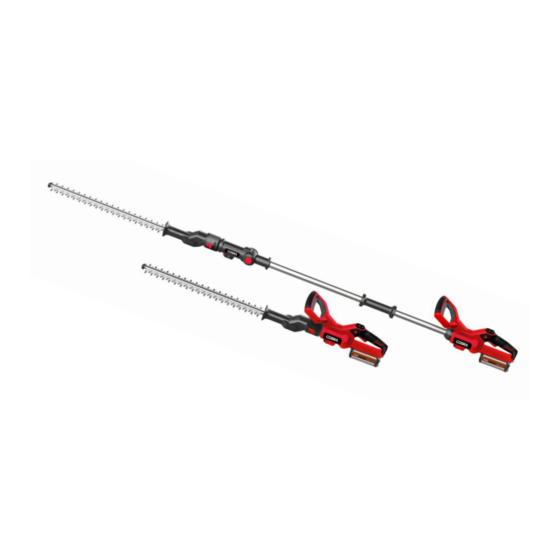

MODEL: HT50LRH24V (HT57S-5020DA)
COBRA
OWNER'S MANUAL
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
WARNING：
For your own safety please read this manual before attempting to operate your new unit. Failure to follow
instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your
garden tool before each use. Keep this manual in a safe place, so that the information is available at all
times. If you give the equipment to any other person, hand over these operating instructions and safety
regulations as well.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT50LRH24V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cobra HT50LRH24V

Summary of Contents for Cobra HT50LRH24V

  • Page 1 MODEL: HT50LRH24V (HT57S-5020DA) COBRA OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk WARNING： For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your garden tool before each use.

  • Page 2: Table Of Contents

    CONTENTS Safety symbols ................. 3 Safety precautions ..............3 General Safety ................. 4 Description of the hedge trimmer ..........8 Technical Data ................. 9 Assembly ……………………………………………………………9 Starting and Operation ............10 Maintenance and Care ………………………………………..…14 Troubleshooting…………………………………………………...15 Warranty……………………………………………………………16 Disposal ................. 16 EC-Declaration ...............

  • Page 3: Safety Symbols

    1. SYMBOLS & WARNINGS Some of the following symbols used on your tool, please study them and learn their meaning, proper interpretation of these symbols will allow you to operate the tool more safely and effectively. Warning Read the instruction manual Always use gloves and safety goggles.

  • Page 4: General Safety

    2. GENERAL SAFETY RULES WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.
  • Page 5 moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 2.4 POWER TOOL USE AND CARE a) Do not force the power tool.
  • Page 6 2.7 POLE HEDGE TRIMMER SAFETY INSTRUCTIONS 1. The pole hedge trimmer must not be used by anyone under the age of 16. 2. Keep children, other people and pets away from the trimmer. 3. Always dress properly. Don’t wear loose clothing or jewellery; they can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
  • Page 7 2.8 SAFETY WARNINGS FOR BATTERY CHARERS 1. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. 2. Do not charge other batteries. The battery charger is suitable only for charging lithium ion batteries within the listed voltage range.

  • Page 8: Description Of The Hedge Trimmer

    3. GENERAL IDENTIFICATION 1.Battery 6. Front Trigger 11. Adjust Button 16. Scabbard (blade cover) 2.Trigger 7. Front Handle 12. Socket housing 3. Lock-off Button 8. Pole Handle 13. Adjust Button 4. Handle 9. Pole 14. Rotate Button 5. Release button 10.

  • Page 9: Technical Data

    4. TECHNICAL DATA Model: HT50LRH24V Rated voltage: 24V DC Turbo 1300-1500r/min No Load Speed Eco 1100-1300r/min Cutting length 500mm Cutting width 20mm Net weight: 3.34kg Battery: 24v 2.5Ah 5. ASSEMBLY WARNING: Switch off and remove the battery from machine before adjusting or cleaning. The blades continue to move for a fraction of a second after the hedge trimmer is switched off.

  • Page 10: Starting And Operation

    Remove the blade cover (scabbard) as shown Wear gloves and do not touch the blades. above by sliding out. The hedge trimmer may be rotated to suit the Push back the 2 side rotation lock buttons and application. rotate the attachment holding the handle part of the assembly.
  • Page 11 To start the cutting blades operating, press the lock button followed the trigger and then engage the front trigger (D-shaped). Release either triggers to stop the blades. 5.3 ATTACHING THE LONG REACH HEDGE TRIMMER Wear gloves and do not touch the blades. Remove the hedge trimmer from the handle assembly.
  • Page 12 Push the hedge trimmer into the long reach shaft as shown. Check the hedge trimmer is securely locked in place. The long reach attachment is articulating to suit the working angle and hedge position. Squeeze both sides articulating joint to release the lock and adjust the angle as required.
  • Page 13 5.4 INSERTING THE BATTERY 11. Only use the charger indoors. Start charging the battery for a minimum of 5 hours The battery is supplied from the factory partly before using the machine the first time. Thereafter charged. Before using the tool for the first time, the normal charging time is approximately 2 to 3 charge the battery for a minimum 5 hours.

  • Page 14: Maintenance And Care

    1. If the garden product should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorized customer service agent for Cobra products. 2. Use only manufacturer’s recommended replacement parts and accessories WARNING: Switch the machine off and remove the battery.

  • Page 15: Troubleshooting

    7. TROUBLESHOOTING The following chart lists problem symptoms, possible causes and corrective action, if your garden product does not operate properly. If these do not identify and correct the problem, contact your service agent. WARNING: Switch off and remove the battery prior to any troubleshooting. Fault Remedial action Hedge trimmer does not...

  • Page 16: Warranty

    Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly.

  • Page 17: Ec-Declaration

    10. EC-DECLARATION OF CONFORMITY Cobra Garden Machinery, Henton & Chattell Ltd, We herewith declare, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
