MODELS: HT5024V (HT31S-5015D)
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
WARNING：
For your own safety please read this manual before attempting to operate your new unit.
Failure to follow instructions can result in serious personal injury. Spend a few moments
to familiarize yourself with your garden tool before each use. Keep this manual in a safe
place, so that the information is available at all times. If you give the equipment to any
other person, hand over these operating instructions and safety regulations as well.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cobra HT5024V
Summary of Contents for Cobra HT5024V
- Page 1 MODELS: HT5024V (HT31S-5015D) Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk WARNING： For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your garden tool before each use.
-
Page 2: Table Of Contents
CONTENTS Safety symbols ................3 Safety precautions ..............3 General Safety ................4 Description of the hedge trimmer Technical Data ........... Assembly ............ Starting and Operation ............11 Maintenance and Care……………………………………………11 Troubleshooting…………………………………………………...12 Warranty……………………………………………………………13 Disposal .................. 14 EC-Declaration ................ 15... -
Page 3: Safety Symbols
1. SYMBOLS Some of the following symbols used on your tool, please study them and learn their meaning, proper interpretation of these symbols will allow you to operate the tool more safely and effectively. Warning Read the instruction manual before use Eye protection must be used Do not expose the tool to rain or wet conditions Keep by standers away... -
Page 4: General Safety
2. GENERAL SAFETY RULES WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool. - Page 5 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 6 contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 2.6 SERVICE Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 2.6.1 Hedge trimmer safety warnings 1.
-

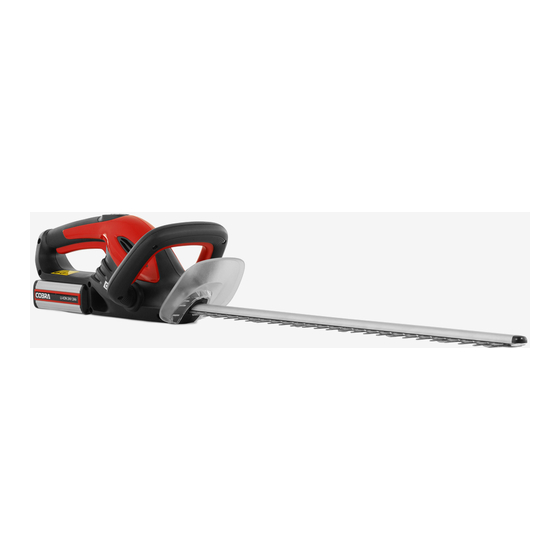

Page 7: Description Of The Hedge Trimmer
ion batteries within the listed voltage range. Otherwise there is danger of fire and explosion. 3. Keep the battery charger clean. Contamination can lead to danger of an electric shock. 4. Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. -
Page 8: Technical Data
4. TECHNICAL DATA Model: HT5024V Rated voltage: 24V d.c No Load Speed 1450/min Cutting length 500mm Cutting width 15mm Net weight: 2.1kg Battery: 24v 2Ah 5. ASSEMBLY WARNING: Switch off and remove the battery from machine before adjusting or cleaning. The blades continue to move for a fraction of a second after the hedge trimmer is switched off. - Page 9 Removing battery pack Release the battery pack by pressing the lock/release button with one hand and pull out the battery with the other hand. 5.2 THE BLADE COVER Before use remove the blade cover. Take care when removing the blade cover – use gloves to protect your hands.
- Page 10 5.3 BATTERY PRECAUTIONS 1. Never open the battery. 2. Never expose the battery to open fire. 3. Use only an original battery. An alternativel battery can damage the hedge trimmer. 4. Rated charge voltage: 100V~240V, 50Hz/60Hz. 5. Use only the original charger, an alternative charger can damage the battery. 6.
-
Page 11: Starting And Operation
6. STARTING AND OPERATING INSTRUCTIONS Step 1：Firstly press the power key until the “ECO” light is illuminated； Step 2：Press down the handle trigger, the blades will operate at a low speed； Step 3： If you want to change from the low speed position to high speed position， press the “TURBO”... -
Page 12: Troubleshooting
Note: To ensure long and reliable service, carry out the following maintenance regularly. 1. If the garden product should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorized customer service agent for Cobra products. -
Page 13: Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 14: Disposal
Please Register Your Product: If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration. -
Page 15: Ec-Declaration
11. EC-DECLARATION OF CONFORMITY Cobra Garden Machinery, Henton & Chattell Ltd, We herewith declare, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
