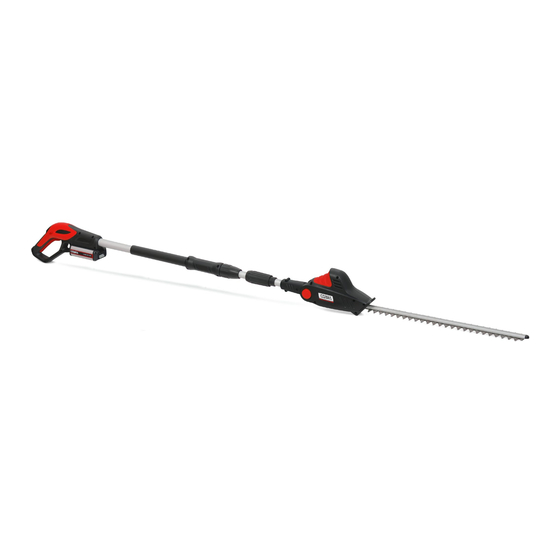

MODEL: LRH5024V (PHT16S-5015D)
COBRA
OWNER'S MANUAL
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
WARNING：
For your own safety please read this manual before attempting to operate your new unit. Failure to follow
instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your
garden tool before each use. Keep this manual in a safe place, so that the information is available at all
times. If you give the equipment to any other person, hand over these operating instructions and safety
regulations as well.
1
Advertisement
Table of Contents
Related Manuals for Cobra LRH5024V
Summary of Contents for Cobra LRH5024V
- Page 1 MODEL: LRH5024V (PHT16S-5015D) COBRA OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk WARNING： For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your garden tool before each use.
-
Page 2: Table Of Contents
CONTENTS Safety symbols ................. 3 Safety precautions ..............3 General Safety ................. 4 Description of the hedge trimmer ..........8 Technical Data ................. 8 Assembly ……………………………………………………………9 Starting and Operation ............11 Maintenance and Care ………………………………………..…12 Chainsaw attachment (optional accessory) ………………….13 Troubleshooting…………………………………………………...17 Warranty……………………………………………………………18 Disposal ................. -
Page 3: Safety Symbols
1. SYMBOLS & WARNINGS Some of the following symbols used on your tool, please study them and learn their meaning, proper interpretation of these symbols will allow you to operate the tool more safely and effectively. Warning Read the instruction manual before use Always use gloves and safety goggles. -
Page 4: General Safety
2. GENERAL SAFETY RULES WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool. - Page 5 moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 2.4 POWER TOOL USE AND CARE a) Do not force the power tool.
- Page 6 2.7 POLE HEDGE TRIMMER SAFETY INSTRUCTIONS 1. The pole hedge trimmer must not be used by anyone under the age of 16. 2. Keep children, other people and pets away from the trimmer. 3. Always dress properly. Don’t wear loose clothing or jewellery; they can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
- Page 7 2.8 SAFETY WARNINGS FOR BATTERY CHARERS 1. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. 2. Do not charge other batteries. The battery charger is suitable only for charging lithium ion batteries within the listed voltage range.
-
Page 8: Description Of The Hedge Trimmer
10. Straight Tube 14. Scabbard 3.Battery 7.Front Handle 11. Trimmer body 4.Back hand 8.Telescopic Tube 12. Angle Adjuster Button 4. TECHNICAL DATA Model: LRH5024V Rated voltage: 24V DC Turbo 1300-1500r/min No Load Speed Eco 1100-1350r/min Cutting length 500mm Cutting width 15mm Net weight: 3.56kg... -
Page 9: Assembly
5. ASSEMBLY WARNING: Switch off and remove the battery from machine before adjusting or cleaning. The blades continue to move for a fraction of a second after the hedge trimmer is switched off. Do not touch the moving blades. 5.1 ATTACHING THE HEDGE TRIMMER The battery should be removed before proceeding: Insert the hedge trimmer attachment into the main shaft of the tool. - Page 10 5.3 INSERTING THE BATTERY The battery is supplied from the factory partly charged. Before using the tool for the first time, charge the battery for a minimum 5 hours. Thereafter the normal charging time is 2 to 3 hours. Insert the battery as shown opposite. The battery will firmly locate with a click sound.
-
Page 11: Starting And Operation
Important: protect battery against deep discharging, when the battery charge is low, the hedge trimmer will automatically switch off via a protective circuit. The hedge trimmer will stop. Do not continue to press the on/off switch after an automatic shut-off of the hedge trimmer. The battery may be damaged if excessively discharged. -
Page 12: Maintenance And Care
1. If the garden product should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorized customer service agent for Cobra products. 2. Use only manufacturer’s recommended replacement parts and accessories WARNING: Switch the machine off and remove the battery. -
Page 13: Chainsaw Attachment (Optional Accessory)
8. CHAINSAW ATTACHMENT (OPTIONAL) 8.1 PARTS DESCRIPTION 1. Chain filler cap 5. Chain bar 9. Chain oil tank 2. Chain cover 6. Chain drive gear 10.Chain tension bolt 3. Bolts chain bar 7. Chain drive cover 4. Chain 8. Allen key 8.2 SAFETY PRECAUTIONS Study this manual thoroughly Familiarise yourself with the operation of the long reach chainsaw attachment (pole saw) and learn to use... - Page 14 Maintain unit correctly. Replace worn or damaged parts. 3. The pole saw should be serviced by an authorised Cobra Service Agent. For safety reasons, use only original spare parts approved by Cobra Garden.
- Page 15 Unauthorised modification to the machine can be dangerous and lead to severe injury during use. Cobra Garden disclaims any liability in case of misuse or failure to comply with the instructions and / or regulations in place. 8.4 ASSEMBLY AND OPERATING 1.
- Page 16 2. Store your pole saw in a dry, temperate and dark place. Store in a place out of reach of children. 3. For long term storage, drain the oil tank and grease the chain and chain guide beforehand. 4. Only carry the pole saw with the battery removed and completely stopped. Hold the unit by the front handle, with the guide turned back and the protective scabbard in place 5.
-
Page 17: Troubleshooting
9. TROUBLESHOOTING The following chart lists problem symptoms, possible causes and corrective action, if your garden product does not operate properly. If these do not identify and correct the problem, contact your service agent. WARNING: Switch off and remove the battery prior to any troubleshooting. Fault Remedial action Hedge trimmer does not... -
Page 18: Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 19: Ec-Declaration
12. EC-DECLARATION OF CONFORMITY Cobra Garden Machinery, Henton & Chattell Ltd, We herewith declare, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
