Connecting an External Alarm

NOTE: A large portion of the installation of an alarm will vary based on the type
of alarm. Because of this, the following instructions are not comprehensive, and
will have to be supplemented by specific instructions for your desired external
alarms/systems. Please refer to our knowledge base (http://kb.zmodo.com/) for
more information.

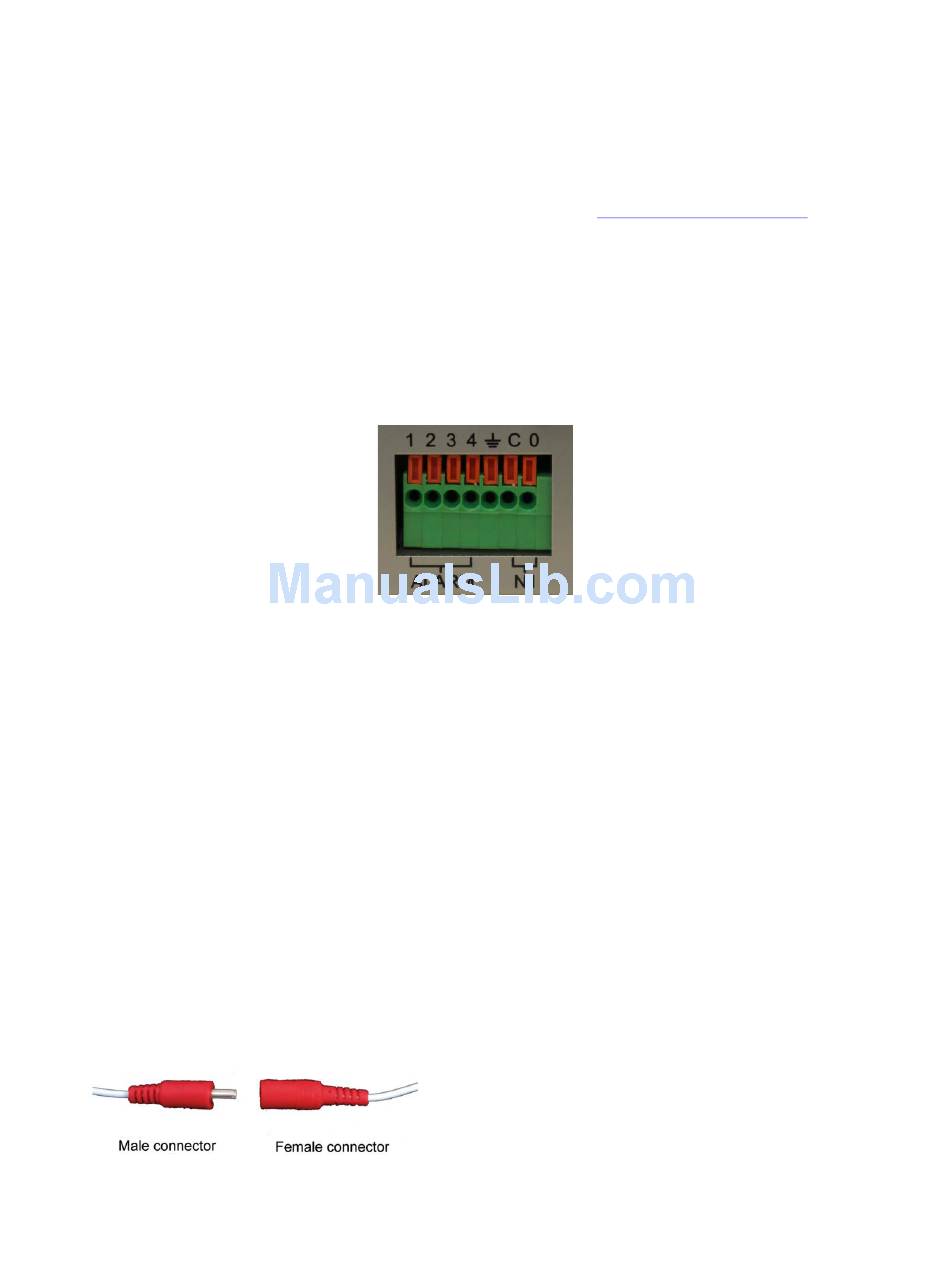

Prior to installation, please locate the alarm input and output ports on the back
panel of your DVR. The following instructions will show you how to plug in the
wires from the external system to the DVR.
1. Push the orange tab on the alarm port (with your finger nail or pen) in order to
open the spring-loaded connection.
2. With the orange tab pushed in, insert the bare wire from your alarm about 1/8-
1/4 inches into the port.
3. Let go of the orange tab and the port should clamp onto the cable. Give the
wire a light tug to ensure that it is securely clamped.
3.2

Camera Installation

This DVR system is
audio cameras, and PTZ cameras and can support up to 8 cameras. Your
connection may vary depending on the specific camera purchased.
Quick guide to identifying male and female connectors:
First-time Setup
compatible
with all Funlux analog video cameras, video and
The male connector will generally feature a
protrusion that is housed in the
corresponding indentation found on the
female connector. The protrusion in some
ceases can also be a pin that is housed
inside of the female component.
3.8
