Table of Contents Your Latitude™ Hearing Instruments ......1 Overview of your Latitude™ Hearing Instrument ..2 Features of your Latitude™ Hearing Instrument ...4 Putting your Hearing Instruments on your Ears .....5 Turning your Hearing Instruments On and Off ....6 Battery Information............7 Operating Instructions............9 Using the Telephone ...........13 Caring for your Hearing Instruments......16...
Your Latitude™ Hearing Instruments Hearing Healthcare Professional: _______________________ ___________________________________________________ Telephone: _________________________________________ Model:_____________________________________________ Serial Number: ______________________________________ Replacement Batteries: Size 13 Warranty: __________________________________________ Program 1 is the Automatic Program ™ ((Available with Latitude 16 and 8 only) Program 2 is the manual program for: ___________________ Program 3 is the manual program for: ___________________ Program 4 is the manual program for: ___________________ Date of Purchase: ____________________________________...
Overview of your Latitude™ Hearing Instrument The diagrams below identify some of the components on your hearing instruments. Have your hearing healthcare professional place a check beside the diagram that best describes your hearing instrument style and attachment. Moda™13 Attachment Style (check one) 13 Legend ™...

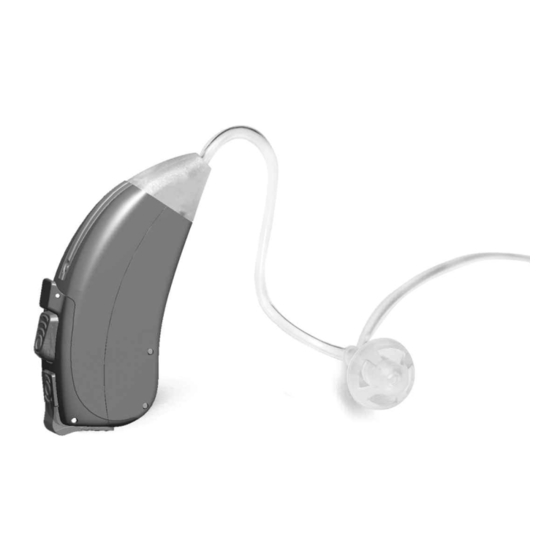

Moxi™13 Attachment Style (check one) 13 Legend ™ Moxi Microphone and Microphone Shield 2 Battery Door/ On & Off Switch 3 Program Button or Volume Control (depending on your ™ Moxi 13 with Shell customized fitting) 4 Toggle for volume ™...
Features of your Latitude™ Hearing Instrument ™ Latitude hearing instruments come equipped with the following features: • Automatic listening program for Latitude 16 and 8, and 3 additional manual program. Latitude 4 has 4 manual programs. ™ • SmartFocus or Speech Enhancement, with personal adjustments for Clarity and Comfort settings where available •...
professional may have enabled or disengaged certain features depending on your requirements. Putting your Hearing Instruments on your Ears Your Latitude hearing instruments may be color-coded red for your right ear and blue for your left ear. This color indicator is located inside the battery door with a small colored dot.
Turning your Hearing Instruments On and Off Your hearing instruments have a three-position battery door that acts as an off/on switch and that allows access to the battery compartment. To turn the hearing instruments on, close the battery door fully. Note: It may take 5 seconds before the hearing device turns on.
Battery Information To replace the hearing instrument battery, fully open the battery door for access to the battery compartment. Low Battery Warning When you hear two long beeps, your hearing instruments are warning you that their batteries are low. You will hear the warning approximately every 30 minutes until you change the batteries or the batteries die.
3. Insert the new battery into the battery compartment matching it with the battery symbol inside the battery door. This will ensure that the battery door closes properly. Note: If the battery is inserted incorrectly, the hearing instrument will not turn on. 4.
Operating Instructions Push Button Your hearing instrument is equipped with a push button, built into the back of the battery door, which has been set for switching between programs or adjusting your volume. Note that your push button may be disabled by your hearing healthcare professional and, therefore, could be inactive.
Page 13
program you are in (i.e. one beep for program 1, two beeps for program 2, etc.) Volume Control If your push button has been configured as a volume control, you can adjust the volume level by pushing the button. If duoLink is enabled, the hearing instrument can also be set so that by changing the volume on one hearing instrument, both will be adjusted.
Page 14
Your Latitude hearing instruments may also come with an optional remote control which allows you to switch between different listening programs, and adjust your smartFocus (Latitude 16 only). Please refer to your Smart Control User Guide for more information. Toggle The toggle on your hearing instruments can be set up as either a volume control, or a smartFocus control (Latitude 16 only).
Page 15
feature has been enabled by your hearing healthcare professional. Over time, the hearing instruments will adjust the default volume settings in the automatic program to the levels that you typically use. Volume Setting Beeps Ideal volume level 1 beep Increased loudness 1 beep + 1 high-pitched beep Decreased loudness 1 beep + 1 low-pitched beep...
instrument, both will be adjusted. As you change the smartFocus level, your hearing instruments will beep. Please refer to the chart below to learn more about the different comfort-clarity beeps. SmartFocus Setting Beep Maximum sound clarity level 2 beeps Maximum listening comfort level 2 beeps Ideal comfort and clarity level 1 beep...
Page 17
moved away from the hearing instrument it will automatically return to the previous listening program. If the hearing instrument does not switch to the telephone program automatically when the telephone receiver is placed in proximity, the magnet for easy-t hearing instruments should be attached to the telephone receiver.
Page 18
magnet will flip to the appropriate side and seek the optimal position on the telephone receiver. 3. Place the double-sided tape in this optimal position on the telephone receiver (Figure 2) and attach the magnet to the tape (Figure 3). Figure 1 Figure 2 Figure 3...
Caring for your Hearing Instruments • Open the battery door when not in use. • Always remove your hearing instruments when using hair care products. The hearing instruments can become clogged and cease to function properly. • Do not wear your hearing devices in the bath or shower or immerse them in water.
Cleaning your Hearing Instruments Ear wax is natural and common. Ensuring your hearing devices, earmolds and domes are free of ear wax is an important step in your daily cleaning and maintenance routine. • Never use alcohol to clean your hearing devices, earmolds or domes.
Page 21
Wash only the earmolds in warm water with a mild soap. Rinse them with cool water and allow them to dry overnight. Make sure the earmold tubes are dry before reconnecting them to each hook on your hearing devices. Latitude™ Hearing Instruments with Slim Tubes and Domes You should have the slim tubes and domes replaced by your hearing...
Page 22
5. Using the black cleaning pin provided in the kit, gently insert the cleaning pin where the slim tube attaches to the hearing instrument and push the pin all the way through the tube. Note: The slim tubes and domes should never be rinsed or submerged in water as water drops may become lodged in the tube, block sound or damage the electrical components of the hearing instrument.
Signature Features of your Latitude™ Hearing Instruments SmartFocus™ (available exclusively with Latitude 16) With a Latitude 16 hearing instrument, you can adjust the focus on hearing speech or background noise in your listening environment via the smartFocus control. This control provides an additional fine tuning adjustment beyond a traditional volume control.
Page 24
other hearing instrument automatically changes as well. An additional benefit occurs while using the phone. As one hearing instrument detects the phone, the other hearing instrument can be programmed to mute sound to eliminate distractions. Binaural Phone (available exclusively with Latitude 16) With the Binaural Phone feature, landline and mobile phone calls can be heard clearly and automatically in both ears without any additional accessories.
Assistive Listening Devices Listening in Public Places Latitude’s telecoil option can also help you listen in public places equipped with telecoil compatible assistive listening devices such as a loop system. When you see this symbol, it means that there is loop system installed; this loop system is compatible with your hearing instrument.
Warnings • Hearing devices should only be used as directed by your physician or hearing healthcare professional. • Hearing devices will not restore normal hearing and will not prevent or improve a hearing impairment resulting from organic conditions. • Do not use your hearing devices in explosion hazard areas.
Magnet Warnings • Be sure the magnet is securely affixed to the telephone. • Keep loose magnets out of reach of children and pets. • If the magnet falls into your ear, contact your hearing healthcare professional. • If the magnet is swallowed, contact your physician immediately.
Page 28
Warning to hearing healthcare professional: • Domes should never be fitted on patients with perforated eardrums, exposed middle ear cavities, or surgically altered ear canals. In the case of such a condition, we recommend to use a customized ear mold. Precautions •...
Troubleshooting Guide CAUSE POSSIBLE REMEDY No sound • Turn on • Not turned on • Replace battery • Low/dead battery • Consult your hearing healthcare professional • Poor battery contact • Insert battery plus (+) side up • Battery upside down •...
Page 30
CAUSE POSSIBLE REMEDY • Plugged microphone • Consult your hearing healthcare professional shield Intermittent • Low battery • Replace battery • Dirty battery contact • Consult your hearing healthcare professional Two long beeps • Low battery • Replace battery Whistling •...
Page 31
CAUSE POSSIBLE REMEDY • Moda 13: Earmolds/ • Clean shells and domes. See “Cleaning Your slim tubes/domes Heraing Instrument”. Consult your hearing blocked with ear wax healthcare professional. Moxi 13: Shells/domes blocked with ear wax • Low battery • Replace battery •...
Warning to Hearing Instrument Dispensers A hearing instrument dispenser should advise a prospective hearing instrument user to consult promptly with a licensed physician (preferably an ear specialist) before dispensing a hearing instrument if the hearing instrument dispenser determines through inquiry, actual observation, or review of any other available information concerning the prospective user, that the prospective user has any of the following conditions: (i) Visible congenital or traumatic deformity...
Page 33
pressure capability greater than 132 decibels (dB).] Important Notice for Prospective Hearing Instrument Users Good health practice requires that a person with a hearing loss have a medical evaluation by a licensed physician (preferably a physician who specializes in diseases of the ear) before purchasing a hearing instrument.
hearing instrument to your individual needs. If you have reservations about your ability to adapt to amplification, you should inquire about the availability of a trial-rental or purchase-option program. Many hearing instrument dispensers now offer programs that permit you to wear a hearing instrument for a period of time for a nominal fee after which you may decide if you want to purchase the hearing instrument.
1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by Unitron may void the FCC authorization to operate this equipment. Notice 2 This Class B digital apparatus complies with Canadian ICES-003.
Page 36
Notice 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful...
Page 37
5, rue Maryse Bastié - BP 15 69671 WA1 1PD Bron Cedex, France U.S.A. Netherlands Suite A, 2300 Berkshire Lane North, Ir. D.S. Tuijnmanweg 10, Plymouth, MN 55441 4131 PN VIANEN Manufacturer Unitron Hearing Ltd. 20 Beasley Drive, P.O. Box 9017, Kitchener, ON N2G 4X1 Canada...
