Unitron Moxi Kiss User Manual

Receiver in canal
Hide thumbs Also See for Moxi Kiss:
Table of Contents

Advertisement

Quick Links

See also: Manual
Receiver in canal (RIC)
guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Moxi Kiss and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitron Moxi Kiss

Summary of Contents for Unitron Moxi Kiss

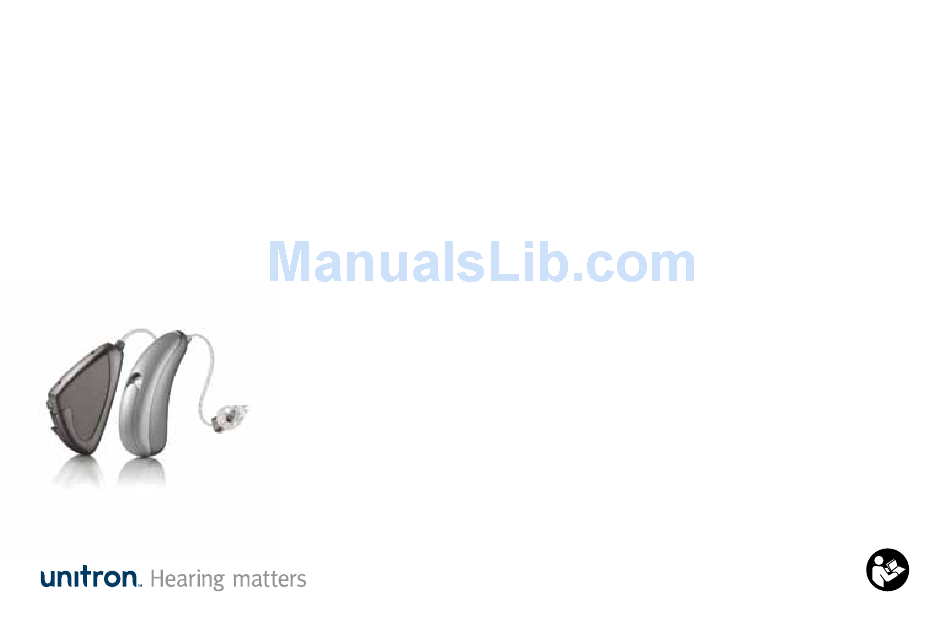

  • Page 1 Receiver in canal (RIC) guide...

  • Page 2: Table Of Contents

    Using the Moxi shell removal tool ..........14 physician immediately. Microphone protector replacement ........... 16 Moxi Kiss battery door replacement ........... 16 Moxi battery door replacement ...........17 How to measure performance in a coupler .........17 Moxi Kiss programming cable ............ 18 Moxi programming cable ............
  • Page 3 Standard xReceiver Power xReceiver Super power xReceiver 250 500 1000 2000 4000 8000 250 500 1000 2000 4000 8000 250 500 1000 2000 4000 8000 Open dome Open dome Closed dome Closed dome Power dome/sleeve mold Power dome Coupling options Coupling options Coupling options Open dome...

  • Page 4: Measuring For An Accurate Xreceiver Unit

    Measuring for an accurate xReceiver unit Choosing the correct xReceiver wire length will ensure To measure for an accurate wire length: a more accurate, comfortable fit. The measurement 1. Place your head tool included in the kit allows for a quick and simple at the same measurement and has the following features: horizontal level as...
  • Page 5 4. Choose the sightline (0-1-2-3) on Modifying xReceiver wire to improve fit the measurement tool that is most In some cases, you might find that the parallel with the top of the opening wire of the xReceiver unit does not lie of the ear canal.

  • Page 6: Choosing The Correct Coupling For Standard Xreceivers

    Choosing the correct coupling for standard xReceivers Determine the correct dome size based on your otoscopic examination of the ear canal. Select the dome type based on the audiometric requirements and fitting ranges shown on this page. Allow the dome to fit comfortably in the ear canal. 250 500 1000 2000 4000 8000 Open dome Closed dome...

  • Page 7: Choosing The Correct Coupling For Power Xreceivers

    Choosing the correct coupling for power xReceivers Determine the correct dome size based on your otoscopic examination of the ear canal. Select the dome type based on the audiometric requirements and fitting ranges shown on this page. Allow the dome to fit comfortably in the ear canal. 250 500 1000 2000 4000 8000 Open dome Closed dome...

  • Page 8: Attaching The Retention Piece To The Standard Or Power Xreceiver Unit

    Attaching the retention piece to the To attach the retention piece 1. Slide the retention piece over the receiver. standard or power xReceiver unit 2. The retention piece should be secured over the The retention piece may be used for fittings with receiver so it appears as one piece.

  • Page 9: Attaching The Dome Or Sleeve Mold To The Standard Xreceiver Unit

    Attaching the dome or sleeve mold Attaching the power dome to the to the standard xReceiver unit power xReceiver unit 1. Hold the xReceiver unit in one hand and the 1. Hold the xReceiver unit in one hand and the power coupling (i.e.

  • Page 10: Attaching The Power Shell To The Power Xreceiver Unit

    Attaching the power shell to the Step 2: Attaching the power shell (to remove the power shell, follow the steps in reverse power xReceiver unit order) Step 1: Removing the housing 1. Slide on the receiver seal. (to attach the housing, follow the steps in reverse 2.

  • Page 11: Attaching The Standard, Power Or Super Power Xreceiver Unit To Moxi Kiss

    Attaching the xReceiver unit to Moxi Kiss 1. Use the small silver tool to push the slider pin slightly sideways. 2. Place the xReceiver unit on Moxi Kiss. 3. Use the back of the small silver tool to push in the slider pin.

  • Page 12: Attaching The Standard, Power Or Super Power Xreceiver Unit To Moxi

    Attaching the standard, power or Removing the xReceiver unit from Moxi 1. Use the small silver tool to push the pin out. super power xReceiver unit to Moxi 2. Remove the xReceiver unit. Attaching the xReceiver unit to Moxi 1. Place the xReceiver unit on Moxi. 2.

  • Page 13: Configuring In Unitron Truefit Software

    1. Connect hearing instrument to the NoahLink, instrument from the drop-down lists. HiPro, or iCube and click the detect icon. Unitron 4. Select the connected tip from the drop down list. If TrueFit will display the connected devices and serial applicable, choose the appropriate size of venting.

  • Page 14: Appendix

    The shell removal tool is used to remove the top shell from Moxi to access the microphone protector. N ote: Moxi Kiss models do not have a replaceable microphone protector. It is not necessary to remove the Moxi Kiss shell.
  • Page 15 Replacing the top shell 1. Position the top shell over the push button on the hearing instrument. 2. Then push the shell down and back until it snaps into place.

  • Page 16: Microphone Protector Replacement

    Microphone protector replacement Moxi Kiss battery door replacement The microphone protector prevents moisture and Removal debris damage to the microphone. A clogged 1. Use the small silver tool to push the pin out. microphone protector could affect the performance of 2.

  • Page 17: Moxi Battery Door Replacement

    HA1 coupler and allows for a good connection of the xReceiver unit to the coupler. Select Activate Test Box Measurement Mode in Unitron TrueFit from the menu on the top menu bar. Clicking on Activate Test Box Measurement Mode disables the adaptive features and activates the omnidirectional microphone mode to allow for correct measurements.

  • Page 18: Moxi Kiss Programming Cable

    Moxi Kiss programming cable Moxi programming cable Insertion Insertion 1. Open the battery door to reveal the programming (The optional programming tool can be used for port. support during the installation.) 2. Push the cable down onto the programming port.

  • Page 19: Wax Guard Replacement And Cleaning Domes

    Wax guard replacement and cleaning domes All xReceiver units are equipped with a wax guard system to protect the xReceiver from ear wax. The wax guard can be easily replaced. You will need to counsel your client on how to replace the wax protector, see instructions included with the replacement packs.
  • Page 20 International - +1 519 895 0100 U.S. - 1 800 888 8882 At Unitron, we care deeply about people with hearing loss. We work closely with hearing healthcare professionals to provide hearing solutions that improve lives in meaningful ways. Because hearing matters.
