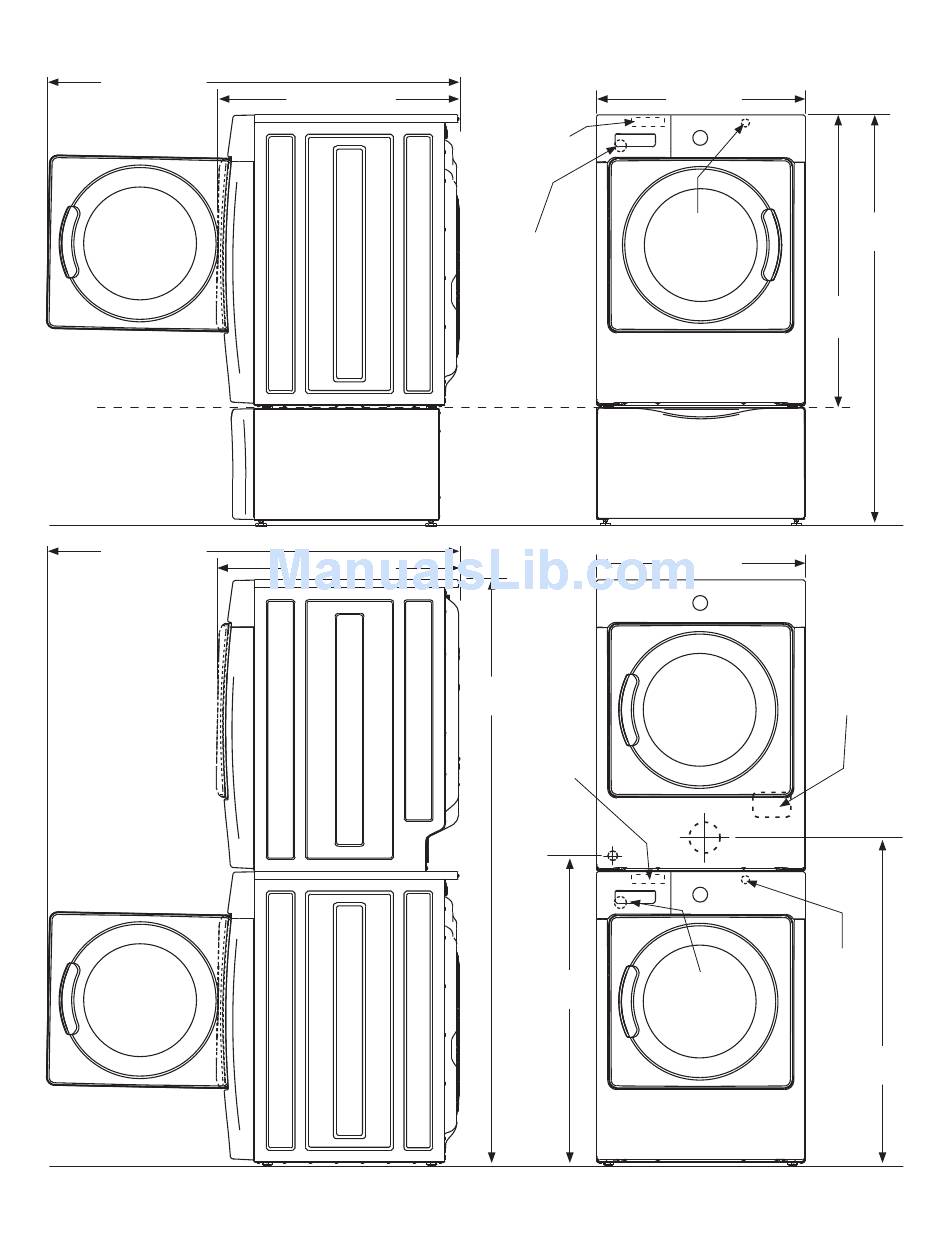

Washer Dimensions

53.5" (136 cm)
to clear open door
freestand
washer on fl oor
fl oor line
washer mounted on
optional pedestal
fl oor line
53.5" (136 cm)*
to clear open door
fl oor line
*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
1 Hot and cold inlet hose length on washer approximately 48.5 inches (123 cm).
2 Power supply cord length on washer approximately 60 inches (152.5 cm).
3 Drain hose length on washer approximately 59 inches (150 cm).
Power supply cord length on gas dryer approximately 60 inches (152.5 cm).
4
31.5" (79.5 cm)
to front of closed door
31.5" (79.5 cm)*
to front of closed door
6
water supply
connection on
rear of unit
1
drain hose on
rear of unit 3
75.75"
(192.5 cm)
water supply
connection on
rear of unit 1
gas supply
pipe on rear
of gas unit
39.0"
(99 cm)
27.0"
(68.5 cm)
power cord on
rear of unit 2
38.0"
(96.5 cm)
27.0"
(68.5 cm)
electrical
supply on
rear of unit
centerline
height for
rear vent
power cord on
rear of unit
drain hose on
rear of unit 3
53.25"
(135.5 cm)
4
2
41.0"
(105 cm)
