Summary of Contents for Sennheiser e 608

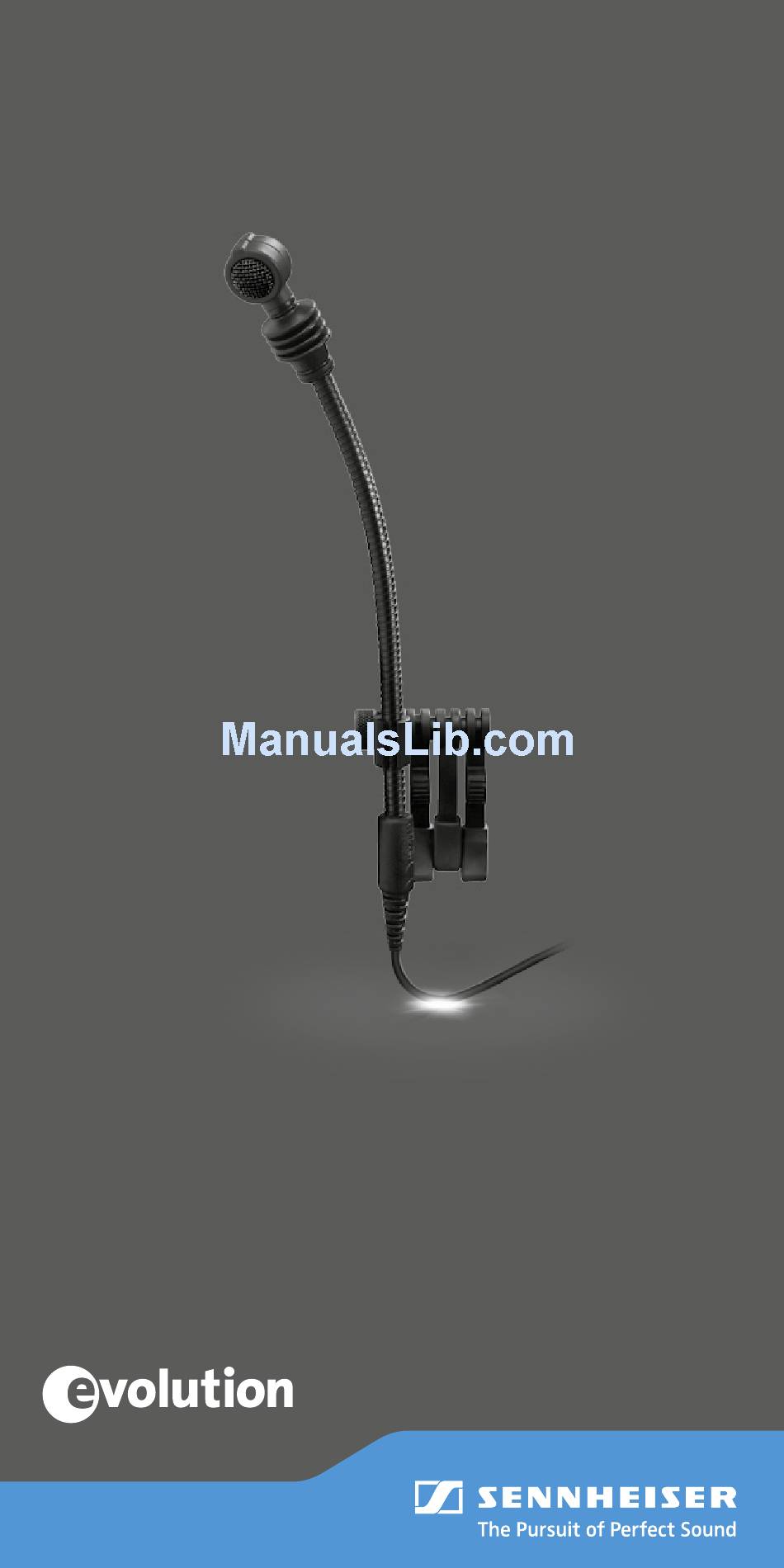

- Page 1 608 Instruction manual Stage Microphones...
- Page 3 0° 0° 30° 30° 125 Hz 60° 60° 250 Hz 500 Hz 1,000 Hz 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m 0°, 5 cm...
-
Page 4: Important Safety Information
• Only use attachments, accessories or spare parts specified by Sennheiser. During operation • Liquids entering the product can short-circuit the electronics or damage the mechanics. Keep all liquids away from the product. -
Page 5: Package Contents
The e 608 The super-cardioid e 608 is a dynamic microphone ideal for almost invisible clip-miking of drums, percussions, brass and woodwind (except certain flutes). The goose-neck mounting enables the capsule to be positioned close to the signal source for high realism and high- level output. -
Page 6: Using The Microphone
(see arrows in the diagrams B). Cleaning and maintaining the e 608 Caution Liquids can damage the electronics of the product! Liquids entering the housing of the product can cause a short-circuit and damage the electronics. -
Page 7: Specifications
Specifications Transducer principle dynamic Frequency response 40..16,000 Hz Pick-up pattern super-cardioid Sensitivity (free field, no load) 0.8 mV/Pa (at 1 kHz) 250 W Nominal impedance (at 1 kHz) Min. terminating impedance 1 kW Connection cable 3 m, with 3.5 mm jack plug, lockable Operating temperature 0°C to +40°C... -
Page 8: Manufacturer Declarations
Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 11 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Publ. 08/15, 094285/A04...
