Refrigerator compartment controls
Thermostat set to MIN/1-2:
Thermostat set to MED/3-4: medium refrigeration.
Thermostat set to MAX/5-7: maximum refrigeration.
Thermostat set to z:
Recommended thermostat setting: MED/3-4 position.
Optimal performance is obtained at temperatures between +16°C and +32°C for appliances with climatic
class "N" and at temperatures between +10°C and +32°C for appliances with climatic class "SN".
The climatic class is indicated on the data plate inside the appliance.
Note: The ambient air temperature, the frequency of door opening and the position of the appliance can
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.

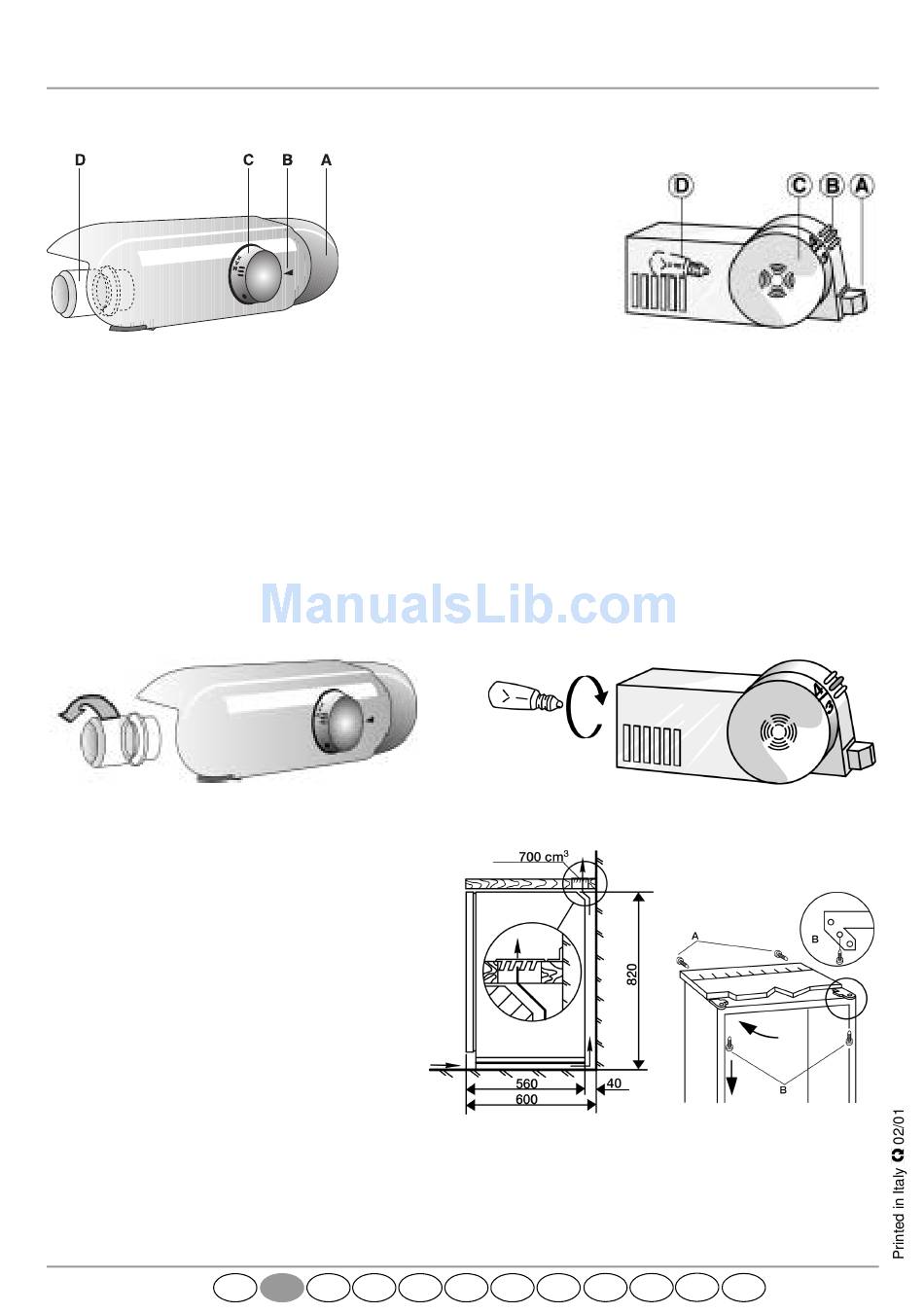

Removing the light bulb
To remove the light bulb, unscrew it anticlockwise (see figures).
Posizioning the appliance under the
worktop
The appliance can be installed under a
worktop (worktop height 850 mm from floor).
Proceed as follows:
First loosen the rear "A" and front "B"
screws; then remove the appliance top
(Fig. 1).
Make a vent outlet on the worktop (Fig. 2).
Push the appliance under the worktop and
secure at the front with the same screws
"B" used for the top.
Observe the distance from the rear wall
indicated in (Fig. 2)
5019 602 33027
A. Light switch cam
B. Thermostat control
reference
C. Thermostat knob
D. Light bulb (max 15 W)
minimum refrigeration.
no refrigeration, no light.
D
GB
F
NL
FIG. 1
E
P
I
GR
FIG. 2
S
N
DK
FIN
