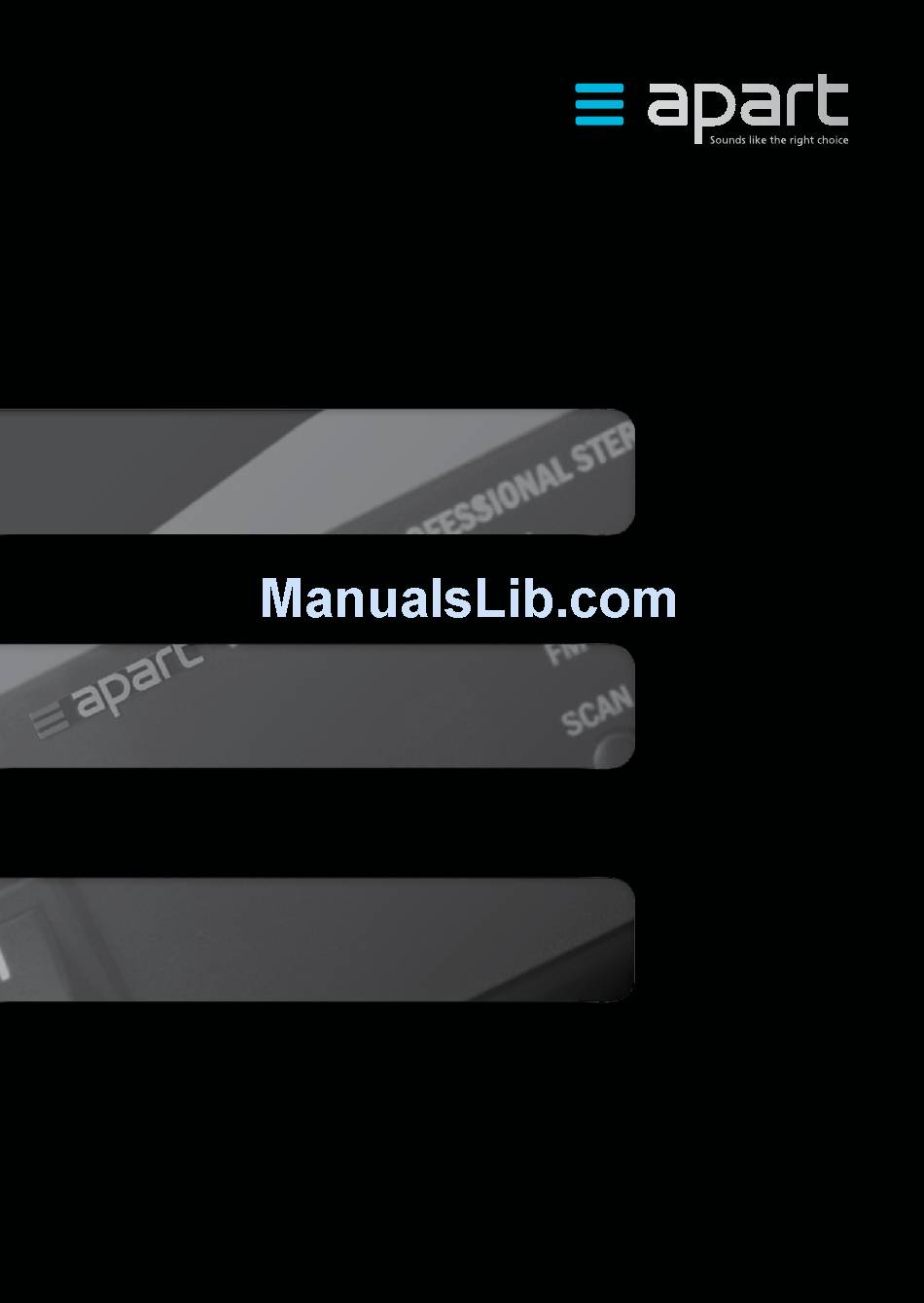

- Page 1 PR1000R Instruction manual...
- Page 3 PR1000R Instruction manual PR1000R Manual...
-
Page 4: Safety Information
Music Sources & Sound Systems Safety information • Please check the carton box for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton. • !!!! Danger !!!! Exposure to extremely high noise levels may cause a permanent hearing loss. - Page 5 PR1000R Instruction manual • Do not connect the inputs / outputs of amplifiers or consoles to any other voltage source, such as a battery, mains source, or power supply, regardless of whether the amplifier or console is turned on or off.
- Page 6 Music Sources & Sound Systems cable antenna signal networks and standard wire antennas (included). • RDS information: program type, song name identification, radio station identification. • Standalone operation and/or remote controlled by infrared and/ or RS232. • Adjustable audio output level. •...
-
Page 7: Front Panel
PR1000R Instruction manual Front panel 1. Power knob / power led: flip the switch to turn the unit on and off. In standby mode, the power led lights up slightly dimmed. In the off position the unit is fully turned off. - Page 8 Music Sources & Sound Systems 6. Search forward button: push this button to search for a radio station upward in the radio band. 7. Search downward button: push this button to search for a radio station downward. 8. + PRG TYPE: push this button to activate and display program type information if RDS is available.
- Page 9 PR1000R Instruction manual 16. Numeric button 2: push this button to select or save radio station preset number 2. 17. Numeric button 7: push this button to select or save radio station preset number 7. 18. Numeric button 3: push this button to select or save radio station preset number 3.
-
Page 10: Back Panel
Music Sources & Sound Systems Back panel 1. FM antenna input: connect the supplied FM antenna here, or use the signal from a cable distribution network. This input is galvanically separated from the audio ground and serial interface. 2. AM antenna input: connect the supplied AM antenna here. - Page 11 PR1000R Instruction manual 8. Mains in: connect the included mains cable here. RS232 Cable specifications Pin 2: TX data: data transmission output Pin 3: RX data: data reception input Pin 5: GND: ground Other pins are not used. RS232 supported command list •...
- Page 12 Music Sources & Sound Systems • set stereo on/off: activate stereo/mono mode (FM operation only) • inc search: search radio station upward • dec search: search radio station downward • set modula AM: activate AM band • set modula FM: activate FM band •...
- Page 13 PR1000R Instruction manual Infrared codes:...
-
Page 14: Specifications
Music Sources & Sound Systems Specifications FM tuning range 87.5 - 108 mHz Presets AM tuning range 522 - 1611 kHz FM sensitivity (26 dB S/N) @ 75 1.1 μV Ohm unbalanced AM sensitivity (26 dB S/N) 38 μV FM channel selectivity (200 kHz) 50 dB FM channel selectivity (400 kHz) 70 dB... - Page 15 PR1000R Instruction manual Included accessories: Mains power cable, printed manual, RS232 and infrared specifications, infrared control unit, FMwire antenna, AM loop antenna.
- Page 16 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
