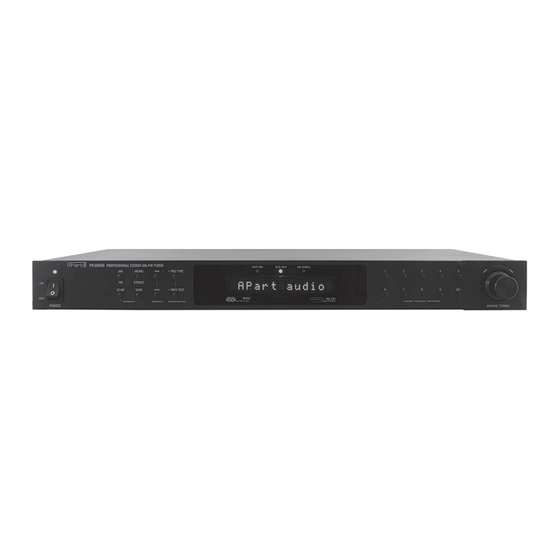

- Page 1 SLIMLINE MANUAL PR1000R Professional tuner INFO@APART-AUDIO.COM...
- Page 2 SLIMLINE PR1000R features • Versatile design, easy to integrate in rack mounted professional audio distribution systems, stereo hifi systems, multi-room audio systems and computer controlled audio systems. • Removable 19 inch rack-ears (included). • Galvanically separated antenna and RS232 connectors to avoid hum.
- Page 3 SLIMLINE Operation PR1000R PR1000R front panel layout 10 11 12 14 16 18 20 15 17 19 21 23 1) Power knob / power led : fl ip the switch to turn the unit on and off. In standby mode, the power led lights up slightly dimmed. In the off position the unit is fully turned off.
- Page 4 SLIMLINE PR1000R rear panel layout 1) FM antenna input : connect the supplied FM antenna here, or use the signal from a cable distribution network. This input is galvanically separated from the audio ground and serial interface. 2) AM antenna input : connect the supplied AM antenna here.
- Page 5 RS232. Default RS232 communication settings are : baud rate 19200, echo on, CR on, BS on, valfb on (value feedback on). Infrared codes : 10EF5B 10EF5A 10EF5D 10EF59 10EF98 10EF1F 10EF52 10EF55 10EF51 10EF4B 10EF4E 10EF4D 10EF49 10EF48 10EF0F INFO@APART-AUDIO.COM...
- Page 6 Tuner with adaptive noise suppression Dimensions L x W x H 484 (430) x 270 (245) x 44 mm Weight 2.8 kg Included accessories: Mains power cable, printed manual, RS232 and infrared specifi cations, infrared control unit, FM wire antenna, AM loop antenna. WWW.APART-AUDIO.COM...
- Page 7 Do not use the unit near stoves, heat registers, radiators, or other heat producing devices. • Do not remove the cover. Removing the cover will expose you to potentially dangerous voltages. • In case of mal-function this device should be serviced by qualifi ed service personnel only. INFO@APART-AUDIO.COM...
- Page 8 Send your ideas or suggestions to suggestions@apart-audio.com Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2009 APart-Audio specifi cations subject to change without notice. PR1000R is developed by Audioprof nv Lanteernhofstraat 90...
