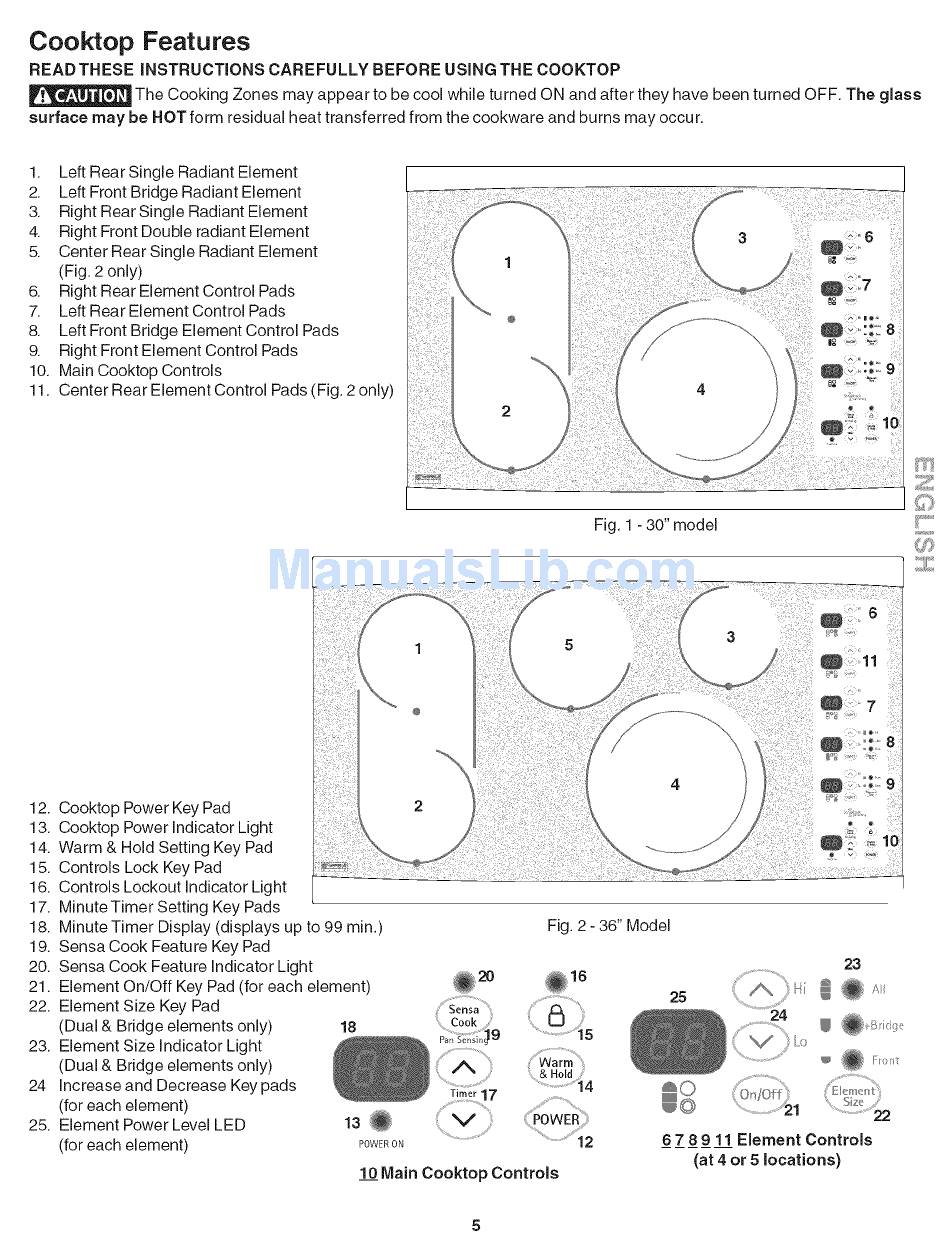

Cooktop Features
READTHESE
iNSTRUCTiONS
CAREFULLY BEFORE USING THE COOKTOP
The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. The glass
surface may be HOT form residual heat transferred from the cookware and burns may occur.
1.
Left Rear Single Radiant Element
2.
Left Front Bridge Radiant Element
3.
Right Rear Single Radiant Element
4.
Right Front Double radiant Element
5.
Center Rear Single Radiant Element
(Fig. 2 only)
6.
Right Rear Element Control Pads
7.
Left Rear Element Control Pads
8.
Left Front Bridge Element Control Pads
9.
Right Front Element Control Pads
10. Main Cooktop Controls
11. Center Rear Element Control Pads (Fig. 2 only)
Fig. 1 - 30" model
12. Cooktop Power Key Pad
13. Cooktop Power Indicator Light
14. Warm & Hold Setting Key Pad
15. Controls Lock Key Pad
16. Controls Lockout Indicator Light
17. Minute Timer Setting Key Pads
18. Minute Timer Display (displays up to 99 min.)
19. Sensa Cook Feature Key Pad
20. Sensa Cook Feature Indicator Light
21. Element On/Off Key Pad (for each element)
22. Element Size Key Pad
(Dual & Bridge elements only)
18
23. Element Size Indicator Light
(Dual & Bridge elements only)
24 Increase and Decrease Key pads
(for each element)
25. Element Power Level LED
13
(for each element)
POWER
ON
S ..........................
%
Timer
17
1() Main Cooktop Controls
Fig. 2 - 36" Model
25
23
"% .................................
_,_"_
24
_
Fon_
6 7 8 9 11 Element Controls
(at 4 or 5 locations)
