Stanley ST-02-230-E Operating Instructions Manual
Industrial electric heater
Hide thumbs
Also See for ST-02-230-E:
- Instruction manual (155 pages) ,
- Manual (141 pages) ,
- Operating instructions manual (31 pages)
Related Manuals for Stanley ST-02-230-E
Summary of Contents for Stanley ST-02-230-E

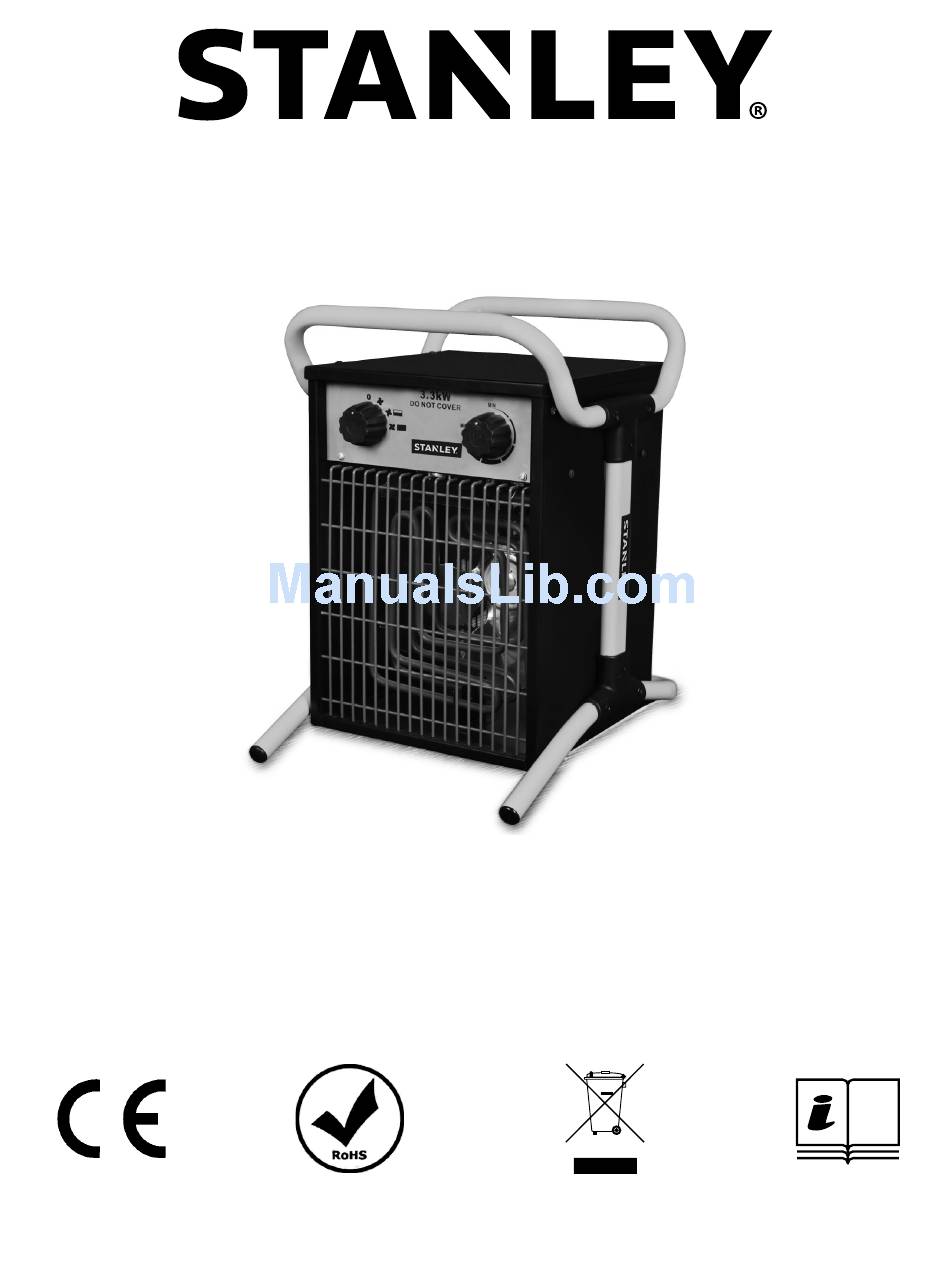

- Page 1 ST-02-230-E / ST-02-240-E / ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E Industrial Electric Heater 821000311-14...
- Page 2 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE ENGLISH ......................1-11 Read The Instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read. In order to avoid overheating, do not cover the heater. PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.
-
Page 3: Specifications
NOTE: ST-03-230-E / ST-03-240-E / ST-033-230-E / ST-033-240-E / ST-05-400-E / ST-09-400-E, the fan will run continuously while the heater is operating. NOTE: ST-02-230-E / ST-02-240-E, the fan will shut off when desired temperature is reached. Fan will not run continuously. -
Page 4: Safety Information
The heater must not be located immediately below a socket outlet. STANLEY, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of Stanley Black & Decker, Inc. or an affiliate thereof. © 2015, Pinnacle Products International Inc... - Page 5 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Assembly © 2015, Pinnacle Products International Inc...
-
Page 6: Operation
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Assembly (See Page 4) Thermostat Instructions 1. Slide upper handle brackets onto front handle – At first, set the thermostat to “+” and let the and align holes. heater operate with full power input. When the room temperature reaches the required 2. -
Page 7: Plug Replacement
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Plug Replacement WARNING RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE. NOTE: This section only applies to heaters sold or used in Great Britain. This appliance is supplied with a BS1363 3 pin The blue wire must be connected to the terminal plug fitted with a fuse. -
Page 8: Troubleshooting
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Troubleshooting Problem Cause Solution Fan stays on when heat shuts 1. Fan runs continuously while 1. Heater is operating correctly. off. the heater is operating. 1. Fan speed stays constant. 1. -
Page 9: Exploded View
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Exploded view Parts List ST-02-230-E ST-03-230-E ST-033-230-E ST-05-400-E ST-09-400-E ST-02-240-E ST-03-240-E ST-033-240-E 82-016-0105 82-016-0105 82-016-0105 82-016-0205 82-016-0205 82-017-0205 82-017-0205 82-017-0205 82-017-0205 82-017-0205 82-005-0105 82-005-0155 82-005-0155 82-005-0205 82-005-0255 82-025-0105 82-025-0105 82-025-0105... - Page 10 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE DO NOT RETURN THIS UNIT TO THE STORE! If you are having problems with your new Stanley Heater, Please call our Technical Service at: 0845 076 6158 Technicians are standing by to help you Monday –...
- Page 11 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
- Page 12 STANLEY, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of Stanley Black & Decker, Inc. or an affiliate thereof. Pinnacle Products International, Inc. Yardley, PA USA www.pinnacleint.com © 2015 Stanley Black & Decker, Inc.
