Page 1: Installation Guide

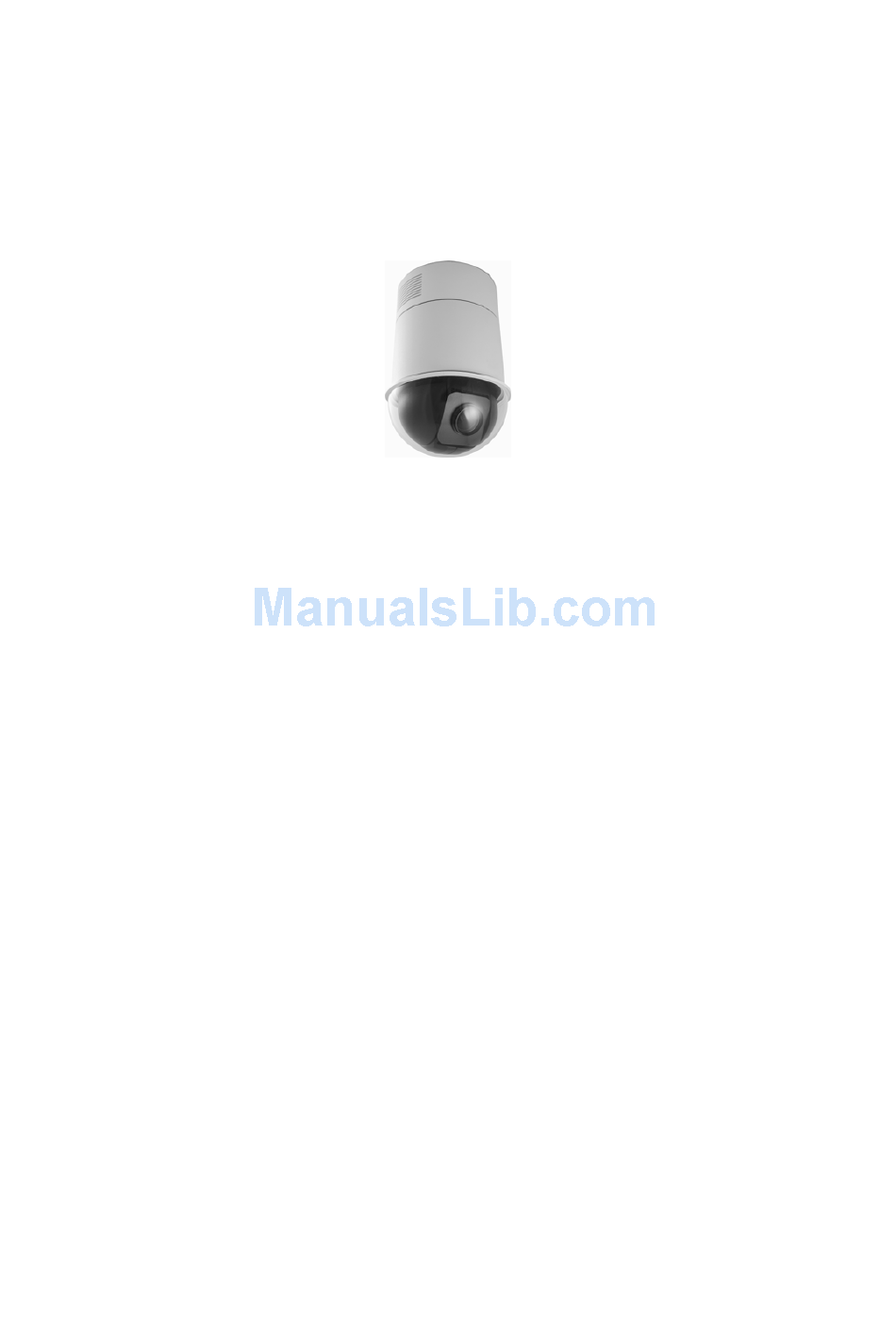

Integrated High Speed Dome Camera Indoor Dome Installation Guide Version 2.6 00P6H7010ZSEB6... - Page 2 Installation Guide Preface The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides the installation information for the indoor integrated high speed dome.
- Page 3 Installation Guide This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 4: Warnings And Cautions
Installation Guide Warnings and Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Installing electricity wiring carefully Ask qualified personnel of electrical wiring for the installation. Please note that input electricity to the unit is at tolerance of DC12V/AC24V ±... - Page 5 Installation Guide • Do not use strong or abrasive detergents when cleaning the camera body Use a dry cloth to clean the camera when it is dirty. In case the dirt is hard to remove, use a mild detergent and wipe the camera gently. •...
-
Page 6: Table Of Contents
Installation Guide Table of Contents Introduction........................7 Standard Package Content ..................8 Dome Setups and Cable Connection ...............8 Dome Setups ....................9 3.1.1 Switch Definition ..................9 3.1.2 Communication Switch Setting ............9 3.1.3 Dome ID Setting ................10 3.1.4 Dome Control Protocol Setting ............11 Dome Cable Definition and Requirements ............12 3.2.1 Cable Requirements ................12... - Page 7 Installation Guide Using Pelco Keyboard..................48 Using Philips Allegiant Keyboard ..............49 Appendix A: Technical Specification ................50...
-
Page 8: Introduction
In addition, the Integrated High Speed Dome Camera supports one cabling for easy installation. Large set of built-in protocols, including DynaColor, Pelco, VCL, Philips, AD-422 (Manchester), etc., provide connectivity to other suppliers’ surveillance systems. General Operation Requirements: A minimum of one control device is required for operation, such as a control keyboard, a DVR or a PC. -
Page 9: Standard Package Content
Installation Guide Standard Package Content Before proceeding, please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Hard Ceiling Mount and Fixing Plate Dome Body Decoration Ring... -
Page 10: Dome Setups
Installation Guide Dome Setups Before connecting the dome camera to other devices of CCTV system, please complete the dome ID, control protocol and communication switch settings. These switches are located on the bottom of the dome camera. 3.1.1 Switch Definition Please refer to the following figure and table for switch location and definitions. -
Page 11: Dome Id Setting
Installation Guide Communication Switch SW 1 RS-485 Setting SW 2 SW 3 Termination Line Lock SW 4 System Initialization SW 5 Reserved SW 6 RS-485 is the interface that communicates the dome camera and its control device; for this reason, the RS-485 setup of the dome and the control device must be the same. -
Page 12: Dome Control Protocol Setting
Installation Guide Centesimal Digit Decimal Digit Single Digit NOTE: The number “0” should locate upwards as shown in above diagram for correct switch definition. 3.1.4 Dome Control Protocol Setting Define the protocol you are going to use basing on the devices of your surveillance system. -
Page 13: Dome Cable Definition And Requirements
Installation Guide Decimal Digit Single Digit NOTE: The number “0” should locate upwards as shown in the diagram above for correct switch definition. Dome Cable Definition and Requirements For operation, the integrated dome camera requires the video cable to carry the video signals to the remote viewing site, power cable to power the dome and RS-485 data cable to carry commands from the control device. -
Page 14: 22-Pin Data Cable
Installation Guide 3.2.2 22-Pin Data Cable DC 12V Data Cable Power Input DC12 Female Jack Video BNC Connector Output RS485 4-wire Connector 2-wire AC 24V Data Cable 3-Pin Terminal Block Power Input Video BNC connector Output RS485 4-wire Connector 2-Wire NOTE: Be careful not to pull the cables improperly during installation. -
Page 15: Rs-485 Connector Definition
Installation Guide serviceable for connecting alarm input and output devices, such as alarm sensors, sirens or flashing lights with the surveillance system. For the definition of each pin, please refer to the list below. The 22-pin connector definition is listed as below. Definition Cable AC 24-1/DC (＋) -
Page 16: Cable Wiring And Connection
Installation Guide terminal block. The recommended cables for RS-485 communication are CAT 5 cables; maximum cable length for over 24-gauge wire is 4000 feet (1219 meters). If the total cable length exceeds 4000 feet, using a repeater to maintain the signals is recommended. Please refer to the figure and table below for pin defination and wiring. - Page 17 Installation Guide Insert the terminal into the pin holes connector housing, with hook outward, as indicated in the figure. To unlock the terminal, press the hook, as indicated in the figure, with a proper tool and pull it out gently. Connect the 22-pin connector to the dome camera.
-
Page 18: Dome Installation
Installation Guide Dome Installation Basing on user’s installation environments, the dome can be installed on ceiling, on wall or on pole. In the following sections, various indoor dome installation accessories, installation methods and installation procedures will be described in detail. In addition, the next section will provide the dome’s dimension for your reference before installation. - Page 19 Installation Guide Power Adapter 77H07-A1015 (Input: 100~115VAC/Output: 24VAC 36VA) 77H07-A2015 (Input: 220~230VAC/Output: 24VAC 36VA) NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the mid-pin of the terminal block. Mounting Accessories Hard Ceiling Mount (Standard Equipment) For hard ceiling use. Height: 21.4mm ; Diameter of the three holes: 4.5mm ; Diameter of the bracket: 158mm T-Bar Ceiling Mount For in-ceiling Installation use.
- Page 20 Installation Guide Ceiling Panel For ceiling mounting. Zn platted; 610×305 mm (24×12 inches); Diameter: 155 mm (6.1 inches) Gooseneck Tube Iron; 298×385 mm (11.73×15.56 inches) ; 2.1 kg (4.6 lbs) Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and waterproof rubber×1, M8*12 screw×1.
- Page 21 Installation Guide Straight Tube Iron; Height: 250/500 mm (9.8/19.7 inches); Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs). Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and waterproof rubber×1, M8*12 screw×1. Indoor Mount Kit For mounting indoor dome camera onto a gooseneck/straight tube.
- Page 22 Installation Guide Corner Standard Mounting Plate 222(L)×204(W)×117(D) mm (8.7×8×4.6 inches); 2 kg (4.4 lbs). Supplied with washer-8×4, spring washer×4, M8*16 screw×4, M8 nut×4. Pole Thin Direct Mounting 232(L)×136(W)×60(D) mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps×4, M8*16 screw×4, washer×4.
- Page 23 Installation Guide Corner Thin Box 300(L)×164(W)×222(D) mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Corner Wide Box 232(L)×234(W)×210(D) mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Pole Thin Box 291(L)×136(W)×242 (D) mm (11.5×5.4×9.5 inches);...
- Page 24 Installation Guide Pole Wide Box 270(L)×166(W)×155(D) mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. Wall Box Mounting 270(L)×166(W)×95(D) (10.6×6.5×3.7 inches); 2.2 kg (4.84 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4 Stainless Steel Straps For fixing Pole Direct Mounting/ Pole Box on the pole.
- Page 25 Installation Guide Other Application Accessories Repeater/Converter D77R1: RS-485/RS-422 Repeater D77R2: RS-232 between RS-485/RS-422 D77R3: Bi-phase to RS-485/RS-422 D77R1 D77R2 D77R3 Connector Box (Indoor Application) Recommended for wiring indoor dome alarm cables. White Color. 92×42 mm (3.7×1.7 inches); 0.13 kg (0.3 lbs); Supplied with cable×1, bracket×1 and M3*6 screw×2. Signal Distribution Unit Relay control codes to speed dome cameras.
-
Page 26: Ceiling Mount
Installation Guide Ceiling Mount Generally, there are three kinds of dome camera ceiling mounting methods: hard-ceiling, in-ceiling and mounting with straight tube. Refer to the following sections for more details. The following figures show how cables connect to the dome camera in different ways. - Page 27 Installation Guide • Fixing Plate (Supplied) Tools Needed: • Tool for drilling • (+,–) Screw Driver Follow the steps to install the high speed dome camera for hard ceilings. STEP 1 Screw the Fixing Plate to your Dome Body. STEP 2 Remove the Decoration Ring from the Hard Ceiling Mount.
- Page 28 Installation Guide STEP 5 Fix the Mount to the holes on the hard ceiling with three screws, as marked in the figure. STEP 6 Thread the data cable through the center hole of the Mount and connect the cable to the dome body.
-
Page 29: In-Ceiling Mounting
Installation Guide Completion 4.3.2 In-ceiling Mounting Here lists the items and tools needed to mount the dome camera into the ceilings. The supplied items are all in the dome camera package. Items Needed: • Dome Camera • T-Bar (Optional Accessory) •... - Page 30 Installation Guide Step 2: Attach the separated wing to the dome, as shown in the figure. STEP 3 Place the Red Sticker on the ceiling plate, and cut the circle part out of the ceiling. STEP 4 Put up the T-Bar into the ceiling opening.
- Page 31 Installation Guide STEP 6 Tighten the screws, and the T-Bar wings will adhere to the ceiling. STEP 7 Put the 22-pin data cable down through the center hole of the T-bar and connect it to the dome body. STEP 8 Mount the dome body to the Bracket and rotate it clockwise.
-
Page 32: In-Ceiling Mounting With Ceiling Panel
Installation Guide STEP 9 Fix the decoration ring to the bracket and then place back the optical cover. NOTE: Make sure the optical cover is removed before carrying procedure. 4.3.3 In-ceiling Mounting with Ceiling Panel To mount the dome camera to a suspended ceiling with the T-Bar, the ceiling panel could be employed, as shown in the figure below. - Page 33 Installation Guide supplied) Tools Needed: • Tool for drilling • Tool for screwing Follow the steps to mount the dome with the straight tube. 1) Ensure that the ceiling can support the weight of the dome camera and straight tube. 2) Make a cable entry hole on the ceiling.
- Page 34 Installation Guide 9) Mount the dome camera to the Indoor Mount Kit. (Ensure the dome camera is fixed completely, and the thread holes on the Lock Screw Plate and Indoor Mount Kit are aligned). Afterwards, screw the supplied standard screw security screw, as shown in the picture.
-
Page 35: Wall Mount
Installation Guide Wall Mount 4.4.1 Wall Mounting with Gooseneck Tube The following figures show how cables run through the tube in different ways. Cables exposed Cables recessed Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) •... -
Page 36: Mini Pendant Mount
Installation Guide 4) Fix the Indoor Mount Kit to the gooseneck tube with the supplied screws and washers. 5) Connect the cables to the dome camera. Then attach the dome to the Indoor Mounting Kit and fix them with the supplied screw. Please refer to 4.2.4 Ceiling Mounting with Straight Tube: step 6~9 for information about mounting with Indoor Mount Kit. - Page 37 Installation Guide Mounting Plate Cable Entry Board 2) To avoid insects entering the pendant mount, you could block the cable entry hole with the supplied sponge in two ways. See the illustrations below. Sponge Sponge 3) Thread the cables through the Mini Pendant Mount and fix the pendant mount on the wall with proper screws and screw anchors (not supplied).
-
Page 38: Wall Box Mounting
Installation Guide Mini Pendant Mounting: Mini Pendant Mount + Indoor Mount Kit 4.4.3 Wall Box Mounting Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) • Wall Box (optional accessory) • Indoor Mount Kit and attached components (optional accessory) •... -
Page 39: Corner Mount
Installation Guide Indoor Mounting Kit and fix them with the supplied screw. Please refer to 4.2.4 Ceiling Mounting with Straight Tube: step 6~9 for information about mounting with Indoor Mount Kit. Wall Box Mounting: Wall Box + Gooseneck + Indoor Mount Kit Corner Mount 4.5.1 Corner Standard/Mini Mounting Plate... - Page 40 Installation Guide Follow the steps below to mount the dome camera with the corner standard/mini mounting plate and gooseneck tube/mini pendant mount. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can be threaded through the cable entry hole on the tube/mini pendant mount (see 4.3.2 Mini Pendant Mount).
-
Page 41: Corner Thin/Wide Box Mounting
Installation Guide 4.5.2 Corner Thin/Wide Box Mounting The thin/wide corner box is designed to be installed with a gooseneck tube. Follow the steps to mount the dome camera with the corner box and gooseneck tube. Items Needed: • Dome Camera •... -
Page 42: Pole Mount
Installation Guide Corner Box Mounting: Corner Thin/Wide Box + Gooseneck Tube + Indoor Mount Kit Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting The dome can be installed on a pole with a thin or wide pole mounting accessory and a gooseneck. Follow the steps below to mount the dome camera with the pole direct mounting and gooseneck. -
Page 43: Pole Thin/Wide Box Mounting
Installation Guide NOTE : After threading the cables, please block the cable entry hole with the supplied sponge(s) to avoid insects entering the tube. 4) Fix the Indoor Mount Kit to the gooseneck tube with the supplied screws and washers. 5) Connect the cables to the dome camera. - Page 44 Installation Guide washers. 3) Thread the cables through the gooseneck tube and Indoor Mount Kit. NOTE : After threading the cables, please block the cable entry hole with the supplied sponge(s) to avoid insects entering the tube. 4) Fix the Indoor Mount Kit to the gooseneck tube with the supplied screws and washers.
-
Page 45: System Expansion
Installation Guide System Expansion Connecting with Connector Box Ideally being used in indoor installation circumstances, a Connector Box provides easy wiring and well organized connection between alarms, cameras and other devices, for easy installation. To connect the connector box with other devices: •... -
Page 46: Data Formats Transforming
Installation Guide Data Formats Transforming To integrate other surveillance devices with the high speed dome cameras or to extend the distance of communications, users could employ three kinds of repeater/converter, as shown below. With the advanced circuit design, these repeaters/converters offer 1KVrms isolation voltage and surge protection capability. -
Page 47: Signal Distribution Unit
Installation Guide Signal Distribution Unit The RS-485 Signal Distribution Unit (SDU) is designed to relay control codes to speed dome cameras. It is capable of communicating with cameras up to 1.0 kilometers away. Additionally, the SDU can be installed in either “star” or “daisy chain”... -
Page 48: Coaxial Telemetry
Installation Guide Coaxial Telemetry The Coaxial Telemetry is a low-cost solution to long distance connection between dome cameras and controlling devices (e.g. DVR and keyboard). It simplifies the work of wiring by transmitting video and RS-485 control signals via one BNC line, so that to bring users economical benefits. The following is the coaxial telemetry application diagram. -
Page 49: System Integration
Installation Guide System Integration The dome camera is allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The speed dome camera can be controlled through a Pelco keyboard which built in with D protocol and P protocol. -
Page 50: Using Philips Allegiant Keyboard
Installation Guide Cable Definition (D Protocol Keyboard to PTZ Camera) T x+ T x - T x+ T x- Rx + For D Protoc ol Ke yb oa rd Fo r Sp eed Dom e Using Philips Allegiant Keyboard The dome cameras can be integrated into Philips Allegiant systems through D77R3 repeaters. -
Page 51: Appendix A: Technical Specification
AGC control Auto / Manual Back Light On / Off Compensation OPERATION Built-in Protocol DynaColor, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel, etc. Multi-Language OSD English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish Pan Travel 360° endless Tilt Travel -10°~100°... - Page 52 Installation Guide Items R Model C Model F Model K Model U Model L Model Digital Slow Shutter On/Off On/Off On/Off On/Off Electronic Image On/Off Stabilizer Motion Detection On/Off On/Off On/Off On/Off Wide Dynamic Range On/Off On/Off Day/Night: IR Cut Filter On/Off On/Off On/Off...
