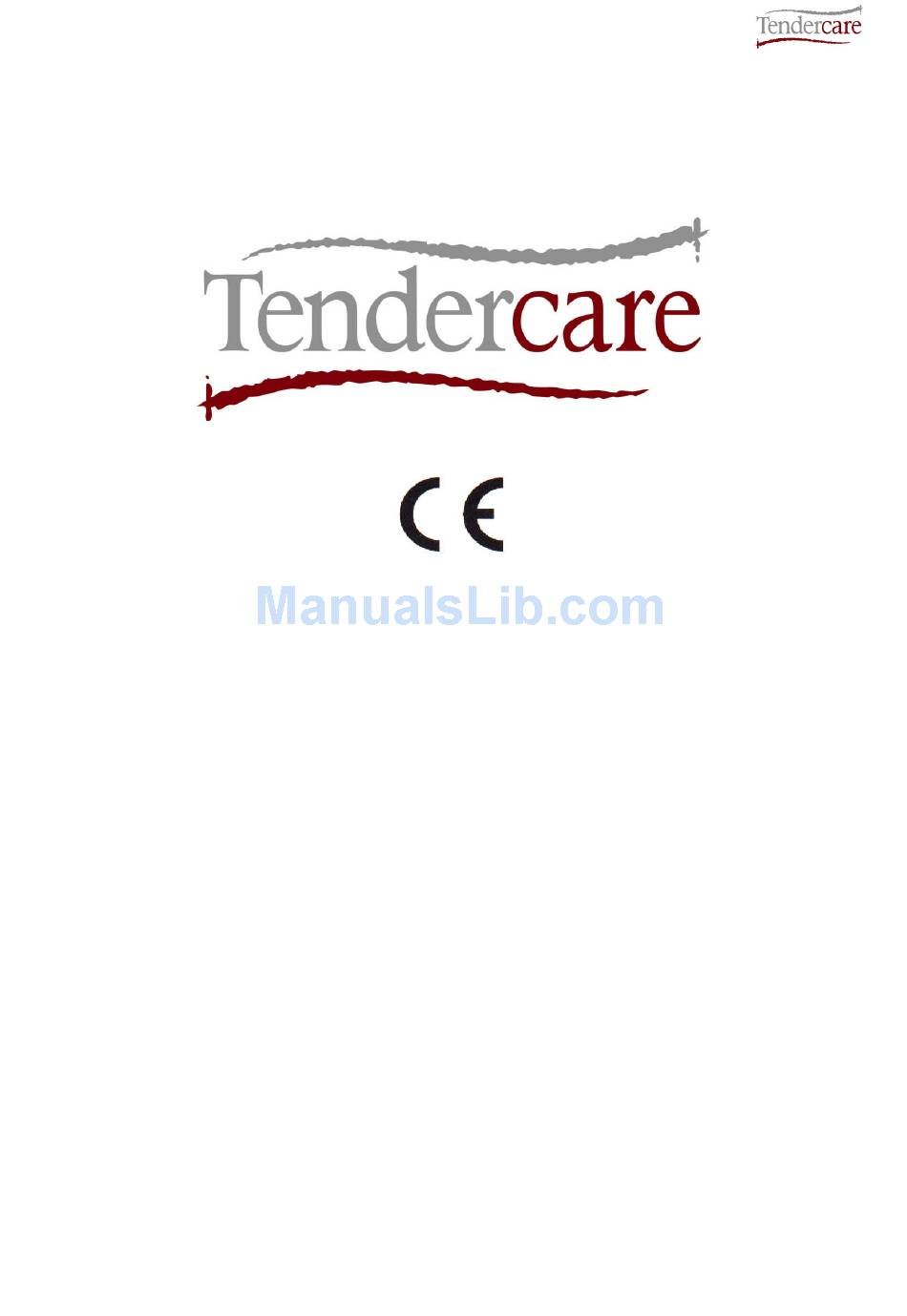

Snappi Wheelbase & Interface User Manual
®
Snappi
W
A
I
HEELBASE
ND
NTERFACE
U
M
SER
ANUAL
IMPORTANT
Please read these instructions carefully
Before using the Wheelbase or Interface
Document No: 053-01 v11
Page 1 of 35
November 2014
Snappi Wheelbase Interface User Manual.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Snappi Interface and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tendercare Snappi Interface

Summary of Contents for Tendercare Snappi Interface

  • Page 1 Snappi Wheelbase & Interface User Manual ® Snappi HEELBASE NTERFACE ANUAL IMPORTANT Please read these instructions carefully Before using the Wheelbase or Interface Document No: 053-01 v11 Page 1 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...
  • Page 2 Snappi Wheelbase & Interface User Manual Fig 0.1 Wheelbase (size 1 shown) Document No: 053-01 v11 Page 2 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...
  • Page 3 Snappi Wheelbase & Interface User Manual Fig 0.2 Wheelbase Folded (size 1 shown) Fig 0.3 Seat Interface (size 1 shown) Document No: 053-01 v11 Page 3 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...
  • Page 4 Snappi Wheelbase & Interface User Manual Fig 0.4 Interface Fitted To Frame (size 1 shown) Document No: 053-01 v11 Page 4 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...

  • Page 5: Table Of Contents

    Snappi Wheelbase & Interface User Manual Item Description Page Who to contact if you have difficulty Introduction 7 – 8 Unpacking Preparing the wheelbase for use 4.1.1 Unfolding the frame (original locks) 10 – 11 4.1.2 Unfolding the frame (Spring loaded locks) 11 –...
  • Page 6 Snappi Wheelbase & Interface User Manual Oxygen Cylinder Warranty Transporting the Wheelbase 13.1 Preparing wheelbase for transport 30 – 32 13.2 Attaching wheelbase to vehicle 33 – 34 Repairs Document No: 053-01 v11 Page 6 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...

  • Page 7: Who To Contact If You Have Difficulty

    The Snappi has been successfully impact tested as a wheelbase and interface, with the Modular and Snug seating systems. When fitting 3 party seating systems to the Snappi, the manufacturer of the system must carry out a risk assessment before use. These instructions apply to all sizes.
  • Page 8 Dimensions (mm) Size 1 Size 2 All sizes and weights are given as a guide. Tendercare ltd reserves the right to amend specifications at any time as part of their product development programme. Document No: 053-01 v11 Page 8 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...

  • Page 9: Unpacking

    Please refer to section 4.4 for more information on working with the interface. If any items are damaged or missing, then please contact Tendercare, preferably by email at info@tendercareltd.com or alternatively please call us on (01903) 726161 within 36 hours of delivery.

  • Page 10: Unfolding The Frame (Original Locks)

    Snappi Wheelbase & Interface User Manual 4.1.1 Unfolding the Frame (original locks) Fig 4.1.1.1 Standing at back of wheelbase, place your foot on the rear crossbar X (see Fig 4.1.1.1) and lift handle labelled Y as far as it will move.

  • Page 11: Unfolding The Frame (Spring Loaded Locks)

    Snappi Wheelbase & Interface User Manual WARNING: If the locking sliders are not in the correct position, or the spring pins do not protrude thereby allowing the locking clips to move back up the frame, then the frame may collapse in use.
  • Page 12 Snappi Wheelbase & Interface User Manual Fig 4.1.2.4 To fold the frame: Standing beside the frame, pull up the 2 locking sliders as shown (see Fig 4.1.2.4). Whilst holding the locks open, push down with your arm on the upper frame or push handle, so that the frame starts to fold.

  • Page 13: Brakes & Tyres

    Tyres: As standard the Snappi wheelbase is supplied with solid tyres, however pneumatic tyres are also available as an option. If your pushchair is supplied with pneumatic tyres these need to be regularly checked and inflated if necessary using a hand or foot pump. The operating pressure for the tyres is 36 PSI (note: do not inflate the tyres above 36 PSI).

  • Page 14: Tilt In Space

    Snappi Wheelbase & Interface User Manual 4.3 Using the Tilt in Space facility Fig 4.3.1 To operate the tilt in space mechanism, place your hand over the push handle adjustor, and lift the lever ‘L’ (see Fig 4.3.1) as shown.

  • Page 15: Interface Safety Catch

    Snappi Wheelbase & Interface User Manual 4.4.1 Interface safety catch The interface includes a 2-stage latch that comprises a main latch and a second safety latch that prevents accidental release of a seat from the chassis. The safety catch must be correctly set before the main catch can be operated: How to operate the safety catch: Fig 4.3.1...

  • Page 16: Fitting The Interface

    Snappi Wheelbase & Interface User Manual 4.4.2 Fitting the interface To fit the interface to the frame: Fig 4.4.1 Ensure the secondary latch is unlocked (as detailed previously in section 4.4.1) Locate the 2 rear “hooks” on the back of the interface, over the stainless steel bushings on the back of the frame interface.

  • Page 17: Accessories

    Snappi Wheelbase & Interface User Manual 5: Accessories 5.1: Shopping Basket Fitting / removing the shopping basket: There are 4 hanging points located on the insides of the side plates (see Fig 5.1.1). To fit the shopping basket, clip the snap hooks on the basket onto the 4 clipping points.

  • Page 18: Equipment Carrying Tray

    Snappi Wheelbase & Interface User Manual 5.2: Equipment Carrying Tray To Fit the equipment carrying tray: The equipment-carrying tray has 2 sets of fixing points on its underside to secure it to the chassis (see Fig 5.2.1). Feed the tray under the wheelbase from the front of the chassis and hook the rear points ‘A’...

  • Page 19: Sun Canopy

    Snappi Wheelbase & Interface User Manual 5.3: Sun Canopy There are 2 styles of sun canopy available for the Snappi Wheelbase; the ‘Classic Style’ and the ‘Umbrella Style’. To fit the Classic Style sun canopy: First unfold the sun canopy.

  • Page 20: Frame Padding

    Snappi Wheelbase & Interface User Manual Next, unscrew the frame mounting to open the jaws until it will fit over the frame. Position the mounting onto the upper frame tube (see fig 5.3.4 below). Adjust the angle of the clip so that it is vertical.

  • Page 21: Rain Cover

    Snappi Wheelbase & Interface User Manual 5.5: Rain Cover – not suitable for rearward facing Snappi wheelbase To fit the rain cover: Attach the 4 push-on clips to the upper frame of the pushchair, with the open clip section pointing downwards.

  • Page 22: Vertical Cylinder Carrier

    Note that fitting the carrier must only be attempted by a qualified tradesperson; if in doubt please contact Tendercare ltd for further advice. Fig 5.6.1, left: The vertical cylinder carrier as supplied, fitted to the chassis.
  • Page 23 Snappi Wheelbase & Interface User Manual With the cylinder in place, pull on the end of the strap to tighten, and then close the cam lock to secure it in place. To remove a cylinder, loosen the straps and lift it out.

  • Page 24: Fitting Special Seat

    4 tube mounting brackets that fit 19mm or ¾” aluminium or mild steel tube. Due to the wide range of different special seating systems, Tendercare do not supply fixing brackets for these items. Please refer to the special seat manufacturer’s instructions.

  • Page 25: Final Checks

    Snappi Wheelbase & Interface User Manual 7: Final checks 1. Check that the special seat is firmly attached to the interface and framework. 2. Check that all harnesses are secure and adjusted properly. 3. Check that the interface is located and locked correctly in the wheelbase.

  • Page 26: Brakes

    Snappi Wheelbase & Interface User Manual 9. To tip the wheelbase backwards when climbing kerbs stand behind and holding onto the push handle with both hands, press down and pull backwards. The front of the wheelbase will lift. IMPORTANT: Take great care when doing this to avoid the combined weight of the wheelbase and occupant overcoming your strength and tipping back onto you.

  • Page 27: Cleaning

    Always follow the instructions given in the puncture repair kit. If you find any faults refer to your issuing authority or Tendercare Ltd. 10.2 Six-monthly maintenance Only someone who is a competent tradesman or repairer should carry out this work. If a major fault is found stop using the wheelbase until it has been corrected.
  • Page 28 Check the interface clips to ensure they can rotate freely and that the springs return the clips to the closed position when released. For all other repairs refer to your issuing authority or Tendercare Ltd. Document No: 053-01 v11 Page 28 of 35 November 2014 Snappi Wheelbase Interface User Manual.doc...
  • Page 29 Important: When the Snappi Wheelbase is used as a seat in a vehicle, the oxygen cylinder and carrying tray must be removed. Note the vertical carrier is fixed and can be left in place; however the oxygen cylinder must still be removed.
  • Page 30 Tendercare cannot guarantee crash safety with other seating systems. Tendercare Ltd highly recommends that the transport of children with a body mass of less than 22kg transfer to a Child Restraint System (sometimes referred to as an infant safety seat, a child restraint system, a restraint car seat, or ambiguously as car seats) in compliance with UNECE Regulation 44.04;...
  • Page 31 Snappi Wheelbase & Interface User Manual Fig 13.1.1 Note: The belt webbing should not be twisted when in use. c. The angle of the pelvic belt should be within the optimal zone of 30 to 75 the horizontal, as shown in Fig 13.1.2 Fig 13.1.2...
  • Page 32 Snappi Wheelbase & Interface User Manual Important: Any harness fitted to the pushchair is for postural support only and must not be used as a transport harness. The pelvic strap must be located as low down over the hips as possible: It must not cross the stomach of the passenger.
  • Page 33 Snappi Wheelbase & Interface User Manual Attach Snappi Pushchairs purchased after Karabiner Hook here November 2012 come with a front tie down bracket, that fits between the front castor and frame. Attach the restraint system to this mounting point using a standard Karabiner hook (See Fig 13.2.1B).
  • Page 34 Snappi Wheelbase & Interface User Manual Fig 13.2.3 The rearward facing Snappi Wheelbase has not been crash tested for use as a vehicle seat and must not be used for transportation. Document No: 053-01 v11 Page 34 of 35 November 2014...
  • Page 35 Repairs: For all repairs contact your issuing authority. Major repairs: For all major repairs e.g. bent or damaged frame, the equipment should be returned to the factory. Contact Tendercare Ltd customer services on (01903) 726161. An approved agent may carry out the following repairs and replacements. A workshop manual is available to repairers from Tendercare Ltd.
