The Fold-A-Way Spring User Manual
USER MANUAL
Extra Small Fold-a-Way Spring
Small Fold-a-Way Spring
Large Fold-a-Way Spring
Extra Large Fold-a-Way Spring
Please read these instructions carefully
Before using your pushchair
Warning
The cartons are heavy, moving and unpacking must be performed with care.
Document. 045-01v2 Foldaway Spring user manual.doc.
Authority.
Quality Controller
Authorised. J Adams
November 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extra Small Fold-a-Way Spring and is the answer not in the manual?

Questions and answers

Related Manuals for Tendercare Extra Small Fold-a-Way Spring

Summary of Contents for Tendercare Extra Small Fold-a-Way Spring

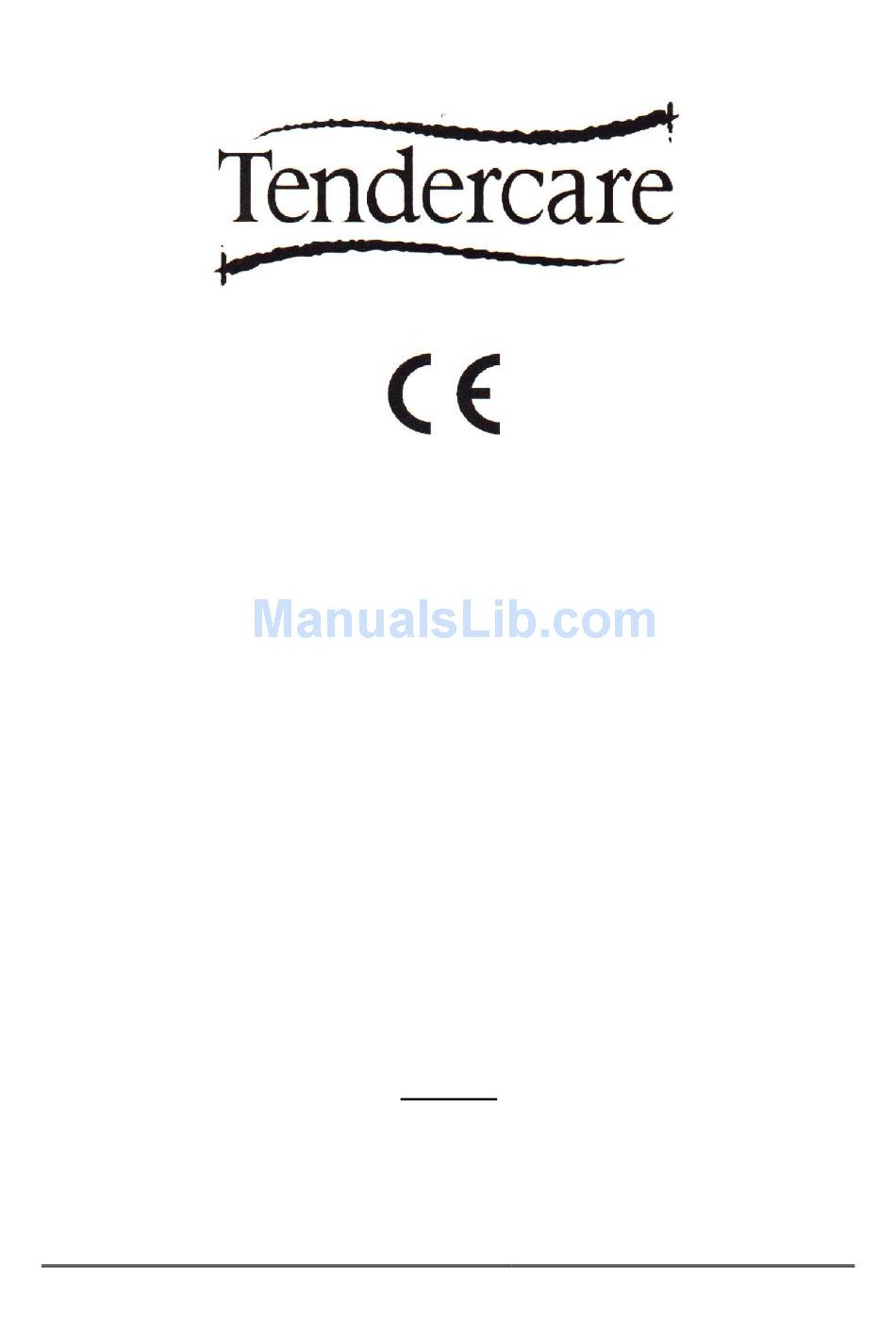

  • Page 1 Tendercare Ltd The Fold-A-Way Spring User Manual USER MANUAL Extra Small Fold-a-Way Spring Small Fold-a-Way Spring Large Fold-a-Way Spring Extra Large Fold-a-Way Spring Please read these instructions carefully Before using your pushchair Warning The cartons are heavy, moving and unpacking must be performed with care.
  • Page 2 Tendercare Ltd The Fold-A-Way Spring User Manual Harness Mounting Frame Slots Lock “L” Shaped Footrest Brake Pedal Seat Tilt Lock FOLD-A-WAY SPRING PUSHCHAIR Document No. 045-01v2 Foldaway Spring user manual.doc Page 2 Authority. Quality Controller November 09 J Adams Authorised.

  • Page 3: Table Of Contents

    Tendercare Ltd The Fold-A-Way Spring User Manual Item Description Page Who to contact if you have difficulty…………………………………………….. Intended user………………………………………………………………………. Unpacking………………………………………………………………………….. Preparing for use…………………………………………………………………... 4.1 Unfolding the frame and assembling the pushchair…………………………… 4.2 Upholstery including harness...………………………………………………… 4.3 Harness assembly checks………………………………………………………. 4.4 Adjusting the harness…………………………………………………………..

  • Page 4: Who To Contact If You Have Difficulty

    The pushchair is available in four sizes, extra small, small, large and extra large. The instructions below apply to all four sizes. All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development programme.

  • Page 5: Preparing For Use

    Large “L” Shaped Pads (complete with fabric cover) 5 point harness User Manual If any items are damaged or missing please contact Tendercare, Preferably by fax 01903-734083 within 36 hours of delivery. 5) Remove the upholstery from the plastic bag and any the protective bubble wrap from the frame.
  • Page 6 Tendercare Ltd The Fold-A-Way Spring User Manual 2) Lift the push handle up and the frame will open. 3) Lock the frame open using the two safety catches, which are on each side of the frame near the top hinges. See picture below.

  • Page 7: Upholstery Including Harness

    Tendercare Ltd The Fold-A-Way Spring User Manual Important: Always lift the backrest fully upwards before folding to avoid damage to the socket. 4.2 Upholstery The upholstery comprises a fabric cover, 3 support boards, 3 foam pads and one 5-point harness. These are supplied separately and must be assembled before you use the pushchair.
  • Page 8 Tendercare Ltd The Fold-A-Way Spring User Manual Looking at the pictures above and below, align each foam pad onto its board making sure that the slots for the straps line up with those on the board. Press the foam pads onto the two Velcro strips, which run down each side of the support boards.
  • Page 9 Tendercare Ltd The Fold-A-Way Spring User Manual the seat around the front of the seat frame and attach to the underneath of the seat using the Velcro strips. (See picture opposite). 4.2.3 Fitting the 5-point harness. The 5-point harness is fitted to the seat cover after the seat cover has been fitted to the pushchair.

  • Page 10: Harness Assembly Checks

    Tendercare Ltd The Fold-A-Way Spring User Manual the harness adjustment mechanism remains on the patterned side of the cover. 4) Insert the groin strap and buckle through the slot at the front of the seat section of the cover. Make sure the buckle passes through the foam cushion and seat board. Pull on the strap so that the buckle is flat against the seat.

  • Page 11: Seat Pads

    Tendercare Ltd The Fold-A-Way Spring User Manual 4.6 Seat Pads The pushchair is supplied with four “L” shaped pads, two thick and two thin. These are foam pads covered with fabric complete with Velcro strip. They can be fitted at the sides of the seat and either side of the head.

  • Page 12: Tilt In Space

    Tendercare Ltd The Fold-A-Way Spring User Manual Looking under the front of the seat, remove the thumbscrew shown in the picture opposite. Insert the slotted bar of the pommel into the mounting slot then insert and tighten the thumbscrew 1) To adjust depth, loosen the thumbscrew under the seat and move the pommel in or out to the desired position and then retighten the screw.

  • Page 13: Brakes

    Tendercare Ltd The Fold-A-Way Spring User Manual 4.10 Brakes 1. The brake-operating pedal is on the right hand side at the rear of the pushchair. 2. To put the brakes on press the pedal down and backwards with the sole of your foot until it locks into place.

  • Page 14: Brakes

    Tendercare Ltd The Fold-A-Way Spring User Manual pushchair backwards to raise the front wheel over the obstacle and then proceed. On soft ground it may be easier to pull the pushchair backwards. 2) The pushchair has castor wheels and is easily steered simply by turning the pushchair in the desired direction.

  • Page 15: Cleaning

    8. Maintenance Should a problem be found when carrying out the regular checks, it should be immediately reported to the issuing authority or Tendercare Ltd. 8.1 Routine maintenance The users family can easily carry out the following tasks. No tools are required.

  • Page 16: Six Monthly Maintenance

    For all other repairs refer to your issuing authority or Tendercare Ltd. 9. Oxygen Cylinder 1) If a portable oxygen cylinder is required, the maximum size recommended by Tendercare is type PD 455 mm long x 100 mm diameter weight approximately 10 kg. For cylinder and safety information contact:- BOC Gases, Customer Service Centre, Priestley Road, Worsley, Manchester M28 2UT.

  • Page 17: Warranty

    12 months from the date of delivery. 2) Tendercare Limited will not repair or replace free of charge any part or parts found to be defective due to abuse, misuse or lack of correct maintenance.
  • Page 18 (See Fig B page 20). 11.3 Fitting Passenger Belts 1) The passenger MUST be restrained using an approved vehicle safety belt. Tendercare Ltd recommends the use of either a split reel double inertia seat belt or split 3-point occupant restraint system.

  • Page 19: Repairs

    Contact Tendercare Ltd customer services on 01903 726161. 3) An approved agent may carry out the following repairs and replacements. A workshop manual is available to repairers from Tendercare Ltd. Replacement of Wheels, Seat and Backrest upholstery, Harness and Gas strut.

  • Page 20: Document No. 045-01V2 Foldaway Spring User Manual.doc Page

    Tendercare Ltd The Fold-A-Way Spring User Manual Mounting of Webbing Restraint Document No. 045-01v2 Foldaway Spring user manual.doc Page 20 Authority. Quality Controller November 09 J Adams Authorised.

This manual is also suitable for:

Small fold-a-way springLarge fold-a-way springExtra large fold-a-way spring

Table of Contents
