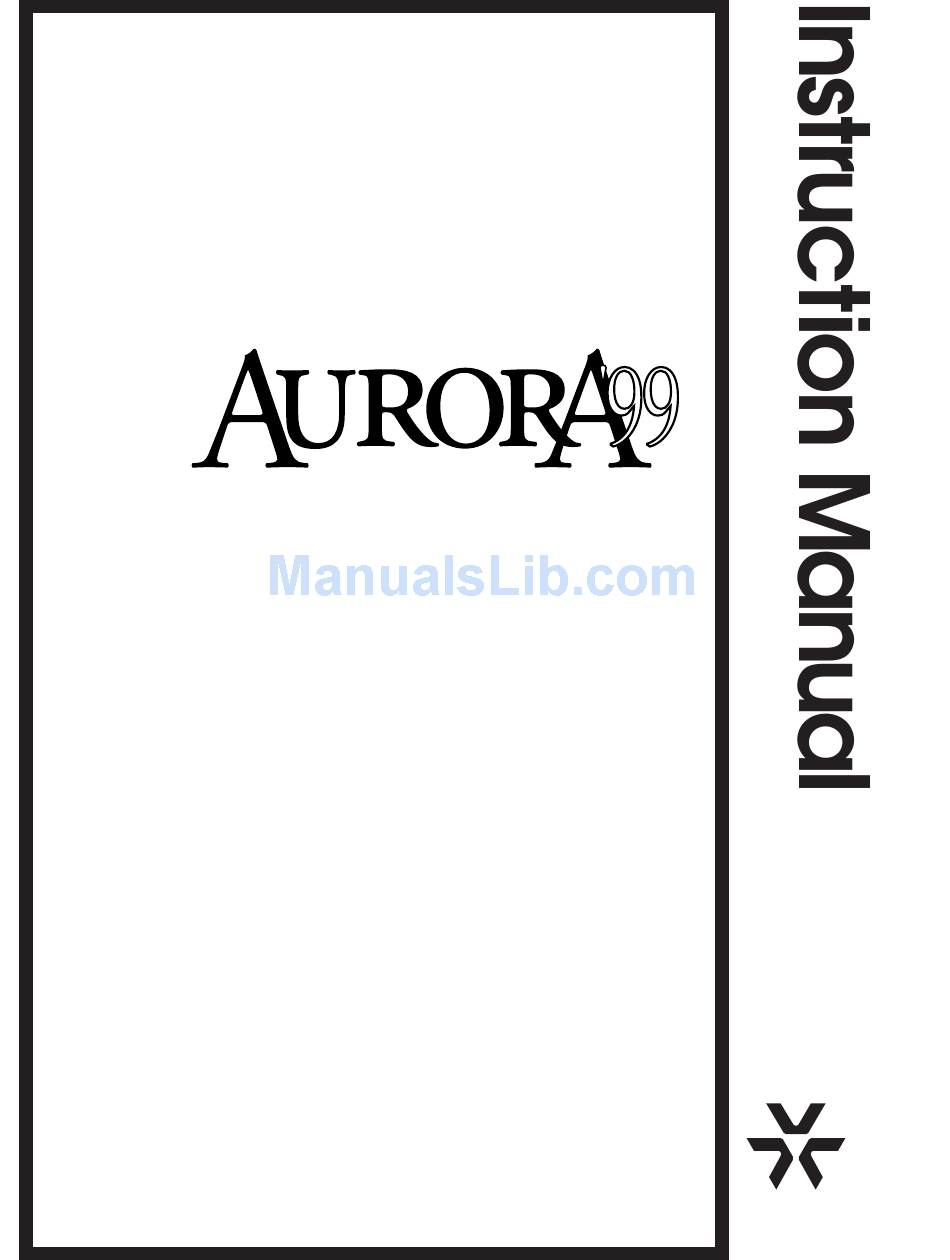

Vicon Aurora 99 V800KBD Instruction Manual

Remote keyboard and optional and multi-output interface

Advertisement

Quick Links

X939
TM
V800KBD Remote Keyboard and Optional
V800MIU Multi-Output Interface
VICON
VICON INDUSTRIES INC. 89 ARKAY DRIVE, HAUPPAUGE, NY 11788

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aurora 99 V800KBD and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicon Aurora 99 V800KBD

  • Page 1 X939 V800KBD Remote Keyboard and Optional V800MIU Multi-Output Interface VICON VICON INDUSTRIES INC. 89 ARKAY DRIVE, HAUPPAUGE, NY 11788...
  • Page 2 Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture. Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 3 This page intentionally left blank.
  • Page 5 This page intentionally left blank.
  • Page 6: Fcc Notice

    FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
  • Page 7 This page intentionally left blank.
  • Page 8: Table Of Contents

    Contents INTRODUCTION ........................1 V800KBD Remote Keyboard ......................... 1 Standalone and Multi-Unit Modes ........................ 1 Applicable Devices ............................2 INSTALLATION ........................3 Cable Recommendations ..........................3 Standalone Mode ............................3 Multi-Unit Mode.............................. 7 Connecting the VCRs and Multiplexers......................8 Connecting the Keyboards and Interface Units..................10 Configuring the Keyboards .........................
  • Page 9 List of Tables Table 1 Multiplexer Connections in Standalone Mode ....................5 Table 2 VCR Connections in Standalone Mode......................5 Table 3 DIP Switch Settings Used to Define VCR ......................6 Table 4 Multiplexer Connections to the Multi-Output Interface Unit................9 Table 5 VCR Connections to the Multi-Output Interface Unit ..................9 Table 6 Master Keyboard to Multi-Output Interface Unit Connections ..............10 Table 7...
  • Page 10 List of Figures Figure 1 Standalone Mode............................... 3 Figure 2 Keyboard Rear Panel............................4 Figure 3 Keyboard Bottom Panel............................ 5 Figure 4 Multi-Unit System with Maximum Number of Components ................7 Figure 5 RS-232 Block Diagram ............................8 Figure 6 Multi-Output Interface Unit Circuit Board .......................
  • Page 11 This page intentionally left blank. iv • List of Figures X939 Rev 1298 Remote Keyboard...
  • Page 12: Important Safeguards

    Use only with a mounting RISK OF ELECTRIC SHOCK accessory recommended by Vicon, or sold with the video DO NOT OPEN product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory...
  • Page 13 This prevents damage to the video product due replacement parts specified by Vicon or that have the to lightning and power-line surges. same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other 15.
  • Page 14: Introduction

    Introduction V800KBD Remote Keyboard The information in this manual covers the installation and operation of the Vicon V800KBD Remote Keyboard. The installation procedures should only be performed by a qualified technician using approved materials in accordance with national, state and local wiring codes. Read these instructions completely before attempting installation.
  • Page 15: Applicable Devices

    Applicable Devices You may only use the V800KBD Remote Keyboard and V800MIU Multi-Output Interface Unit with Vicon’s AurorA99 (or AurorA) Digital Multiplexer. Refer to Vicon Instruction Manual X873 for information on the AurorA99 multiplexer. You may use any of the following VCRs with the remote keyboard and interface unit: •...
  • Page 16: Installation

    Installation Cable Recommendations You must supply 22 AWG, 2-conductor (twisted pair) shielded copper wire with which to make the connections. In standalone mode, since the communication from the keyboard to the multiplexer and VCR is RS-232 data, the maximum length of cable must not exceed 500 ft (150 m). In multi-unit mode, the communication from the keyboards to the multi-output interface units is RS-485 and the combined length of cable must not exceed 3280 ft (1 km).
  • Page 17: Keyboard Rear Panel

    Perform the following procedure to make connections, define software communication parameters and set switches in a standalone system. 1. At the multiplexer, press the 6 key and then the 3 key from the Main Menu to access the Serial Port Setup Sub Menu.
  • Page 18: Multiplexer Connections In Standalone Mode

    Note: Only the 9-pin connector labeled “RS-232/RS-422” on the AurorA99 digital multiplexer’s rear panel may be used for the connections in Table 1. Table 1 Multiplexer Connections in Standalone Mode Keyboard 15-Pin Connector Pin # Multiplexer “RS-232/RS-422” 9-Pin Connector Pin # 5 (ground) 5 (ground and drain wire) 5.
  • Page 19: Table 3

    7. The jumper must be connected across the left and center pins (RS-232) for standalone mode. If this is not the case, move the jumper now. 8. Referring to Figure 2, locate the DIP switch on the bottom panel of the keyboard. This switch defines the type of VCR that you are using.
  • Page 20: Multi-Unit Mode

    Multi-Unit Mode Note: Perform the procedures in this section if you will use keyboard(s) to control more than one VCR and more than one AurorA99 (or AurorA) digital multiplexer; i.e., if you have purchased V800MIU Multi- Output Interface Unit(s). A multi-unit system may contain up to 8 keyboards, 8 multiplexers, 4 multi-output interface units, and 8 VCRs. For each multi-output interface unit, 2 VCRs and 2 multiplexers may be connected.
  • Page 21: Connecting The Vcrs And Multiplexers

    Connecting the VCRs and Multiplexers Perform the following procedure to make connections between the multi-output interface units, VCRs and digital multiplexers. This section of the manual describes the connections illustrated in Figure 5. Multiplexer V800MIU Multiplexer Figure 5 RS-232 Block Diagram 1.
  • Page 22: Multiplexer Connections To The Multi-Output Interface Unit

    and multiplexers to the last two channels, or any combination for a maximum total of 2 VCRs and 2 multiplexers per multi-output interface unit. This is illustrated in Figure 4. 5. Make connections between the multi-output interface units and the multiplexers as shown in Table 4 and the VCRs as shown in Table 5.
  • Page 23: Connecting The Keyboards And Interface Units

    Connecting the Keyboards and Interface Units Perform the following procedure to make connections between the multi-output interface units and remote keyboards. Refer to Figure 4 for a block diagram of a system with the maximum number of system components. 1. If you will use more than one keyboard, select one keyboard to be the master keyboard. 2.
  • Page 24: Configuring The Keyboards

    5. Make connections between each keyboard, looping connections from one keyboard to the next in the same manner as the interface units were connected in the last step. Connect the 15-pin connector’s pin 10 of the master keyboard to pin 10 of keyboard 1. Connect pin 10 of keyboard 1 to pin 10 of keyboard 2, and so forth.
  • Page 25: Configuring The Multi-Output Interface Units

    2. Set the 4-pole DIP switch on each multi-output interface unit as shown in Table 9. Pole 2 controls the communications monitoring of the unit and Vicon recommends that this pole should always be set to ON. 12 • Installation...
  • Page 26: 4-Pole Dip Switch Settings

    Table 9 4-Pole DIP Switch Settings Multi-Output Interface Units Pole 1 Pole 2 Pole 3 Pole 4 3. Referring to Figure 9, locate the four 8-pole DIP switches labeled SW1, SW2, SW3 and SW4 on each multi-output interface unit. Poles 1 through 5 define the multiplexer and VCR addresses to the rest of the system.
  • Page 27: Connecting Power

    TB4, then all poles of SW4 on that interface should be ON. Connecting Power Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source. Voltage irregularities such as surges, drops and interruptions can affect the operation of your equipment and, in severe cases, damage certain components.
  • Page 28: Operation

    Operation AurorA99 Digital Multiplexer Controls As shown in Figure 10, the left side of the remote keyboard is designed to closely resemble the front panel of the AurorA99 and AurorA digital multiplexers. Refer to the Operation chapter of AurorA99 Digital Multiplexer Instruction Manual X873 for operational procedures.
  • Page 29: Vcr Controls

    VCR Controls The right side of the keyboard is designed for VCR control (see Figure 10). You must refer to the documentation for your VCR for details on operating the VCR and then use the same keystrokes from the keyboard. At the time of this printing, the remote keyboard can control all operations on all types of Mitsubishi VCRs.
  • Page 30: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 31 This page intentionally left blank. 18 • Shipping Instructions X939 Rev 1298 Remote Keyboard...
  • Page 32: Index

    Modes defined 1 Multi-Output Interface circuit board 9 Index connections 9, 10 Multiplexer connections 9 controls 15 selection 16 Multi-Unit Mode 7 block diagram 7 connections 7 defined 1 DIP switch settings 11 Accessory Kit 4, 6, 14 Parity 4, 8 Address Settings Power 6, 14 multi-unit mode 11...
  • Page 33 Vicon Industries Inc. Offices Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 516-952-CCTV (2288) 1-800-645-9116 Fax: 516-951-CCTV (2288) Infofax: 1-800-287-1207 Atlanta Office 3070AA Business Park Drive Norcross, Georgia 30071 770-449-0499 1-800-824-8479 Fax: 770-446-8779 Vicon U.K. Brunel Way Fareham, PO15 5TX...
