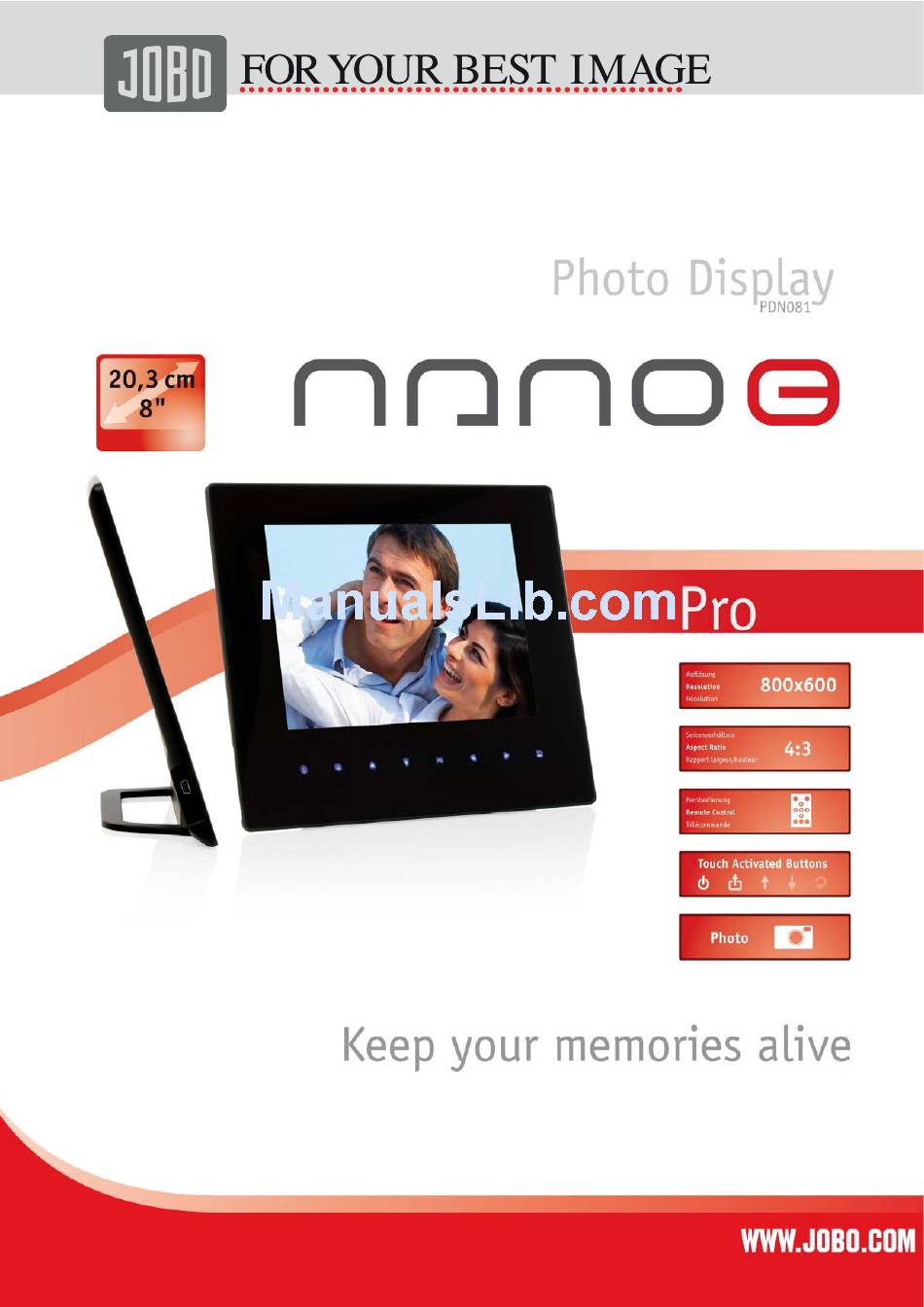

- Page 1 User Manual Version 1.0...
-
Page 2: Precautions And Maintenance
Caution Precautions and maintenance For indoor use only To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation. To avoid overheating, do not block the ventilation holes on the back of the Photo Display. - Page 3 Introduction: Thank you for your purchase of the Photo Display NANO 8. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Photo Display NANO 8.
-
Page 4: Table Of Contents
CONTENT 1. Product Overview ..................5 1.1 Remote Control ..................5 1.2 Touch Buttons ..................6 1.3 Right Side of Frame ................6 1.4 Left Side of Frame ................. 6 2. Installing & Replacing the Battery..............6 3. Getting Started..................7 4. -
Page 5: Product Overview
1. Product Overview 1.1 Remote Control Power = Power On/Off SETUP = Go directly to Setup mode. Rotate = In the photo mode, press this button, the picture will rotate 90 in counterclockwise. UP arrow = Scroll pictures in up/down mode. Also use to make menu selections during programming and setup. -
Page 6: Touch Buttons
1.2 Touch Buttons Power On/Off Menu Up Arrow Down Arrow OK / Play / Pause Left Arrow Right Arrow Exit 1.3 Right Side of Frame 1. SD/ MMC /MS card slot 1.4 Left Side of Frame 1. DC 5V (Power Input) 2. -
Page 7: Getting Started
Then the screen will display as following: If there are JPG files in the memory card or build-in memory, the player will wait for a moment and then start the slideshow. JOBO starting screen 4. Memory Card Selection Screen In the Memory Card Selection Screen you can choose the source for your images. To enter this menu press Exit twice. -
Page 8: Main Menu
Card Selection Screen 5. Main Menu After you have selected the photo source you enter the main menu. Here you can choose between Slide Show, Photo or Calendar. Using the arrow buttons “left” and “right” you can select your choice. Press OK to confirm your selection. Main Menu 5.1. -
Page 9: Calendar
Thumbnail view 5.3. Calendar The calendar function allows you to use the Photo Display NANO as a regular clock and calendar. Your photos are shown as a slide show on the left hand side. Using the arrow buttons you can move through the calendar. ... - Page 10 The following options are available: o Image size This function allows you to optimize the way how to display a photo. There are 3 different ways: Auto fit, Optimal and Full o Slideshow effect You can choose form 16 various transition effects. o Slide show interval ...
-
Page 11: Technical Specifications
7. Technical Specifications Screen Size 8 inch TFT Aspect Ratio Brightness 350cd/m2 Response Time 20ms Viewing Angle 60°(left/right/vertical), 40°(horizontal) Working Temperature 0 ~40 , Humidity: 10-85% Panel Resolution 800 x 600 Pixel Contrast 300:1 AC Adapter Input: AC 100-240V 50/60HZ Output: DC 5V/2A Supported Photo Format JPEG... -
Page 12: Service
If you want to make any claims under the warranty you are asked to contact the Technical Service of JOBO AG. You will be expected to quote the serial number of the JOBO product and may also have to submit proof of purchase to show that the warranty period has not yet elapsed.
