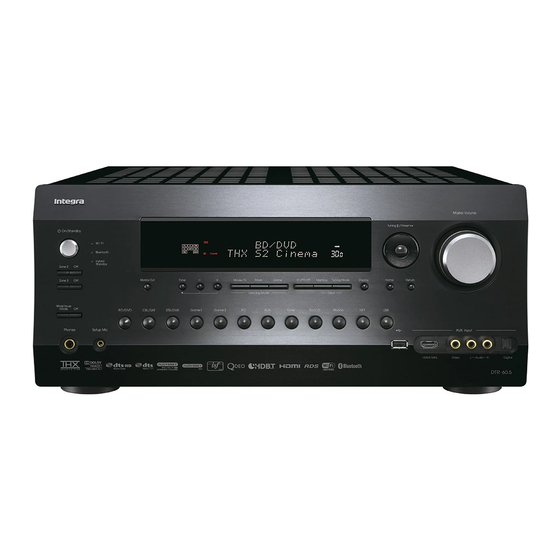

AV Receiver
DTR-60.5
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTR-60.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Integra DTR-60.5

Summary of Contents for Integra DTR-60.5

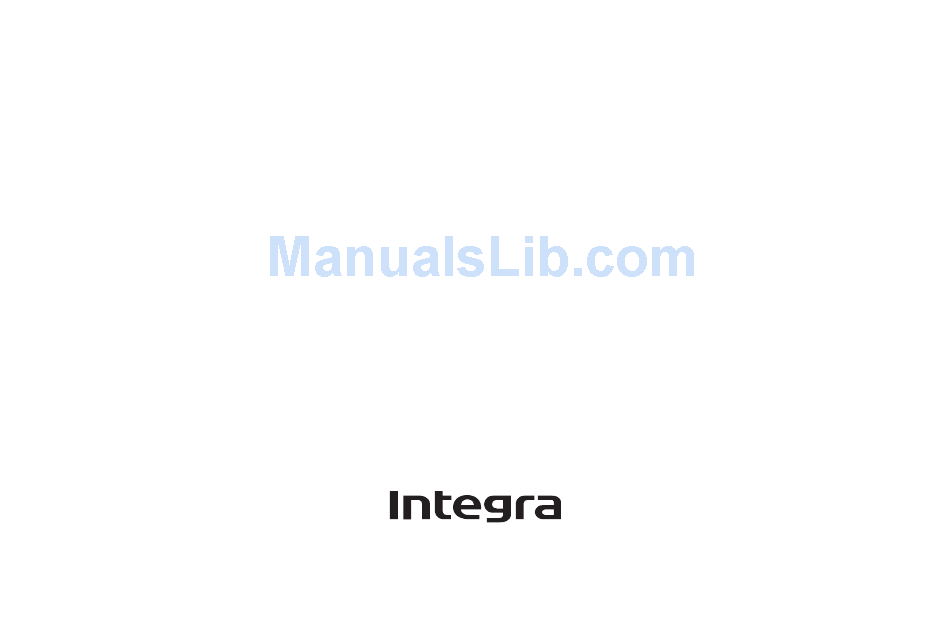

  • Page 1 AV Receiver DTR-60.5 Instruction Manual...

  • Page 2: Safety Information And Introduction

    Safety Information and Introduction 9. Do not defeat the safety purpose of the polarized B. If liquid has been spilled, or objects have fallen or grounding-type plug. A polarized plug has two into the apparatus, WARNING: blades with one wider than the other. A grounding C.

  • Page 3: Precautions

    Safety Information and Introduction Precautions extended period, remove the power cord from the interference in a residential installation. This AC outlet. equipment generates, uses and can radiate radio 5. Preventing Hearing Loss frequency energy and, if not installed and used in 1.

  • Page 4: Supplied Accessories

    Safety Information and Introduction RF Exposure Compliance Modèle pour les Canadien Thank you for purchasing an Integra AV Receiver. Please read this manual thoroughly This equipment complies with FCC/IC radiation REMARQUE: CET APPAREIL NUMÉRIQUE DE before making connections and plugging in the exposure limits set forth for an uncontrolled LA CLASSE B EST CONFORME À...

  • Page 5: Table Of Contents

    Remote Playback............39 Remapping Colored Buttons ........87 Remote Controller............10 Listening to AM/FM Radio ........40 Remote Control Codes for Integra/ Controlling the AV Receiver ........10 Playing Audio and Video from Separate Sources..42 Onkyo Components Connected via RI....87 Using the Listening Modes ........

  • Page 6: Features

    Inputs • 135 Watts/Channel @ 8 ohms (FTC) • HDBaseT™ Output • 185 Watts/Channel @ 6 ohms (IEC) • Integra/Onkyo for System Control • 230 Watts/Channel @ 6 ohms (JEITA) • 6 Digital Inputs (3 Optical/3 Coaxial) • WRAT–Wide Range Amplifier Technology •...

  • Page 7: Front & Rear Panels

    Safety Information and Introduction Front & Rear Panels Front Panel (North American models) (Australian models) For detailed information, see the pages in Listening Mode buttons (43) Zone 2/Zone 3 and Off buttons (83) parentheses. Dimmer button (North American models) (51) Whole House Mode and Off buttons (52) On/Standby button (23) Memory button (40)

  • Page 8: Display

    Safety Information and Introduction Display For detailed information, see the pages in Input indicators (20) parentheses. HDMI indicator (78) Speaker/channel indicators DIGITAL indicator Z2 (Zone 2) indicator (83) ANALOG indicator Z3 (Zone 3) indicator (83) Bi AMP indicator Listening mode and format indicators (43, 74) Audyssey indicator (26, 70) M.Opt (Music Optimizer) indicator (58) Dynamic EQ indicator (70)

  • Page 9: Rear Panel

    Safety Information and Introduction Composite video and analog audio jacks Rear Panel (BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME 1 IN, PC IN, TV/CD IN, PHONO IN) HDBaseT(TM) port (Custom installer use only) The sticker is placed on this port when purchased. Remove the sticker before use.

  • Page 10: Remote Controller

    Home button (54) other than Receiver mode is selected. Sleep button (51) • You can also use the remote controller to control Integra/ Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (➔...
  • Page 11 Safety Information and Introduction ■ Aiming the remote controller To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below. Remote control sensor AV receiver Approx. 16 ft. (5 m) ■ Installing the batteries Batteries (AA/R6) Note •...

  • Page 12: Connections

    Connections Speaker Configuration By using a combination of the built-in power amplifier for 9-channel and an external power amplifier for 2-channel, The following table indicates the channels you should you can enjoy up to 11.1-channel playback. use depending on the number of speakers that you Using Powered Subwoofers have.
  • Page 13 Connections Attaching the Speaker Cable Labels The speaker terminals are color-coded for identification purpose. Speaker Color Front left, Front high left, Front wide White left, Zone 2 left, Zone 3 left Front right, Front high right, Front wide right, Zone 2 right, Zone 3 right Center Green Surround left...
  • Page 14 Connections Connecting the Speaker Cables/Powered Subwoofers • Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to Please connect for 5.1-channel surround. positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the ■...
  • Page 15 Connections ■ ■ 11.1-channel playback Speaker Connection Precautions Bi-amping the Front Speakers By using a combination of the built-in power amplifier • You can connect speakers with an impedance of for 9-channel and an external power amplifier for between 4 and 16 ohms. If the impedance of any of Important: 2-channel, you can enjoy up to 11.1-channel the connected speakers is 4 ohms or more, but less...
  • Page 16 Connections Using Speakers Without Crossover Network Using Dipole Speakers You can use dipole speakers for the surround and Important: surround back speakers. Dipole speakers output the same sound in two directions. • Speakers without crossover network are speakers with no built-in crossover network. TV/screen •...

  • Page 17: Connecting The Tv/Av Components

    Connections Use this jack to connect to the set top box/digital Connecting the TV/AV components video recorder, etc. Use this jack to connect to the game consoles, Before connecting the power cord, connect all of your speakers and AV components. To display the setup etc.

  • Page 18: About Rihd

    The default of the assignment for the input selector buttons and jacks are as shown below. These settings can Players/Recorders be changed. (The assignment for the Video AUX Input jack, analog audio jacks, Digital AUX Input jack and • Onkyo and Integra -compatible players HDMI AUX Input jack cannot be changed.) •...

  • Page 19: Connection Tips

    Connections Operations that can be performed with Confirm the settings • On the TV, when you select anything other than the HDMI jack to which the AV receiver is connected, the input on the connection 1. Turn on the power for all connected components. AV receiver will be switched to “TV/CD”.
  • Page 20 Connections Video input signals flow through the AV receiver as selected, and your TV is ARC capable. Signal Selection Example HDBaseT does not support ARC. shown, with composite video, PC IN (Analog RGB), Blu-ray Disc/DVD player, etc. and component video sources all being upconverted for the HDMI/HDBaseT™...

  • Page 21: Connecting The Antennas

    Connections ■ Optical digital audio Connecting the Antennas Optical digital connections allow you to enjoy digital sound such as PCM , Dolby Digital or DTS. The This section explains how to connect the supplied indoor FM antenna and AM loop antenna. audio quality is the same as coaxial.

  • Page 22: Connecting Integra/Onkyo Ri Components

    • Some components may not support all functions. Refer component. You must enter the appropriate remote to the manuals supplied with your Integra/Onkyo control code first (➔ page 87). components. • While Zone 2/3 is on, the System On/Auto Power On and Direct Change functions do not work.

  • Page 23: Turning On & Basic Operations

    Turning On & Basic Operations the same circuit. If this is a problem, plug the AV receiver Turning Off into a different branch circuit. • Do not use a power cord other than the one supplied with Press On/Standby on the front panel. the AV receiver.

  • Page 24: Firmware Update Notification

    Turning On & Basic Operations Initial Setup Firmware Update Notification Use / on the AV receiver or remote controller to select one of the following When a new version of the firmware is available, the This section explains the settings that we recommend options, and then press Enter.

  • Page 25: Source Connection

    Turning On & Basic Operations Follow the instructions on screen to perform Source Connection Remote Mode Setup the network checking. This step checks the connection of source With this step, you can enter remote control codes for The checking is complete when the message components.

  • Page 26: Using The Automatic Speaker Setup

    Turning On & Basic Operations Measurement procedure Using the Automatic Speaker Setup Note • Make the room as quiet as possible. Background noise and To create a listening environment in your home With the supplied calibrated microphone, Radio Frequency Interference (RFI) can disrupt the room theater that all listeners will enjoy, Audyssey MultEQ ®...
  • Page 27 Turning On & Basic Operations Turn on the AV receiver and the connected TV. If “Speakers Type(Front)” is set to “Digital Place the speaker setup microphone at the Crossover”, a confirmation screen appears. next position, and then press Enter. On the TV, select the input to which the AV Select “Next”...
  • Page 28 Turning On & Basic Operations Error Messages Use / to select a target, and use The setup of the speaker can be done manually change the setting. (➔ page 63). While Audyssey MultEQ XT32 Room Correction and After the results of Audyssey MultEQ ®...

  • Page 29: Performing Wireless Lan Setup

    Turning On & Basic Operations ■ PIN code method Performing Wireless LAN Setup Use / to select “Network Connection”, and to select “Wireless”, and then press 1. Use / to select “PIN Code” and then press Enter (➔ page 80). Enter.
  • Page 30 Turning On & Basic Operations Manual wireless LAN setup Select “OK” and press Enter. Use / to select the Access Point you wish to connect to, and then press Enter. Connection to your Access Point starts and Wi-Fi indicator flashes. After the connection to your Press Receiver followed by Home.

  • Page 31: Playback

    Press the input selector button to which the AV components to be played is connected. • “Using the Integra/Onkyo Dock” (➔ page 91) Press the TV/CD button to play the audio of the TV. Switching the input on the TV is also required.

  • Page 32: Controlling Contents Of Usb Or Network Devices

    Playback Top Menu Repeat Controlling Contents of USB or This button displays the top menu for each media or Press this button repeatedly to cycle through the repeat Network Devices service. modes. (➔ page 33) / and Enter These buttons navigate through the menus. •...

  • Page 33: Understanding Icons On The Display

    Playback Pairing the AV receiver with a Bluetooth- Understanding Icons on the Display Playing an Audio from Bluetooth- enabled device enabled Device This section describes icons that appear on the AV Pairing is an operation where Bluetooth-enabled receiver’s display during media playback. About the Bluetooth Wireless Technology devices register with each other beforehand.

  • Page 34: Playing A Usb Device

    • The model name appeared on the display of your • The on-screen information appears only on a TV that is Bluetooth-enabled device is “Integra DTR-60.5”. choice. TuneIn is preprogrammed on the AV receiver. connected to HDMI/HDBaseT™ outputs.
  • Page 35 Playback Setting an TuneIn account • Adding TuneIn radio stations or programs to My Use / to select a station or a program, and Presets then press Enter. To create a user account for TuneIn, open a browser Select “TuneIn”, and press Enter button to display a Playback starts.

  • Page 36: Registering Other Internet Radio

    Playback Click “Save” to save the Internet radio station. Registering Other Internet Radio Changing the Icon Layout on the The Internet radio station is then added to “My Network Service Screen You need to connect the AV receiver to your home Favorites”.
  • Page 37 Playback Windows Media Player Setup On the “Stream” menu, select “Turn on media Use / / / to select “DLNA”, and press streaming”. Enter. ■ Windows Media Player 11 Setup A dialog box appears. Use / to select a server, and then press This section explains how to configure Windows Enter.

  • Page 38: Playing Music Files On A Shared Folder

    Playback ■ Creating a shared folder Playing music files on a shared folder Playing Music Files on a Shared Folder In order to enjoy Home Media, you must first create a Right-click the folder that you want to share. This section explains how to play music files on a shared folder on your computer.

  • Page 39: Remote Playback

    Playback Click “OK” to close the dialog box. Adjusting the Volume. Remote Playback This completes the Windows Media Player 12 You can adjust the volume by adjusting the You need to connect the AV receiver to your home configuration. volume bar in the “Remote playback” window. network (➔...

  • Page 40: Listening To Am/Fm Radio

    Playback ■ Tuning into stations by frequency Listening to AM/FM Radio Press Tuning / . You can tune into AM and FM stations directly by Searching stops when a station is found. entering the appropriate frequency. This section describes the procedure of using the buttons on the front panel, unless otherwise specified.
  • Page 41 Playback ■ ■ What is RDS? Displaying Radio Text (RT) Press Memory again to store the station or RDS stands for Radio Data System and is a method channel. Press RT/PTY/TP once. of transmitting data in FM radio signals. It was The station or channel is stored and the preset The RT information scrolls across the AV developed by the European Broadcasting Union...

  • Page 42: Playing Audio And Video From Separate Sources

    Playback ■ Listening to Traffic News (TP) RDS program types (PTY) Playing Audio and Video from Separate Type Display Sources You can search for stations that broadcast traffic None None news. You can listen to the audio of one input source while News reports News watching the video of another.

  • Page 43: Using The Listening Modes

    Playback Using the Listening Modes About Listening Modes The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound. Selecting Listening Modes Movie/TV, Music, Game ■ Listening Mode Buttons Movie/TV button This button selects the listening modes intended for Press Receiver first.
  • Page 44 Playback Input Source After enabling the corresponding speakers, press Receiver followed by SP (speaker The following audio formats are supported by the listening modes. layout) repeatedly to select the speakers you want to use: surround back and front high, surround back and front wide, or front high and front wide (➔ page 52). This is mono (monophonic) sound.
  • Page 45 Playback Listening Mode Description Input Speaker Listening Mode Description Input Speaker Source Layout Source Layout All Ch Stereo Ideal for background music, this mode In this mode, audio from the input source fills the entire listening area with stereo is output without surround-sound A l l S t e r e o D S D...
  • Page 46 Playback Listening Mode Description Input Speaker Listening Mode Description Input Speaker Source Layout Source Layout This mode is for use with DTS-ES • Dolby PLIIx Movie DTS-ES Discrete Discrete soundtracks, which use a • Dolby PLIIx Music i s c r e t e discrete surround back channel for true These modes use the Dolby Pro Logic 6.1/7.1-channel playback.
  • Page 47 Playback Listening Mode Description Input Speaker Listening Mode Description Input Speaker Source Layout Source Layout • Audyssey DSX Founded by George Lucas, THX Audyssey DSX develops stringent standards that Audyssey DSX ® is a scalable system A u d s s e y D S X ensure movies are reproduced in movie that adds new speakers to improve...
  • Page 48 Playback Listening Mode Description Input Speaker Listening Mode Description Input Speaker Source Layout Source Layout • THX Select2 Cinema • Dolby Pro Logic II/IIx Movie + THX N e o T H X C i n e m a Cinema THX Select2 Cinema mode plays 5.1 •...
  • Page 49 Playback Listening Mode Description Input Speaker Source Layout • Dolby Pro Logic IIz Height + THX Select2 Games The combination of Dolby Pro Logic IIz Height and THX Select2 Games modes can be used. • Dolby Pro Logic IIz Height + THX Select2 Cinema •...
  • Page 50 Playback Dialogue Normalization spatial errors that occur. On this product, when the be sure to go to the THX Audio Setup screen and THX indicator is on, THX features are automatically choose the setting that closely corresponds to the Dialogue Normalization (DialogNorm) is a feature of added in Cinema modes (e.g.

  • Page 51: Displaying Source Information

    Playback Displaying Source Information Using the Sleep Timer Setting the Display Brightness You can display various information about the current With the sleep timer, you can set the AV receiver to You can adjust the brightness of the AV receiver’s input source as follows.

  • Page 52: Changing The Input Display

    You can set which speakers you want to use by The Whole House Mode is useful when you want to When you connect an -capable Integra/Onkyo priority. add extra background music to your home party; this component, you must configure the input display so...

  • Page 53: Using Easy Macros

    First, the TV, the cable set-top box, and the AV Examples: receiver are turned on. Then the input selector is set If you wished to use My Music to start the Integra/ to “CBL/SAT”. Onkyo CD player, you would press and hold down ■...

  • Page 54: Using The Home Menu

    Playback you can easily switch between inputs as their a short while after the AV receiver is turned on. Using the Home Menu previews are displayed on a single screen. Please wait until it becomes operable. Press Enter to display the main preview Press Enter to display the network service The Home menu provides quick access to frequently (currently selected HDMI input) and the...

  • Page 55: Advanced Operations

    Advanced Operations ■ Input Using the Quick Setup You can select input sources and view the following information: the name of input selectors, input assignments, the name of the device paired with the AV receiver via Bluetooth, radio Advanced Operations information, and ARC function setting.

  • Page 56: Using The Audio Settings Of Quick Setup

    Advanced Operations Tone Control Using the Audio Settings of Quick Note Setup “BLUETOOTH” cannot be selected, if you’ve selected ■ Bass NET or USB as input selector in Multi Zone. –10dB to 0dB to +10dB in 2 dB steps. You can change various audio settings from the When HDMI IN 1/2/3/AUX Input is displayed on the main You can boost or cut low-frequency sounds preview, HDMI IN 4 is also displayed on the preview...
  • Page 57 Advanced Operations Phase Matching Bass Speaker Levels – Any listening mode other than Direct is selected. – A pair of headphones is not connected. • The setting is stored individually for each input selector. ■ ■ Phase Matching Bass Subwoofer Level •...
  • Page 58 Advanced Operations • The Late Night function is set to “Off” when the AV receiver Re-EQ (Re-Equalization) Screen Centered Dialog is set to standby. For Dolby TrueHD sources, it will be set Movie soundtracks were designed for playback in By using the front high speaker, this function moves to “Auto”.

  • Page 59: Using The Setup Menu (Home)

    Advanced Operations Main menu item Sub menu item Using the Setup Menu (Home) Setup Menu Items 5. Listening Mode Preset BD/DVD (➔ page 75) CBL/SAT Main menu item Sub menu item STB/DVR 1. Input/Output Assign Monitor Out (➔ page 60) GAME1 HDMI Input GAME2...

  • Page 60: Input/Output Assign

    Advanced Operations Explanatory Notes 1. Input/Output Assign Note • The “HDMI Through” setting is only available for the HDMI 2. Speaker Setup Monitor Out OUT jack (➔ page 78). Operating on the AV receiver Speaker Configuration On the “Monitor Out” settings, you can select whether or not to have the video sources’...
  • Page 61 Advanced Operations ■ Resolution HDMI Input If you connect your personal computer to PC IN (Analog RGB), you must assign “- - - - -” to the “PC” input selector. Through: If you connect a video component to an HDMI input, Select this to pass video through the AV receiver ■...
  • Page 62 Advanced Operations Component Video Input Composite Video Input Digital Audio Input If you connect a video component to a component If you connect a component to a composite video If you connect a component to a digital audio input, video input, you must assign that input to an input input, you must assign that input to an input selector.

  • Page 63: Speaker Setup

    Advanced Operations ■ Speaker Impedance 2. Speaker Setup Note 4ohms: • Powered Zone 3 is not available in the following cases: Select if the impedance of any speaker is Here you can check the settings made by – The “Speakers Type(Front)” setting is set to “Bi-Amp” or 4 ohms or more but less than 6.
  • Page 64 Advanced Operations ■ ■ Subwoofer When the “Powered Zone 2” setting is set to “Yes”, this Subwoofer Phase setting cannot be selected. 0º When the “Powered Zone 3” setting is set to “Yes”, this 180º: setting cannot be selected. Moves the subwoofer phase. ■...
  • Page 65 Advanced Operations ■ ■ Unit Subwoofer Use / to select a frequency, and then use feet: –15.0dB to 0.0dB to +12.0dB in 0.5 dB steps. to adjust the level at that frequency. Distances can be set in feet. Range: 0.2ft to Note The volume at each frequency can be adjusted 30.0ft in 0.2 foot steps.
  • Page 66 Advanced Operations ■ – “Surround Back Ch” is set to “1ch” (➔ page 64). Preserve THX Settings physical offset between sound drivers. At a digital – The “Powered Zone 3” setting is set to “Yes” processing level, it corrects this offset by delaying the (➔...

  • Page 67: Audio Adjust

    Advanced Operations ■ Overlap 3. Audio Adjust • Sounds processed by Digital Processing Crossover With the Audio Adjust functions and settings, you can Network are played. adjust the sound and listening modes as you like. With this setting, a frequency band near the specified •...
  • Page 68 Advanced Operations ■ ■ Dolby PL IIz Height Gain TrueHD Loudness Management ■ PL IIx Music (2ch Input) These settings apply to only 2-channel stereo High This setting specifies whether or not to apply the Late sources. Night processing on a Dolby TrueHD source. The Height Gain Control in Dolby Pro Logic IIz If you’re not using any surround back speakers, these enables the listener to select how much gain is...
  • Page 69 Advanced Operations ■ Theater-Dimensional DTS and DTS-HD High Resolution sources Equalizer DSD (Super Audio CD) sources ■ Listening Angle Manual: Sound Program Edit The manual setting in “Equalizer Settings” Wide: (➔ page 65) is applied. Select if the listening angle is greater than 30 ■...

  • Page 70: Source Setup

    Advanced Operations ■ Dynamic EQ will play at reference level when the master volume 4. Source Setup control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it. Items can be set individually for each input selector. Audyssey Dynamic EQ is referenced to the standard Audyssey Dynamic EQ ®...
  • Page 71 Advanced Operations About Audyssey Dynamic EQ ® IntelliVolume – “HDMI CEC (RIHD)” is set to “On” (➔ page 77) and you’re listening through your TV speakers. Audyssey Dynamic EQ solves the problem of • A/V Sync is disabled when the Direct listening mode is used ■...
  • Page 72 Advanced Operations Picture Adjust details on the monitor output setting Name input area (➔ page 60). Using Picture Adjust, you can adjust the picture ■ Picture Mode 4 - 4. Name Edit BD/DVD quality and reduce any noise appearing on the Name Custom: screen.
  • Page 73 Advanced Operations ■ ■ ■ Game Mode Resolution Saturation *2*3*4 *2*4*7 *1*2*4 Through: –50 to 0 to +50 Select this to pass video through the AV receiver With this setting, you can adjust saturation. “–50” is at the same resolution and with no conversion. If video signal delay occurs during playback on a video the weakest color.
  • Page 74 Advanced Operations ■ Blue Brightness Audio Selector You can select “ARC” if you select the TV/CD input *2*4 selector. But you cannot if you’ve selected “Off” in the –50 to 0 to +50 “Audio Return Channel” setting (➔ page 79). ■...

  • Page 75: Listening Mode Preset

    Advanced Operations • For the “BLUETOOTH” input selector, only “Digital” is 5. Listening Mode Preset 6. Miscellaneous available. You can assign a default listening mode to each input Volume Setup ■ Analog/PCM/Digital source that will be selected automatically when you With this setting, you can specify the listening mode select each input source.
  • Page 76 Advanced Operations ■ ■ Headphone Level 12V Trigger A/B/C Setup GAME2 –12dB to 0dB to +12dB Off: Depending on their type, when some components are No trigger signal is output. With this setting, you can specify the headphone turned by using triggers A, B, and C, a large amount volume relative to the main volume.

  • Page 77: Hardware Setup

    Advanced Operations Tuner 7. Hardware Setup Note • When the setting is set to “On” and the menu is closed, the ■ AM/FM Frequency Step (North American Multi Zone names of connected -compatible components and models) “RIHD On” are displayed on the AV receiver. “Search…”...
  • Page 78 Advanced Operations ■ ■ ■ HDMI Through Audio TV Out (HDMI) Audio TV Out (HDBaseT(TM)) BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2, PC, AUX, TV/CD, PHONO: This preference determines whether the incoming This preference determines whether the incoming Selects the input source for which the HDMI audio signal is output from HDMI OUT.
  • Page 79 Advanced Operations ■ ■ Audio Return Channel InstaPrevue Note These settings apply to “InstaPrevue” of the Home • Set to “ On” , the Auto Standby function may activate itself menu and specify the preview display of (➔ page 54) Auto: during playback with some sources.
  • Page 80 Advanced Operations ■ ■ Network MAC Address Proxy Port This is the AV receiver’s MAC (Media Access If you’re using a Web proxy, enter a proxy port This section explains how to configure the AV Control) address. This address cannot be changed. number here.

  • Page 81: Remote Controller Setup

    Bluetooth-enabled device. 1, 2, or 3 Locked Note When several Integra/Onkyo components are used in Unlocked • This setting cannot be selected if you’ve selected NET or the same room, their remote ID codes may overlap.

  • Page 82: Multi Zone

    Advanced Operations Multi Zone In addition to the main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And, you can select a different source for each room. Making Multi Zone Connections Connecting Your Zone Speakers Directly to the AV receiver Connecting the Zone Speakers to an Additional Amplifier This setup allows you to select different sources for Main room and Zone 2/3.

  • Page 83: Setting The Zone 2/3 Out

    Advanced Operations Zone 2 Video Output To turn on Zone 2/3 and select an input source, Press Zone repeatedly, then point the remote press Zone 2 or Zone 3 followed by an input controller at the AV receiver and press By connecting the TV used in Zone 2 and the selector button within 8 seconds.

  • Page 84: Using The 12V Triggers

    Advanced Operations Muting Zones • Both audio and video outputs from an HDMI component Using the 12V Triggers may interrupt when the main room and Zone 2 are set to share the same source or not. ■ Operating on the remote controller The 12V triggers A, B, and C can be used to turn on •...

  • Page 85: Using The Remote Controller In Zone And Multiroom Control Kits

    Advanced Operations Using a Multiroom Kit with Other Using the Remote Controller in From the connecting block Components Zone and Multiroom Control Kits Miniplug cable In this setup, an IR emitter is connected to the AV To control the AV receiver with the remote controller receiver’s IR OUT jack and placed in front of the other while you’re in Zone, you’ll need a commercially component’s remote control sensor.

  • Page 86: Controlling Other Components Controlling Other Components

    (➔ page 88) remote control codes from any category can be The keyboard screen for brand name input TV/CD Integra/Onkyo CD player (➔ page 87) assigned for the Remote Mode buttons. However, appears. these buttons also work as input selector buttons, so...

  • Page 87: Remapping Colored Buttons

    Controlling Integra/Onkyo components without Note • The learning command is also reset. If you want to control an Integra/Onkyo component by • To reset the Remote Mode buttons to their default settings, pointing the remote controller directly at it, or you see “Resetting the Remote Mode Buttons”.

  • Page 88: Resetting The Remote Controller

    Controlling Other Components Controlling Apple TV Controlling a Blu-ray Disc/DVD Player, HD Resetting the Remote Controller DVD Player or DVD Recorder By programming the supplied remote controller with You can reset the remote controller to its default the appropriate remote control code, you can use it to BD/DVD is preprogrammed with the remote control settings.
  • Page 89 Controlling Other Components ■ ■ TV operation DVD player/DVD recorder operation Press the appropriate Remote Available buttons Available buttons Mode button first. Number: 1 to 9, 0 Top Menu Display , Input, TV VOL / Guide / / / , Enter Source Number: +10 Display...
  • Page 90 Controlling Other Components ■ Satellite receiver/Cable receiver operation Press the appropriate Remote Available buttons Mode button first. Guide Number: 1 to 9, 0 Number: +10 / / / , Enter Setup Display Source Muting A (Red) CH +/– B (Green) PREV CH C (Yellow) Return...

  • Page 91: Using The Integra/Onkyo Dock

    Other Remote Operations For the latest information on the Integra Dock videos of your iPod/iPhone on a TV. In addition, the You can use the remote controller that came with the components, see the Integra web site at: on-screen display (OSD) allows you to view, AV receiver to control other iPod/iPhone functions.

  • Page 92: Controlling Your Ipod/Iphone

    Controlling Other Components ■ Dock operation Controlling Your iPod/iPhone Press the appropriate Remote Available buttons Mode button first. By pressing the Remote Mode button that’s been Top Menu Display programmed with the remote control code for your / / / , Enter Source Dock, you can control your iPod/iPhone in the Dock Muting...

  • Page 93: Learning Commands

    • Remote controller buttons such as Play, Stop, and Pause are preprogrammed with commands for controlling Integra/ On the supplied remote controller, press the Onkyo CD players, cassette decks, and DVD players. button to which you want to assign the new However, they can learn new commands, and you can command.

  • Page 94: Using Normal Macros

    Controlling Other Components When you’ve finished, press Activities again. Using Normal Macros Activities button flashes twice. You can program the remote controller’s Activities to If you enter 32 commands, the process will perform a sequence of remote control actions. finish automatically. Example: To play a CD you typically need to perform the Note...

  • Page 95: Appendix

    Appendix Troubleshooting Home until Receiver lights (about 3 seconds). Within Audio 30 seconds, press Receiver again. ■ The on-screen information appears only on a TV that There’s no sound, or it’s very quiet If you have any trouble using the AV receiver, look for is connected to HDMI/HDBaseT™...
  • Page 96 Appendix ■ The front high, front wide and surround back If the input signal format is set to “PCM” or “DTS”. Set it to If the volume level of each individual speaker has been speakers produce no sound “Off”. (➔ page 74) adjusted to high positive values, then the maximum master volume possible may be reduced.
  • Page 97 ■ Can’t control other components Tuner (➔ pages 17, 62) If it’s an Integra/Onkyo component, make sure that the If the video source is connected to a composite video input, ■ Reception is noisy, FM stereo reception is noisy, cable and analog audio cable are connected properly.
  • Page 98 Appendix To control an Integra/Onkyo component that’s not Make sure you’ve selected the right remote mode. The setting of SSID and encryption (WEP, etc.) is not (➔ page 92) correct. Make the same settings for network and the AV connected via , point the remote controller at the receiver.
  • Page 99 Appendix ■ ■ Bluetooth connection cannot be built Can’t connect to the AV receiver from a Web Bluetooth browser When building a Bluetooth connection between the AV ■ receiver and your Bluetooth-enabled device for the first Music playback is unavailable on the AV If you’re using DHCP, your router may not always allocate time, if the connection is fail, you need to power off your the same IP address to the AV receiver, so if you find that...
  • Page 100 Appendix ■ ■ The sound changes when I connect my The following settings can be made for the Radio Wave Caution headphones composite video inputs When a pair of headphones is connected, the listening • Video Attenuation The AV receiver uses a 2.4 GHz radio wave mode is set to Stereo, unless it’s already set to Stereo, frequency, which is a band used by other wireless If you have a game console connected to the...
  • Page 101 Appendix ■ • We assume no responsibility whatsoever for any Electronic device which requires cautions Radio Wave Reflections error or damage of network environment or access Hearing aid, pace maker, other medical electronic device resulting from the use of this apparatus. The radio waves received by the AV receiver include devices, fire alarm, automatic door, and other Confirm with the provider or access device maker...
  • Page 102 Appendix DISCLAIMER Video Resolution Chart Through this device you are able to link to other services or websites which are not under the control of any company which has designed, manufactured or distributed/have distributed this The following tables show how video signals at different resolutions are output by device, and its affiliates (collectively, “Company”).

  • Page 103: Firmware Update

    The Home menu appears on the TV screen. available space to update the firmware. Select “Firmware Update” and press Enter. See the Integra web site for latest information. Note that the “Firmware Update” option will be Note grayed out for a short while after the AV receiver •...
  • Page 104 If you do not have an Internet connection to the Congratulations! You now have the latest network, please contact Integra Support. ■ Errors during an update via network firmware installed on your Integra AV receiver. Error Code Description Updating the Firmware via USB -01, The Ethernet cable was not detected.
  • Page 105 (Alpha-numeric characters on the program. When this occurs, you can still view the front display are denoted by asterisks.) Refer to the Download the firmware file from the Integra update progress on the AV receiver’s display. following table and take appropriate action.

  • Page 106: About Hdmi

    Appendix About HDMI Supported Audio Formats About Copyright Protection • 2-channel linear PCM (32–192 kHz, 16/20/24 bit) The AV receiver supports HDCP (High-bandwidth Designed to meet the increased demands of digital Digital Content Protection) , a copy-protection TV, HDMI (High Definition Multimedia Interface) is a •...

  • Page 107: Network/Usb Features

    Appendix Network/USB Features modem, etc.). Please consult your ISP or computer The setting varies depending on the media server or dealer if you’re unsure. controller devices. Refer to your devices’ instruction manual for details. Note Network Requirements If the operating system of your personal computer is •...
  • Page 108 Appendix • Operation is not guaranteed for all USB devices, which 48 kHz, bitrates of between 5 kbps and 320 kbps, 500 kbps are supported. Incompatible files cannot includes the ability to power them. and WMA DRM are supported. be played. •...

  • Page 109: License And Trademark Information

    Appendix License and Trademark This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology Information outside of this product is prohibited without a license from THX and the THX logo are trademarks of THX Ltd. which Microsoft.

  • Page 110: Specifications

    Appendix Specifications Video Section Input Sensitivity/Output Level and Impedance The Bluetooth ® word mark and logos are registered Amplifier Section 1 Vp-p/75 Ω (Component Y) trademarks owned by Bluetooth SIG, Inc. and any use of 0.7 Vp-p/75 Ω (Component P such marks by Onkyo is under license.
  • Page 111 Appendix ■ ■ Bluetooth Section HDMI Others Input IN 1, IN 2, IN 3, IN 4, IN 5, IN 6, IN 7, Setup Mic Communication system IN 8, AUX Input RS232 Bluetooth Specification version 2.1 + Output EDR (Enhanced Data Rate) Video Resolution 1 (Front) Maximum communication range...
  • Page 112 Integra Division of 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-225-1946, 201-818-9200 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4208-213 http://www.integra.eu Integra Division of 1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396 http://www.integra.com.cn...
