Gamber Johnson 7160-0471 Installation Instructions

INSTALLATION INSTRUCTIONS

Product
7160-0471, 7160-0471-P
INSTRUCTION SHEET - FZ-A1 OFFICE DOCK
This device is an office docking station for your the Panasonic FZ-A1 Toughpad.
Use:
1. Connect the dock to power using the power supply that was provided with the tablet.
The power supply brick can be stowed in the well in the back of the dock for storage.
2. Connect Ethernet and USB devices to the dock as desired. Two cable tie points are
provided for cable management.
3. Make sure power connector door on the tablet is closed
4. With the tablet perpendicular to the table and th docking connecter facing down,
place the tablet into the dock then lean the tablet back onto the rest.
5. To remove the tablet, rock the tablet forward till it is perpendicular to the table then lift
the tablet straight out.
6. For additional security the dock can be bolted down and the tablet secured with a
Kensington lock
DOWN
THEN ROTATE BACK
Product Mounting Disclaimer Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program. and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2013 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
Rev. D

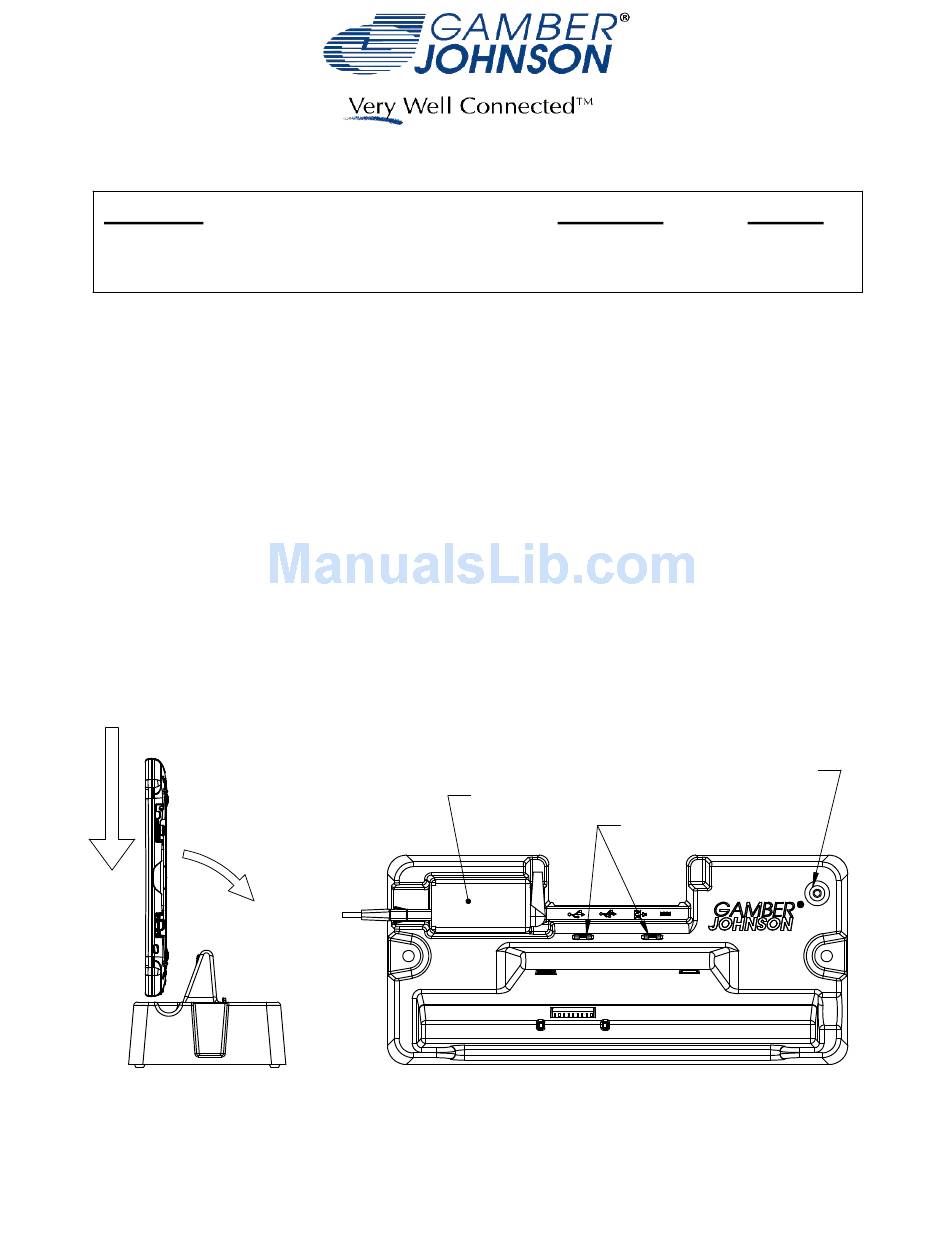

POWER SUPPLY
