Summary of Contents for Robin Robin MiniMe

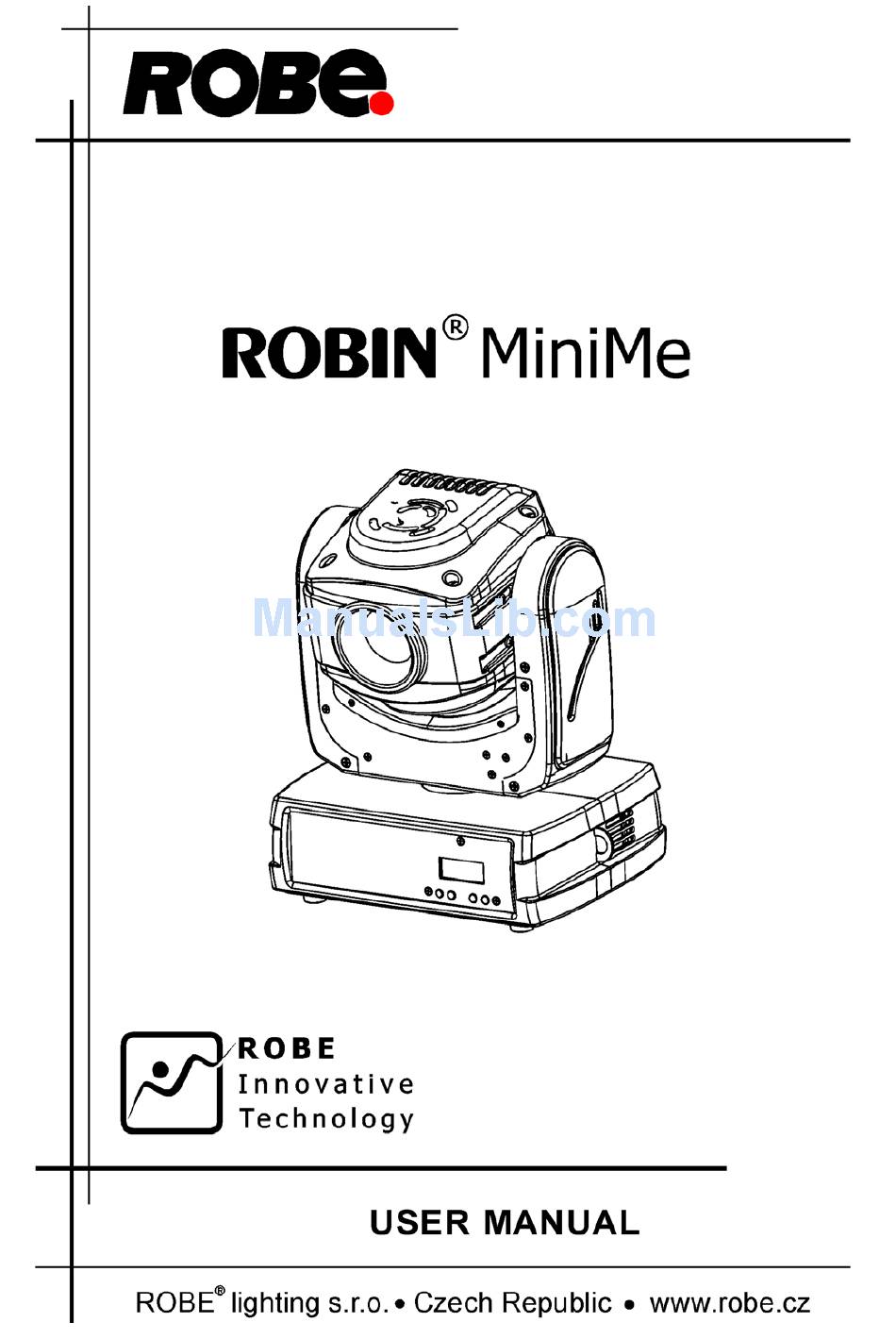

  • Page 1 Working version...

  • Page 2: Table Of Contents

    2. Fixture exterior view ...................... 5 3. Installation........................6 3. Connection to the mains .................... 6 3.2 Rigging the fixture ...................... 7 3.3 Positioning the Robin MiniMe ..................8 3.4 DMX-5 connection ....................0 3.5 Ethernet connection .................... 4. Control menu map ......................12 5.

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin MiniMe was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. Do not block the light output with any object when the fixture is under operation. The openings should never be covered with cloth or other materials, and never must be blocked.

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Moving head 2 - Arm 3 - Base 4 - Attachment point for safety cable 5 - Control board 6 - DMX Out (5-pin XLR) 7 - DMX In (5-pin XLR) 8 - Ethernet (RJ45) 9 - 2x USB input 10 - HDMI input 11 - Power Input...

  • Page 6: Installation

    This device falls under class one and must be earthed (grounded)! Design of the Robin MiniMe allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specifications “...

  • Page 7: Rigging The Fixture

    3.2 Rigging the fixture A structure intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes and regulation.

  • Page 8: Positioning The Robin Minime

    3.3 Positioning the Robin MiniMe The Robin MiniMe is designed to be installed in one of four possible installation locations: 1. Front Table - the fixture is placed near the floor in front of the screen. 2. Front Ceiling - the fixture is suspended upside-down from the ceiling (truss) in front of the screen.
  • Page 9 Note: There is a tolerance among these numbers due to optical component variations. We recommend that if you intend to permanently install the Robin MiniMe, you should physically test the projection size and distance using the actual fixture before you permanently install it.

  • Page 10: Dmx-5 Connection

    3.4 DMX-512 connection The fixture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. DMX - output DMX-input XLR mounting-sockets (rear view):...

  • Page 11: Ethernet Connection

    The Universe is a single DMX 512 frame of 512 channels. The Robin MiniMe is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the fixture to the network.
  • Page 12 4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Mode Mo. DMX Mo. ArtNet IP Addr IP Ad1 000-55 IP Ad4 000-55 IP NetM Net M1 000-55 Net M4 000-55 DMX Addr 000-55...
  • Page 13 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 St Alone Play Off Auto Run DMX Prg 1 DMX Prg 9 Pl DMX Prg DMX Prg 1 DMX Prg 9 Rc DMX Prg DMX Prg 1 DMX Prg 9 Reset Reset GE...

  • Page 14: Control Menu

    Robin MiniMe will respond to the controller. If you set, for example, the address 23, the Robin MiniMe will use channels 23 - 54 for control. Please, be sure that you do not have any overlapping channels in order to control each Robin MiniMe correctly and indepen- dently from any other fixture on the DMX data link.

  • Page 15: Personality (Pers)

    5.3 Personality (Pers) Pan Rev - Pan reverse. The item allows to invert pan movement. Tilt Rev - Tilt reverse. The item allows to invert tilt movement. P/T Mode - Pan and Tilt movement mode. Use this menu to set mode of the pan/tilt movement. Speed - Both Pan and tilt will move with the same speed as adjusted at the channel 5 "Pan/Tilt speed, Pan/Tilt time".

  • Page 16: User Media (User Media)

    Rc DMX Prg - Record DMX program. The menu allows you to record DMX data that receives the fixture and then replay them again via the menu “PL. DMX Prg”. There is a list of 9 programs for recording. 5.6 Reset (Reset) This option enables to index all effects and return them to their standard positions.

  • Page 17: Keystones

    6. Keystones If an image is output from the Robin MiniMe at an angle the image may be skewed. Two keystone channels (KeyStoning Vertical, KeyStoning Horizontal) adjust the image shape. Default DMX value for both channels is 128, it means that no keystone correction has been used.

  • Page 18: Error And Information Messages

    7. Error and information messages Tilt Err This message will appear after the reset of the fixture if the head´s magnetic-indexing circuit malfunctions (sen- sor failed or magnet is missing) or the stepping motor is defective or its driving IC on the PCB. The head is not located in the default position after the reset.
  • Page 19 Focus Motorized focus Strobe Independent strobe effect with variable speed (0.3 - 20Hz) Random strobe effect Dimmer Smooth dimmer from 0 - 100 % Pan/Tilt Max. pan movement range: 450° Max. tilt movement range: 270° 16 bit movement resolution Automatic Pan/Tilt position correction Remotely controllable speed of pan/tilt movement for easy programming Movement control: tracking and vector Control...
  • Page 20 Dimensions (mm) Accessories Omega holder (P/N 99010420).......1 piece Optional accessories (P/N 10980127) Robe Wireless CRMX-LB100 (P/N1305 1731) Mains Cable PowerCon In/open ended, 2m (P/N 1305 1724) Mains Cable PowerCon In/Schuko, 2m (P/N 1305 1725) Mains Cable PowerCon In/CEE 16A, 2m...

  • Page 21: Maintenance And Cleaning

    9. Maintenance and cleaning DANGER ! Disconnect from the mains before starting any maintenance work A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used! Never use alcohol or solvents for cleaning lenses in the moving head! Use wet cloth only.
