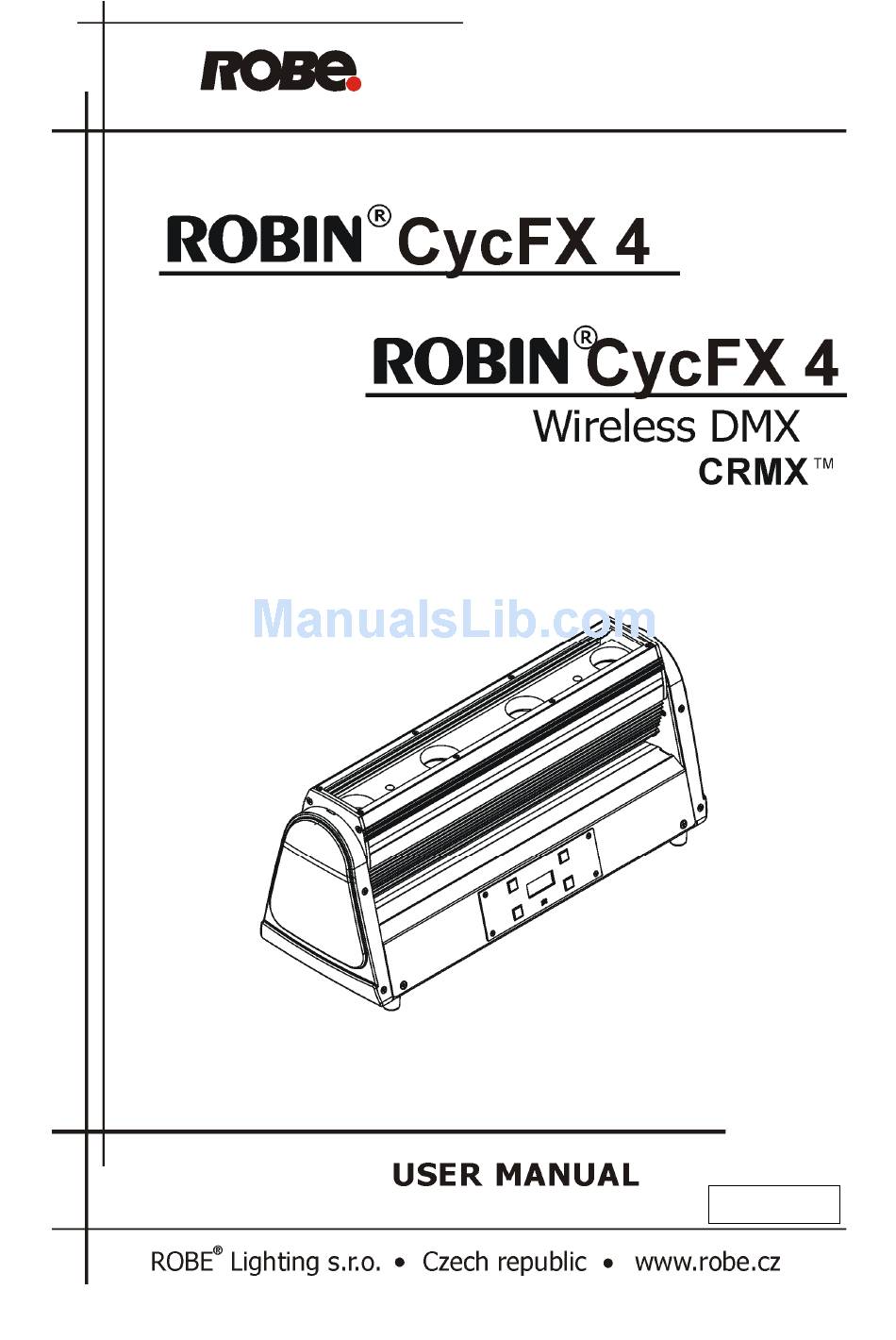

  • Page 1 Version 1.1...

  • Page 2: Table Of Contents

    3.2 Connection to the mains ............................5 3.3 DMX 512 connection ............................6 3.4 Wireless DMX operation ............................6 Robin CycFX 4 - DMX protocol ............................7 5. Control menu map ..............................13 6. Control menu ................................16 6.1 Addressing (DMXA) ............................. 16 6.2 Fixture information (Info) ...........................

  • Page 3: Safety Instructions

    Robin CycFX 4 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Robin CycFX 4! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

  • Page 4: Fixture Exterior View

    Robin CycFX 4 When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials.

  • Page 5: Installation

    This device falls under class one and must be grounded! Design of the Robin CycFX 4 allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specifications “...

  • Page 6: Dmx 512 Connection

    3-pin XLR plug with a 120 Ohm resistor soldered between Signal (–) and Signal (+). 3.4 Wireless DMX operation The wireless version of the Robin CycFX 4 (Robin CycFX 4/W) is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band.

  • Page 7: Robin Cycfx 4 - Dmx Protocol

    Robin CycFX 4 Robin CycFX 4 - DMX protocol Version 1.0 Mode/Channel Value Function Type of control Tilt (8 bit) 0-255 Tilt movement by 270° proportional Tilt (16 bit) 0-255 Fine movement of tilt proportional Tilt speed (time) Standard mode Step Max.
  • Page 8 Robin CycFX 4 Green (Magenta) coarse - all pixels 0-255 Green LEDs saturation control (0-100%) proportional Green (Magenta) fine - all pixels 0-255 Green LEDs saturation fine control min.—>max. proportional Blue (Yellow) coarse - all pixels 0-255 Blue LEDs saturation control (0-100%)
  • Page 9 Robin CycFX 4 Pixel effects speed 0-63 Speed from min. —>max. without fade time proportional 11 16 16 64-127 Speed from max. —>min. without fade time (op. direction) proportional Speed from min. —>max. with fade time 128-191 proportional Speed from max. —>min. with fade time 192-255 (op.
  • Page 10 Robin CycFX 4 Blue pixel 3 0-255 Blue LED saturation control (0-100%) proportional Dimmer 3 0-255 Dimmer intensity from 0% to 100% proportional Red pixel 4 0-255 Red LED saturation control (0-100%) proportional Green pixel 4 0-255 Green LED saturation control (0-100%)
  • Page 11 Robin CycFX 4 41-42 Effect 20 Step 43-44 Effect 21 Step 45-46 Effect 22 Step 47-48 Effect 23 Step 49-50 Effect 24 Step 51-52 Effect 25 Step 53-54 Effect 26 Step 55-56 Effect 27 Step 57-58 Effect 28 Step 59-60...
  • Page 12 Robin CycFX 4 145-146 Effect 72 Step 147-148 Effect 73 Step 149-150 Effect 74 Step 151-152 Effect 75 Step 153-154 Effect 76 Step 155-156 Effect 77 Step 157-158 Effect 78 Step 159-160 Effect 79 Step 161-162 Effect 80 Step 163-164...

  • Page 13: Control Menu Map

    Robin CycFX 4 5. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMXA Set DMXA 001-255 Info POn Time Total Reset DMX In Tilt 0-255 Dimm F 0-255...
  • Page 14 Robin CycFX 4 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 On/Off T On, Off Contrast 0-100% Backlight 0-100% On, Off C Cal M C Mix M RGBW, CMY Whi Cnt On, Off Sil Zom...
  • Page 15 Robin CycFX 4 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Reset Special RDM Low RDM Hight Wireless Stat Unlink Adjust DMX Val Tilt 0-255 Dimm F 0-255 Calib Cal Mech Tilt C. 0-255...

  • Page 16: Control Menu

    Set DMXA- Use this menu item to set the DMX start address of the fixture, which is defined as the first channel from which the Robin will respond to the controller. If you set, for example, the address 15, the Robin CycFX 4 will use channels 15 - 28 for control (if Mode 1 is selected).

  • Page 17: Personality (Pers)

    Robin CycFX 4 Sw Ver - Software versions. Select this item to read the software version of the fixture modules. IC-1 - A zoom processor. IC-2 - A display processor. IC-3 - LED driver processor. IC-4 - LED control processor 6.3 Personality (Pers)

  • Page 18: Manual Control (Manual)

    Pr Edit - Editing program. Select this menu to edit or create the program. The Robin CycFX 4 has one built-in program and one user-editable program up to 42 steps. Each program step has a step time during which effects last in the current step.

  • Page 19: Reset

    5. Press [ESCAPE] button, select next prog. step, press [ENTER] button and repeat steps 3 - 5). 6.7 Reset This option enables the Robin CycFX 4 to index all effects and return to their standard positions. 6.8 Special functions (Special) RDM Low - This menu item shows the first part of the RDM identification code.

  • Page 20: Rdm

    3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update.

  • Page 21: Technical Specifications

    DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation. 8. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 240V AC, 50-60 Hz • Fuse: T2.5 A •...
  • Page 22 Robin CycFX 4 Wireless DMX/RDM module (only for Robin CycFX 4 Wireless DMX) • Compliance with USITT DMX-512 (1986 & 1990) and 512-A • Full DMX fidelity and frame integrity • Auto sensing of DMX frame rate and frame size •...
  • Page 23 Robin CycFX 4 Dimensions (mm) Mounting bar CF4 (optional) Included items • 1 x Robin CycFX • 2 x Mounting adapter Omega T (P/N 99014009) • 1 x User manual...
  • Page 24 Robin CycFX 4 Optional accessories (P/N 99010420) Omega holder (P/N1305 1731) Mains Cable PowerCon In/open ended, 2m (P/N 1305 1724) Mains Cable PowerCon In/Schuko, 2m (P/N 1305 1725) Mains Cable PowerCon In/CEE 16A, 2m (P/N 1305 1726) Mains Cable PowerCon In/US, 2m...
  • Page 25 Robin CycFX 4 Beam distribution...
  • Page 26 Robin CycFX 4...

  • Page 27: Cleaning And Maintenance

    Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use genuine parts. 9.1 Replacing a fuse This replacement has to be realized by a qualified person or ROBE service worker only. Specifications are subject to change without notice. June 16, 2014...
  • Page 28 Robin CycFX 4...
