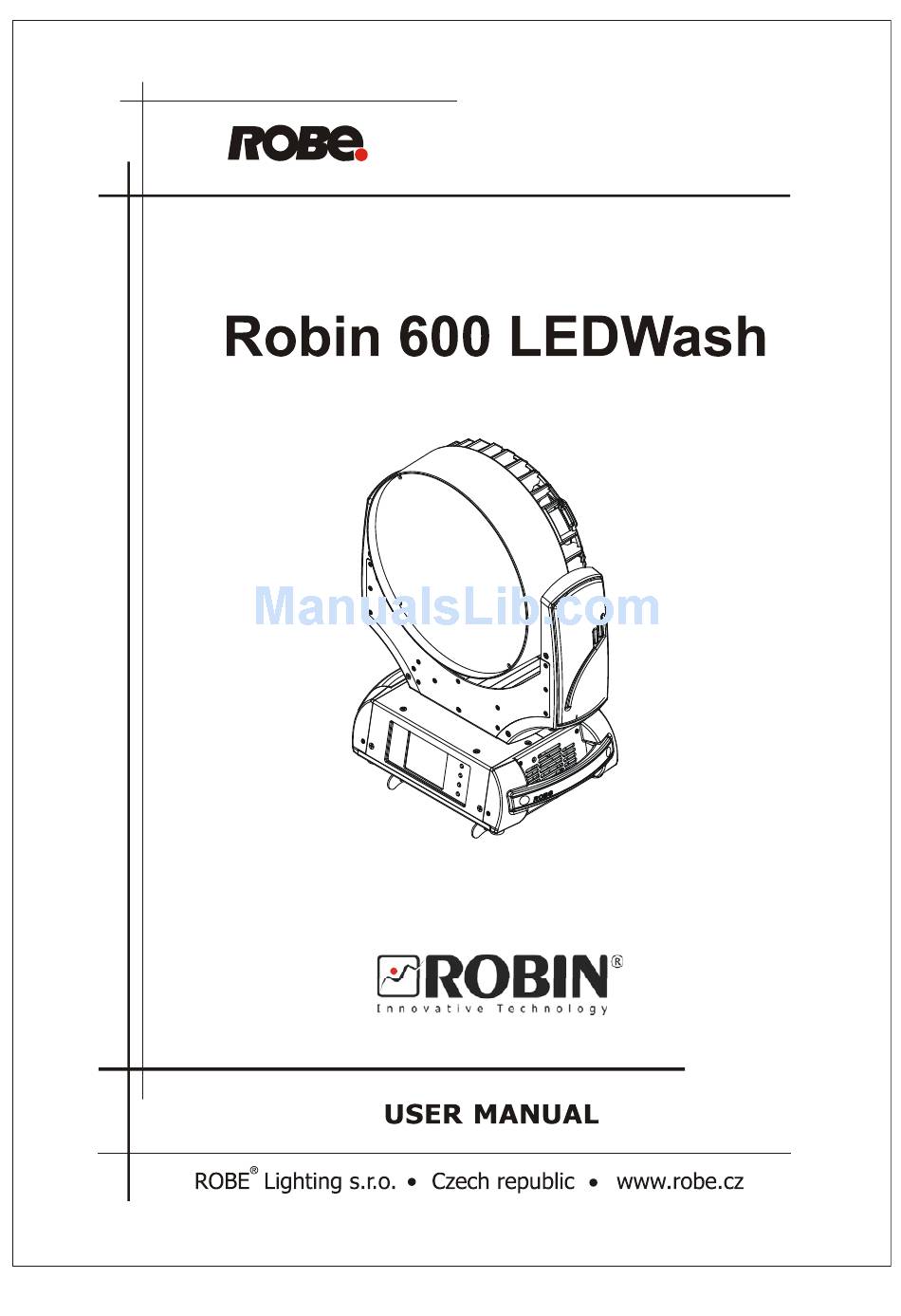

  • Page 1 Version1.7...

  • Page 2: Table Of Contents

    3.4 DMX-5 connection ....................0 3.5 Ethernet connection .................... 4. Control menu map ......................13 5. Robin 600 LEDWash - DMX chart ................16 5.1 Virtual colour wheel - colour mixing chart ..............9 5.2 LED zone order ......................3 6.

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin 600 LEDWash was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. Do not block the LEDs array with any object when the fixture is under operation. The openings should never be covered with cloth or other materials, and never must be blocked.

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Lens array 2 - Carrying handle 3 - QVGA touch screen 4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - Ethernet input 10 - 3-pin DMX OUT 11 - 3-pin DMX IN 12 - 5-pin DMX OUT 13 - 5-pin DMX IN...

  • Page 6: Installation

    3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The Robin 600 LEDWash is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts. Install a suitable plug on the power cord, note that the cores in the power cord are coloured according to the following table.

  • Page 7: Installing The Top Hat

    3.2 Installing the top hat Switch off the fixture before top hat installation 1. Go to the fixture menu and set reduced tilt movement (Personality --> Pan/Tilt Setting--> Tilt Movement Range --> reduced). 2.Unscrew the four fastening screws (3) which securing flange (4) to the head (5) and install new flange. Keep its right position- the cutouts (A) in the flange must look towards the arms.

  • Page 8: Rigging The Fixture

    3.3 Rigging the fixture The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Page 9 Securing the fixture via one safety wire Securing the fixture via two safety wires 1-Fixture 2-Omega holder 3-Clamp 4-Trust 5-Safety chain...

  • Page 10: Dmx-5 Connection

    3.4 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 11: Ethernet Connection

    3.5 Ethernet connection The fixtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft- ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
  • Page 12 Ethernet / DMX operation Options “Art2DMX” has to be selected from the “Ethernet Mode” menu on the first fixture (connected to the Ethernet) in the fixture chain,next fixtures have standard DMX setting. Connect the Ethernet-input of the first fixture in the data chain with the network. Connect the DMX output of this fixture with the input of the next fixture until all fixtures are connected to the DMX chain.
  • Page 13 4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing Settings DMX Address 00-55 Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA Art2DMX IP Address/NetMask Default IP Address Custom IP Address Net Mask ArtNet Universe 0-55...
  • Page 14 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Pan/Tilt mode Time Speed Stand. Tilt Movemement range Reduc. Microphone Sen- -10-0 sitivity Blackout Settings Blackout During M.C. Off, On Off, On Blackout while: Pan/Tilt moving Off, On Colour Calibration Mode Init Effect Positions...
  • Page 15 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Step Time (0-25.5s) Step 00 Pan (0-255) Dimmer Fine (0-255) Fade Time (0-25.5s) Service Adjust DMX Values 0-55 Dimmer Fine 0-55 Calibrations Calibrate Effects 0-55 Tilt 0-55 Calibrate colours 0-55 Green 0-55...

  • Page 16: Robin 600 Ledwash - Dmx Chart

    5. Robin 600 LEDWash - DMX chart Version 1.3 Mode/Channel Value Function Type of control Pan (8 bit) 0-55 Pan movement by 450° proportional Pan Fine (16 bit) 0-55 Fine control of pan movement proportional Tilt (8bit) 0-55 Tilt movement by 300°...
  • Page 17 Mode/Channel Value Function Type of control Red fine (16 bit) - zone 1 0-55 Fine red LEDs saturation control proportional Green (8 bit) - zone 1 0-55 Green LEDs saturation control (0-100%) proportional Green fine (16 bit) - zone 1 0-55 Fine green LEDs saturation control proportional...
  • Page 18 Mode/Channel Value Function Type of control Virtual Colour Wheel For detailed description see " Virtual colour wheel- colour mixing chart No function step White 2700 K step White 2700 K (Halogen lamp mode*) step White 3200 K step White 3200 K (Halogen lamp mode*) step White 4200 K step...

  • Page 19: Virtual Colour Wheel - Colour Mixing Chart

    5.1 Virtual colour wheel - colour mixing chart Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White 1-2 (White 2700K) 3 (White 2700K /Hal.mode/) 4-5 (White 3200K) 6 (White 3200K /Hal.mode/) 7-9 (White 4200K) 10-12 (White 5600K) 13-15 (White 8000K) Page 1...
  • Page 20 Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 2...
  • Page 21 Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 3...
  • Page 22 Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 4...

  • Page 23: Led Zone Order

    Robin 600 LED Wash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White **** **** **** **** 248-255 (Rainbow+ zone effects) * Colour scale as an illustration only 5.2 LED zone order Page 5...

  • Page 24: Control Menu

    6. Control menu The Robin 600 LEDWash Light is equipped with the QVGA Robe touch screen with battery backup which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, test its vari- ous parts and lastly program it, if it has to be used in a stand-alone mode.

  • Page 25: Tab " Address

    Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur- rent stored DMX address: Touch the green arrow at the bottom right corner of the screen or press the [ENTER/Display On] button to enter the "...

  • Page 26: Tab "Information

    Resetable Hours - The item shows the number of the operation hours that the Robin 600 LEDWash has been powered on since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"...

  • Page 27: Tab "Personality

    6.3 Tab "Personality" User mode - The Robin 600 LEDWash allows you to recall up to 3 user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing”...

  • Page 28: Tab "Manual Control

    Test Sequences -Use the menu to run a test/demo sequences without an external controller, which will show you some possibilities of using Robin 600 LEDWash. Dynamic Mode - This mode uses all Robin 600 LEDWash functions including pan/tilt movement and therefore is good for a complete introduction of the fixture.
  • Page 29 Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin 600 LEDWash offers 3 free programs, each up to 100 steps.

  • Page 30: Tab "Service

    - PC running Windows 95/98/2000/XP or Linux - DMX Software Uploader - Flash cable RS232/DMX No.13050624 (if you want to use a serial port of PC) - Robe Universal Interface (if you want to use an USB port of PC)

  • Page 31: Rdm

    3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update.

  • Page 32: Error And Information Messages

    DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_INVERT DISPLAY_LEVEL PAN_INVERT TILT_INVERT DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS 8. Error and information messages Occurred errors during fixture operation are signalled by the yellow warning icon at the bottom line of the screen: Touch the warning icon or press the [ESCAPE] button to display error messages. List of error and information messages: Temper.Sensor Error The message informs you that the communication betwen the head temperature sensor and the main proces-...
  • Page 33 LED life expectancy: 60.000 hours RGBW colour mixing +CTC Virtual colour wheel 237 colours including whites (2700K, 3200K, 4200K, 5600K and 8000K) Halogen lamp effect at whites 2700K and 3200K Rainbow effect with in both directions with variable speed Zone effects in both directions with variable speed Strobe All LED zones together: Strobe effect with variable speed (0.3 - 20Hz)
  • Page 34 Temperatures Maximum ambient temperature : 45° C Maximum housing temperature 75° C Minimum distances Min. distance from flammable surfaces: 0.5 m Min. distance to lighted object: 1.0 m Total heat dissipation 1330 BTU/h (calculated) Weight (net): 0.6 kg Dimensions (mm) Mounting adapter for one Omega holder...

  • Page 35: Maintenance And Cleaning

    Accessories Omega holder (No.99010420)........2 pcs Optional accessories Top hat (No.10980101) Mounting adapter for Omega holder (No.10980100) 10. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture.

  • Page 36: Photometric Diagrams

    11. Photometric diagrams...
  • Page 37 Specifications are subject to change without notice. April 21, 2011...
