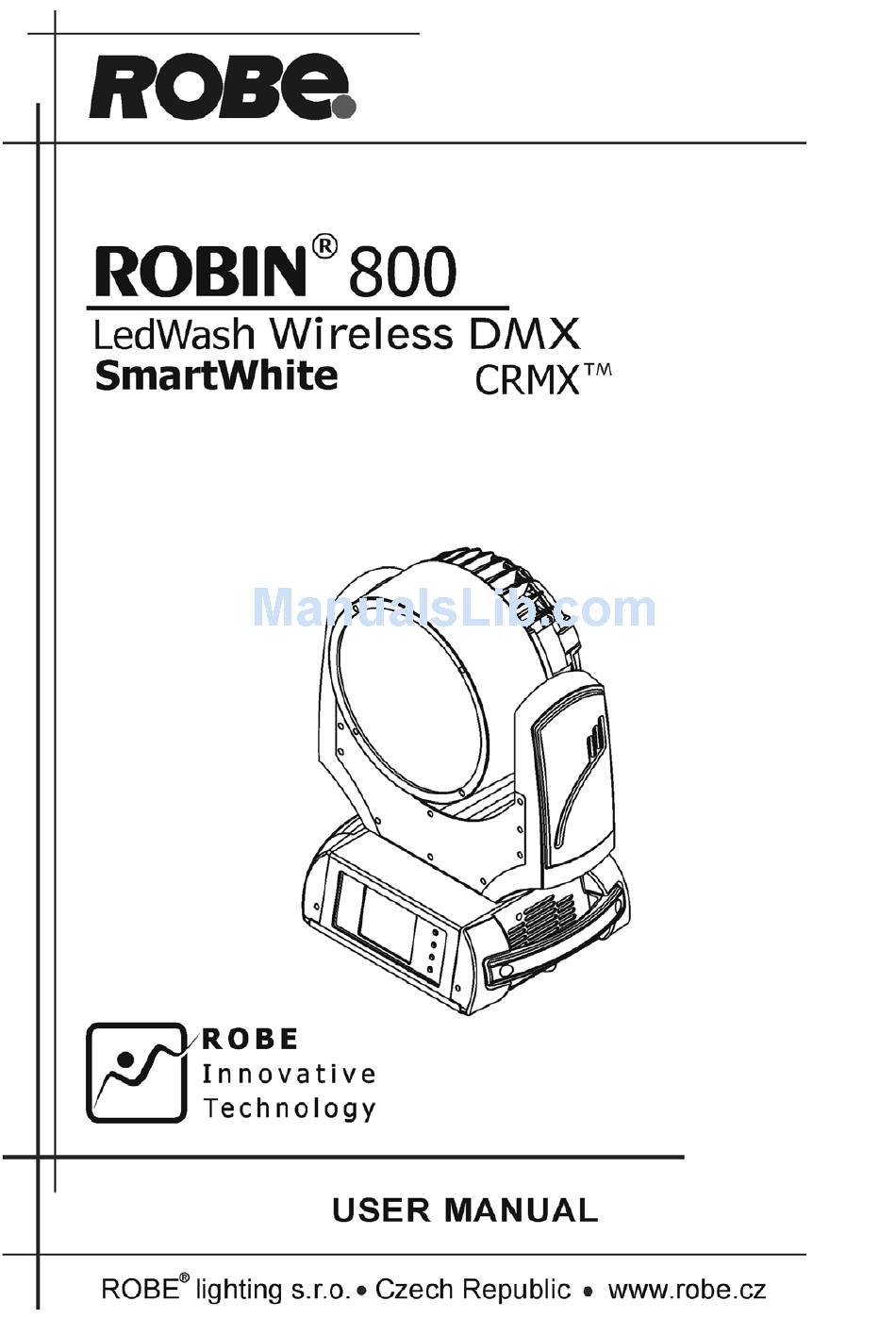

Robin 800 User Manual

Ledwash wireless dmx smartwhite crmx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Version 1.0


Advertisement

Table of Contents
loading

Related Manuals for Robin Robin 800

Summary of Contents for Robin Robin 800

  • Page 1 Version 1.0...

  • Page 2: Table Of Contents

    3.6 Ethernet connection .................... 4. Wireless DMX operation ....................14 5. Control menu map ......................15 6. Robin 800 LEDWash SmartWhite - DMX chart ............18 6. LED zone order ......................0 7. Control menu ....................... 21 7. Tab " Address" ...................... 7. Tab "Information"......................

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin 800 LEDWash was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. Do not block the LEDs array with any object when the fixture is under operation. The openings should never be covered with cloth or other materials, and never must be blocked.

  • Page 5: Fixture Exterior View

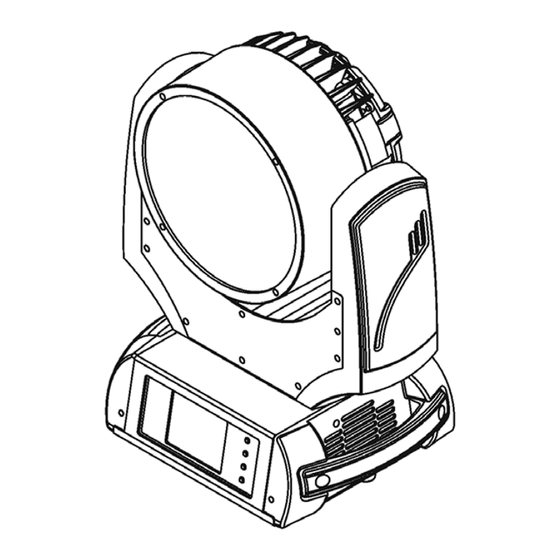

    2. Fixture exterior view 1 - Lens array 2 - Carrying handle 3 - QVGA touch screen 4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - Ethernet input 10 - 3-pin DMX OUT 11 - 3-pin DMX IN 12 - 5-pin DMX OUT 13 - 5-pin DMX IN...

  • Page 6: Installation

    3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The Robin 800 LEDWash is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts. Install a suitable plug on the power cord, note that the cores in the power cord are coloured according to the following table.

  • Page 7: Installing The Top Hat

    3.2 Installing the top hat Disconnect the fixture from mains before top hat installation 1. Go to the fixture menu and set reduced tilt movement (Personality --> Pan/Tilt Setting--> Tilt Movement Range --> reduced). 2.Place the top hat on the head, press locks (1) and turn the top hat counter-clockwise until it snap into slots in the flange.
  • Page 8 Installation of the front clear transparent cover 5. Place the front transparent cover (5) on the head in this way that adjusting pegs (6) will point to slots in the head (7). 6. Turn the front transparent cover (5) anticlockwise until three pins (3) snap into slots (4). 7.

  • Page 9: Rigging The Fixture

    3.4 Rigging the fixture The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Page 10 Rigging via two Omega holders Securing the fixture via one safety wire Securing the fixture via two safety wires 1-Fixture 2-Omega holder 3-Clamp 4-Trust 5-Safety chain The fixture can be also rigged by means of the mounting adapter (option) for one Omega holder:. In this case the fixture can hang on the truss in horizontal position only, not sideways .

  • Page 11: Dmx-5 Connection

    3.5 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 12: Ethernet Connection

    3.6 Ethernet connection The fixtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft- ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
  • Page 13 Ethernet / DMX operation Options “Art2DMX” has to be selected from the “Ethernet Mode” menu on the first fixture (connected to the Ethernet) in the fixture chain,next fixtures have standard DMX setting. Connect the Ethernet-input of the first fixture in the data chain with the network. Connect the DMX output of this fixture with the input of the next fixture until all fixtures are connected to the DMX chain.

  • Page 14: Wireless Dmx Operation

    4. Wireless DMX operation The Robin 800 LEDWash is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Personal- ity-->...

  • Page 15: Control Menu Map

    5. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing Settings DMX Address 00-55 Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA ArtDMX IP Address/NetMask Default IP Address Custom IP Address Net Mask ArtNet Universe 0-55...
  • Page 16 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Wireless Wireless In/XLR Out Off, On Pan/Tilt Settings Pan Reverse Tilt Reverse Off, On Pan/Tilt Feedback Off, On Pan/Tilt mode Time Speed Tilt Movemement range Stand. Reduc. Microphone Sen- -10-0 sitivity Blackout Settings...
  • Page 17 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Play Program Play Program  Play Program  Play Program 3 Edit Program Edit Program  Start Step -00 End Step -00 Edit Program Steps Step  Pan (0-255) Dimmer Fine (0-255) Step Time...

  • Page 18: Robin 800 Ledwash Smartwhite - Dmx Chart

    6. Robin 800 LEDWash SmartWhite - DMX chart Version .0 Mode/Channel Type of Value Function control Pan (8 bit) 0-55 Pan movement by 450° proportional Pan Fine (16 bit) 0-55 Fine control of pan movement proportional Tilt (8bit) 0-55 Tilt movement by 300°...
  • Page 19 Mode/Channel Type of Value Function control Warm white fine (16 bit) - zone 1 0-55 Fine warm white LEDs saturation control proportional Cool white (8 bit) - zone 1 0-55 Cool white LEDs saturation control (0-100%) proportional Cool white fine (16 bit) - zone 1 17 10 0-55 Fine cool white LEDs saturation control...

  • Page 20: Led Zone Order

    Mode/Channel Type of Value Function control Shutter/Strobe 0-3 Shutter closed step 3-63 Strobe effect from (zone 3 only) proportional slow--> fast 64-95 Strobe effect from (All zones together) proportional slow--> fast -------------- -------------- Set value on Virtual colour wheel 96- Zone effects+rainbow effects speed control, slow-->...

  • Page 21: Control Menu

    7. Control menu The Robin 800 LEDWash Light is equipped with the QVGA Robe touch screen with battery backup which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, test its vari- ous parts and lastly program it, if it has to be used in a stand-alone mode.

  • Page 22: Tab " Address

    Note: The green icon at the top right corner of the screen indicates the level of the display battery charging. If the whole icon is green, the battery is fully charged while the red icon indicates exhausted battery. The battery charges during fixture operation, its charging lasts cca 6 hours.

  • Page 23: Tab "Information

    IP Address/Net Mask - Select this menu to set IP address. IP address is the Internet protocol address.The IP uniquely identifies any node (fixture) on a network. There cannot be 2 fixtures with the same IP address on the network! Default IP Address -Preset IP address, you can set up only first byte of IP address (2 or 10) e.g.

  • Page 24: Tab "Personality

    7.3 Tab "Personality" User mode - The Robin 800 LEDWash allows you to recall up to 3 user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing”...
  • Page 25 the same time to the end point of their tracks (pan and tilt use their optimal speeds). Time of the pan/tilt movement (25.5 sec. max.) is set by the channel "Pan/Tilt speed, Pan/Tilt time". Speed Mode - Both Pan and tilt will move with the same speed as adjusted at the channel "Pan/Tilt speed, Pan/Tilt time".

  • Page 26: Tab "Manual Control

    Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin 800 LEDWash offers 3 free programs, each up to 100 steps.

  • Page 27: Tab "Service

    7. After editing desired program steps, adjust the length of the program by touching the text boxes "Start Step" and "End Step". Meaning of the icons used in the "Edit Program" menu: - moves down on the next page - saves adjusted values and leaves menu - moves up on the previous page - saves values to the current step and copy them to the following prog.

  • Page 28: Rdm

    3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several minutes to perform software update.

  • Page 29: Error And Information Messages

    IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_INVERT DISPLAY_LEVEL PAN_INVERT TILT_INVERT DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS PARAMETER_DESCRIPTION ROBE_DMX_INPUT ROBE_WIRELESS_UNLINK 9. Error and information messages Occurred errors during fixture operation are signalled by the yellow warning icon at the bottom line of the screen: Touch the warning icon or press the [ESCAPE] button to display error messages.

  • Page 30: Technical Specifications

    10. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....supply 100-240V, 50/60Hz Fuse:........T 4 A@230V Power consumption:....430W@230V, power factor=0.98 Optic Light source: 37 Osram Ostar SW multichips 3 zones with individual colour control of each Typical Lumen Maintenance: 70% @ 60,000 hours LED life expectancy: 60.000 hours Colour temperature: 2600K- 8000K Beam shaper 8°...
  • Page 31 <5ms DMX latency Operational frequency range of 2402-2480 MHz Producer: LumenRadio Connection DMX data in/out: Locking 3-pin and 5-pin XLR AC power input: Chassis connector Neutrik PowerCon, A-type, NAC3MPA Cable connector Neutrik PowerCon, A-type, NAC3FCA , for power-in, (installed on the power cord) Ethernet: RJ45 Rigging...

  • Page 32: Maintenance And Cleaning

    Mounting adapter for one Omega holder in neutral - glazy aluminium (No.10980113) Beam shaper module 19°x35 ° (No.10980142) EggCrate Robin 800 LEDWash-black (No. 10980199) 11. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture.
  • Page 33 Specifications are subject to change without notice. January 29, 2014...

  • Page 34: Photometric Diagrams (Transparent Front Cover)

    13. Photometric diagrams (transparent front cover)
  • Page 37 Note: Beam shaper works at min. zoom best...
