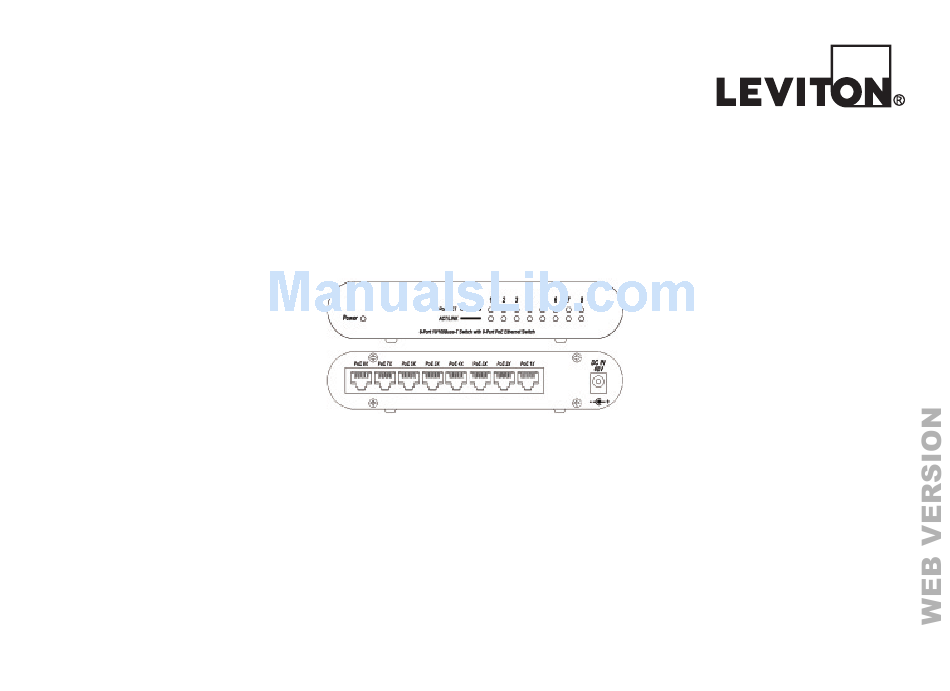

- Page 1 8-Port PoE Network Switch User’s Guide...
- Page 2 WARNINGS AND CAUTIONS • Read and understand all instructions. Follow all warnings and instructions marked on the product. • Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. •...
-
Page 3: Table Of Contents
Table of contents Introduction ……………………………………………………………………………..page 4 • Power Over Ethernet (PoE) ………………………………………………...………..page 5 • Installation ……………………………………………………………………………..page 6 • Connecting Network Cables ………………………………………………………..page 7 • Rear Panel Ports ……………………………………………………………………..page 8 • Rear Panel Power Jack ……………………………………………………………..page 9 • Front Panel LED Indicators ……………………………….………………………..page 10 •... -
Page 4: Introduction
Powered Devices (PD) that comply with the IEEE 802.3af standard. The PoE ports on the 91A00-1 can also be used to power other Powered Devices (PD), such as the Leviton Home Theater Extender, PoE IP cameras, PoE Wireless Access Points, PoE Printer, etc.) without requiring additional power on the network. -
Page 5: Power Over Ethernet (Poe)
Power over Ethernet (PoE) Power over Ethernet (PoE): Power over Ethernet (PoE) integrates 48V power and data onto one single cable, eliminating the need to have power available at all equipment locations. Power and data are integrated onto the same cable, up to 100 meters (328 feet). Features: •... -
Page 6: Installation
Installation Unpacking Open the shipping cartons of the 91A00-1 and carefully unpack its contents: • 91A00-1 8-Port PoE Network Switch • AC power adaptor • User’s Guide Installation: Install the 91A00-1 as follows: • The surface must support at least 4.4 lb and a power outlet should be within 6 feet of the switch •... -
Page 7: Connecting Network Cables
The 91A00-1 has 8 10/100Mbps Ethernet ports. Each port incorporates 10/100Mbps support using traditional UTP cables. Each of the 8 PoE ports will automatically activate when a compatible device is identified. The 91A00-1 will supply power through the port to the connected PoE device (PD). -
Page 8: Rear Panel Ports

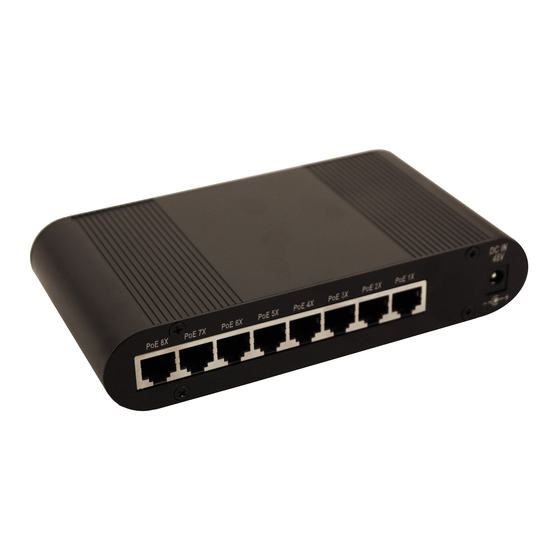

Rear Panel There are 8 RJ-45 ports and one DC power jack on the rear panel of the 91A00-1. Ports: PoE Ports: PoE1X to PoE8X • All ports are 10/100Mbps as well as 802.3af PoE enabled ports. • All ports will automatically activate when a compatible PoE device is identified. The 91A00-1 will supply power through the Ethernet port to the connected PoE device (PD). -
Page 9: Front Panel Led Indicators
Front Panel LED Indicators: The LED indicators provide instant status and helps you monitor and troubleshoot when required. Power LED LED on: Power ON / LED off: Power off. LINK/ACT LED on: this port is Linked and Active LED off: this port is not correct Link or inactive PoE (1x - 8x) LED on: The PoE power device (PD) is connected and the port is supplying power. -
Page 10: Technical Specification
Technical Specification Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3af Power over Ethernet Protocol CSMA/CD Data Transfer Rate Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex) Network Cables 10BASE-T: 2-pair UTP Cat 3, 4, 5 up to 100 meters 100BASE-Tx: 2-pair UTP Cat 5, 5e up to 100 meters Number of Ports... - Page 11 Technical Specification (continued) Power Consumption 6.4 watts, maximum (with no Powered Devices connected) 112 watts (8 PoE ports fully load) Temperature Operation: 0 - 40 - 104 Storage Temperature: -10 - 70 - 158 Humidity Relative Humidity: 5% - 95% Dimensions 16cm W x 9.4cm D x 2.1cm H FCC Class B, CE Mark Class B...
- Page 12 Leviton’s obligation under this Limited Warranty is limited to the repair or replacement, at Leviton’s option, of Product that fails due to defect in material or workmanship. Leviton reserves the right to replace product under this Limited Warranty with new or remanufactured product. Leviton will not be responsible for labor costs of removal or reinstallation of Product.
