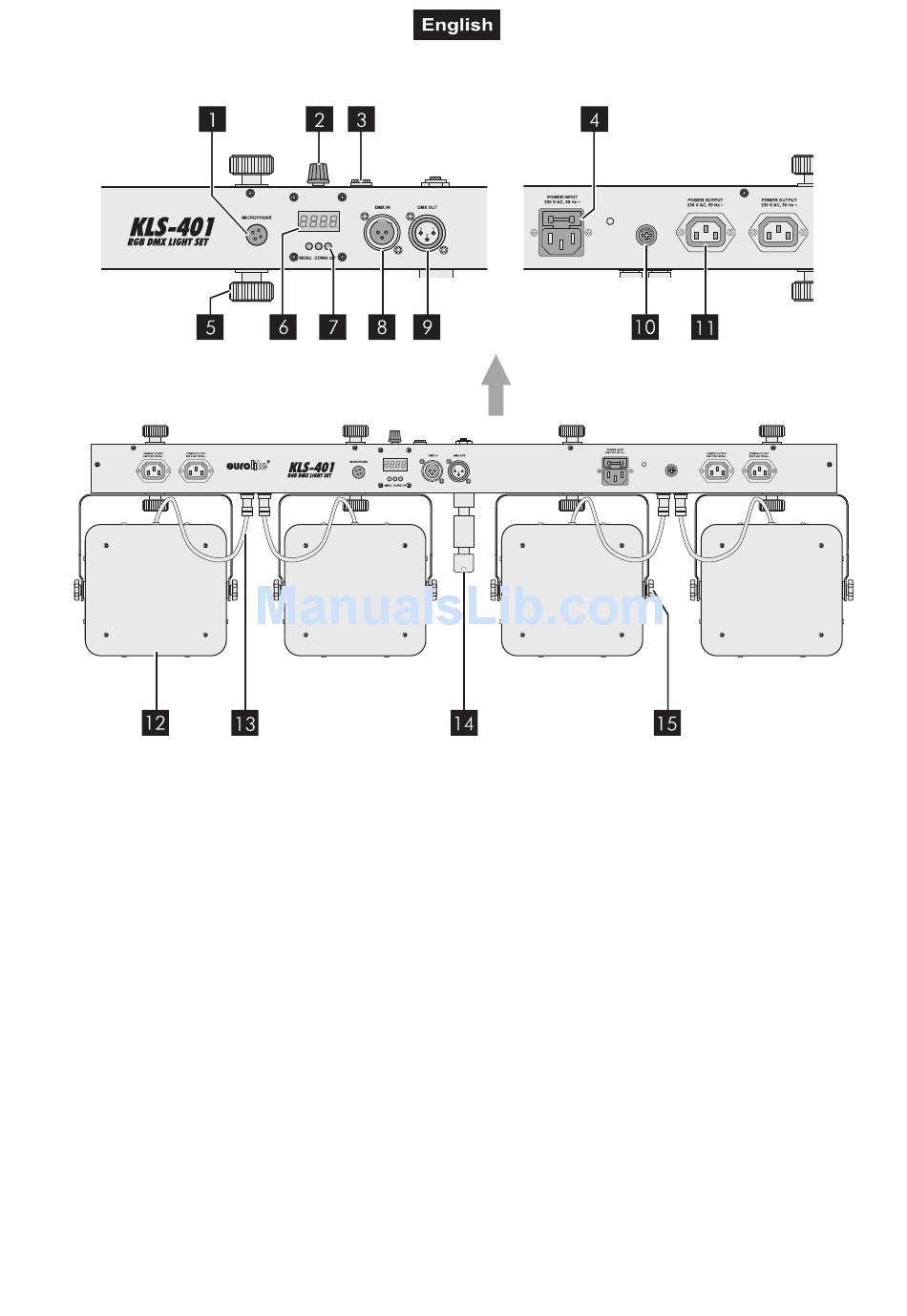

4.2 Operating elements and connections

1
Microphone for sound-controlled operation
2
Sensitivity control for the microphone
3
Connector for the foot pedal FP-1
4
Power input with fuse holder
• Used to plug the supplied power cord in.
• Only replace the fuse when the device is disconnected
from mains. Only use fuses of the same rating and
power. The correct value is specified on the device.
5
Fixation screw
6
LED display
7
Control buttons
• button MENU to call the menu items
• button DOWN to switch between sound control and
automatic mode
• button UP to switch to DMX operation
• buttons UP and DOWN to set the speed in automatic
mode and to set the DMX starting address
8
Jack DMX IN
DMX signal input (3-pin XLR) for connecting a DMX
controller
9
Jack DMX OUT
DMX signal input (3-pin XLR) for connection to the DMX
input of another light effect unit
10
Fuse holder for power outputs
Only replace the fuse when the device is disconnected
from mains. Only use fuses of the same rating and
power. The correct value is specified on the device.
11
Jacks POWER OUTPUT
IEC jacks for power supply of further devices.
12
LED spot 1 to 4
13
Connection cable for the control unit
14
TV pin for placing on a stand
15
Fixation screw
