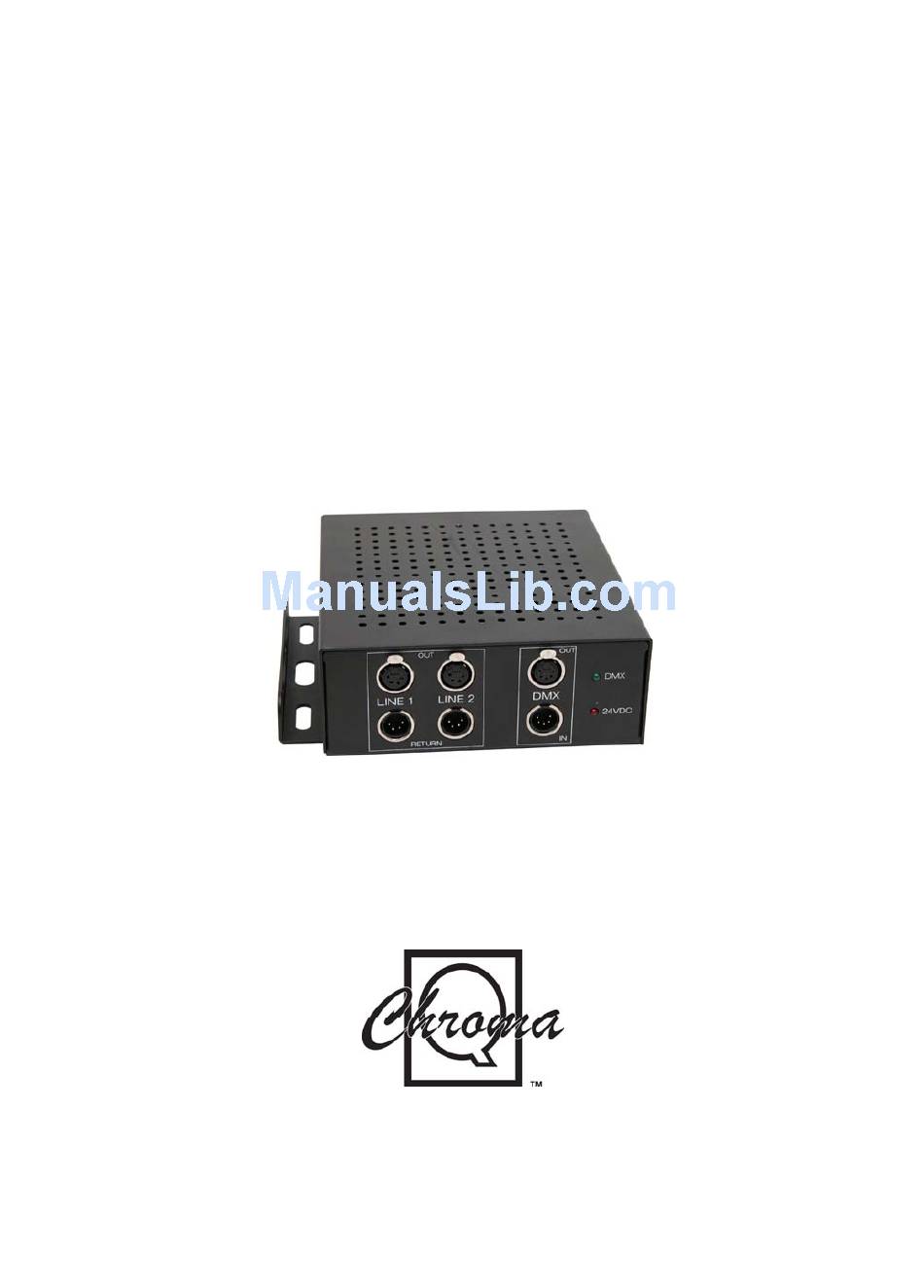

- Page 1 Chroma-Q™ PS08 User Manual Version 1.3 December 2006 PN: 139-0025...
- Page 2 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
- Page 3 Table of Contents Product Overview ……………………..………………………….………....3 Operation ……………...…………………………………………………….…………. 3 Power Data Termination Indicators System Diagram Load Power Units Installation Compatibility Control and Power Cables PS08 User Manual V1.3 December 2006...
-

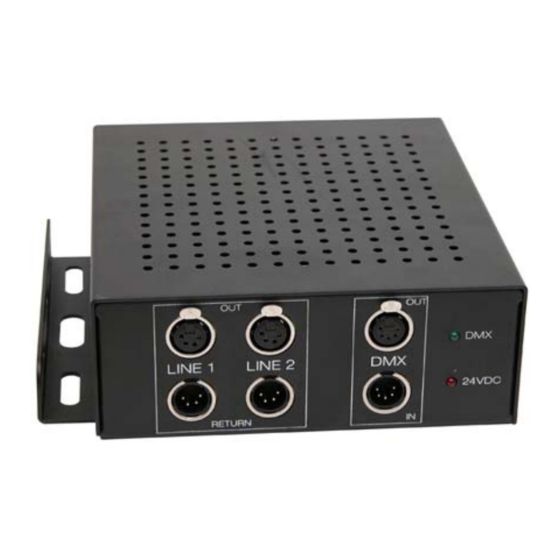

Page 4: Product Overview
To simplify the choice of power supply we use the "PU" (Power Unit) to calculate the load requirements of the Chroma-Q system. The PS08 will supply up to 8 PU's, so you can plug-in 8 Chroma-Q Plus (8 x 1PU = 8PU). - Page 5 Installation The Chroma-Q PS08 is designed to be screwed on to set or hung from truss. The L-shaped bracket has multiple fixing slots to accept standard hook clamps or half couplers. Ensure adequate ventilation around the holes on the enclosures. Inadequate ventilation may result to premature failure of the unit.
