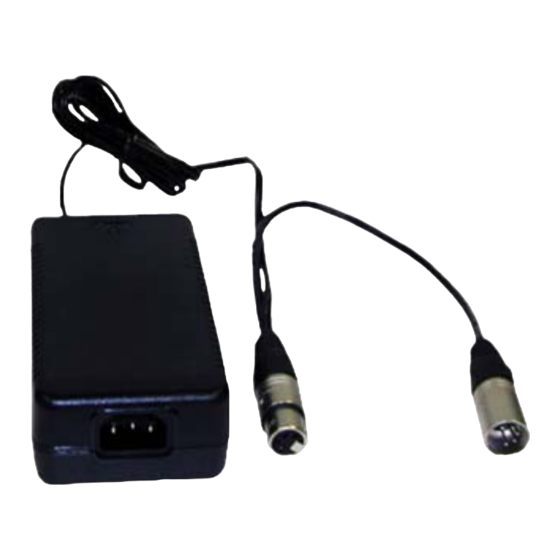

Chroma-Q™
PS02
User Manual
Version 1.3 December 2006
PN: 145-0005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chroma PS02

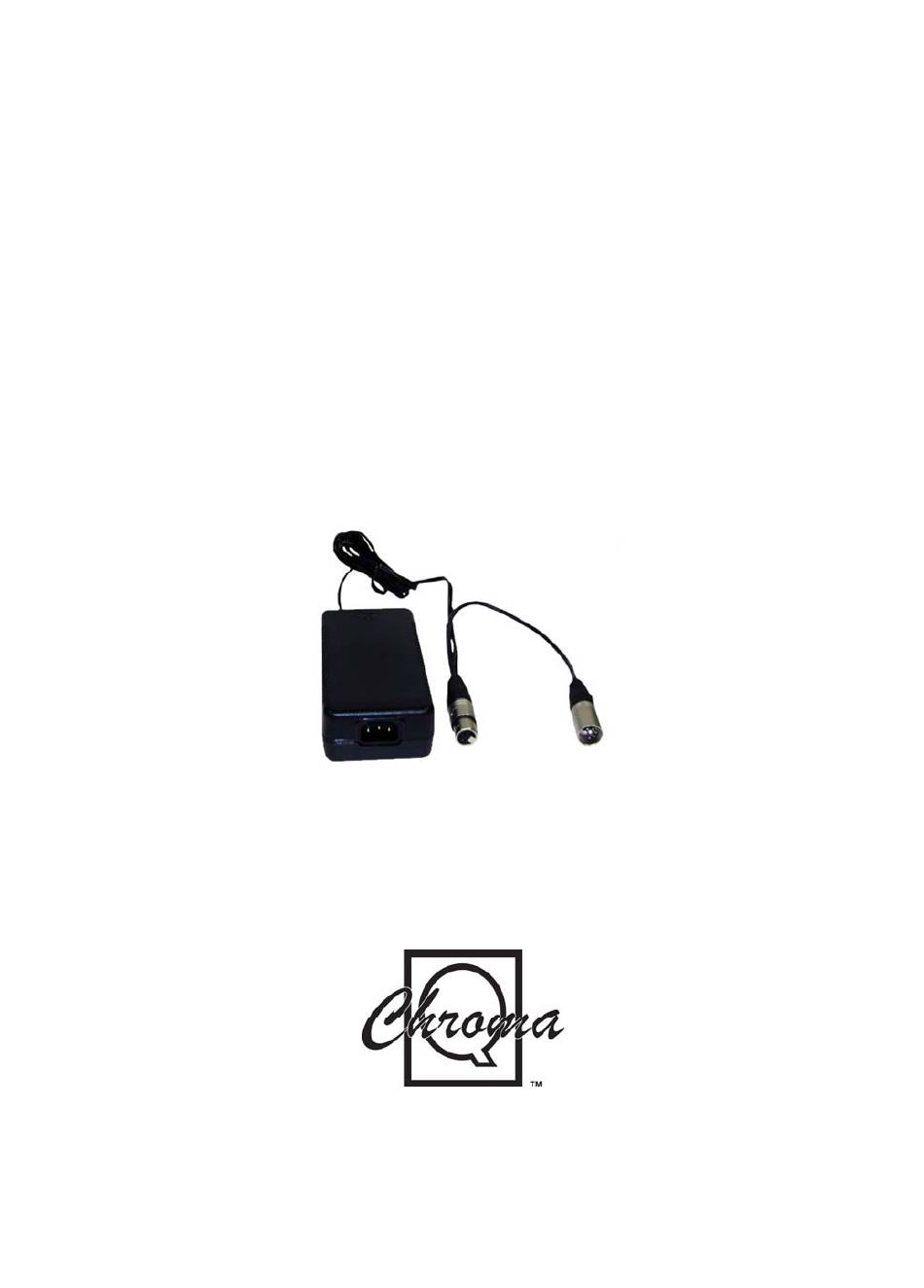

  • Page 1 Chroma-Q™ PS02 User Manual Version 1.3 December 2006 PN: 145-0005...
  • Page 2 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
  • Page 3 Table of Contents Product Overview ……………………..………………………….………....3 Operation ……………...…………………………………………………….………... 3 Power Data Load System Diagram Compatibility Power Units Control and Power Cables PS02 User Manual V1.3 December 2006...
  • Page 4 To simplify the choice of power supply we use the "PU" (Power Unit) to calculate the load requirements of the Chroma-Q system. The PS02 will supply up to 2 PU's, so you can plug-in 2 Chroma-Q Plus (2 x 1PU = 2PU).
  • Page 5 Control and Power Cables The Chroma-Q utilises an XLR-4 pin cable system. This is used to supply power and data. Pins 1 and 4 supply 24VDC power and pins 2 and 3 supply ANSI E1.11 USITT DMX512-A control protocol with a ground drain wire to the connector shell.
