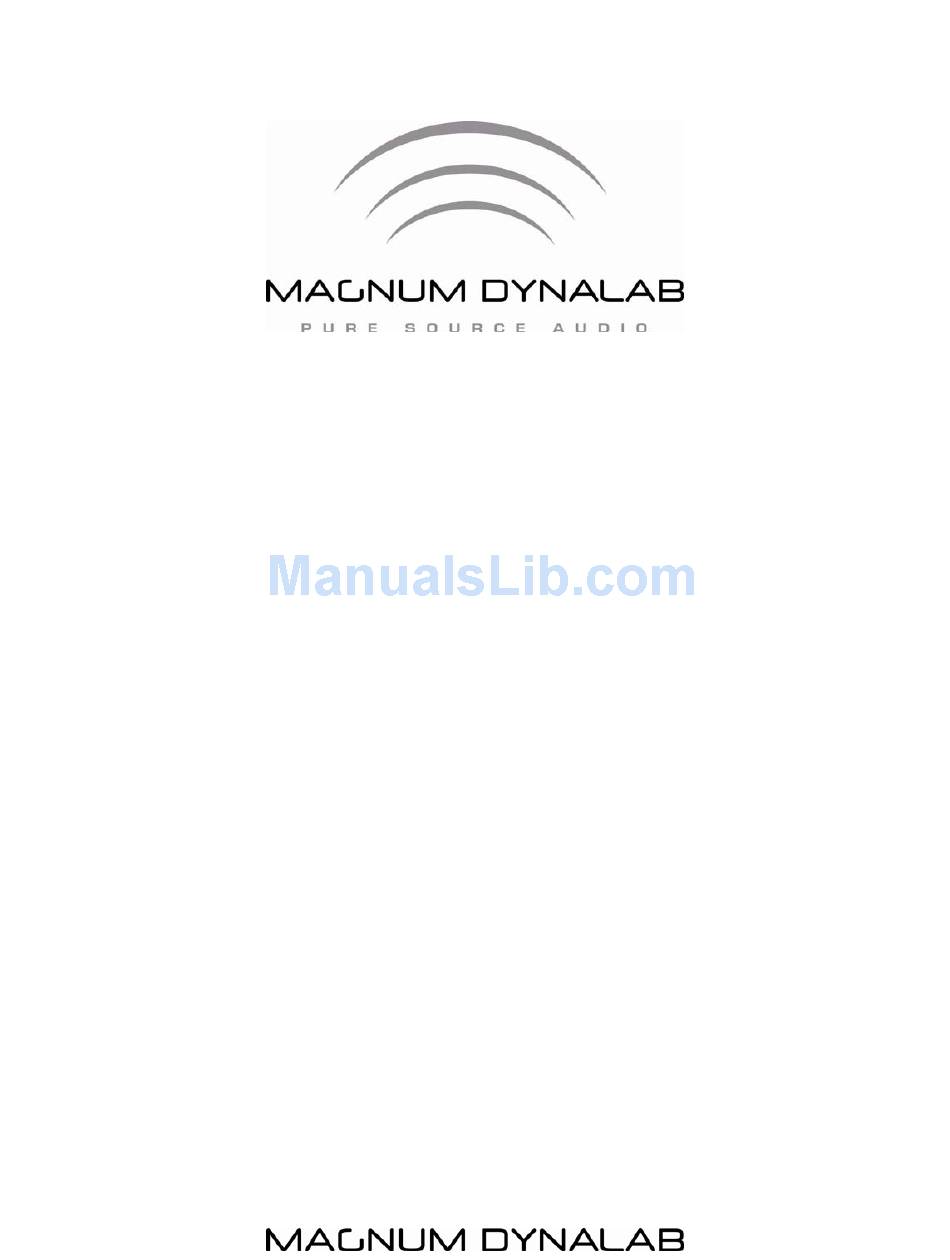

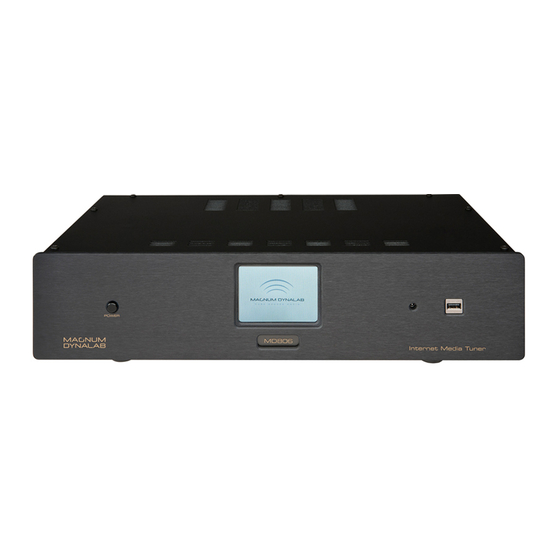

- Page 1 - 1 - Magnum Dynalab MD 806 T Internet Media Tuner INSTRUCTION MANUAL...
- Page 2 - 2 - 2. Settings and tap on the manual menu then tap on add wireless network , it will show DHCP yes and no , tap on yes, enter the password for your router or the security code See step 5 above, the screen will show connected 3.
-
Page 3: Table Of Contents
MEDIA TUNER ........21 FAVORITES .......... 13 SETTING UP A MUSIC SERVER ..14 SAFETY SHEET ........25 USER INFORMATION ......22 LIMITED WARRANTY ......27 DIGITAL OUT HOOKUP ..... 23 SPECIFICATIONS MD 806 T ..28 TROUBLE SHOOTING ......24... -
Page 4: Dear Valued Customer
- 4 - Dear Valued Customer Thank you for choosing the Magnum Dynalab Internet Media Tuner. Great care has been given to the design, manufacturing and selection of components for the Internet Media Tuner. This complete process ensures optimum listening enjoyment for many years. -
Page 5: Unpacking Your Md Tuner
- 5 - assure you of a safe return (damage UNPACKING YOUR MD Tuner by carrier excepted). Carefully inspect all sides of the External resources shipping carton for damage. If there To operate the MD 806, the following are marks or holes in the carton make external resources are needed: note of the location in relation to the •... -
Page 6: Setting Up The Md Internet Media Tuner
75 surface. The screen will turn on pounds (34 KG). displaying the Magnum Dynalab Logo as the MD 806 is warming 3. It is important that the tuner is not covered and it is not installed in a... -
Page 7: Features Of The Md 806
- 7 - FEATURES OF THE MD 806 Magnum Dynalab has worked hard to create the perfect addition to your home listening system while maintaining the impossibly high standards of quality Magnum Dynalab is known for around the world. The MD 806 combines the engineering from... -
Page 8: Display Functions And
- 8 - DISPLAY FUNCTIONS AND USAGE UI Screen Buttons Function/usage Home: takes you back to main menu icon screen. Close Back: Return to previous screen. Directory: In play mode, this button may be used to return to the last track list or station list. -
Page 9: Menu Screen Operation
- 9 - MENU SCREEN OPERATION The MD 806 has three types of menu: The Main menu allows access to all modes and settings functions. Each mode has a menu, with options specific to that mode. For example, the DAB Tuner mode menu has five options: Scan, Edit favorites, DRC, manual tune and Prune invalid stations. -
Page 10: Now Playing Information
- 10 - NOW PLAYING INFORMATION touch the Directory icon > Stations list > then either Stations > While Podcasts >. the MD Browse through the menus to find 806 is broadcasts, stations or songs. playing, Searching screen You can also search through Internet shows broadcasts for stations or podcasts with particular keywords in their title. -
Page 11: Internet Tuner Mode
- 11 - MD 806 connects directly to that Internet Tuner Mode The MD 806 can play thousands of radio stations podcasts from around the world though a broadband Internet connection. To enter Internet Tuner mode touch the Internet Tuner icon from the main menu and this will take you to the Internet Tuner playing screen. -
Page 12: Internet Radio Portal Registration
- 12 - • Browse station list, • Last Listened. From the portal through the Directory icon > Stations > menu: • Favorites lists, • Browse by Country, Genre, Most popular, Newest, • Search by keyword, • My added stations. Last listened Visit the portal website at When entering Internet Radio mode,... -
Page 13: Favorites
- 13 - steps on the webpage; once you have FAVORITES saved the list you created the information is immediately transferred to the registered MD 806 (via the Favorites are stored with the Internet access code entered during Tuner portal, and are available through registration). -
Page 14: Setting Up A Music Server
- 14 - SETTING UP A MUSIC SERVER In order for the MD 806 to play music files from a computer, the computer must be set up to share files or media. UPnP (Universal Plug ‘n’ Play) media sharing allows devices like MD 801 to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre. -
Page 15: Music Player Mode (Network And Usb)
- 15 - MUSIC PLAYER MODE (network and USB) Music player mode plays audio files such as MP3s, AACs, WMAs or FLACs from a computer on the local network or from a USB Flash stick/hard drive. To enter Music player mode, touch the My Music icon on the main menu and the display shows the Select Music Source screen. - Page 16 - 16 - From Music, there are numerous ways of selecting tracks, including: o By Music, o By Genre, o By Artist, o All Music, o <Search>. Once you have found a track you want to play, touch the track title. A short press plays the track immediately and a long press changes the list to Edit mode with an add to presets icon allowing you to add the selected track or folder.
-
Page 17: Dab Radio Mode
- 17 - DAB RADIO MODE DAB radio mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing. To enter DAB radio mode, touch the DAB icon on the main menu screen until the display shows DAB Radio. When entering DAB radio mode, the last station listened to is automatically selected. -
Page 18: Fm Radio Mode
- 18 - Presets To store a DAB preset, touch the icon until the display shows Favourite added. Select one of the 10 presets to save the currently playing station. To select a preset, touch the preset icon, and then select one of the listed preset stations. - Page 19 - 19 - Now playing information While the stream is playing, the screen shows its frequency, or if RDS information is available, station name and any further RDS information such as programme name, track title and contact details. If no information is available, just the frequency is shown.
-
Page 20: Image/Functions Of Rf-20 Remote
- 20 - IMAGE/FUNCTIONS OF RF-20 REMOTE To use the remote control for your MD 806 you must first turn the unit ON with the main power switch on the front of the unit. Next put the remote into its proper mode to communicate with the Internet MediaTuner. -
Page 21: Diagram Of Md 806 Internet Media Tuner
- 21 - DIAGRAM OF MD 806 Internet Media Tuner... -
Page 22: User Information
(or the respective licensor) and all of their respective rights are reserved. Its components and software are the intellectual property of Magnum Dynalab and Frontier Silicon and cannot be copied in any way. -
Page 23: Digital Out Hookup
DIGITAL OUT HOOKUP Using a good quality digital cable connect the cable from the back of the MD 806 T labeled Co-Ax or optical to the DAC... -
Page 24: Trouble Shooting
- 24 - TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION • Make sure unit is streaming • Press “info” while on a station and No sound – • Unit source incorrect Display on check bit rate, if 0 then station is •... -
Page 25: Safety Sheet
- 25 - SAFETY SHEET IMPORTANT SAFETY INSTRUCTIONS 1. KEEP THESE INSTRUCTIONS 2. HEED ALL WARNINGS 3. FOLLOW ALL INSTRUCTIONS 4. DO NOT USE THIS APPARATUS IN WATER 5. CLEAN ONLY WITH DRY CLOTH 6. DO NOT BLOCK ANY VENTILATION OPENINGS, INSTALL IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS. - Page 26 - 26 - POWER SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN SPILLED OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY, OR HAS BEEN DROPPED. 13. THE EQUIPMENT REQUIRES A GROUNDED POWER OUTLET TO OPERATE SAFELY.
-
Page 27: Limited Warranty
LIMITED WARRANTY Register your product at www.magnumdynalab.com Magnum Dynalab Ltd. herein referred to as the “manufacturer” guarantees this product to be free of defect in both material and workmanship and agrees to remedy any such defect or replace any defective component at no charge for a period of two years from date of sale to the first end user. -
Page 28: Specifications Md 806 T
- 28 - COVER OR FACEPLATE, NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. SPECIFICATIONS MD 806 T AUDIO SPECIFICATIONS 1. audio frequency response ( +/- 1 dB) 15 Hz-17KHz 2. balanced audio output ( 600 ohms) 2.2 volts...
