Magnum Dynalab MD 90/90R
ANALOG FM TUNER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD 90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Magnum MD 90

Summary of Contents for Magnum MD 90

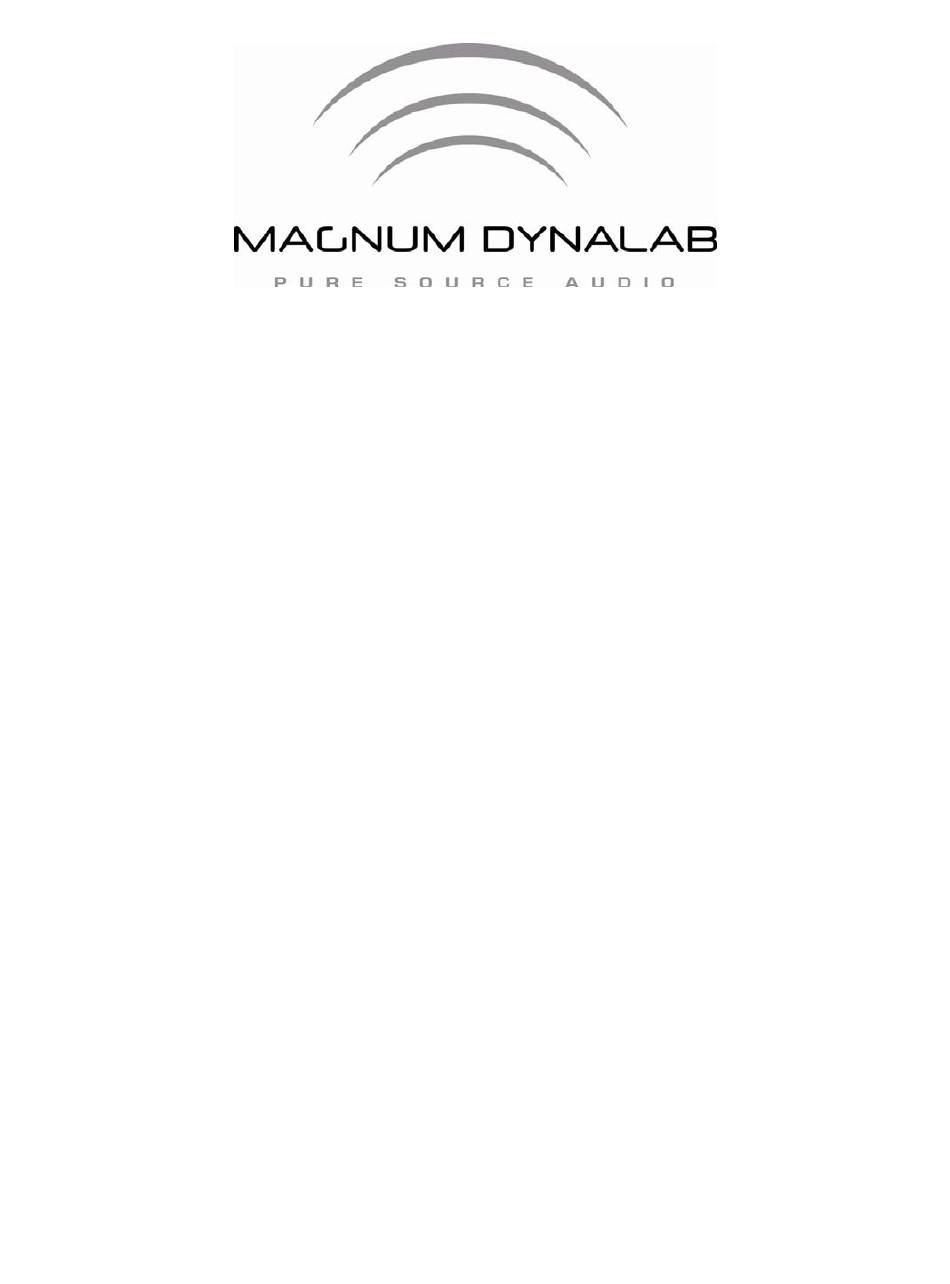

  • Page 1 Magnum Dynalab MD 90/90R ANALOG FM TUNER INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    - 2 - TABLE OF CONTENTS A MESSAGE FROM THE PRESIDENT UNPACKING YOUR MD 90 SETTING UP YOUR MD 90 CONTROLS AND FUNCTIONALITY DISPLAYS AND METERS IMAGE OF MD 90 CHECKING OUT YOUR MD 90 TUNER REMOTE (OPTIONAL) IMAGE OF RC1 REMOTE...

  • Page 3: A Message From The President

    FM Tuner. This complete process will insure that your listening experience will be optimized for years. The front end of all Magnum Dynalab tuners is an exclusive “in house” designed and manufactured component, we are the only company in the world that does their own R.F.

  • Page 4: Unpacking Your Md 90

    Carefully remove the MD 90 from the end caps and wrapping, inspect all sides. Pay special attention to the corresponding areas on the unit where damage was found to the shipping carton.

  • Page 5: Setting Up Your Md 90

    Note: Many countries that use 220/230/240 volts have a special FM transmitter, tuning de-emphasis for these countries may be different. Please consult Magnum Dynalab for the correct usage. If your tuner is used in a country where the tuning de-emphasis is set incorrectly the sonic performance...

  • Page 6: Controls And Functionality

    - 6 - CONTROLS AND FUNCTIONALITY (Letters correspond with image on the following page) A. POWER – Turns the power (AC) on and off to your tuner, with the optional remote system this switch must be left in the “OFF” position. B.

  • Page 7: Image Of Md 90

    10, this is done to protect the meter mechanism. I. FREQUENCY DISPLAY – Displays the station via a numeric value, the frequency that your tuner is dialed into. Display ranges from 87.5 MHz through 108.5 MHz. This readout is controlled by the tuning knob. IMAGE OF MD 90...

  • Page 8: Checking Out Your Md 90

    3. Place your bandwidth switch (C on diagram) to BW1. 4. Place your Mute switch (D on diagram) to “ON” position. 5. On your preamplifier/ integrated amplifier select the input that your MD 90 tuner is connected to. 6. Rotate the tuning knob on your tuner (E on diagram) until sound is heard...

  • Page 9: Tuner Remote (Optional)

    - 9 - TUNER REMOTE (OPTIONAL) If your tuner was ordered with the RC1 “PRECISION REMOTE SYSTEM”, here are the operating instructions. 1. The power switch should be off on the front panel of the tuner 2. Using the remote handheld, push the “POWER ON” button. You will see the tuner turn on.

  • Page 10: Image Of Rc1 Remote

    - 10 - IMAGE OF RC1 REMOTE...

  • Page 11: Troubleshooting

    - 11 - TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION • Power cord disconnected • Connect power cord No sound, meter • Power off at source • Check AC source lights are not on • Interconnect not properly • Verify installation of No sound, meter lights are on installed...

  • Page 12: Reception Techniques

    Magnum Dynalab offers two Yagi antennae, the MD 6 FM or MD 10 FM Vertical ½ Wave - This design offers ease of installation and operation. This type of antenna is omni-directional, which means that it picks up stations coming from all directions.

  • Page 13: Fm Reception Aids And Accessories

    - 13 - Magnum Dynalab offers the MD ST-2, an excellent vertical ½ wave antenna Folded Di-Pole - This is the most common and simplest of all antennas, most people are familiar with the 79 cent piece of wire you received with most electronics gear (generally provided with a tuner or receiver).

  • Page 14: Product Specifications

    1.0 V Line power (Must be specified) –110/220/230/240- Dimensions (inches H.W.D.) – 4 x 17.75 x 13 Weight (lbs./kgs) - 12/5.45 Power consumption (Typ/Max) - 50w/100w MAGNUM DYNALAB LTD. RESERVES THE RIGHT TO CHANGE OR MODIFY THE SPECIFICATIONS WITHOUT FURTHER NOTICE...

  • Page 15: Safety Sheet

    - 15 - SAFETY SHEET IMPORTANT SAFETY INSTRUCTIONS 1. KEEP THESE INSTRUCTIONS 2. HEED ALL WARNINGS 3. FOLLOW ALL INSTRUCTIONS 4. DO NOT USE THIS APPARATUS IN WATER 5. CLEAN ONLY WITH DRY CLOTH 6. DO NOT BLOCK ANY VENTILATION OPENINGS, INSTALL IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS.

  • Page 16: Limited Warranty

    LIMITED WARRANTY Register your product at www.magnumdynalab.com Magnum Dynalab Ltd. herein referred to as the “manufacturer” guarantees this product to be free of defect in both material and workmanship and agrees to remedy any such defect or replace any defective component at no charge for a period of two years from date of sale to the first end user.
