PUREVISION
TM
STOVES

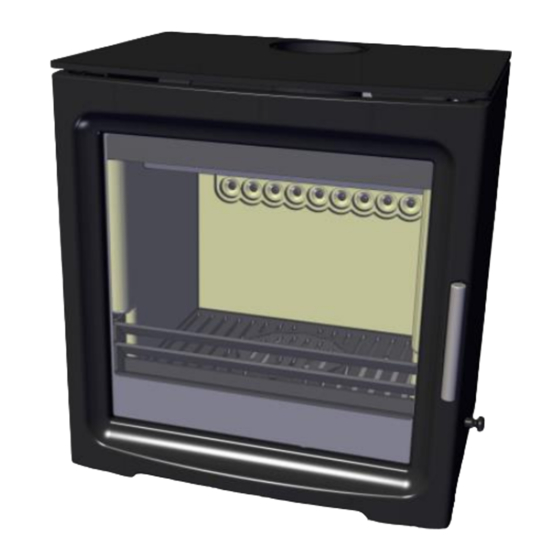

Freestanding Stove Range
5kW, 5kW Wide & 8.5kW Nominal Outputs.
With Patented
Air System
TTi
Installation and Operating Instructions
Please hand these instructions to the stove user when the installation is complete. Leave the stove
ready for operation and instruct the user in the correct use of the appliance and operation of controls.
Important: – These products must be installed by a suitably qualified
installer.
Clean Air Act Exemption
The Purevision 5Kw, 5kw Wide and 8.5kW stoves only have been exempted under the Clean Air Act
1993 to burn seasoned wood logs in designated smokeless zones in the UK. This is subject to the
correct fitting of the air control plate (the part and fitting instructions are packed separately)
maintaining the air wash control at a minimum opening at all times. Instructions for wood burning
MUST be followed in order to ensure compliance at all times.
Fireline UK
– A division of: Charlton & Jenrick Ltd
Unit D Stafford Park 2, Telford, Shropshire, TF3 3AR
T: 0845 519 5991
F: 0845 519 5992
A Charlton and Jenrick Group Company
Advertisement
Table of Contents
Related Manuals for Fireline PUREVISION
Summary of Contents for Fireline PUREVISION
- Page 1 Clean Air Act Exemption The Purevision 5Kw, 5kw Wide and 8.5kW stoves only have been exempted under the Clean Air Act 1993 to burn seasoned wood logs in designated smokeless zones in the UK. This is subject to the correct fitting of the air control plate (the part and fitting instructions are packed separately) maintaining the air wash control at a minimum opening at all times.
-
Page 2: Table Of Contents
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Fireline cannot accept responsibility for any fault or consequential problems arising through incorrect installation or operation. TABLE OF CONTENTS Section Page No 1. -
Page 3: Operating Instructions
8.6 Removing Flue Spigot Collar 8.7 Removing Outer Casing 8.8 Door Hinge Adjustment 8.8 Smoke Control Air Limiter Bracket 8.9 Air Valve Maintenance 8. Dimensions 8.1 Purevision 5 8.2 Purevision 5 Wide 8.3 Purevision 8.5 9. Frequently Asked Questions Purevision Freestanding Issue 02 01/14... -
Page 4: List Of Components
Description of Parts Purevision Stove Assembly Operating Tool & Stand Ash Pan Flue Spigot Collar (installed) Casing Blanking Plate (installed) Stove Operating Gloves Purevision Toolkit Fig 2 – Purevision Stove Assembly and controls. 5kW model shown. Purevision Freestanding Issue 02 01/14... -
Page 5: Preparation Of Stove For Installation
3.5.4. The casing blanking plate can now be used to cover the hole in the top plate. 3.6. Lift the stove into its final position using an assistant to help. 3.7. Fit the top plate back onto the stove before fitting the top flue connection. Purevision Freestanding Issue 02 01/14... -
Page 6: Important Safety Information
The chimney or flue can usually be swept through the appliance. A wire centred sweeps brush with guide wheel is recommended. Any loose, broken or leaking joints or flue ways MUST be repaired immediately. Purevision Freestanding Issue 02 01/14... -
Page 7: Fuels
When using a liner a 5” flexible flue liner is permitted be used on Purevision stoves providing that the users only burns smokeless fuel or seasoned wood logs with the air limiter fitted in in full accordance with the wood burning instructions. -
Page 8: Ventilation
Only the approved kit for Purevision stoves should be used. This is designed to supply the necessary air for safe combustion and operation of the stove – providing the flue, chimney and ventilation duct are working correctly and properly maintained clear of obstructions or leaks etc. -
Page 9: Material Clearance Dimensions
5.7. Hearths: Purevision freestanding stoves do not require a constructional hearth beneath them as they do not cause the floor temperature to exceed 100 degrees C. Hearths must be generally level. In all... -
Page 10: Accessories
(e.g. load distributing plate) should be provided to achieve it. 5.8. Accessories Purevision stoves are provided with a selection of accessories including stands, log store stands, and a dedicated outside air kit. Only use genuine Purevision accessories. 5.9. Commissioning and Handover... -
Page 11: Technical Data & Declaration Of Performance
Manufacturer: Fireline UK Ltd, a Division of Charlton & Jenrick Ltd. Range Designation: Purevision freestanding stoves. Models: Purevision 5kW, 5kW Wide and 8.5kW with nominal outputs of 5kW, 5kW and 8.5kW. Intended Use: Domestic heating appliances Independently Performance & Safety tested by: Kiwa Gastec, Notified Body No: 0558... -
Page 12: Operating Instructions
“Warning Note” below. WARNING If the CO Alarm sounds unexpectedly:- 1. Open Doors and windows to ventilate the room and then leave the premises. 2. Let the fire go out. Purevision Freestanding Issue 02 01/14... -
Page 13: Warnings
(other than "authorised" fuels) have been exempted by an Order made and signed by the Secretary of State or Minister in the devolved administrations. The Fireline Purevision 5kW, 5kW Wide and 8.5kW range have been recommended as suitable for use in smoke control areas when burning wood logs. This is conditional upon fitting the supplied secondary air control limiters and following the wood burning instructions precisely. -
Page 14: Air Controls
7.4.2 Air Wash All Fireline stoves are provided with a sophisticated “air wash” system to assist in keeping the fire as visible as possible and reducing cleaning intervals. This secondary air supply to the stove is controlled through the main single air control. The Clean Air Act air restrictor bracket will deliberately prevent full closure of this control on the Wood side of operation. -
Page 15: Ashpan
For other fuels please contact the manufacturer for advice. Note: Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance. Should any difficulties arise over fuel quality or suitability, consult your local approved fuel merchant. Purevision Freestanding Issue 02 01/14... -
Page 16: Important Notes For Wood Burning
Operation with the primary air controls left open: The single air lever on the Coal – right hand side - can cause excess smoke. The appliance must not be operated with air control lever open on the right side when burning wood or the door left open. Purevision Freestanding Issue 02 01/14... -
Page 17: Notes On Smokeless Fuel (Ancit) Burning
These appliances are approved for intermittent operation on wood (0.75 to 1.5 hour burn cycles) Purevision Freestanding Issue 02 01/14... -
Page 18: Shutting Down
Check all air intakes and outlets within the stove for cleanliness and remove any ash or debris build up by suitable means. Check outside air ventilators and stove air inlets are clean and unobstructed. Only use manufacturers recommended replacement parts on the appliance. Purevision Freestanding Issue 02 01/14... -
Page 19: Maintenance Guide
Removing Door. Remove the stove door opening approximately 30 degrees and lifting away to disengage the hinge pins. It is not necessary to remove the door to clean or remove items from inside the firebox. Purevision Freestanding Issue 02 01/14... -
Page 20: Removing Baffle Plate
2. Next lower the rear edge into the firebox and allow the front of the baffle to slide off the front baffle support brackets. 3. Finally rotate the baffle out of the firebox. Purevision Freestanding Issue 02 01/14... -
Page 21: Removing Firebox Liners & Fuel Retainer
2. Unscrew the operating rod from the underside of the centre rotating grate section using a 10mm AF spanner. 3. Lift out the two grate sections and the operating rod. Purevision Freestanding Issue 02 01/14... -
Page 22: Removing Flue Spigot Collar
2. Unscrew and remove 4 x M4 screws from both left and right upper casing brackets. Remove the brackets from the firebox itself to allow removal of the casing as easily as possible. Purevision Freestanding Issue 02 01/14... -
Page 23: Door Hinge Adjustment
This will adjust the horizontal alignment. For front-back alignment carefully adjust the hinges mounted on the stove body. Check the door seals with a paper strip all around after any adjustment to prove they are still sealing correctly. Purevision Freestanding Issue 02 01/14... -
Page 24: Smoke Control Air Limiter Bracket
2 x screws from bottom of firebox and 2 x screws from rear of firebox, remove locking nuts and air control lever from spindle and lift off the outside air box. Other components can now be removed as required. Purevision Freestanding Issue 02 01/14... -
Page 25: Dimensions
Purevision 5kW Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 02 01/14... -
Page 26: Purevision 5 Wide
Purevision 5kW WIDE Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 02 01/14... -
Page 27: Purevision 8.5
Purevision 8.5kW Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 02 01/14... -
Page 28: Frequently Asked Questions
Output can also be varied by log size and quantity fired. 5 What warranty do I get? Fireline will replace, free of charge, any part that fails (under normal operating conditions) within 12 months of purchase. Consumables such as glass, firebox lining boards or stove rope and adhesives are not guaranteed.
